Hybrid X-Axis Moving Table, Y-Axis Moving Column Submerged Type Linear Motor Wire EDM
Solutions from Absolute Machine Tools
Absolute Machine Tools offers AccuteX wire EDM machines for a wide range of manufacturing requirements, from affordable high-accuracy cutting to large-capacity EDM applications.

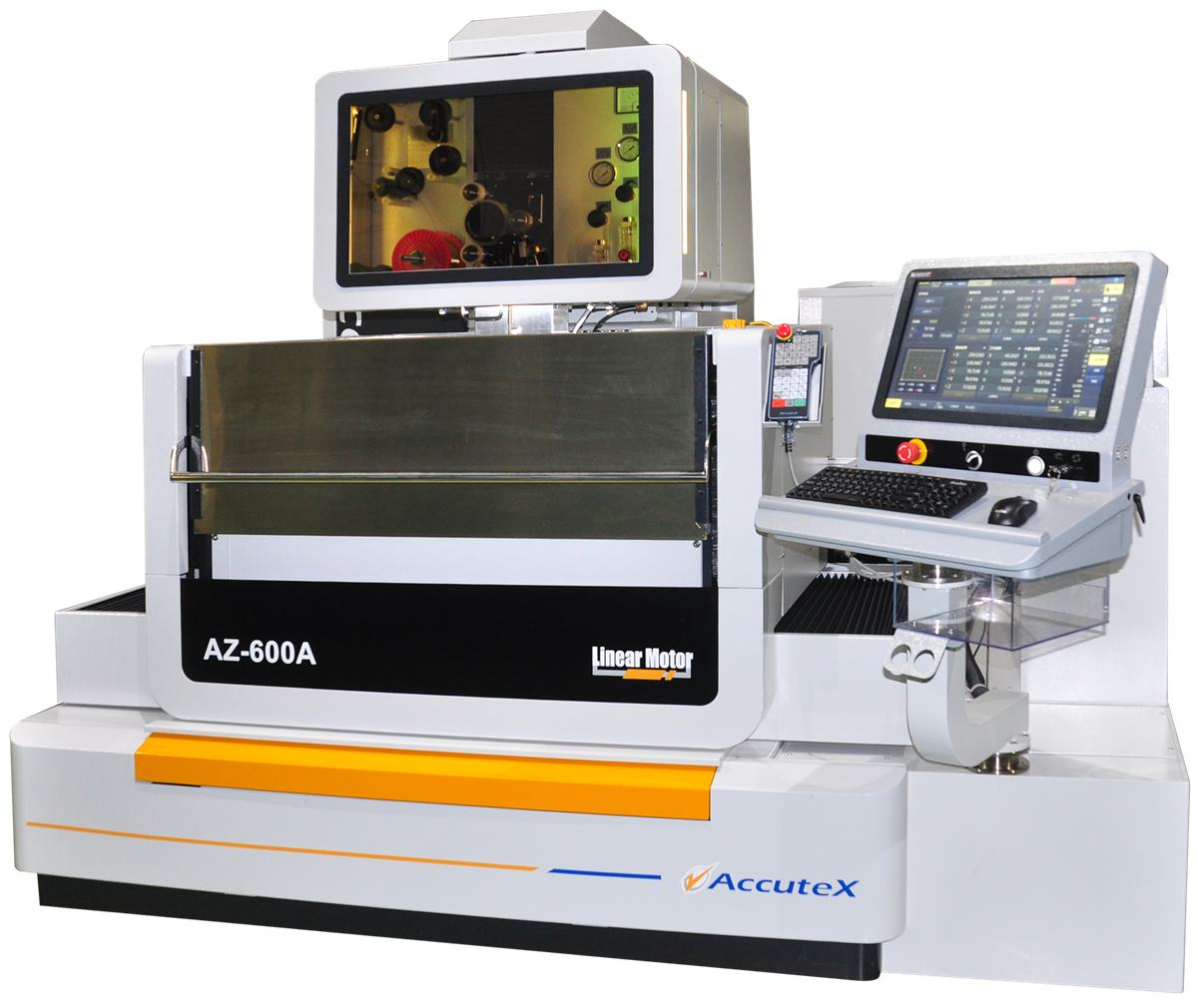

AZ Series
The AccuteX AZ Series is an affordable CNC wire EDM machine engineered for high-accuracy cutting, easier workpiece access, and automation-ready operation. Featuring a 3-sided automatic drop door tank, the AZ Series improves accessibility for loading, setup, and robotic integration compared to traditional tank-style machines.
The AZ Series is equipped with the ueX10 CNC control running on a Windows 10 operating system, giving operators a modern, user-friendly interface for programming, setup, and machine operation. Built with a flat linear motor and 0.1 micron linear scale feedback, the AZ Series delivers precise axis control in a lower-cost platform designed for manufacturers that need reliable EDM accuracy and strong value.
AL Series
The AccuteX AL Series is a moving-table, submerged-type EDM machine featuring a proprietary linear shaft motor for high-performance cutting. Unlike manufacturers that use generic linear motors, AccuteX customizes its linear shaft motor design specifically for EDM applications to support optimized accuracy, servo response, and cutting efficiency.
The AL Series is a strong fit for manufacturers that need submerged cutting performance, repeatable accuracy, and linear motor technology in a heavy-duty wire EDM platform.
AP Series
The AccuteX AP Series is a submerged-type linear motor wire EDM built with a hybrid machine structure. The table moves in the X-axis while the column moves in the Y-axis, keeping the center of gravity located between two linear guideways on the X-axis table for improved stability and accuracy.
Because the X and Y axes are independent, the AP Series helps prevent accumulated stack errors and minimizes deformation using FEA-driven design principles. With bi-directional repeatability of less than 2.5 µm and maximum workpiece loading up to 1,100 kg / 2,425 lbs., the AP Series is designed for manufacturers that need both precision and heavier workpiece capacity.

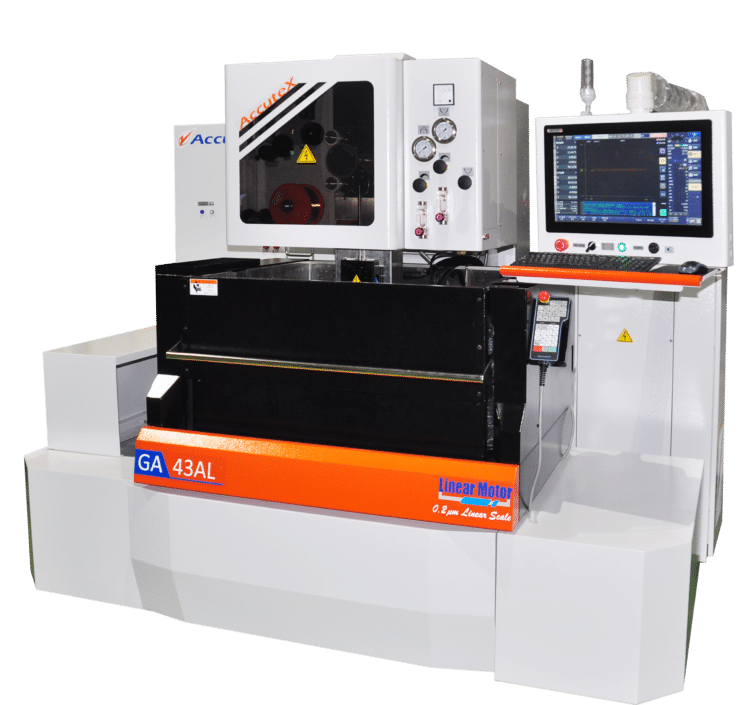

GA Series
The AccuteX GA Series is a moving-table, submerged-type EDM machine designed with a compact footprint. Available in both ballscrew and linear motor configurations, the GA Series gives manufacturers a more affordable wire EDM option while maintaining the accuracy and speed required in today’s manufacturing environments.
The GA Series is well suited for job shops, toolrooms, mold and die shops, and manufacturers that need dependable submerged EDM performance in a smaller machine footprint.

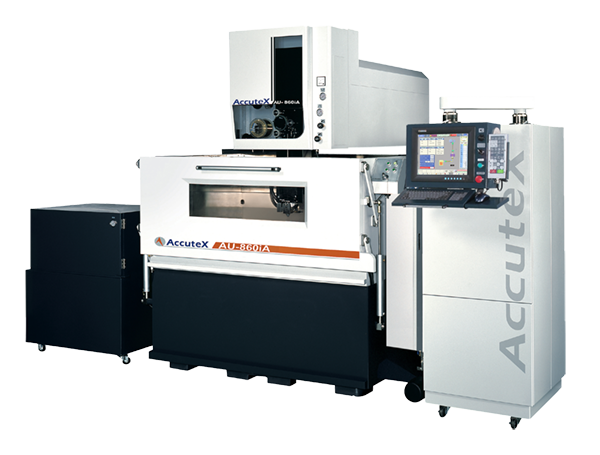

AU-iA Series
The AccuteX AU-iA Series is a moving-column, submerged-type, extra-large-capacity wire EDM machine designed to handle heavy workpieces with exceptional cutting performance and precision. These large-scale submerged wire EDM machines are rare in the market and provide expanded capability for manufacturers cutting oversized or high-value parts.
The AU-iA Series features automatic wire threading over the full stroke of the machine and can accommodate workpieces up to 31.3 inches tall, making it a strong solution for large submerged EDM applications where capacity, accuracy, and reliable wire threading are critical.
AU-i Flushing Series
The AccuteX AU-i Flushing-Type Series features a moving-table design in both the X and Y axes with an open-construction flushing system. Built for oversized workpieces that exceed the capacity of even the largest standard tanks, this series provides maximum flexibility and accessibility for non-submerged EDM cutting applications.
The AU-i Flushing-Type Series is ideal for manufacturers that need wire EDM capability for large, irregular, or oversized parts where open access and part size flexibility are more important than submerged tank construction.
Absolute Machine Tools provides complete EDM support from machine selection through installation, training, applications support, test cuts, time studies, service, and ongoing optimization. Whether you need an affordable wire EDM with a 3-sided automatic drop door tank, a submerged linear motor machine, or a large-capacity flushing-type EDM solution, Absolute’s dedicated EDM team can help match the right AccuteX machine to your parts, materials, and production goals.
