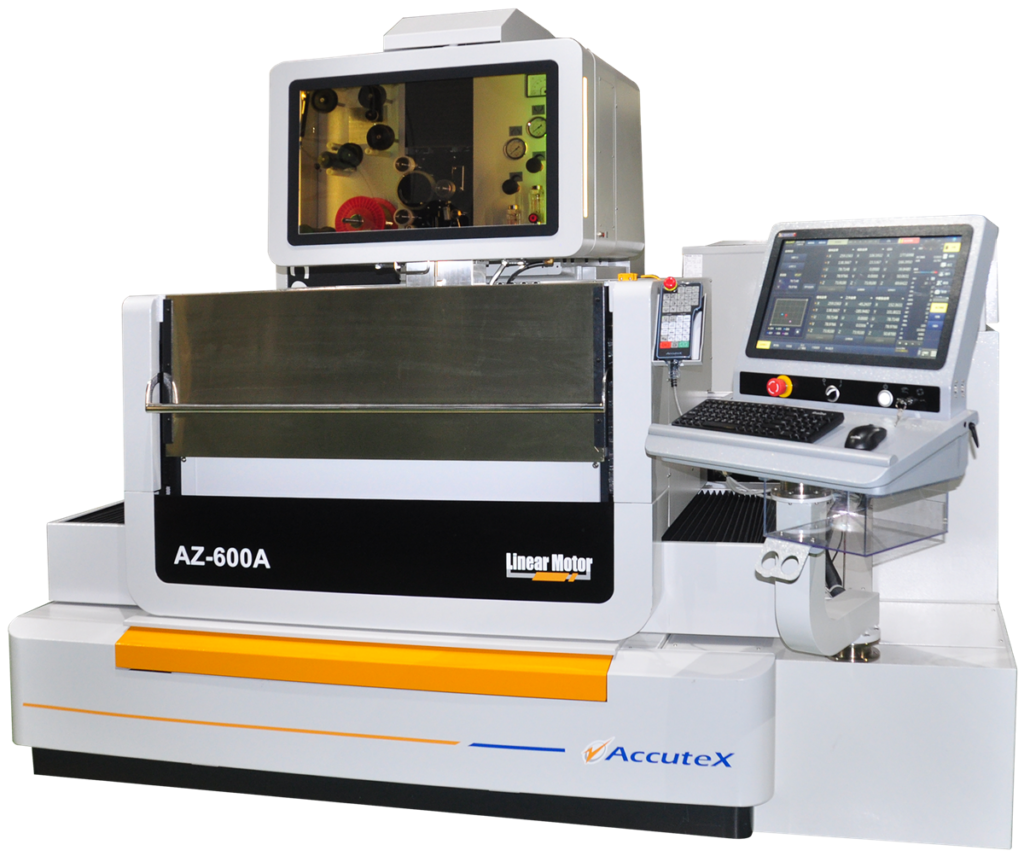

Accutex AZ Series CNC EDM Machine
The Accutex AZ Series is an affordable CNC EDM machine engineered for high-accuracy wire EDM cutting, easier workpiece access, and automation-ready operation. Featuring a 3-sided automatic drop tank, ueX10 CNC control, linear motor technology, and fully closed-loop glass scale feedback, the AZ Series gives mold, die, aerospace, medical, automotive, and precision parts manufacturers a lower EDM machine cost alternative to platforms from Sodick, Makino, and Mitsubishi.

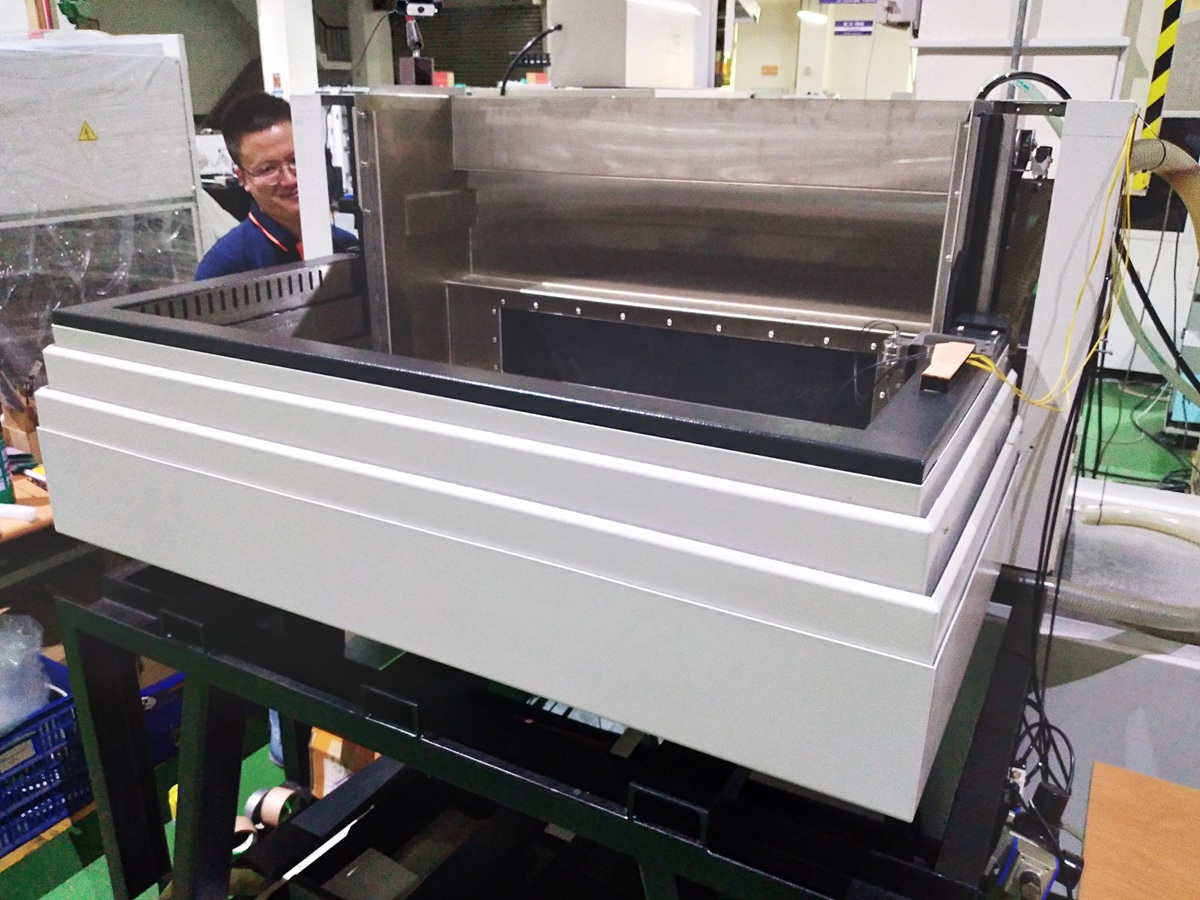

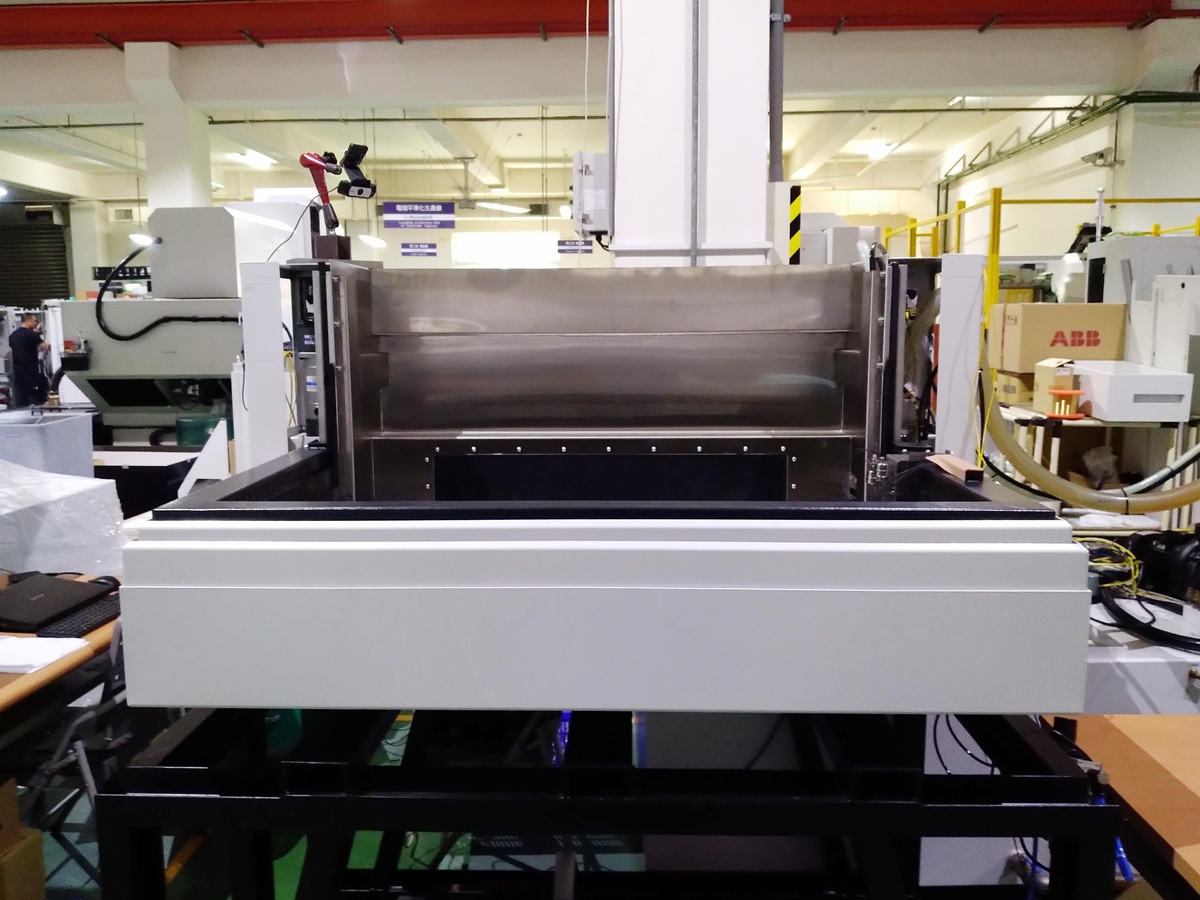

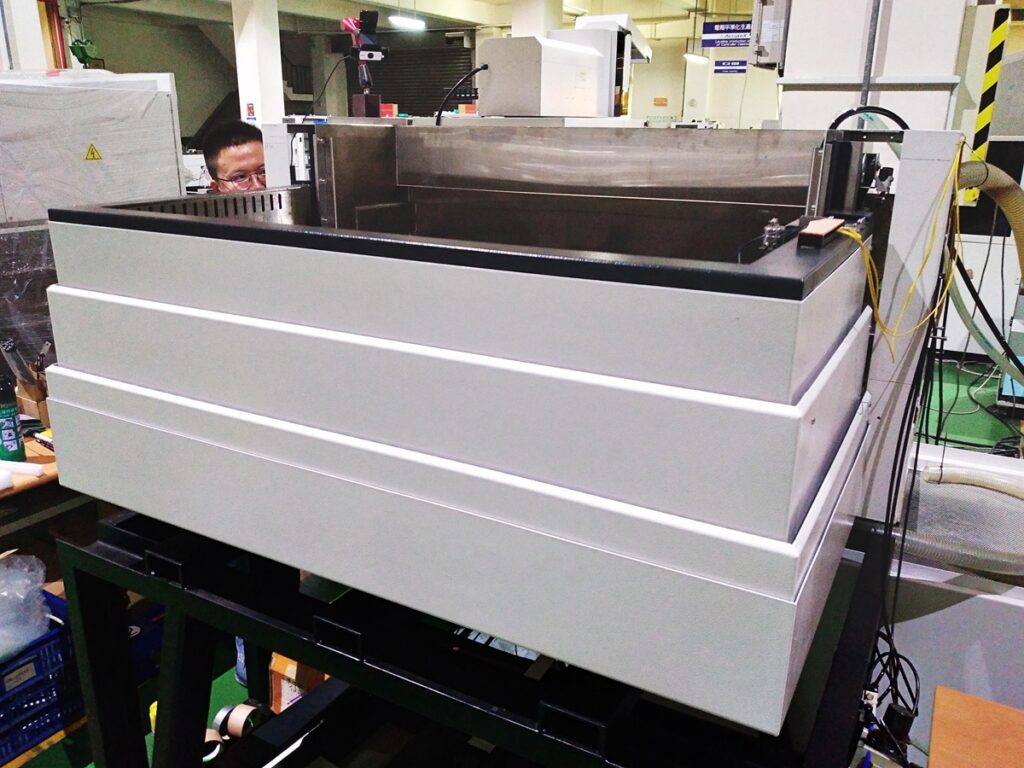

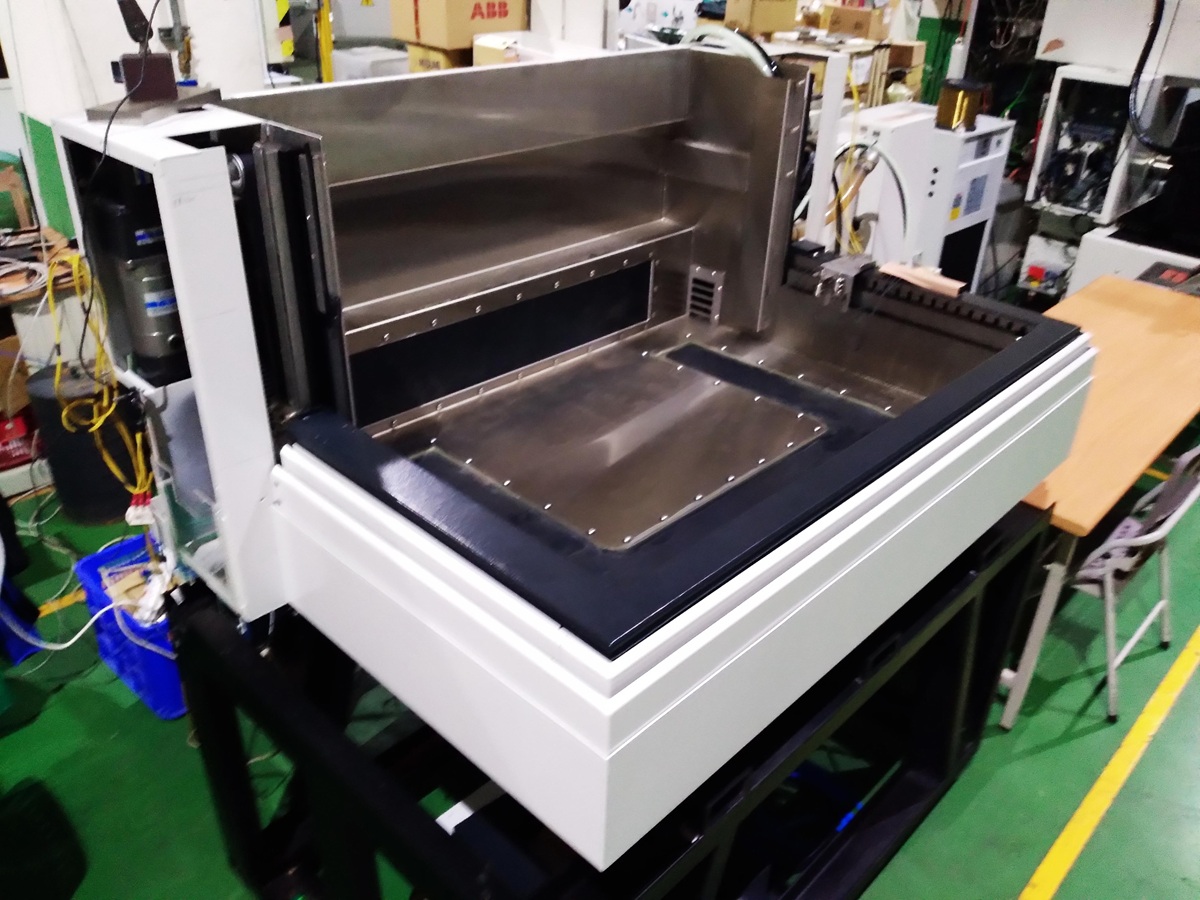

The key advantage of the AZ Series is its 3-sided automatic drop tank, which gives operators full access to the front and sides of the machine for setup, inspection, maintenance, and oversized or irregular workpieces. This design also supports automation by allowing a robot to load and unload from the side of the machine while the operator maintains full access from the front.
Key Features
Absolute Machine Tools offers the Accutex AZ Series for manufacturers that need an affordable CNC EDM machine with modern control technology, precision cutting performance, and easier workzone access. With its 3-sided automatic drop tank, ueX10 CNC control, linear motor technology, and automation-friendly design, the AZ Series gives shops a practical way to expand wire EDM capacity while controlling equipment cost.
Specifications
| Item / Model |
AZ-400A
Request a Quote
|
AZ-600A
Request a Quote
|
|---|---|---|
|
X Axis Travel |
15.7″ |
23.62″ |
|
Y Axis Travel |
11.8″ |
15.74″ |
|
Z Axis Travel |
10.6″ |
11.8″ |
|
U Axis Travel |
6.3″ |
6.3″ |
|
V Axis Travel |
6.3″ |
6.3″ |
|
Table Feed Rates |
40 IPM |
40.0 IPM |
|
Max. Taper Angle |
±32° |
±45° |
|

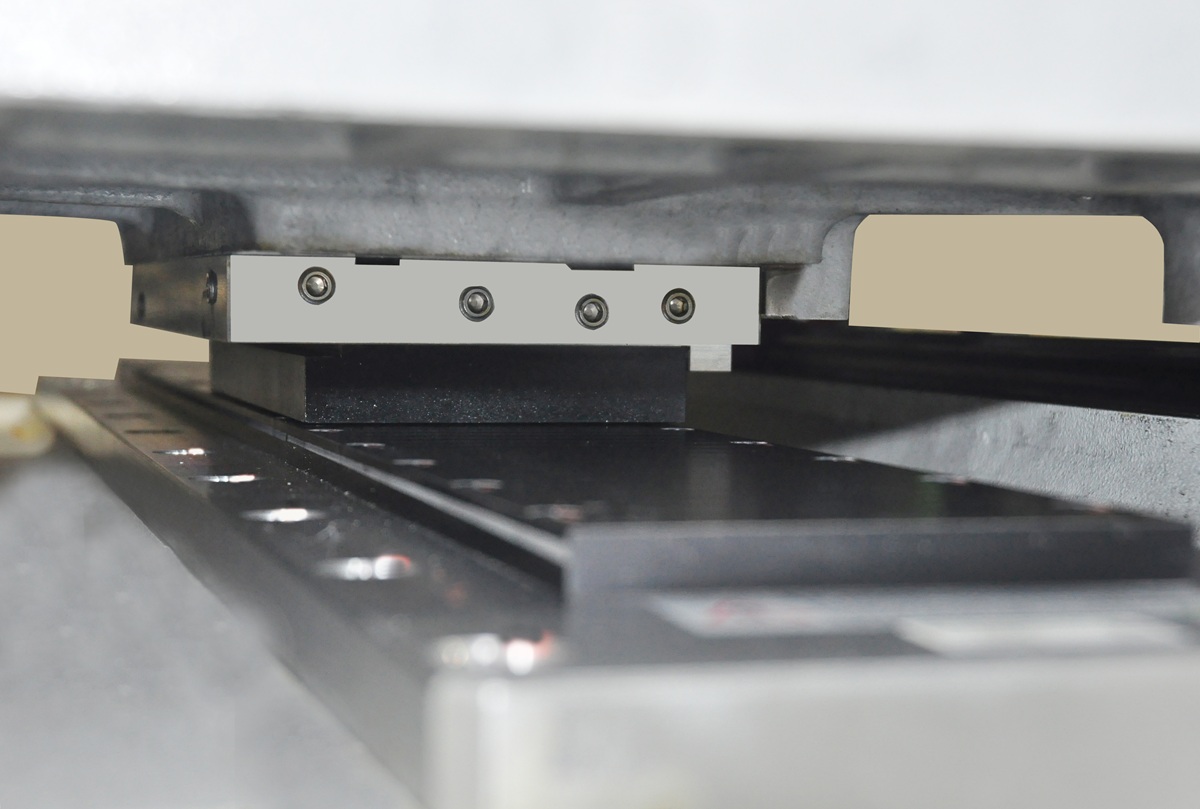

Axis Drive Motor |
Linear Shaft Motor |
Linear Shaft Motor |
|
Max. Workpiece Size (XYZ) |
33.5″ x 26.6″ x 10.4″ |
41.33″ x 30.51″ x 11.61″ (12.59″ opt.) |
|
Max. Workpiece Weight |
882 lbs. |
3,450 lbs. |
|
Wire Diameter |
0.006″ – 0.013″ |
0.006″ – 0.013″ (0.002″ ~ 0.004″ opt.) |
|
Wire Spool Feed Rate |
60 – 787 IPM |
60 – 787 IPM |
|
Wire Tension |
300 – 2,200 grams |
300 – 2,200 grams |
|
Start Hole Diameter |
∅ 0.0150″ |
∅ 0.0150″ |
|
Max. Wire Spool Weight |
35.2 lbs. |
35.2 lbs. |
|
Positioning Accuracy |
±0.00010″ |
±0.00010″ |
|
Repeatability (XY) |
±0.00008″ |
±0.00008″ |
|
Total Power Required |
15 KVA |
15 KVA |
|
Deionized Resin Tank |
1035 1.0 cu/ft (2) Fiberglass Bottles |
1035 1.0 cu/ft (2) Fiberglass Bottles |
|
Tank Capacity |
193 Gallons |
284 Gallons |
|

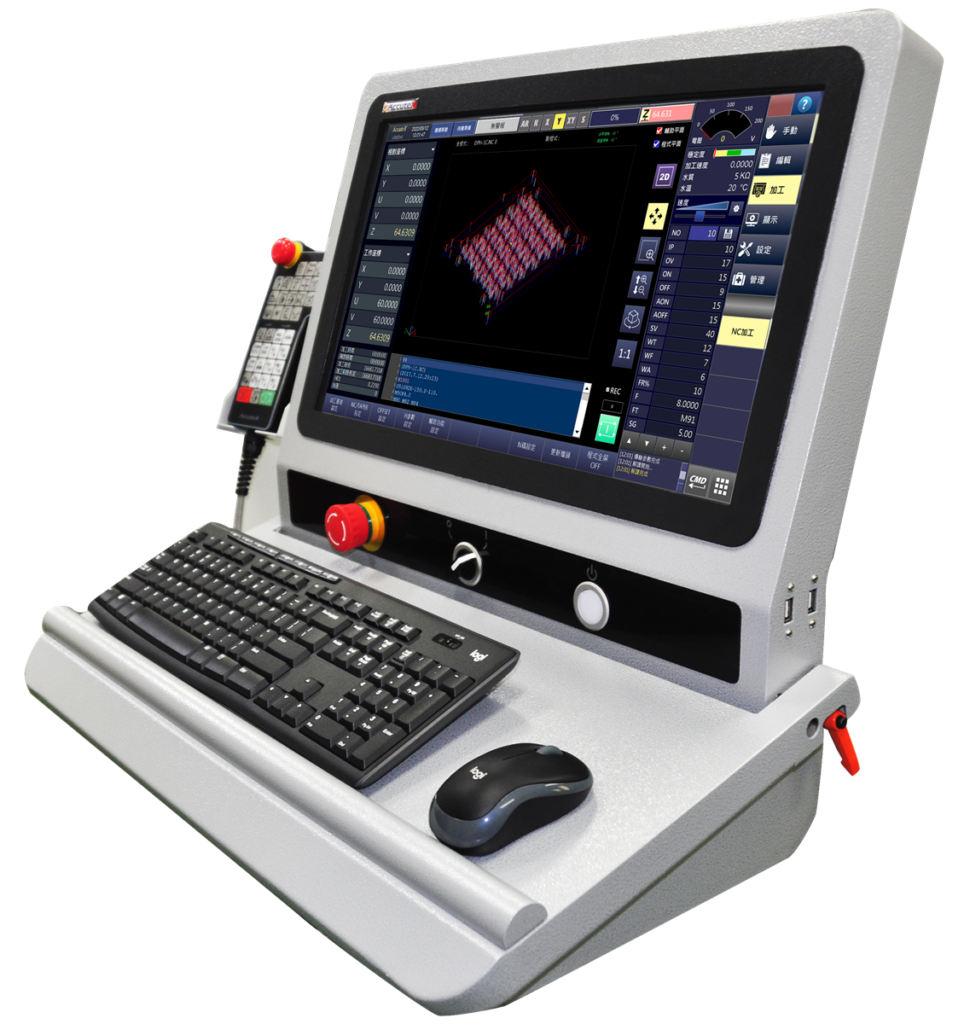

CNC Control Screen |
21.5″ Color Touch Screen |
21.5″ Color Touch Screen |
|
CNC Control Device |
64-Bit Windows 10 HMI, Linus Motion Control |
64-Bit Windows 10 HMI, Linus Motion Control |
|
Floor Space |
84.5″ x 108.3″ x 88.6″ |
118″ x 126″ x 89″ (96″ opt.) |
|
Weight |
7,716 lbs. |
9,460 lbs. |
Benefits for Metal Cutting Manufacturers
The Accutex AZ Series helps manufacturers add affordable wire EDM capacity without sacrificing the control technology, machine stability, and accuracy required for precision cutting. Its linear motor drive system, fully closed-loop glass scale feedback, and ueX10 CNC control support reliable machining performance for toolrooms, mold shops, die shops, and precision parts manufacturers.
The 3-sided automatic drop tank improves daily operation by making setups, inspections, workholding changes, and maintenance more accessible. Operators can reach the workzone from the front or either side of the machine, which is especially helpful when handling larger fixtures, irregular workpieces, or jobs that require more open access than a traditional front-loading EDM machine provides.
For shops evaluating EDM machine cost, the AZ Series provides a practical CNC EDM machine solution with advanced features typically associated with higher-priced wire EDM platforms. Manufacturers gain high accuracy, stable cutting, fine surface finish capability, cycle time reduction, and reliable unattended operation in a more affordable machine package.
