APEC GM Series 5-Axis Large-Format High-Speed Gantry Machining Center for Stamping Dies & Molds

Gm-Series

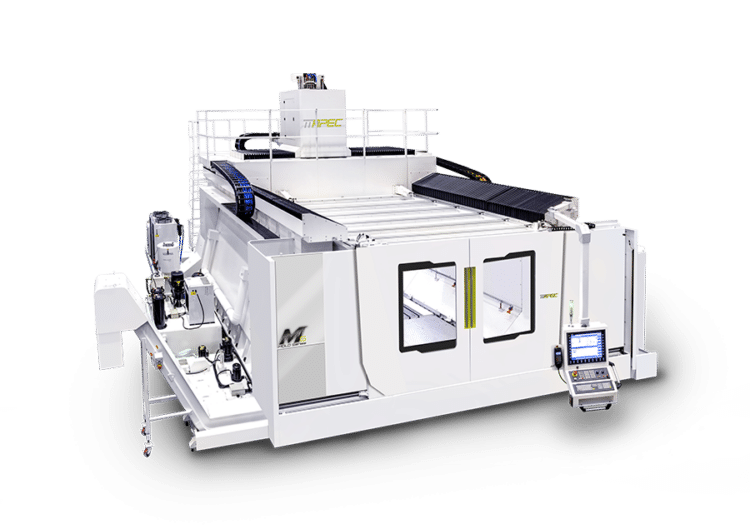

The APEC GM Series is a large-format 5-axis gantry machining center engineered for large stamping dies, precision molds, and oversized industrial components. Built with a box-in-box symmetrical structure and driven by linear motors, the GM Series ensures stability, rigidity, and high-speed accuracy across long travels. Competing directly with European builders such as Fidia, Parpas, and Zimmerman, the GM Series offers unmatched precision, cycle time reduction, and surface quality for die & mold, automotive, energy, and aerospace applications.

Compare the G and GM Series

Benefits for Metal Cutting Manufacturers

The APEC GM Series provides manufacturers with the ideal balance of high rigidity and high-speed precision, ensuring performance and repeatability in machining large dies, molds, and heavy structural components. Its advanced thermal management, low center of gravity, and direct drive head allow shops to maintain both productivity and quality, even on complex 5-axis machining tasks.

  • Rigidity & Stability: Box-in-box design and casting-made base ensure rigidity for large stamping dies and molds.
  • High Accuracy: Linear motor drives minimize backlash and ensure smooth axis motion for precision cuts.
  • Surface Finish Quality: Direct drive head and advanced coolant systems produce ultra-fine finishes on mold cavities and die surfaces.
  • Cycle Time Reduction: Rapid feed rates up to 60 m/min improve throughput for large parts and tooling.
  • Reliability in Production: Hollow water-cooled ball screws and thermal compensation keep accuracy stable during extended operations.

For die & mold, automotive, energy, and aerospace shops, the GM Series delivers long-term value by reducing scrap, extending tool life, and ensuring parts meet the highest industry standards.

Key Features

  • Box-in-Box Symmetrical Gantry Design – Balances cutting forces, reduces deflection, and maintains high rigidity.
  • Linear Motor Drives (X/Y/Z) – Provides ultra-fast axis motion up to 60 m/min with high acceleration and smooth contouring.
  • Dual Ball Screws with Hollow Water Cooling (Z-Axis) – Ensures concentric motion and thermal stability during vertical machining.
  • Casting-Made Saddle, Ram, and Base – Enhances vibration damping and long-term structural accuracy.
  • Direct Drive 2-Axis Head – High torque, compact design ideal for complex 5-axis mold and die contouring.
  • Closed-Loop Counterbalance System – Maintains rigidity by offsetting gravitational load on vertical axes.
  • Heightened Column with Extended Z Travel – Accommodates large stamping dies, molds, and tall aerospace structures.
  • Efficient Chip Evacuation & Coolant Systems – Keeps cutting zones clear, ideal for long cutting cycles in die & mold machining.
  • Fully Enclosed Work Zone – Improves safety, chip containment, and clean operation.

Ideal Cutting Applications

  • Large Stamping Dies & Tooling – Automotive and appliance dies, precision forming tools, and press dies.
  • Injection & Compression Molds – Large plastic injection molds, die-casting molds, and rubber compression molds.
  • Precision Machining for Energy & Transportation – Oversized turbine hubs, locomotive components, and heavy industrial castings.
  • Aerospace Structures – Thin-wall aluminum structures such as bulkheads, ribs, fuselage frames, and engine housings.
  • Complex 5-Axis Contouring – High-speed machining of mold cavities, curved surfaces, and high-precision contours.

Specifications

Print View Full Screen
Item / Model
GM2530/40/50/60/80 Request a Quote
GM3240/50/60/80 Request a Quote
GM4050/60/70/80 Request a Quote

X-Axis

118.11″/157.48″/196.85″/236.22″/314.96″

157.48″/196.85″/236.22″/314.96″

196.85″/236.22″/275.59″/314.96″

Y-Axis

98.43″

125.98″

157.48″

Z-Axis

39.37″

39.37″

39.37″

Table Length

157.48″/196.85″/236.22″/314.96″

157.48″/196.85″/236.22″/314.96″

196.85″/236.22″/275.59″/314.96″

Table Width

98.43″

118.11″

149.61″

Max Table Load

161.57 lb/ft²

161.57 lb/ft²

161.57 lb/ft²

Rapid Traverse

XYZ=196.85’/min

XYZ=196.85’/min

XYZ=196.85’/min

X/Y/Z Axis Acceleration

16.40′-26.25’/sec²

16.40′-26.25’/sec²

16.40′-26.25’/sec²

Spindle Taper

HSK-63A

HSK-63A

HSK-63A

Spindle Speed

24,000 RPM

24,000 RPM

24,000RPM

Spindle Power

46.93/56.33 HP

46.93/56.33 HP

46.93/56.33 HP

Spindle Torque

41.04/49.57 ft. lbs.

41.04/49.57 ft. lbs.

41.04/49.57 ft. lbs.

Recommended 2-Axis Head

Fork Type Milling Head

Fork Type Milling Head

Fork Type Milling Head

Swivel/Rotation Speed

B=C=30(cont)/60(max) RPM

B=C=30(cont)/60(max) RPM

B=C=30(cont)/60(max) RPM

Swivel/Rotation Torque

B=879.77/1,466.82 ft. lbs. C=774.08/1,284.68 ft. lbs.

B=879.77/1,466.82 ft. lbs. C=774.08/1,284.68 ft. lbs.

B=879.77/1,466.82 ft. lbs. C=774.08/1,284.68 ft. lbs.

Swivel/Rotation Angle

HSK63A：B=±120° C=±360°
HSK100A：B=±115° C=±360°

HSK63A：B=±120° C=±360°
HSK100A：B=±115° C=±360°

HSK63A：B=±120° C=±360°
HSK100A：B=±115° C=±360°

Clamping Torque

B=2,948.12 ft. lbs. C=2,948.12 ft. lbs.

B=2,948.12 ft. lbs. C=2,948.12 ft. lbs.

B=2,948.12 ft. lbs. C=2,948.12 ft. lbs.

Tool Shank

20T pieces

20T pieces

20T pieces

Max Tool Length

11.81″

11.81″

11.81″

Max Tool Diameter with Adjacent Tool

Ø0.23″

Ø0.23″

Ø0.23″

Max Tool Diameter without Adjacent Tool

Ø0.28″

Ø0.28″

Ø0.28″

Weight

168,000 lbs.

168,000 lbs.

168,000 lbs.

Category

APEC G Series

APEC GM Series

Core Function

Large-format 5-axis gantry machining for oversized aerospace structures & large injection molds

Large-format 5-axis gantry machining for large stamping dies, molds, and oversized industrial components

Structural Design

U-shape one-piece casting with ductile iron ram for rigidity & vibration damping

Box-in-box symmetrical structure with low center of gravity for rigidity & thermal stability

Best For

Aerospace aluminum structures, thin-wall parts, and large injection molds

Large stamping dies, precision molds, oversized industrial parts with secondary aerospace capability

Spindle

High-speed 20k–24k rpm or high-torque spindle options

High-speed 20k–24k rpm or high-torque spindle options

Drive System

Linear motors (X/Y) + dual water-cooled ball screws (Z)

Linear motors (X/Y/Z) + dual water-cooled ball screws (Z)

Highlight Advantage

Accuracy through rigidity — ideal for aerospace thin-wall structures & heavy molds

Accuracy through speed & stability — optimized for stamping dies & large mold machining
