Tongtai Automation – Compact & Complete

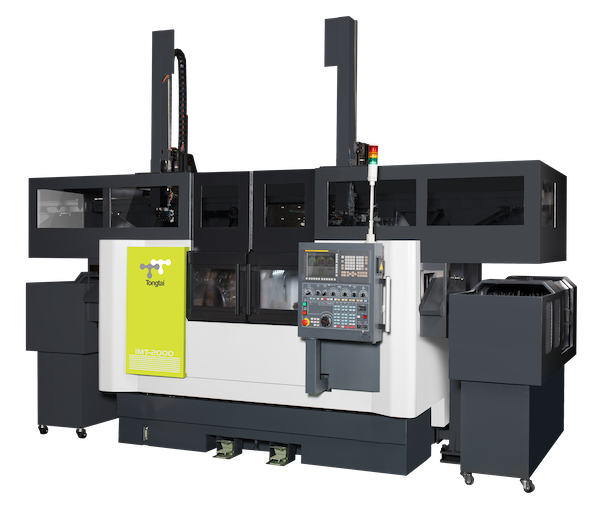

Lightning Fast Unattended Mass-Production of Parts – Dual Gantry MT Series
Tongtai’s MT Series was designed around customer demands for built-in automation in high productivity environments. It was built with individual machining zones for machining two completely different parts within one machine and includes twin spindles and twin gantry loaders/unloaders armed with dual grippers for fast loading and unloading of blanks and finished parts. Features two 14 pallet work stocker systems on either side of the machine while the two 3-axis gantry robots travel at up to 6300”/minute and can index the rotary axes 180° in only 1 second, contributing to a load/unload time inside the machine of only 5 seconds.
Production Machining in a Compact Footprint Design – HS Series with Side Auto Loader
Tongtai’s HS Series is a uniquely designed high speed 30° slant bed turning center built strong with box ways and large servo motors for super accurate positioning. It is equipped with a 12-station bi-directional turret providing .45 second indexing to the adjacent tool and 1.8 seconds to the 180° opposite tool station. The HS-22 was designed with a unique automated loading/unloading system that loads from the side. Part swap time is only 4.8 seconds inside the machine, while a 14-pallet work stocker is built into the system to enable long periods of unattended operations.
VTX-5 Drill/Tap Center & OB7 Cobot for $99,900
Absolute has created an ABSOLUTELY AFFORDABLE cost-effective solution by bundling the Tongtai VTX-5 with the OB7 cobot from Productive Robotics. The Tongtai VTX-5 is a lightning fast compact machining center equipped with a 21-station turret-type tool changer that can change tools in 1.4 seconds with only 1.9 seconds chip to chip, thanks to the 2362”/min rapid traverse in all axes.
A standard 7.5 HP 12,000 RPM direct drive spindle provides rigid tapping speeds up to 6,000 RPM. A 24,000 RPM spindle is perfect for aluminum and magnesium parts, as well as graphite. It’s partner, the OB7 cobot, is the only true 7-axis cobot in the world. The 7th axis eliminates positioning it in front of the machine’s door—blocking the operator. Instead, place it to the side and the 7th axis will reach around into the machine to load and unload parts.
Contact Absolute Machine Tools Today
Automation is key to overcoming the challenges faced by today’s manufacturers. Absolute Machine Tools is here to partner with you to find affordable, cost-effective engineered solutions to maximize efficiency and increase productivity. Contact us today to learn more.
