- $100,000 sale price
- Buyer responsible for removal (rigging) & freight out
- Roughly (12) Turning tool holders

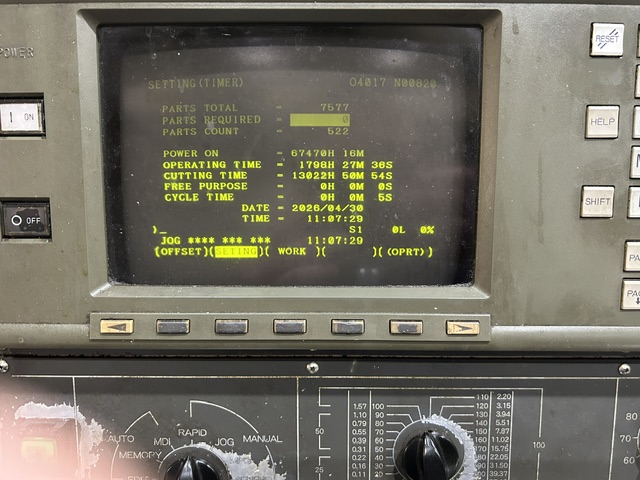

- 13,000 cutting hours
Capacity & Table

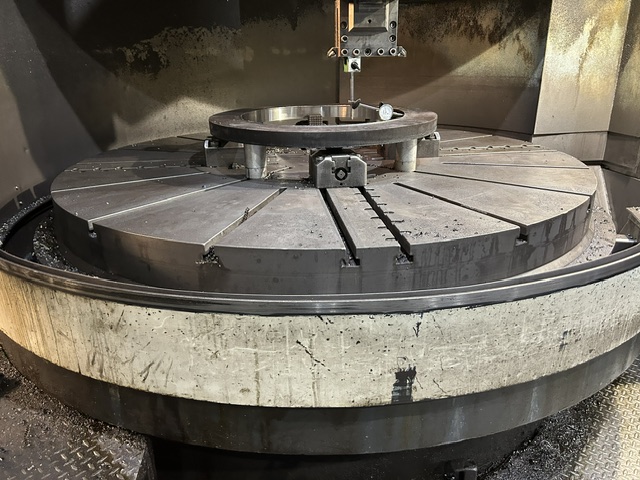

- Table Diameter: 78.7 inches (2,000 mm)
- Maximum Swing: 93 to 94.5 inches (2,360 to 2,400 mm)
- Maximum Cutting Height: 59 to 61 inches (1,500 to 1,550 mm)
- Maximum Workpiece Weight: 33,000 lbs (approx. 15,000 kg)
Spindle & Drive
- Table Speeds: 1 to 200 RPM (infinitely variable, 2-gear ranges)
- Main Spindle Motor: 60 HP (45 kW) AC
- Maximum Cutting Torque: 11,250 ft-lbs (15,253 Nm)
Travel & Feeds
- X-Axis (Rail Head Travel): 53.1 inches (1,350 mm)
- Z-Axis (Ram Travel): 35.4 inches (900 mm)
- Cross Rail Vertical Travel: 41.3 inches (1,050 mm)
- Rapid Traverse (X / Z): 393 IPM / 295 IPM (10,000 / 7,500 mm/min)
Tooling
- Tool Shank: BT-50
- ATC (Automatic Tool Changer): 12 stations
- Maximum Tool Weight: 110 lbs (50 kg)
Physical & Control
- CNC Control: Fanuc
- Machine Weight: Approx. 48,000 to 49,000 lbs (21,700 to 22,200 kgs)
