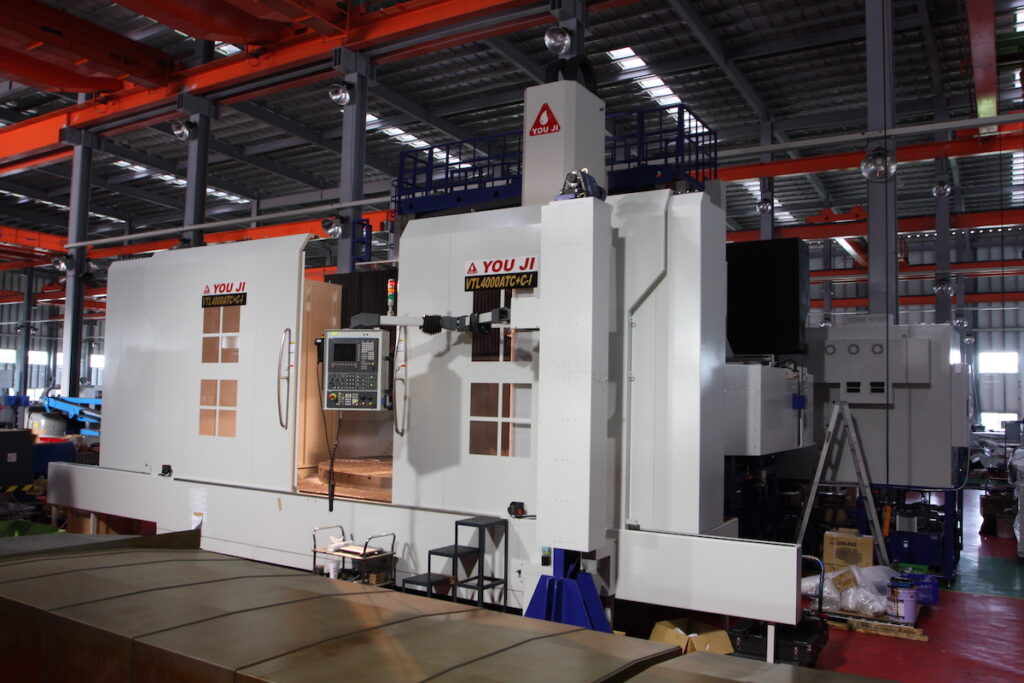

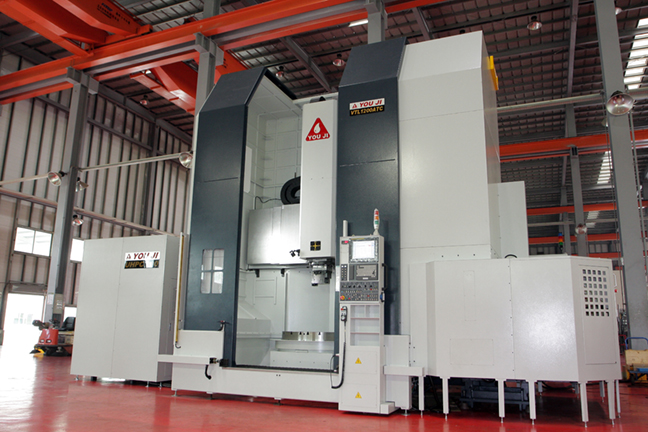

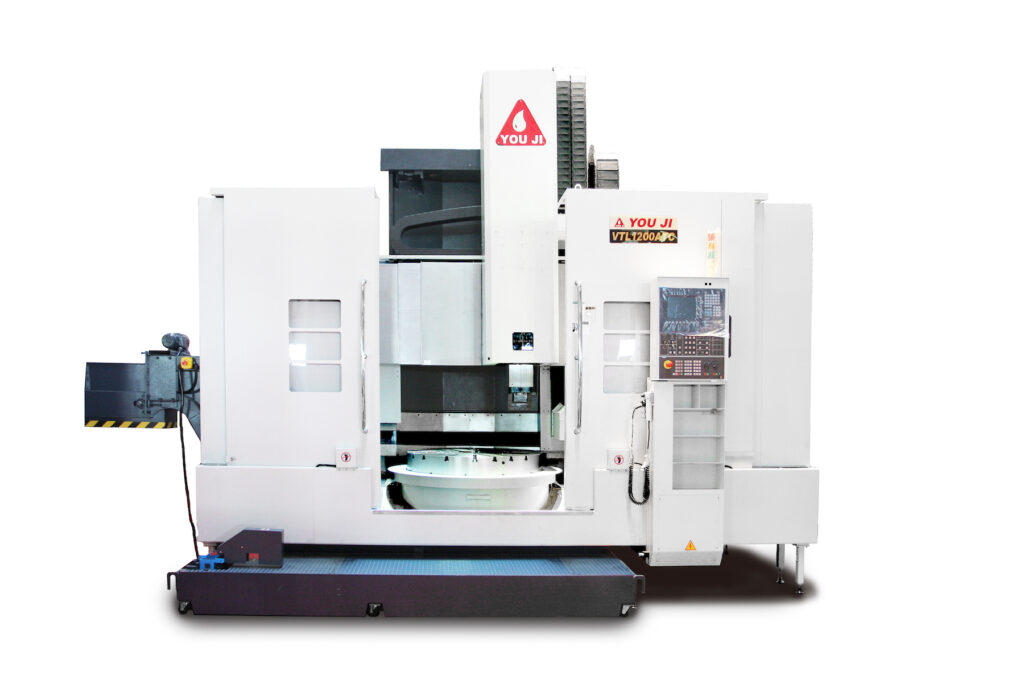

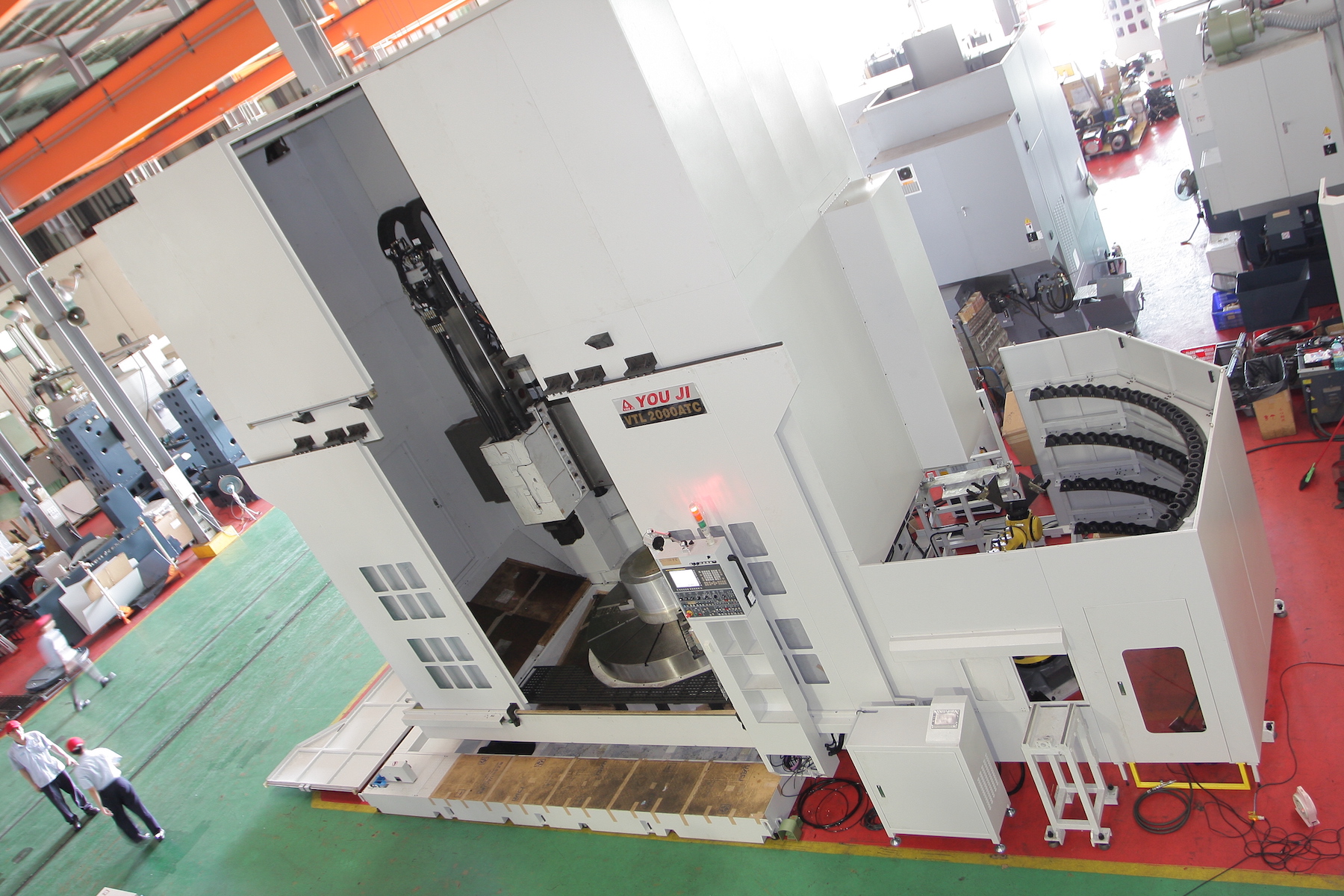

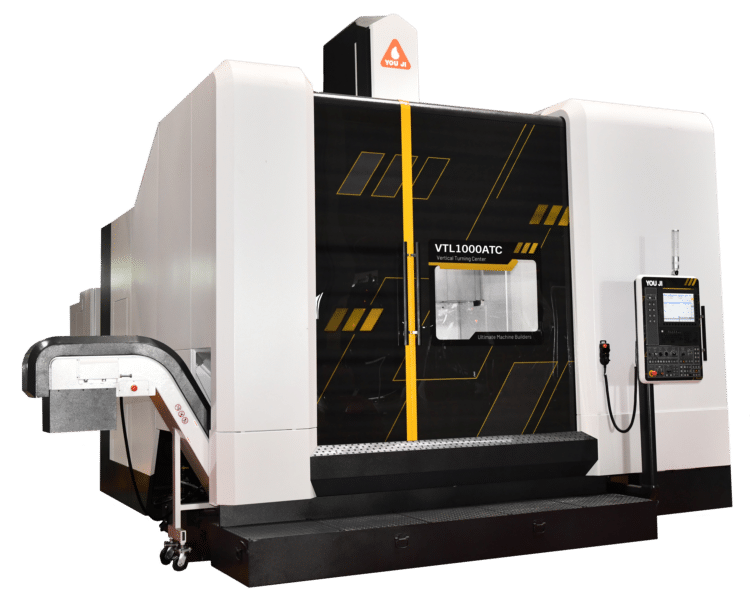

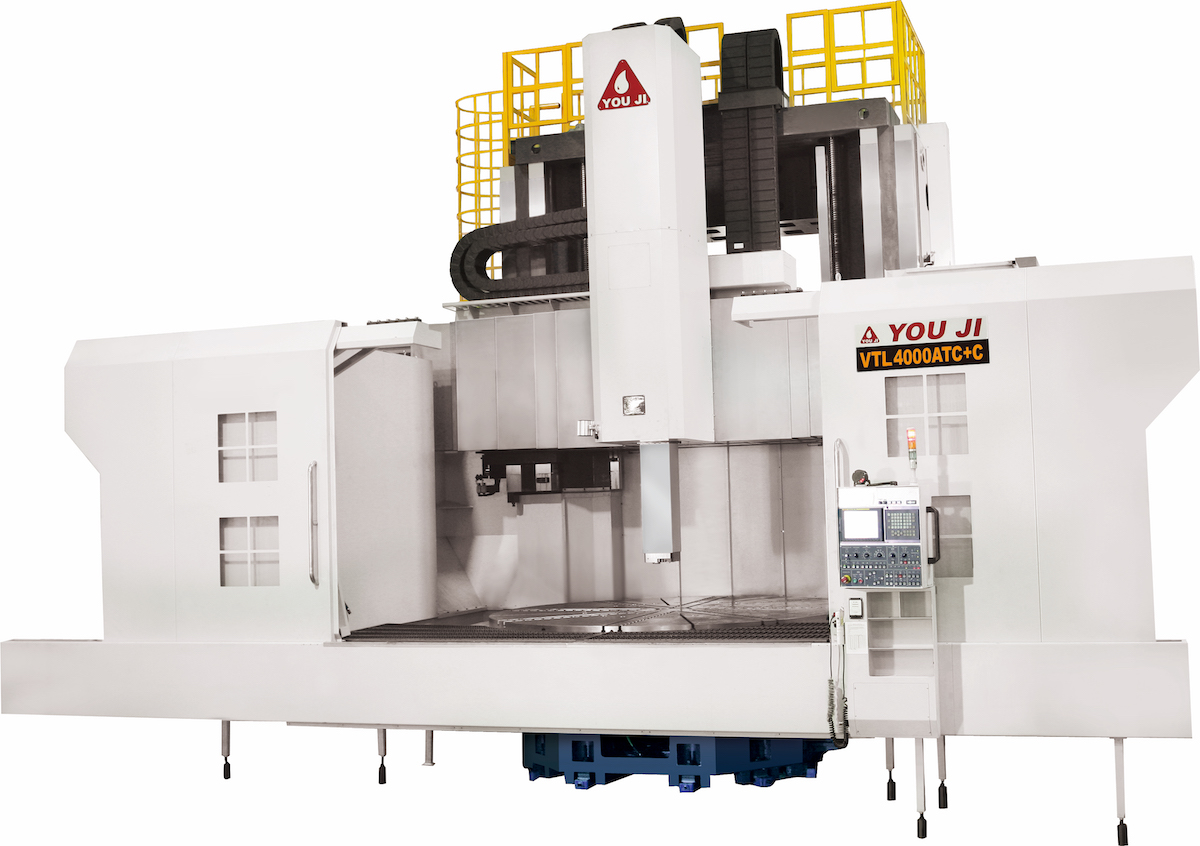

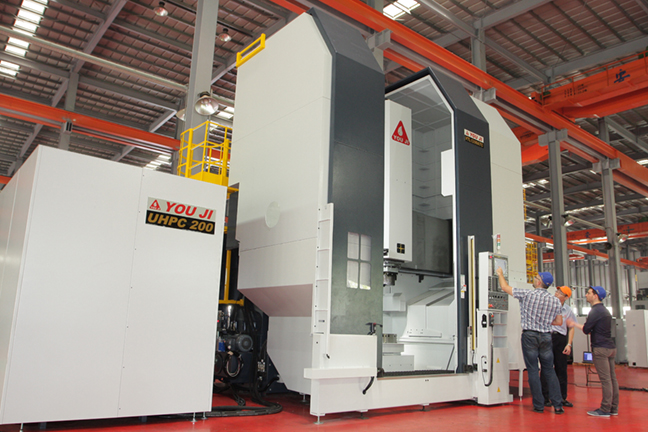

SPECIFICATIONS

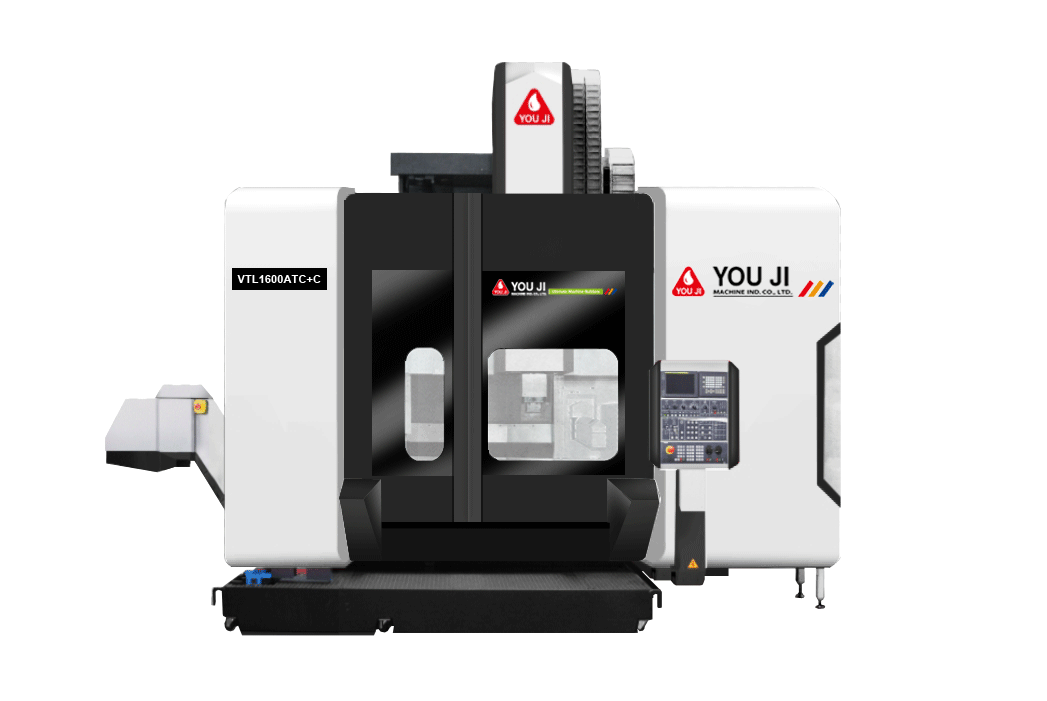

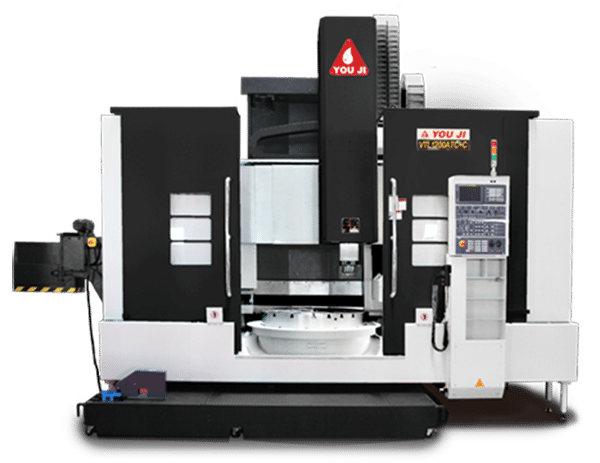

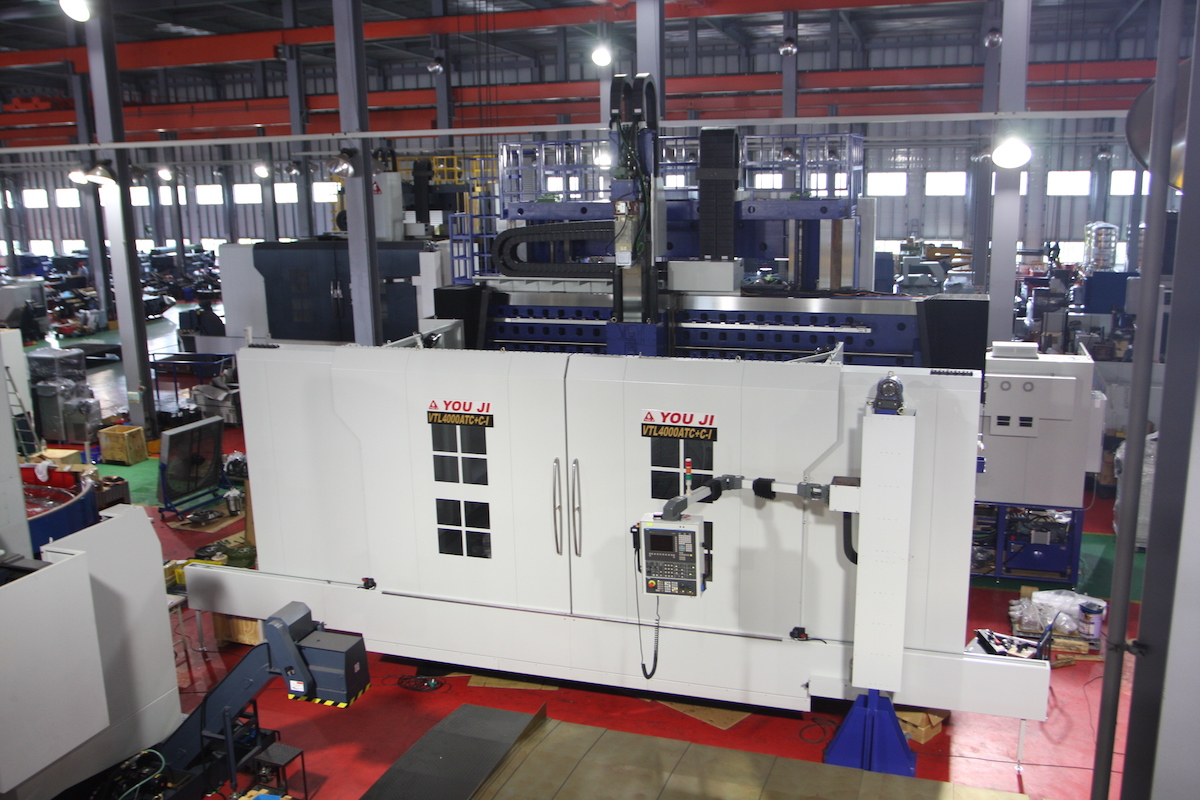

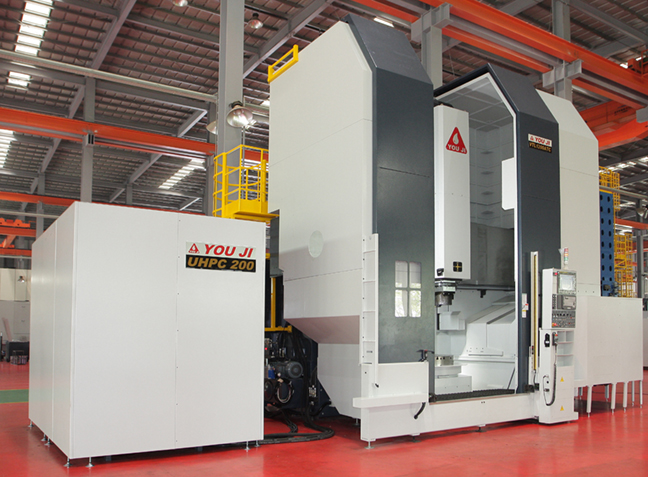

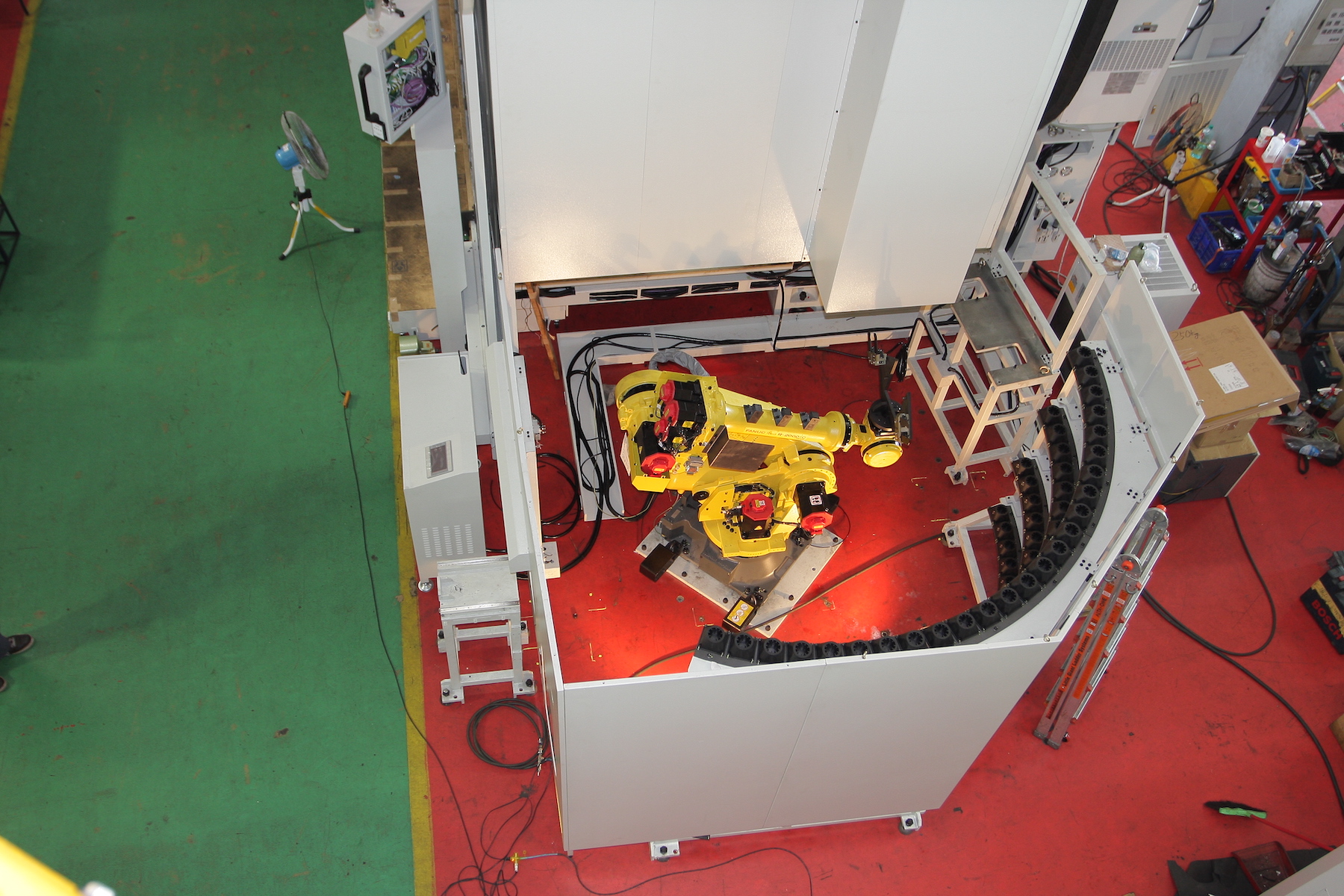

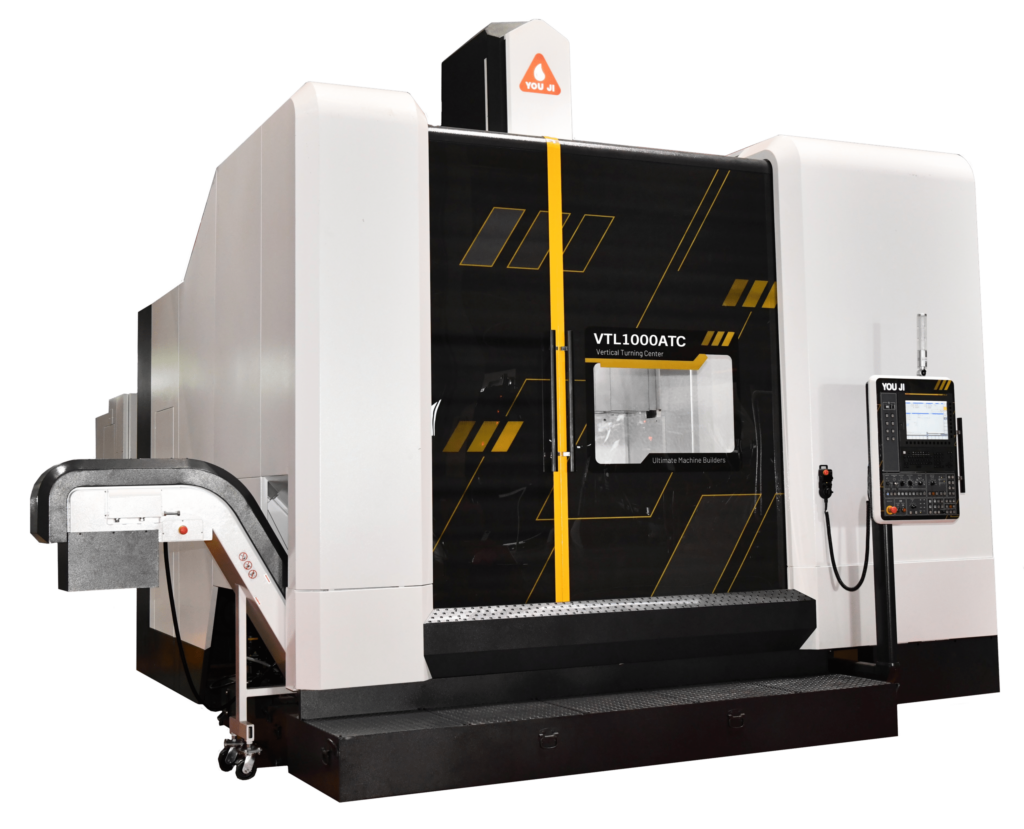

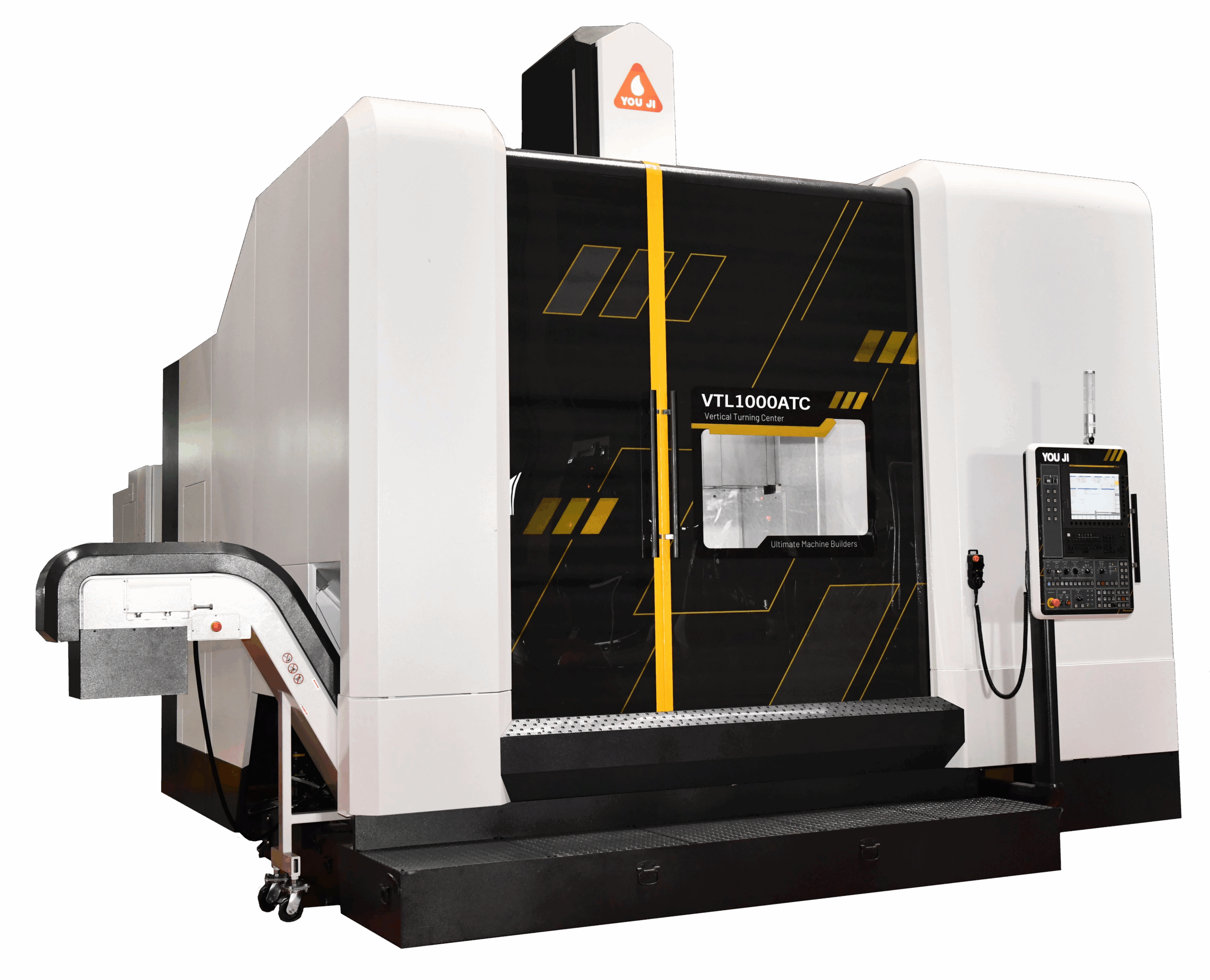

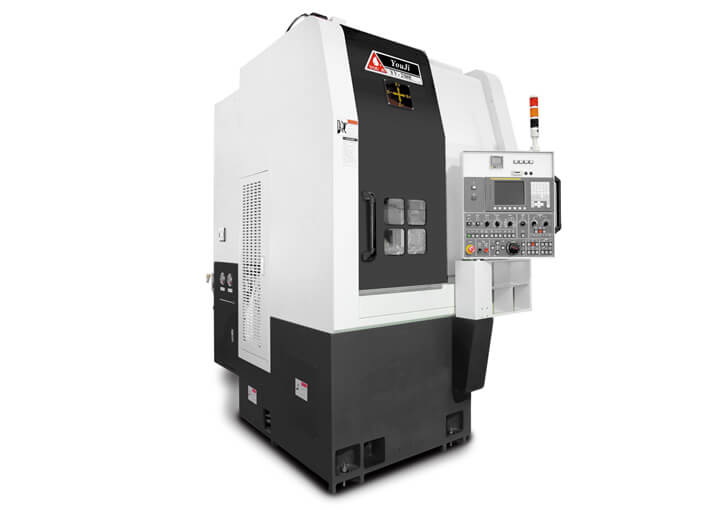

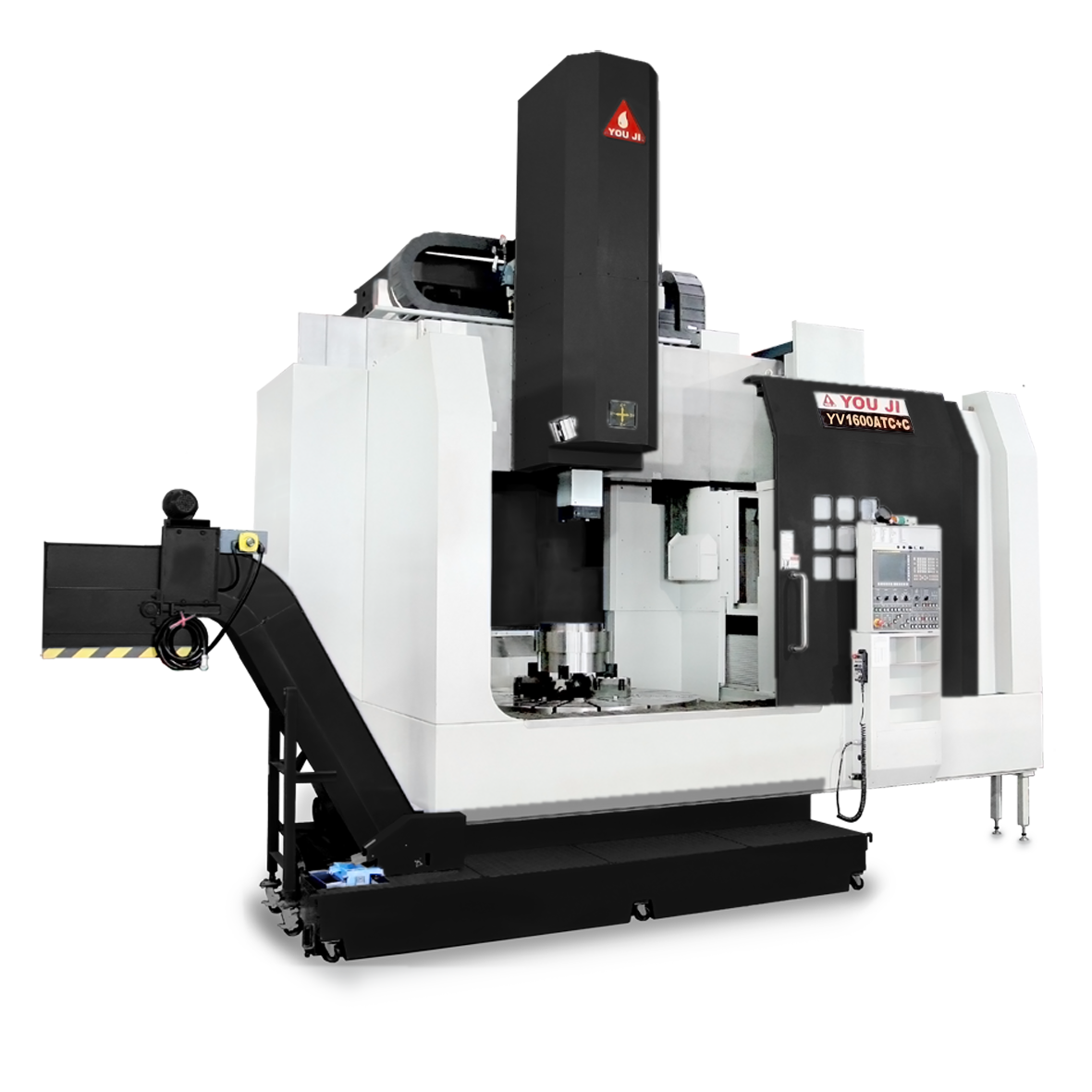

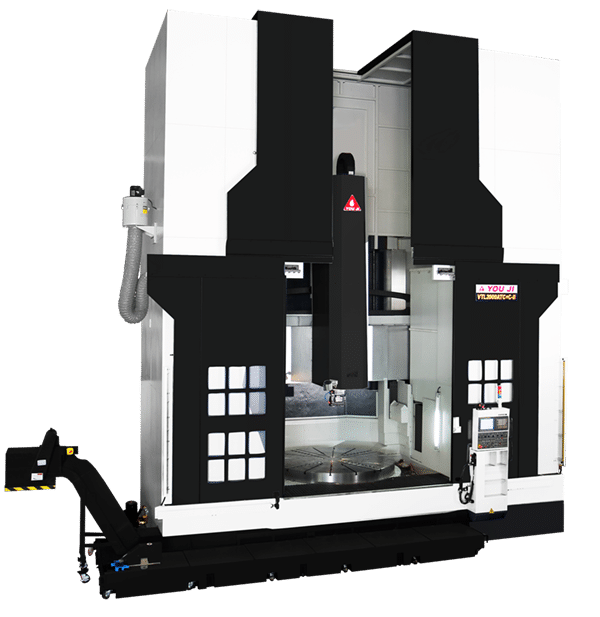

Item / Model VTL-800ATC VTL-1000ATC YV-1000ATC YV-1200ATC YV-1600ATC VTL-1200ATC VTL-1200ATC-I VTL-1200ATC-II VTL-1600ATC VTL-1600ATC-I VTL-1600ATC-II VTL-2000ATC VTL-2000ATC-I VTL-2000ATC-II VTL-2500ATC VTL-2500ATC-I VTL-2500ATC-II VTL-3000ATC VTL-3000ATC-I VTL-3000ATC-II VTL-3500ATC VTL-3500ATC-I VTL-3500ATC-II VTL-4000ATC VTL-4000ATC-I VTL-4000ATC-II VTL-4500ATC VTL-4500ATC-I VTL-4500ATC-II
Request a Quote Request a Quote Request a Quote Request a Quote Request a Quote Request a Quote Request a Quote Request a Quote Request a Quote Request a Quote Request a Quote Request a Quote Request a Quote Request a Quote Request a Quote Request a Quote Request a Quote Request a Quote Request a Quote Request a Quote Request a Quote Request a Quote Request a Quote Request a Quote Request a Quote Request a Quote Request a Quote Request a Quote Request a Quote
Table Size (in.) 24 / 32 40 40 49 63 49 49 49 63 63 63 79 79 79 98 98 98 118 118 118 138 138 138 157 157 157 177 177 177
Max Swing (in.) 43.3 53.1 53.1 63 79 63 63 63 79 79 79 98 98 98 118 118 118 138 138 138 177 177 177 185 185 185 197 197 197
Std. Cutting Dia. (in.) 41 43.3 43.3 55 71 55 55 55 71 71 71 91 91 91 110 110 110 134 134 134 157 157 157 173 173 173 189 189 189
Z Travel (in.) 31.5 31.5 31.5 35.4 35.4 35.4 35.4 47.2 35.4 35.4 47.2 37.4 47.2 55 37.4 47.2 55 59.1 59.1 59.1 59.1 59.1 59.1 59.1 59.1 59.1 59.1 59.1 59.1
Rail Travel (in.) Fixed 20 Fixed 31.5 31.5 31.5 47.2 55 31.5 47.2 55 45.3 61 61 45.3 61 61 47.2 55 78.7 47.2 55 78.7 47.2 55 78.7 47.2 55 78.7
Ram to Table Max (in.) 35.6 52.4 35.4 60 60 63 79 86.6 63 79 86.6 80.7 96.5 96.5 80.7 96.5 96.5 86.2 102 125.6 86.2 102 125.6 86.2 102 125.6 86.2 102 125.6
Table Load (lbs.) 6,600 8,800 8,800 11,000 17,600 11,000 11,000 11,000 17,600 17,600 17,600 22,000 22,000 22,000 33,000 33,000 33,000 44 44,000 44,000 44,000 44,000 44,000 66,000 66,000 66,000 66,000 66,000 66,000
ATC System 12 / 16 /32 / 60 / etc. 12 / 16 /32 / 60 / etc. 12 / 16 /32 / 60 / etc. 12 / 16 /32 / 60 / etc. 12 / 16 /32 / 60 / etc. 12 / 16 /32 / 60 / etc. 12 / 16 /32 / 60 / etc. 12 / 16 /32 / 60 / etc. 12 / 16 /32 / 60 / etc. 12 / 16 /32 / 60 / etc. 12 / 16 /32 / 60 / etc. 12 / 16 /32 / 60 / etc. 12 / 16 /32 / 60 / etc. 12 / 16 /32 / 60 / etc. 12 / 16 /32 / 60 / etc. 12 / 16 /32 / 60 / etc. 12 / 16 /32 / 60 / etc. 12 / 16 /32 / 60 / etc. 12 / 16 /32 / 60 / etc. 12 / 16 /32 / 60 / etc. 12 / 16 /32 / 60 / etc. 12 / 16 /32 / 60 / etc. 12 / 16 /32 / 60 / etc. 12 / 16 /32 / 60 / etc. 12 / 16 /32 / 60 / etc. 12 / 16 /32 / 60 / etc. 12 / 16 /32 / 60 / etc. 12 / 16 /32 / 60 / etc. 12 / 16 /32 / 60 / etc.
Spindle HP 50 50 50 60 60 60 (100 opt.) 60 (100 opt.) 60 (100 opt.) 60 (100 opt.) 60 (100 opt.) 60 (100 opt.) 100 100 100 100 100 100 (60 x 2 opt.) 100 (60 x 2 opt.) 100 (60 x 2 opt.) 100 (60 x 2 opt.) 100 (60 x 2 opt.) 100 (60 x 2 opt.) 100 (60 x 2 opt.) 100 (60 x 2 opt.) 100 (60 x 2 opt.) 133 (100 x 2 opt.) 133 (100 x 2 opt.) 133 (100 x 2 opt.)
RPM 600 600 600 350 250 350 350 350 250 250 250 200 200 200 160 160 160 120 120 120 120 120 120 60 60 60 60 60 60
C Axis Optional Optional Optional Optional Optional Optional Optional Optional Optional Optional Optional Optional Optional Optional Optional Optional Optional Optional Optional Optional Optional Optional Optional Optional Optional Optional Optional Optional Optional

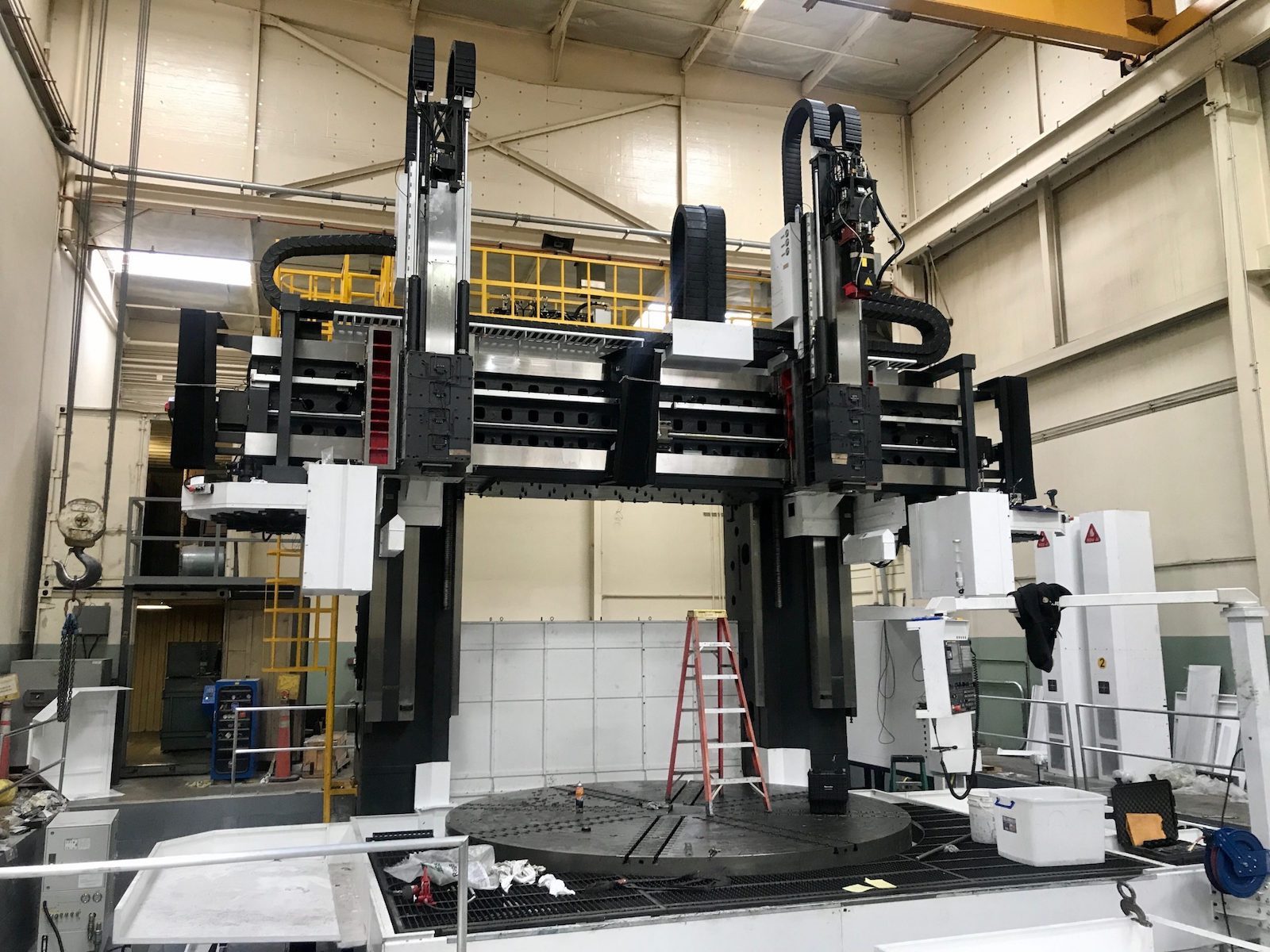

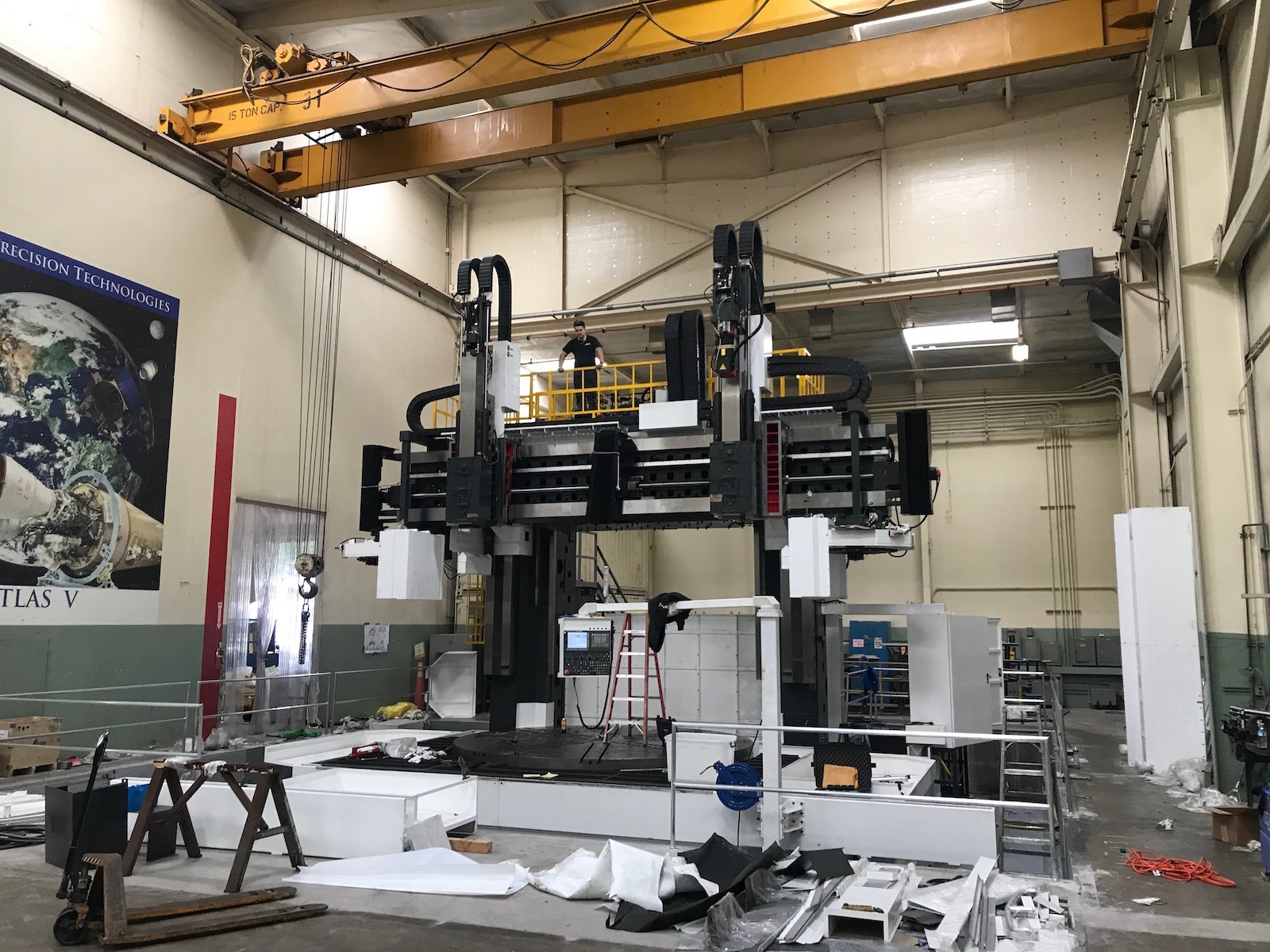

Twin Ram No No No No No No No No Optional Optional Optional Optional Optional Optional Optional Optional Optional Optional Optional Optional Optional Optional Optional Optional Optional Optional Optional Optional Optional
Weight (lbs.) 31,900 64,200 44,000 50,000 60,600 72,600 75,900 80,300 81,400 83,600 86,900 107,800 117,700 118,800 122,100 132,000 133,100 154,000 176,000 198,000 154,000 176,000 198,000 220,000 242,000 264,000 275,000 297,000 319,000

  • 40” face plate with 4 manual independent boring mill jaws
  • Coolant system with coolant through the ram and table/chuck guarding
  • Tool kit
  • Halogen lamp
  • 1 set operation manual
  • 12 position ATC
  • Chip conveyor
  • Heat exchanger for electrical cabinet
  • Automatic lubrication system
  • Full square guard enclosure with chip flushing system
