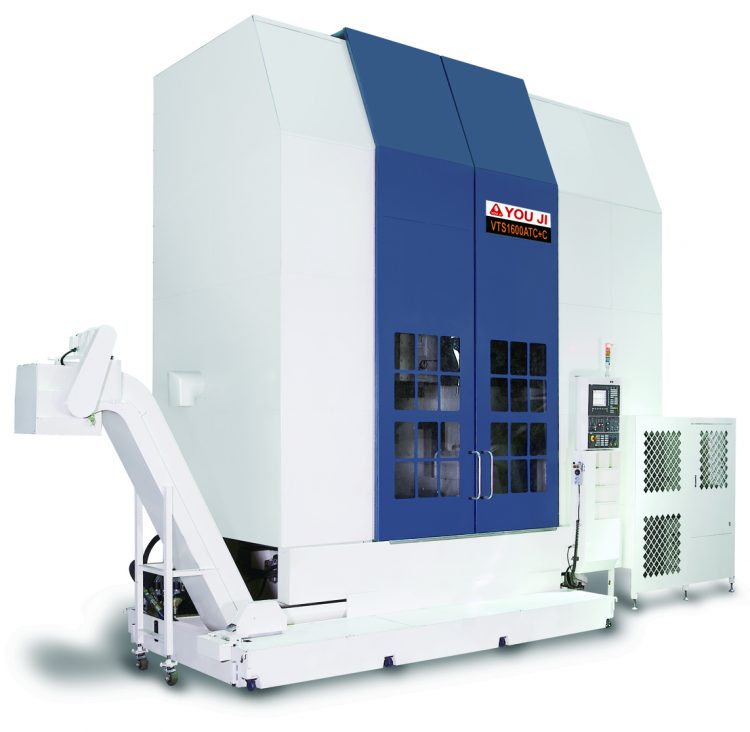

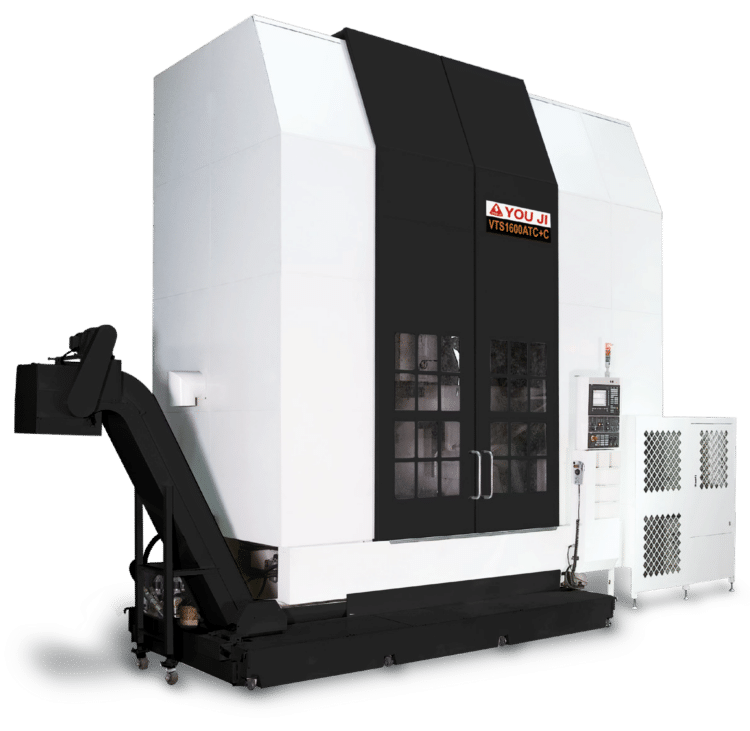

You Ji VTS Series – Vertical Fixed-Rail Turning Centers (bearings production)

The seven You Ji VTS Series vertical fixed-rail turning centers are engineered for high-precision machining of bearings.

The heavy duty machines can be applied as a stand alone machining cells or be integrated with other machines to form a complete flexible manufacturing system. Depending on the specific machine model, table sizes range from 40″ (1016 mm) to 157″ (3978 mm) and standard cutting diameters from 43″ (1092 mm) to 173″ (4394 mm). Maximum turning height is 31.5″ (800 mm)

The machines’ vertical columns and bases are Meehanite castings, heavily ribbed to minimize distortion and dampen vibration. Spindle power ranges from 50 hp to 100 hp.

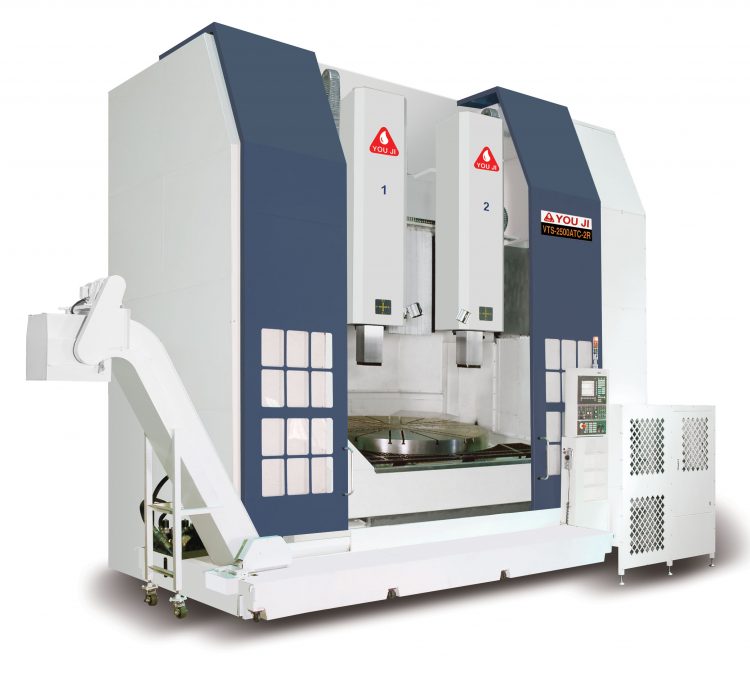

Automatic tool changers with 28-tool Capto C-6 or BT-50 capacity are standard. C-Axis and automatic pallet changers are optional, and a twin-ram arrangement is an option on the five larger machines.

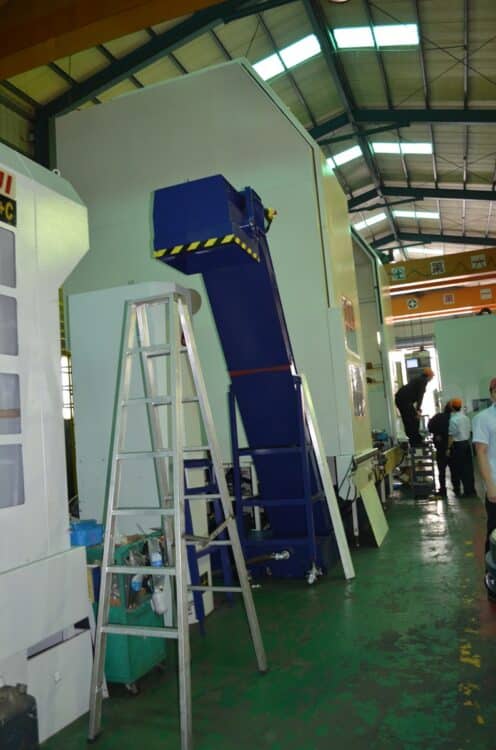

A chip conveyor, full machine enclosure, and Fanuc CNC control are standard equipment.

Item / Model	VTS-1000ATC	VTS-1200ATC	VTS-1600ATC	VTS-2000ATC
	Request a Quote	Request a Quote	Request a Quote	Request a Quote
Photos
Table Size (in.)	40	49	63	79
Max Swing (in.)	53.1	63	79	98
Std. Cutting Dia. (in.)	43.3	55	71	91
Z Travel (in.)	35.4	35.4	35.4	35.4
Max Turn Height (in.)	31.5	31.5	31.5	31.5
Table Load (lbs.)	8,800	11,000	17,600	22,000
Attachment Changer	4 Pieces	4 Pieces	4 Pieces	4 Pieces
ATC System	28 (CAPTO C-6	28 (CAPTO C-6	28 (CAPTO C-6	28 (CAPTO C-6
ATC System Cont.	and BT-50)	and BT-50)	and BT-50)	and BT-50)
Spindle HP	50	60 (100 opt.)	50	100
RPM	600	350	250	200
C Axis	Optional	Optional	Optional	Optional
APC	Optional	Optional	Optional	Optional
Twin Ram	No	No	Optional	Optional
Weight (lbs.)	46,200	73,700	80,740	101,200
Item / Model	VTS-2500ATC	VTS-3000ATC	VTS-4000ATC
	Request a Quote	Request a Quote	Request a Quote
Photos
Table Size (in.)	98	118	157
Max Swing (in.)	118	138	185
Std. Cutting Dia. (in.)	110	134	173
Z Travel (in.)	35.4	47.2	47.2
Max Turn Height (in.)	31.5	39.4	39.4
Table Load (lbs.)	33,000	44,000	66,000
Attachment Changer	4 Pieces	4 Pieces	4 Pieces
ATC System	28 (CAPTO C-6	28 (CAPTO C-6	28 (CAPTO C-6
ATC System Cont.	and BT-50)	and BT-50)	and BT-50)
Spindle HP	100	100 (60 x 2 opt.)	100 (60 x 2 opt.)
RPM	160	120	60
C Axis	Optional	Optional	Optional
APC	Optional	Optional	Optional
Twin Ram	Optional	Optional	Optional
Weight (lbs.)	110,000	154,000	178,200

Item / Model

VTS-1000ATC

VTS-1200ATC

VTS-1600ATC

VTS-2000ATC

Photos

Table Size (in.)

Max Swing (in.)

53.1

Std. Cutting Dia. (in.)

43.3

Z Travel (in.)

35.4

Max Turn Height (in.)

31.5

Table Load (lbs.)

8,800

11,000

17,600

22,000

Attachment Changer

4 Pieces

ATC System

28 (CAPTO C-6

ATC System Cont.

and BT-50)

Spindle HP

60 (100 opt.)

100

RPM

600

350

250

200

C Axis

Optional

APC

Optional

Twin Ram

Optional

Weight (lbs.)

46,200

73,700

80,740

101,200

Item / Model

VTS-2500ATC

VTS-3000ATC

VTS-4000ATC

Photos

Table Size (in.)

118

157

Max Swing (in.)

118

138

185

Std. Cutting Dia. (in.)

110

134

173

Z Travel (in.)

35.4

47.2

Max Turn Height (in.)

31.5

39.4

Table Load (lbs.)

33,000

44,000

66,000

Attachment Changer

4 Pieces

ATC System

28 (CAPTO C-6

ATC System Cont.

and BT-50)

Spindle HP

100

100 (60 x 2 opt.)

RPM

160

120

C Axis

Optional

APC

Optional

Twin Ram

Optional

Weight (lbs.)

110,000

154,000

178,200
