Seiki XM Series – Extended Travel Machining Centers

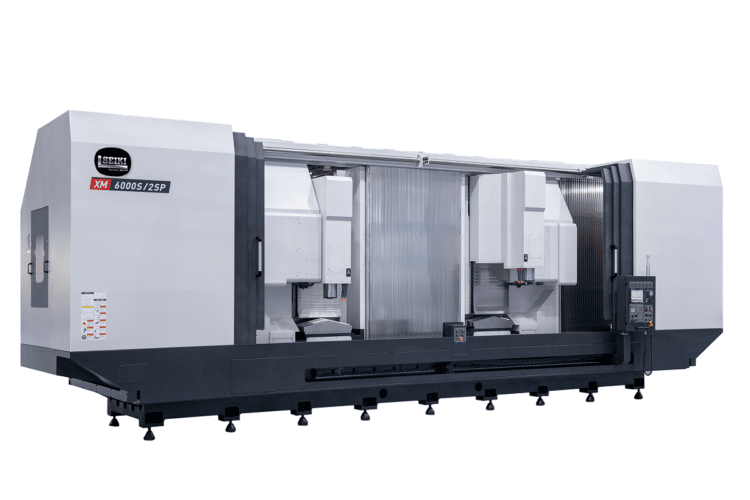

Single Spindle 6 Meter X Travel Linear Motor Vertical Machining Center
The Seiki XM-6000S is the fastest, heavy duty 40 taper CNC long travel machining center in its class and is also well suited to high volume machining as well high speed 3D machining. This machine will exceed the demands of any manufacturer with high volume, high precision machining needs. The machine is a fixed table / 3 axis moving column type design. The moving column design saves valuable floor space. This machine has excellent ergonomics with the chip exit in the rear of the machine and the sliding door design, the table is within easy reach. The operators panel can travel nearly the full length of the machine for ease of use.
It features a fabricated steel base with Meehanite cast iron column and table assembly and rigid roller type linear slideways for rigidity and fast, precise movement. The X axis features a linear motor with scale feedback system for fast (1181”/min) rapid travel. 40mm (1.57”) diameter Y and Z axis ballscrews are class 3 with a double nut pre-loaded design allowing a standard rapid traverse rate of 1654 inches per minute. The ABS (Absolute Pulse Coder) servo system does not require zero return. The machine can be started anytime from any position, saving non-productive time. A standard bed flushing system pushes chips to the rear of the machine. The optional caterpillar type chip conveyor provides efficient chip removal.
The XM-6000S is standard with a 30 tool high speed twin arm type ATC. The random access ATC provides fast, reliable tool changes. Complete tool change time is only 2.1 seconds tool to tool and 3.5 seconds chip to chip.
The standard direct drive 12,000 RPM CAT-40 spindle is powered by a 25HP high torqe spindle motor. The standard spindle chiller maintains spindle temperatures and minimizes thermal growth. Coolant through the spindle preparation in both spindles is also standard (pump systems optional).
The Mitsubishi M80A control is standard and is suitable for a wide range of applications from production to high speed machining applications. The M80A control features a 10.4” touch screen with intuitive smart phone type operation. A dedicated CNC CPU provides phenomenal processing speeds. An all new high response servo system with 1,000,000 pulse encoders is provided for state-of-the-art speed and accuracy. The Mitsubishi control comes with an industry leading 3 year parts and labor warranty! The Fanuc OiM-F Plus control with 10.4” LCD and 2 year warranty is also available.
