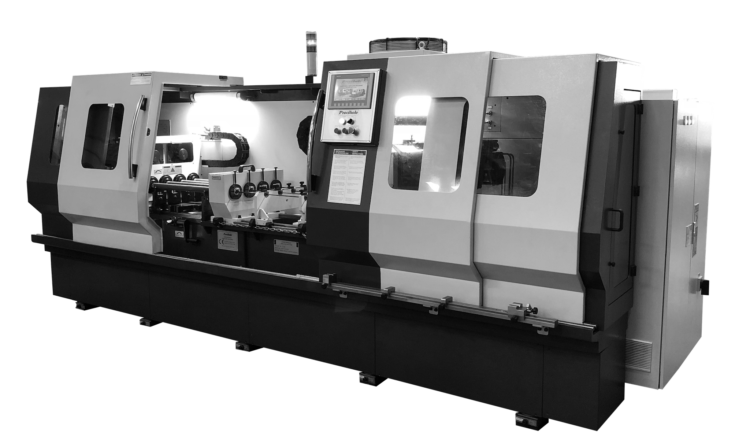

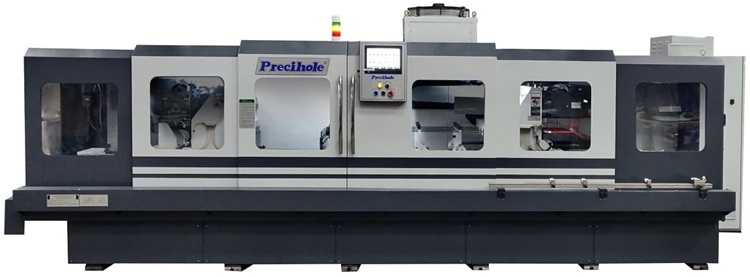

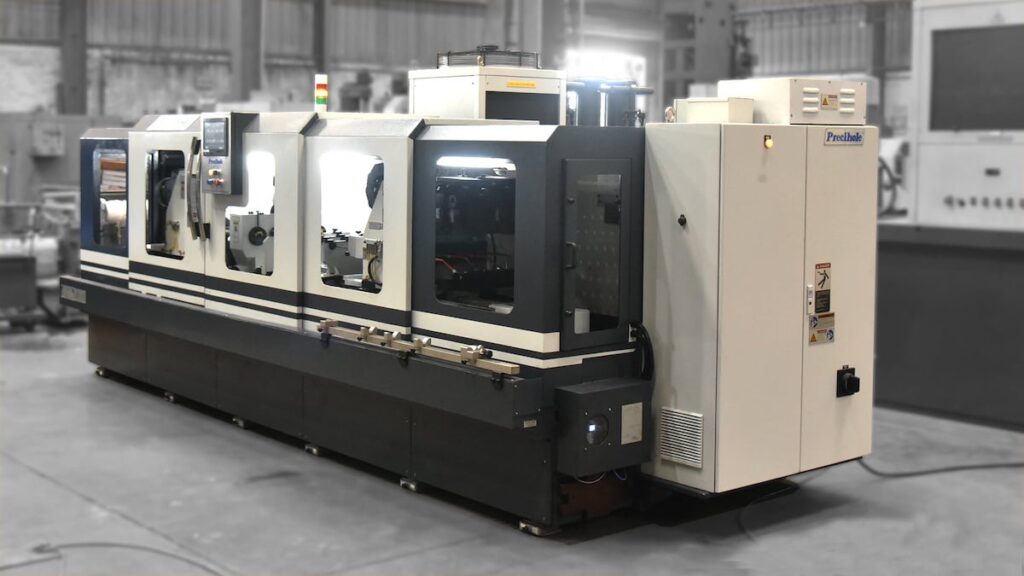

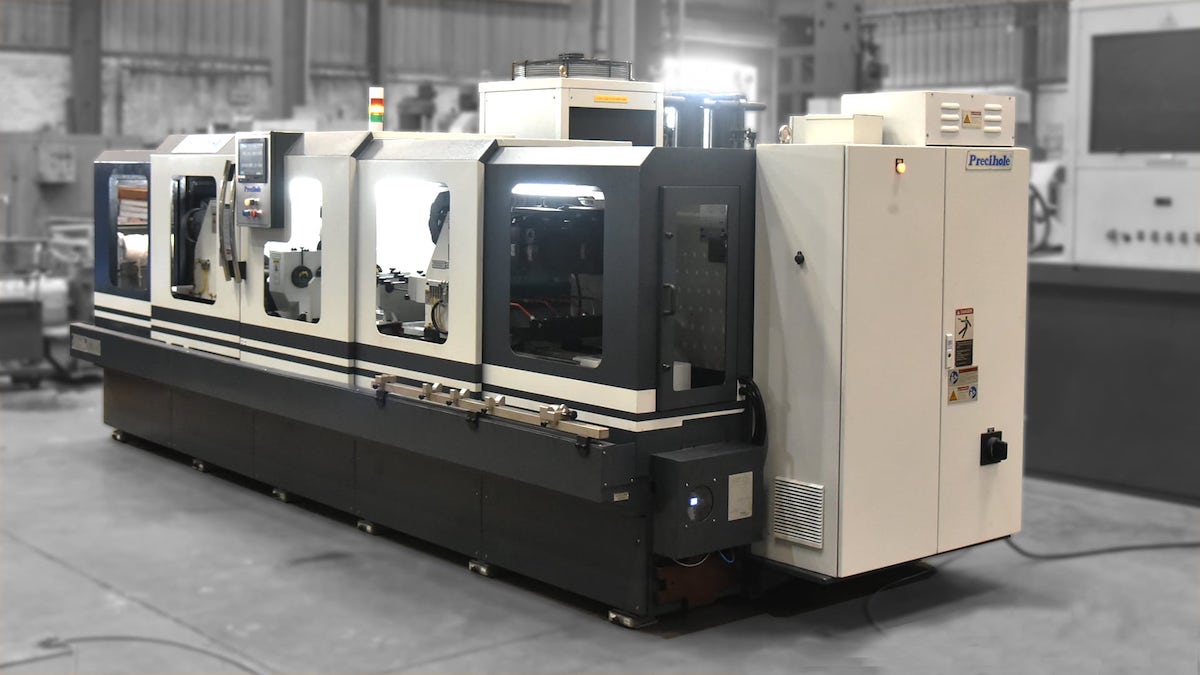

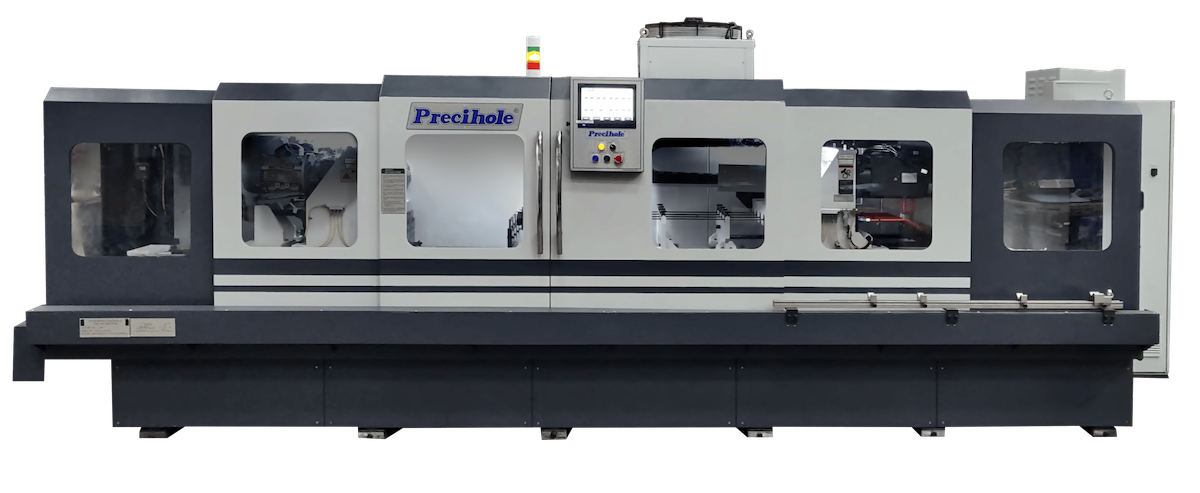

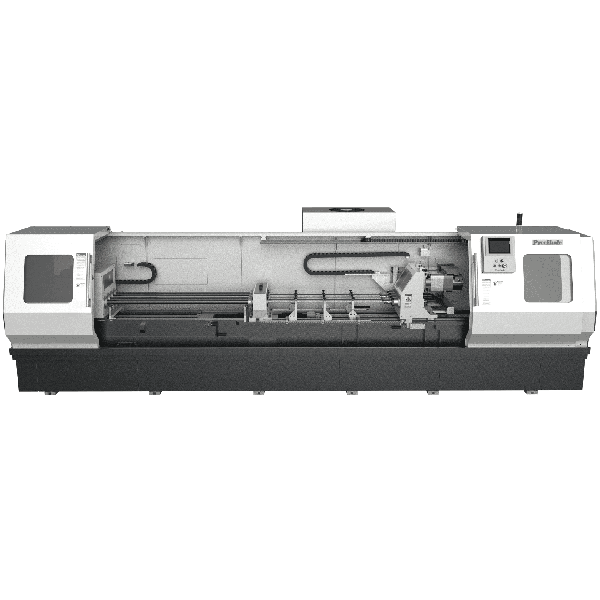

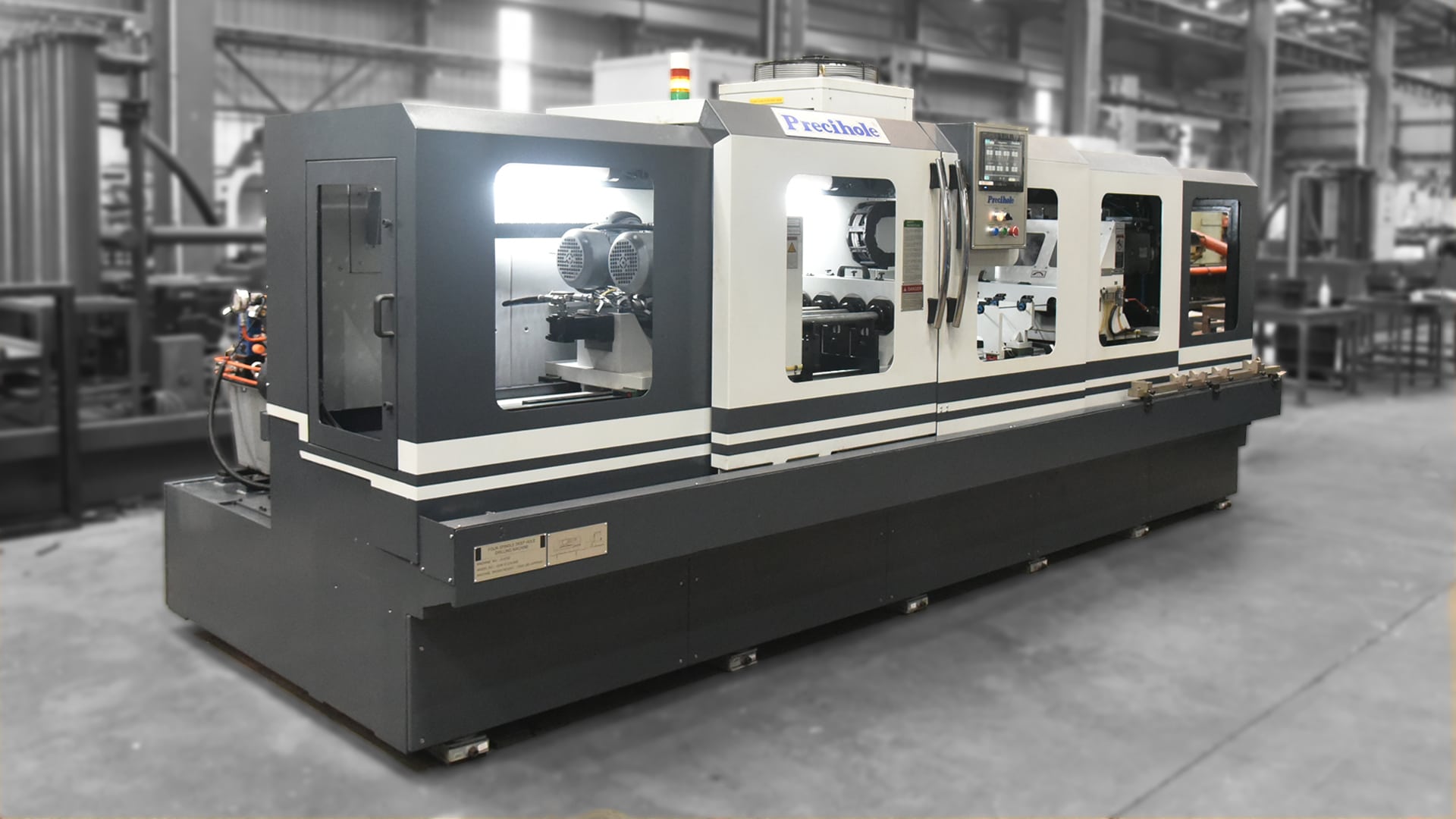

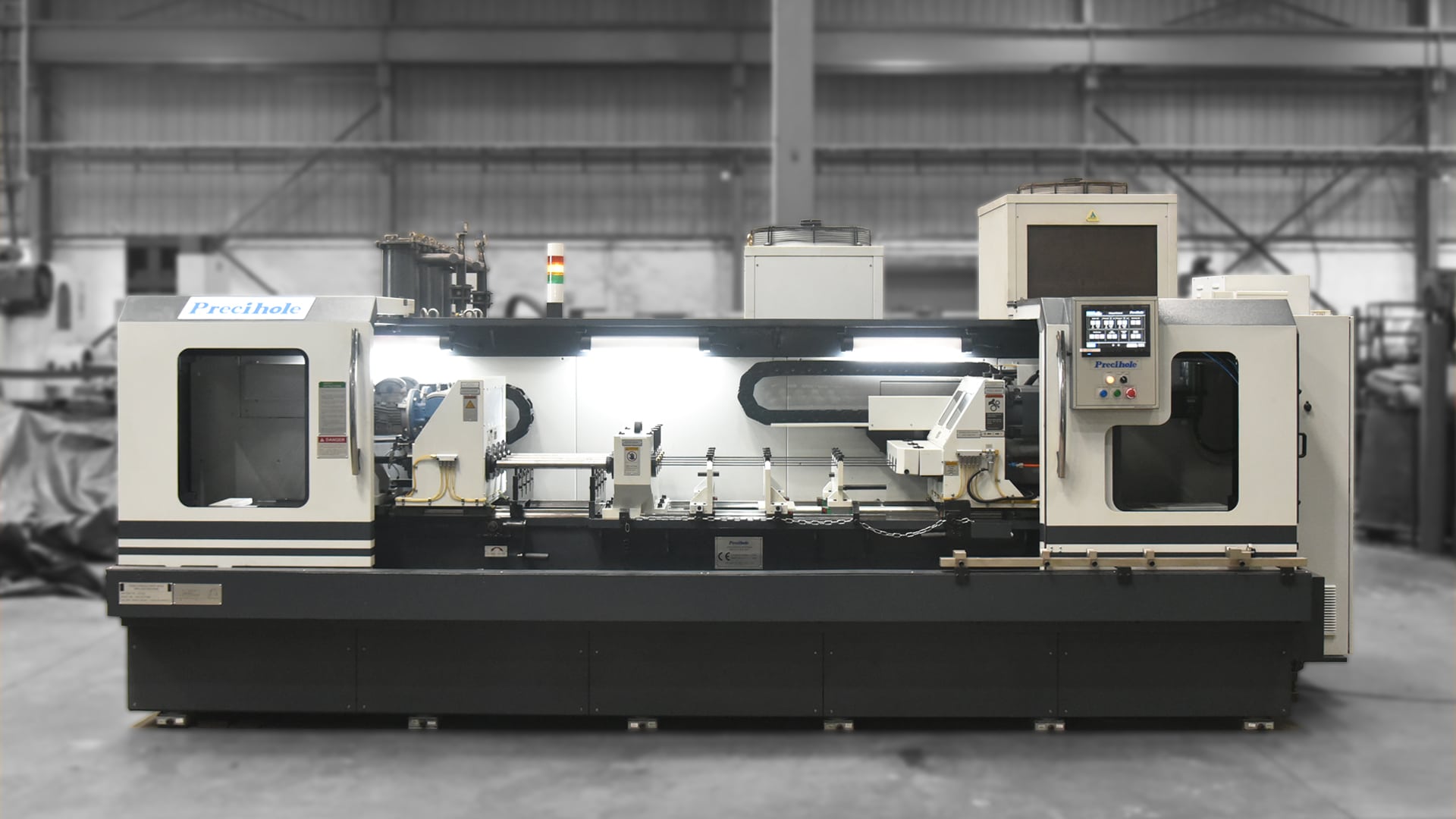

Precihole GVN Series โ Single Axis Gun Drilling Machines

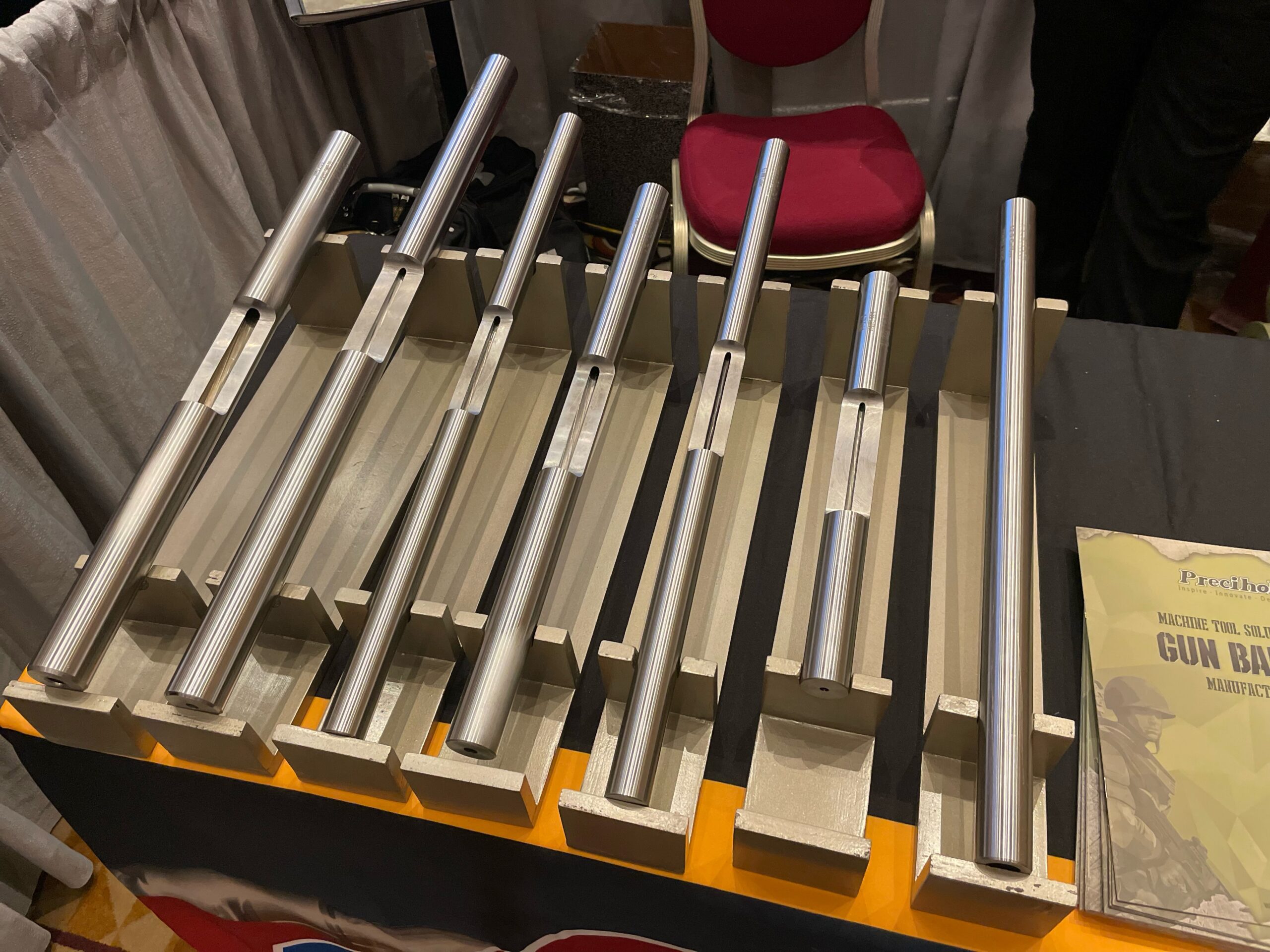

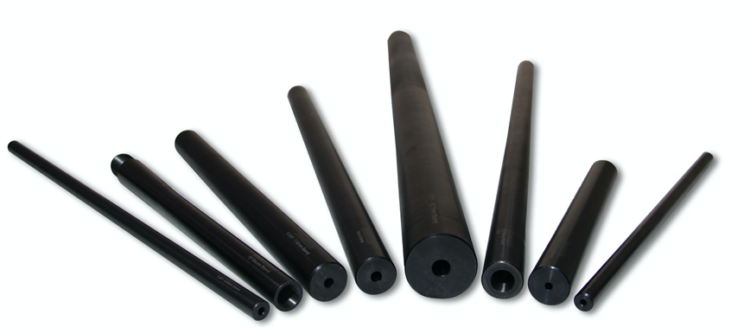

The gun drilling operation is considered one of the most critical operations in the barrel making process. producing deep and straight holes. This process determines the quality of the finished barrel. Precihole gun drilling machines offer the best combination of output parameters like hole straightness, surface finish and bore tolerance. These machines are complete solutions that are being used in lights-out 24/7 operations by the majority of our customers. The Precihole GVN Series single axis gun drilling machines are built to manufacture high precision parts and is an asset to high volume manufacturing production environments. All GVN gun drill models are offered with 1 to 4 spindles providing excellent straightness, surface finish and bore tolerance. Length to diameter ratios of up to 125 are possible.

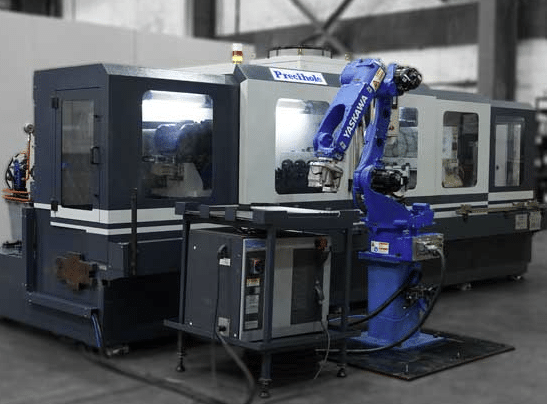

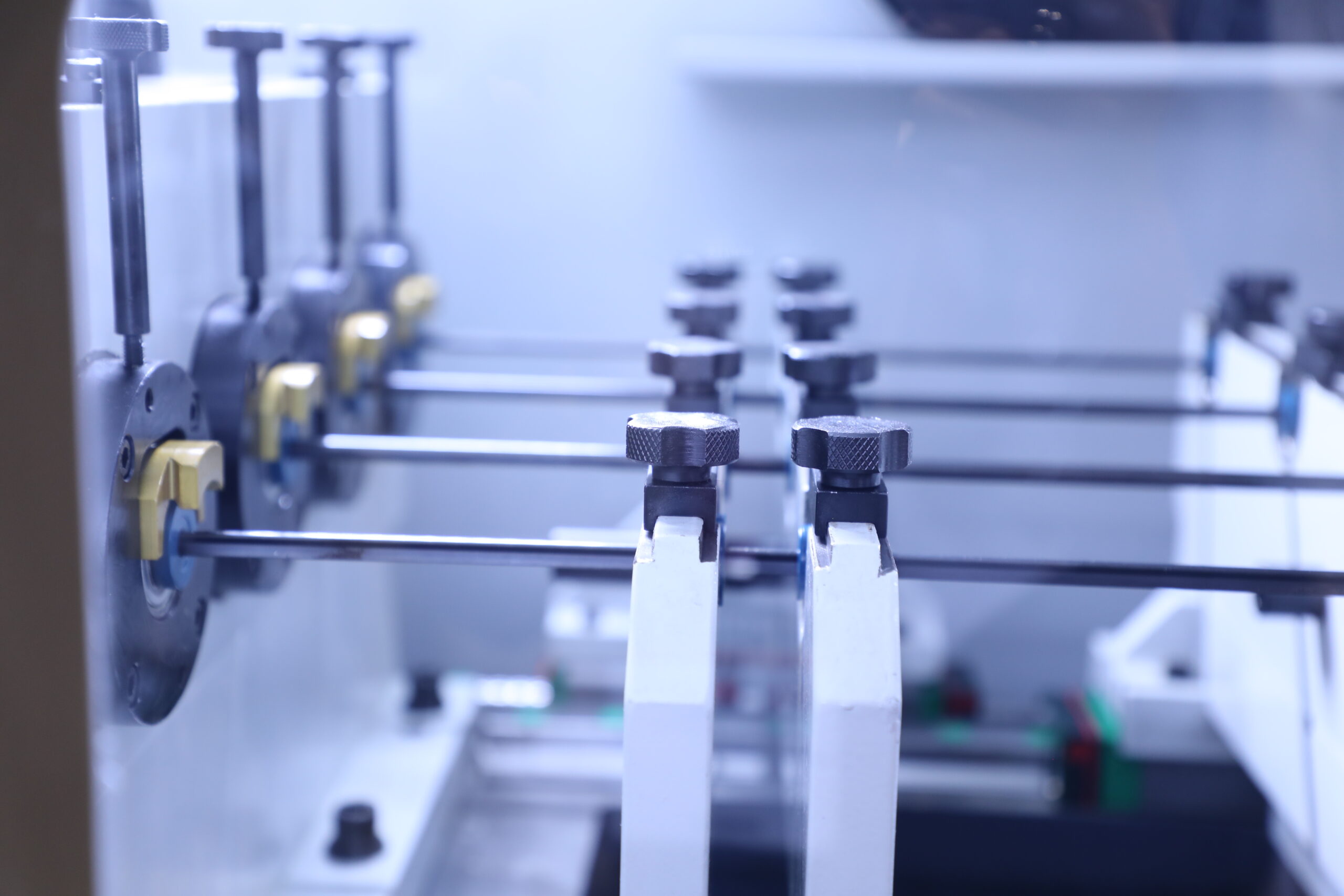

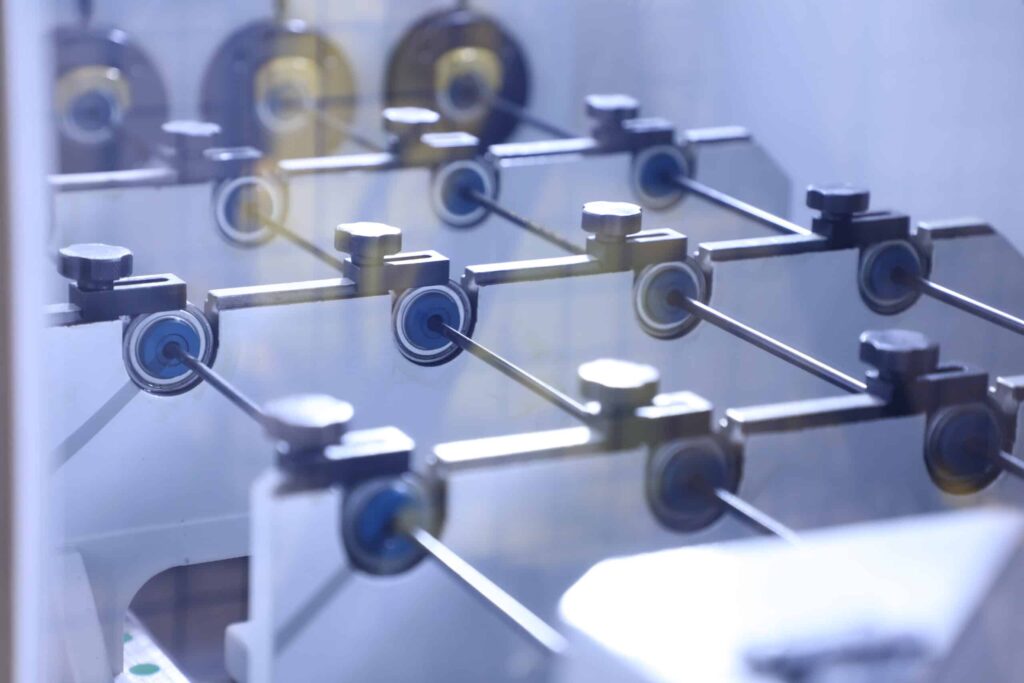

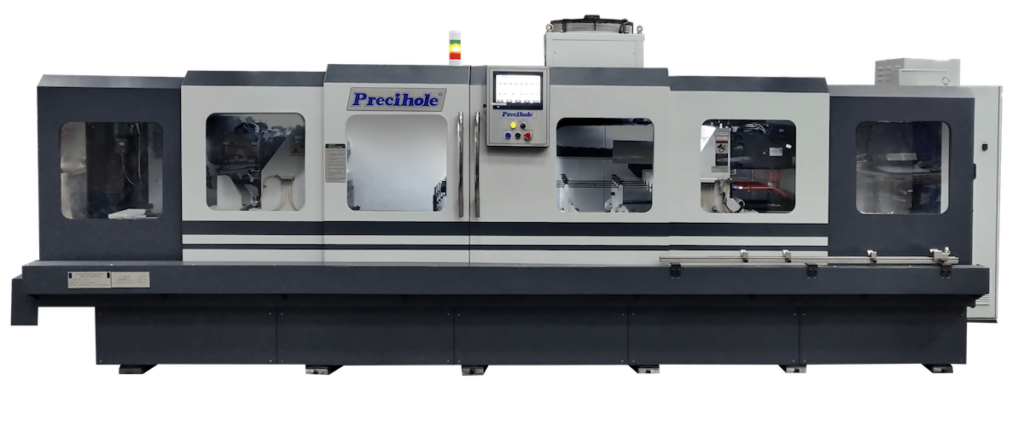

Machine Features:
Specifications
| Item / Model |

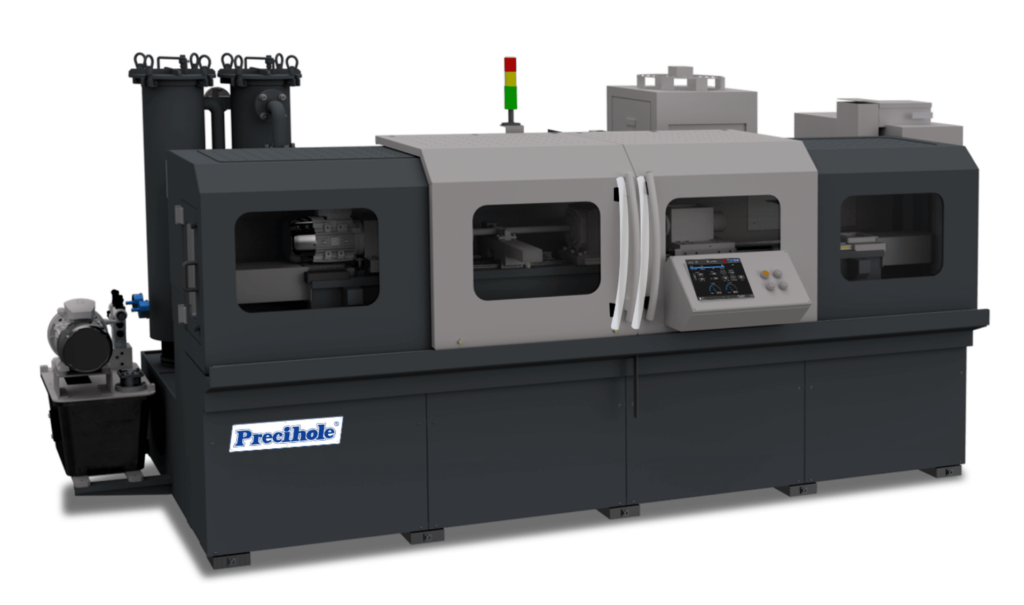

GVN08
Request a Quote |

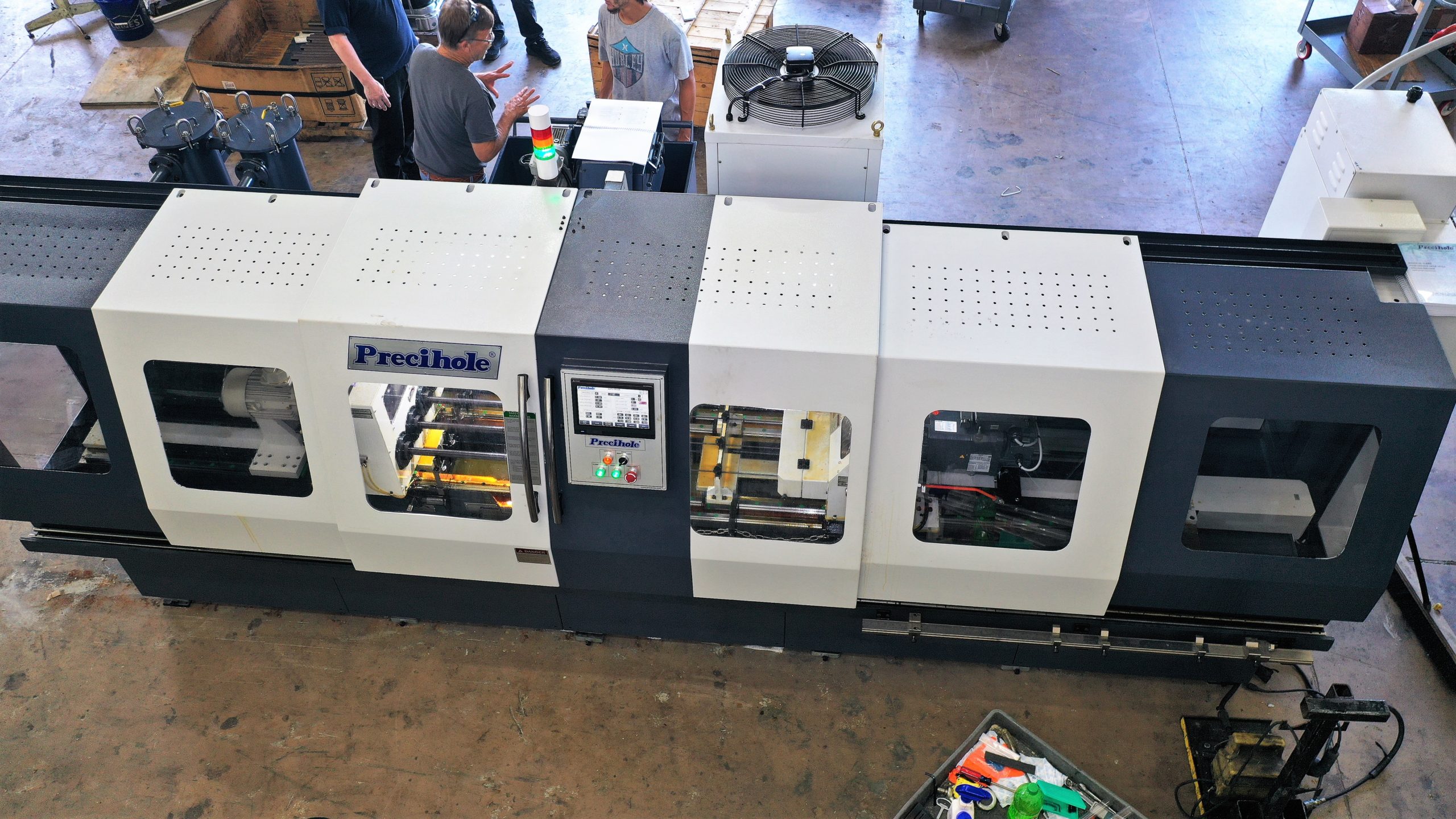

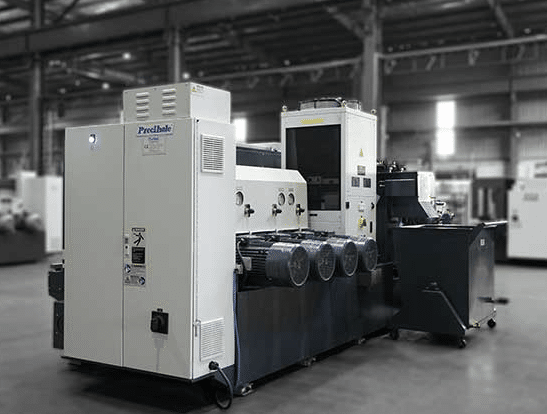

GVN12
Request a Quote |
GVN20
Request a Quote |

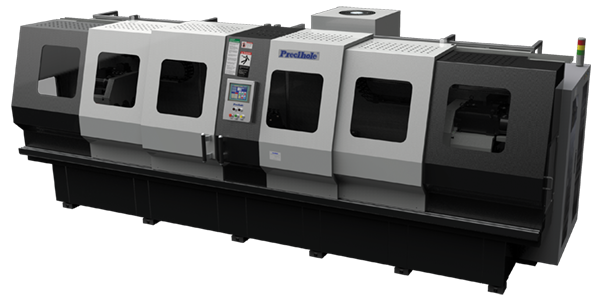

GVN25
Request a Quote |

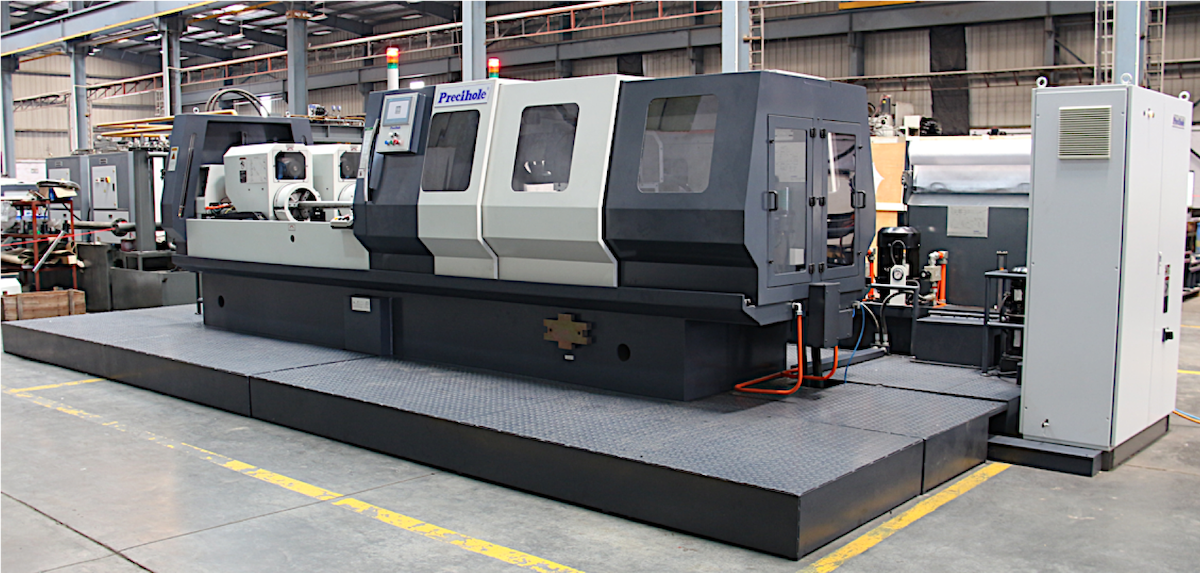

GVN40
Request a Quote |
|---|---|---|---|---|---|
|
Drilling Diameter Range (โ ) |
(2mm โ 8mm) |
0.2โณ โ 0.5โณ (5mm โ 12.7mm) |
0.2โณ โ 0.75โณ (5mm โ 20mm) |
0.315โณ โ 1โณ |
0.31โณ โ 1.57โณ |
|
Number of Spindles |
1/2/4 |
1/2/4 |
1/2 |
1/2 |
1/2/4 |
|
Spindle Speed |
1,000 โ 6,400 RPMs |
700 โ 6,400 RPMs |
600 โ 3,300 |
350 โ 3,300 | |
|
Power per Spindle |
3 HP (2.2 kW) |
7.5 HP ( 5.5 kW) |
10 |
20 | |
|
Max. Drilling Depth |
24โณ / 30โณ / 40โณ (600mm / 800mm / 1000mm) |
24โณ / 30โณ / 40โณ (600mm / 800mm / 1000mm) |
24โณ / 30โณ / 40โณ (600mm / 800mm / 1000mm) |
24โณ / 30โณ / 40โณ (600mm / 800mm / 1000mm) |
24โณ / 30โณ / 40โณ (600mm / 800mm / 1000mm) |
|
Part OD Range |
0.75โณ โ 2โณ (20mm โ 50mm) |
0.75โณ โ 2โณ (20mm โ 50mm) |
0.75โณ โ 3โณ (20mm โ 80mm) |
0.75โณ โ 3โณ (20mm โ 80mm) |
0.6โณ โ 4โณ |
|

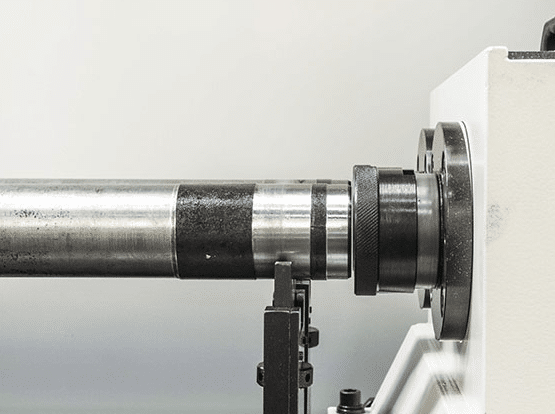

Part Clamping System |

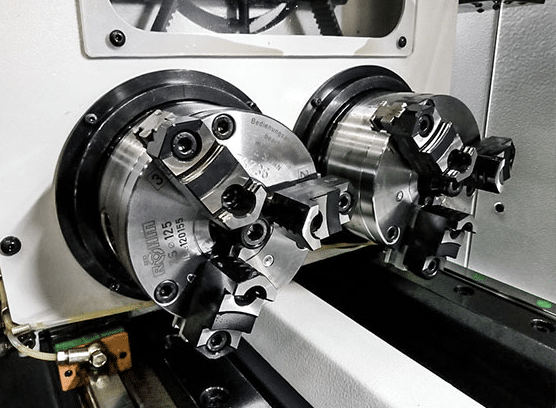

Hydraulic Cone Clamping / Chuck Clamping |
Hydraulic Cone Clamping / Chuck Clamping |
Hydraulic Cone Clamping / Chuck Clamping |
Hydraulic Cone Clamping / Chuck Clamping |
Hydraulic Cone Clamping / Chuck Clamping |
|
Max. Component Weight |
65 lbs. (30 kg) |
65 lbs. (30 kg) |
88 lbs. (40 kg) |
88 lbs. (40 kg) | |
|
Rapid Traverse Rates |
393โณ/minute |
393โณ/minute |
315โณ/minute |
315โณ/minute |
157โณ/minute |
|
Drill Feed Range |
0 โ 8โณ/minute (0 โ 200 mm/minute) |
0 โ 8โณ/minute (0 โ 200 mm/minute) |
0 โ 8โณ/minute (0 โ 200 mm/minute) |
0 โ 8โณ/minute (0 โ 200 mm/minute) |
0 โ 8โณ/minute (0 โ 200 mm/minute) |
|
Coolant Tank Capacity (Gallons) |
225 / 238 / 290 |
225 / 238 / 290 |
277 / 290 / 330 |
277 / 290 / 330 |
530 |
|
Max. Coolant Pressure PSI |
1,740 |
1,450 |
1,160 |
870 |
870 |
