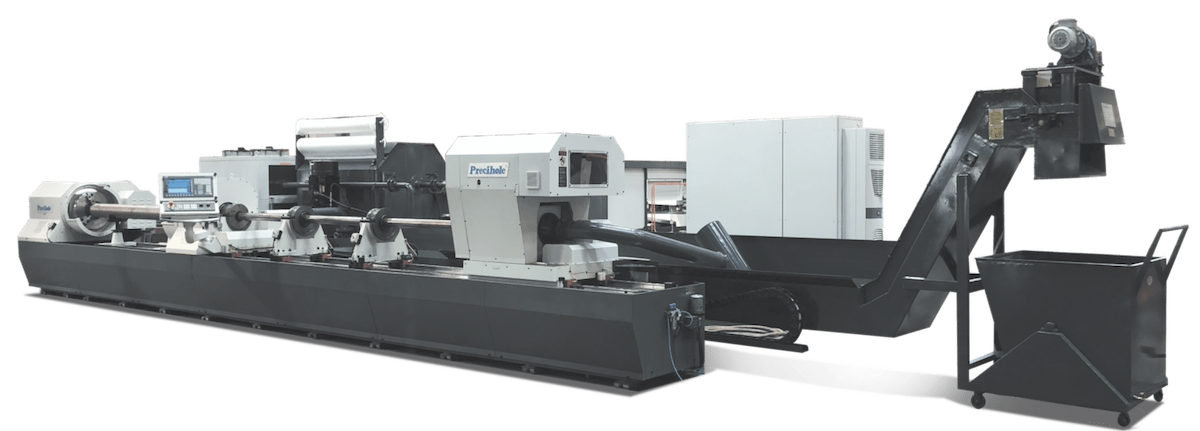

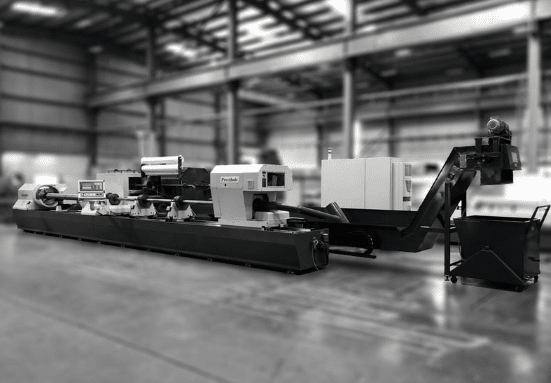

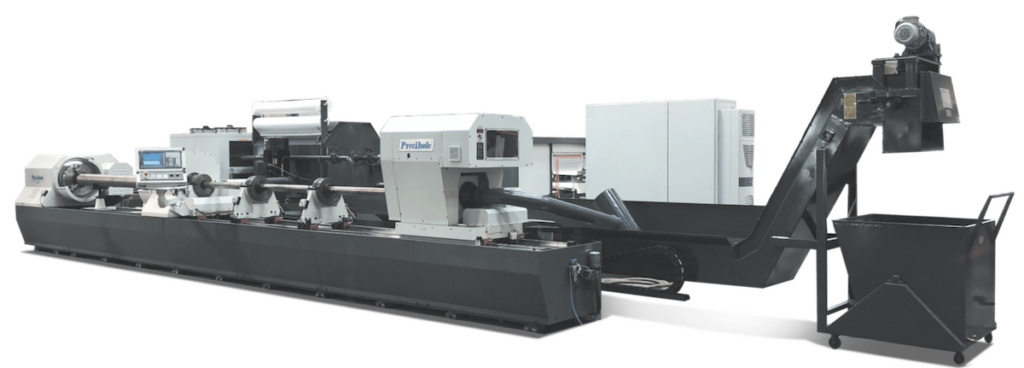

Precihole BVN Series – BTA Deep Hole Drilling Machines
Precihole’s BVN Series BTA Deep Hole Drilling Machines are built to operate in continuous production mode for drilling large holes in shafts including medium and large caliber artillery barrels. These machines feature state-of-the-art technology that produces holes with excellent straightness, bore tolerance and surface finish. Machines are customized to suit length and size requirements of the barrel and provide excellent straightness, surface finish and bore tolerance. Precihole’s BVN BTA series can drill holes from ∅20mm (.787″) to ∅155mm (6.102″). The design of the machine is robust to endure high torque generated during the drilling process. Length to diameter ratios of up to 150 are possible. Counter boring and pull boring can be added on any machines in this series as an option. The BVN BTA series provides a complete solution that includes all features needed for continuous and repeatable performance over many years.
Machine Features:
Specifications
Item / Model 41773_c28342-95> |
BVN40
Request a Quote |
41773_d43b2a-45>
BVN65
Request a Quote |
41773_1ee9ea-57>
BVN100
Request a Quote |
41773_6f855d-f6>
BVN155
Request a Quote |
41773_f2694d-9c>
---|---|---|---|---|
Solid Drilling Diameter Range 41773_3db773-09> |
0.78″ – 1.57″ 41773_c4012d-90> |
0.78″ – 2.5″ 41773_df1de8-9c> |
1.2″ – 4″ 41773_de0a29-9f> |
2″ – 6.5″ 41773_8753eb-ce> |
Part Counter Rotation 41773_60a74f-3f> |
Yes 41773_354e7c-e3> |
Yes 41773_dfe357-cd> |
Yes 41773_6806aa-c6> | 41773_eead4a-d0> |
Counter Boring Dia. Range 41773_35d1d3-af> |
N/A 41773_cdce70-16> |
2.55″ – 4″ 41773_a1c259-14> |
4″ – 5″ 41773_41ce61-9a> |
6″ – 8″ 41773_e7cbf1-d6> |
Pull Boring 41773_7d015b-a3> |
N/A 41773_6b24d4-46> |
1.57″ – 4″ 41773_2cd267-9c> |
1.57″ – 6″ 41773_975757-b9> |
2″ – 8″ 41773_ad7014-ea> |
Number of Spindles 41773_adada8-52> |
1 41773_7e5d75-53> |
1 41773_65ee8d-29> |
1 41773_84682a-de> |
1 41773_8d2cd7-0e> |
Max. Barrel Length 41773_843e41-47> |
120″ 41773_7306ca-12> |
157″ 41773_96764c-db> |
196″ 41773_716f92-42> |
400″ 41773_23d03a-9b> |
Max. Barrel OD 41773_cc0de6-04> |
4″ 41773_12af5e-16> |
6″ 41773_c6a5ef-38> |
6″ 41773_d3602d-b4> |
10″ 41773_f82115-af> |
Max. Barrel Weight 41773_8286f3-c1> |
450 lbs. 41773_d0a232-fb> |
1,250 lbs. 41773_0fdb87-c6> |
1,540 lbs. 41773_cf8ee8-3f> |
5,500 lbs. 41773_ef0d4d-5c> |
Power per Spindle 41773_30ee44-06> |
20 HP 41773_4ae494-f4> |
30 HP 41773_c2f680-20> |
50 HP 41773_080d37-ca> |
100 HP 41773_4658ae-32> |
Spindle Speed 41773_97c76f-b7> |
400 – 2,500 RPM 41773_c367c6-9a> |
250 – 1,750 RPM 41773_683d73-46> |
100 – 1,300 RPM 41773_09fa77-bb> |
50 – 800 RPM 41773_aba50a-c7> |
