Manual Horizontal Index Table

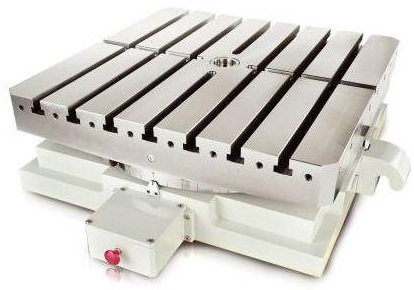

Manual Horizontal Index Table-Sh

The GCT Series is Ganro Industrial Corporation’s horizontal manual precision index table design. This product is what Ganro (formerly Golden Sun Industrial Co.) was built upon in the 1970s. Ganro’s horizontal manual index tables can be used in various areas of manufacturing but are ideal for horizontal boring mill applications.

  • Ideal for horizontal boring mill applications
  • Easy operation
  • Two piece hirth coupling design which provides stable indexing accuracy
  • Powerful clamping design allows for heavy cutting

This index table design is available with table top sizes ranging from 300mm (11.81”) to 1400mm (55.11”) square. The GCT Series of index tables are designed with a two piece Hirth coupling that provides high indexing accuracy while maintaining high rigidity during heavy cutting. The GCT index tables are available in 1° and 5° minimum index increments and require a pneumatic or hydraulic connection for the clamp/unclamp operation.

Certified Manual Index Table Service Techs

We have certified service technicians for installation and repair of all Ganro and Golden Sun rotary table and indexer models. Please contact us today to learn how adding a Ganro rotary table or indexer can help improve your manufacturing process.

Specifications

Item / Model
Unit
GCT-300 Request a Quote
GCT-450 Request a Quote
GCT-600 Request a Quote
GCT-700 Request a Quote
GCT-800 Request a Quote
GCT-1000 Request a Quote
GCT-1200 Request a Quote
GCT-1400 Request a Quote

Table Dimension (square)

mm / inch

300 / 11.81″

450 / 17.71″

600 / 23.62″

700 / 27.55″

800 / 31.49″

1,000 / 39.37″

800 / 31.49″

1,400 / 55.11″

Overall Height

mm / inch

140 / 5.51″

170 / 6.69″

200 / 7.87″

220 / 8.66″

280 / 11.02″

300 / 11.81″

340 / 13.38″

340 / 13.38″

Diameter of Center-hole

mm / inch

Ø30/ 1.18″

Ø30/ 1.18″

Ø40/ 1.57″

Ø40/ 1.57″

Ø60/ 2.36″

Ø60/ 2.36″

Ø80/ 3.14″

Ø80/ 3.14″

Width of T Slot

mm / inch

12H7

18H7

20H7

20H7

22H7

22H7

22H7

22H7

Actuation Clamp / Unclamp

kg/cm2/psi

Air: 7 / 100

Air: 7 / 100

Air: 7 / 100

Air: 7 / 100

Air: 7 / 100

Air: 7 / 100

Hydraulic: 35 / 498

Hydraulic: 35 / 498

Actuation Rotation

Manual

Manual

Manual

Manual

Manual

Manual

Manual

Manual

Minimum Index Increment

deg.

15°

1º or 5º

1º or 5º

1º or 5º

1º or 5º

1º or 5º

1º or 5º

1º or 5º

Indexing Accuracy

arc seconds

6″

6″

6″

6″

6″

6″

6″

6″

Max Work Load

kg / lbs

500 / 1,100

1,000 / 2,200

2,300 / 5,060

2,500 / 5,500

4,600 / 10,120

5,000 / 11,000

9,300 / 20,460

10,000 / 22,000

Clamping Capacity

kg / lbs

1,500 / 3,300

1,600 / 3,520

3,200 / 7,040

3,500 / 7,000

5,400 / 11,880

5,800 / 12,760

7,700 / 26,940

7,900 / 17,380

N.W.

kg / lbs

90 / 199

200 / 441

400 / 882

600 / 1,323

900 / 1,985

1,200 / 2,646

2,000 / 4,410

2,500 / 5,512
