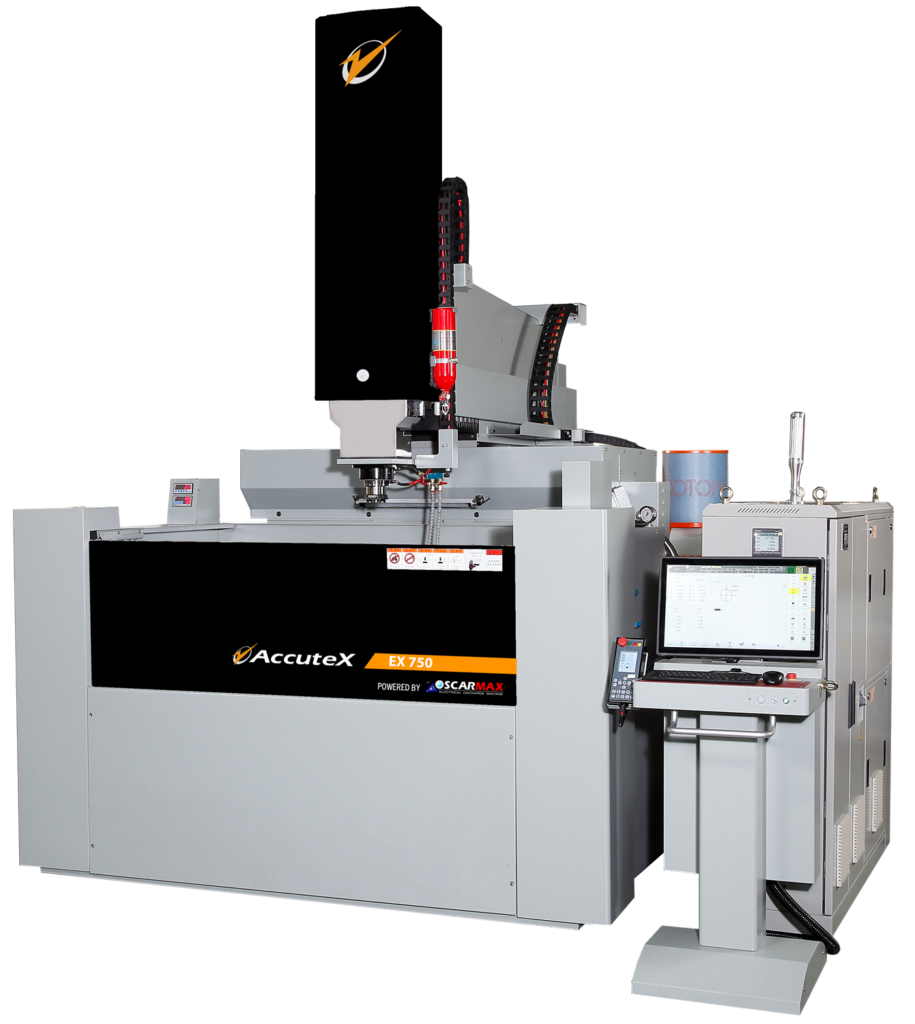

EX Series CNC EDM Die Sinkers for Mold Making and Precision Component Manufacturing

The Accutex EX Series CNC EDM die sinkers are designed for high-accuracy machining of complex molds, multi-cavity tooling, and precision components in aerospace, medical, and mold & die industries. These machines support X, Y, Z, and C-axis machining with 3-axis point-to-point capability, making them ideal for sub-gates, vent holes, and intricate geometries.

Standard XYZ orbiting ensures stable burn conditions, while C-axis helical machining — programmable through the conversational interface — enables machining in Z/C, X/C, and Y/C planes for advanced geometry control and process flexibility.

The EX Series delivers performance and capability comparable to high-end EDM platforms from Makino and Sodick, providing a cost-effective solution without compromising accuracy or surface finish.

Key Features

  • 4th Generation sparking circuit delivering high-speed, stable EDM machining performance
  • OB Smart Path orbit cutting for up to 200% faster processing and improved dimensional accuracy
  • APC (Adaptable Parameter Control) with real-time spark monitoring and automatic parameter adjustment
  • Automatic detection and elimination of DC arcs, protecting workpieces and electrodes from carbon buildup
  • C-axis capability for vector machining, helical interpolation, and continuous rotation
  • EDM internal thread machining capability with orbital or helical rotation taps
  • Intelligent tooling system with fixed referencing across EDM, milling, and inspection processes
  • Quick clamping electrode holders for fast setup and repeatability
  • Windows 10-based CNC control (64-bit industrial PC, i3, 8MB RAM) for reliable operation
  • Remote access portal for service diagnostics and support
  • EtherCAT communication for high-speed, real-time machine motion control
  • DELTA high-response AC servo system with optical scale feedback for precise gap control

Specifications

Print View Full Screen
Item / Model
EX-430 (Moving-Table) Request a Quote
EX-500 Request a Quote
EX-750 Request a Quote
EX-1060 Request a Quote
EX-1270 Request a Quote
EX-1510 Request a Quote
EX-1880 Request a Quote
EX-2210 Request a Quote
EX-2610 Request a Quote
EX-3010 Request a Quote

X Axis Travel

15.78″

19.69″

27.56″

39.37″

47″

59″

71″

87″

102″

118″

Y Axis Travel

11.81″

15.75″

19.68″

23.62″

28″

39″

31″

39″

39″

39″

Z Axis Travel

11.81″

17.72″

19.68″

19.68″

20″

24″

24″

24″

24″

24″

Max Workpiece Dimensions

37″ x 20″ x 12″

41″ x 32″ x 14″

55″ x 39″ x 17″

67″ x 43″ x 21″

73″ x 44″ x 20″

81″ x 61″ x 28″

95″ x 48″ x 24″

106″ – 62″ x 28″

129″ x 66″ x 28″

154″ x 62″ x 28″

Max Fill Height

8.6″

14″

17″

21″

20″

28″

24″

28″

28″

28″

Distance Ram to Table

6″ – 18″

5″ – 23″

3″ – 23″

11″ – 31″

15″ – 35″

21″ – 40″

13″ – 36″

22″ – 46″

22″ – 45″

22″ – 45″

Max Workpiece Weight

1,210 lbs.

1,551 lbs.

3,366 lbs.

6,719 lbs.

7,840 lbs.

17,595 lbs.

15,527 lbs.

25,058 lbs.

30,067 lbs.

42,900 lbs.

Max Electrode Weight (Platen)

264 lbs.

440 lbs.

770 lbs.

880 lbs.

1,100 lbs.

1,102 lbs.

1,102 lbs.

1,102 lbs.

1,102 lbs.

1,102 lbs.

Table Size (W x D)

26″ x 14″

34″ x 18″

40″ x 24″

49″ x 29″

53″ x 32″

62″ x 43″

73″ x 39″

89″ x 43″

106″ x 43″

122″ x 43″

Machine Weight

2,640 lbs.

6,600 lbs.

9,900 lbs.

12,100 lbs.

14,300 lbs.

23,810 lbs.

19,842 lbs.

29,762 lbs.

36,376 lbs.

42,900 lbs.

Tank Capacity

105 Gallons

225 Gallons

339 Gallons

408 Gallons

423 Gallons

900 Gallons

1,284 Gallons

1,242 Gallons

1,427 Gallons

1,474 Gallons

Filter Density

20µ

20µ

20µ

20µ

20µ

20µ

20µ

20µ

20µ

20µ

Filter Elements

3 Pieces

6 Pieces

6 Pieces

6 Pieces

6 Pieces

6 Pieces

6 Pieces

6 Pieces

6 Pieces

6 Pieces

Power Supply

60 Amps (90 opt.)

90 Amps (120 opt.)

90 Amps (120 opt.)

120 Amps

120 Amps

120 Amps

120 Amps

120 Amps

120 Amps

120 Amps

Overall Power Consumption

6 KVA

10 KVA

10 KVA

12 KVA

12 KVA

12 KVA

12 KVA

12 KVA

12 KVA

24 KVA

Generator Weight

772 lbs.

772 lbs.

772 lbs.

838 lbs.

838 lbs.

838 lbs.

838 lbs.

838 lbs.

838 lbs.

838 lbs.

Benefits for Metal Cutting Manufacturers

  • Achieve ultra-fine surface finishes that reduce or eliminate secondary polishing
  • Maintain high accuracy and stability when machining complex ribs, gates, and internal geometries
  • Improve process reliability with APC adaptive spark control, optimizing burn conditions in real time
  • Reduce cycle times with OB Smart Path orbit strategies for faster material removal
  • Ensure consistent results across complex cavities with standard XYZ orbiting and multi-axis control
  • Minimize setup variation with precision-referenced electrode tooling systems
  • Increase machine utilization with lights-out EDM machining capability

Ideal Cutting Applications

  • Injection molds including tunnel gates, banana gates, and sub-gates
  • Aerospace components including turbines, diffusers, seal slots, and ribs
  • Ribbing, corner radii, and complex cavity geometries
  • Vent holes and fine internal features
  • Precision medical device components
  • Stamping and forging dies
  • Mold spotting and tooling correction
  • Petrochemical components and super alloy applications

Production Line Automation & Integration using Accutex’s Manufacturing Execution System (MES)

Accutex’s Manufacturing Execution System, or MES is the latest in advanced smart technology and AI.  MES not only monitors every aspect of the production process including recording and displaying real-time data on just about anything you can think of, but can also manage things such as multi electrodes, workpieces and machines.  Data produced during machine monitoring includes utilization rates, status, and machining processes including milling.  MES can also manage customized tools and design projects, measurements and counts necessary in mass-production processes and warehouse management.

MES incorporates Radio Frequency Identification (RFID) technology to record and track real-time data for managing tools and program details.  For instance, tools tagged with RFID can be inserted in random positions.  Using a robot, RFID tags can be scanned and sorted according to scheduled operations and priorities within the program increasing efficiencies and removing potential errors.

Below are simulation pictures of recently installed production lines using Accutex die sinkers and MES:
