River 35 & 45 ZNC EDM Hole Drilling Machines

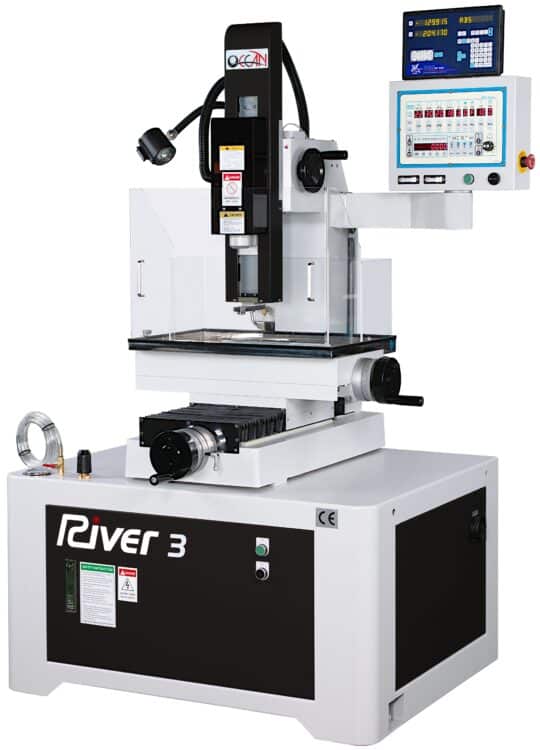

The River 3 ZNC EDM hole drilling machine, manufactured by Ocean Technologies, is engineered for precision drilling of small holes in applications such as turbine blades, fuel injectors, medical instruments, coolant holes for cutting tools, hardened punch ejector holes, vent holes in plastic molds, starter holes for wire EDM machining, and various other applications. Spark drilling is controlled by a digital control mechanism, which can effectively enhance small hole drilling stability in high speeds and supports electrode diameters from 0.1mm to 3.0mm with an option for up to 6.3mm.

Features:

  • 5 Memory Sets of Machining Parameters (10 opt.)
  • Sparking Parameter can be Fine-Tuned
  • Machining Parameters are Adjustable on the Fly
  • EDP Function for Hole Location Spotting (Surface Sparking)
  • Automatic or Manual Z-Axis Zero Point Setting
  • Automatic or Manual Electrode Wear Compensation
  • Inch or Metric Display

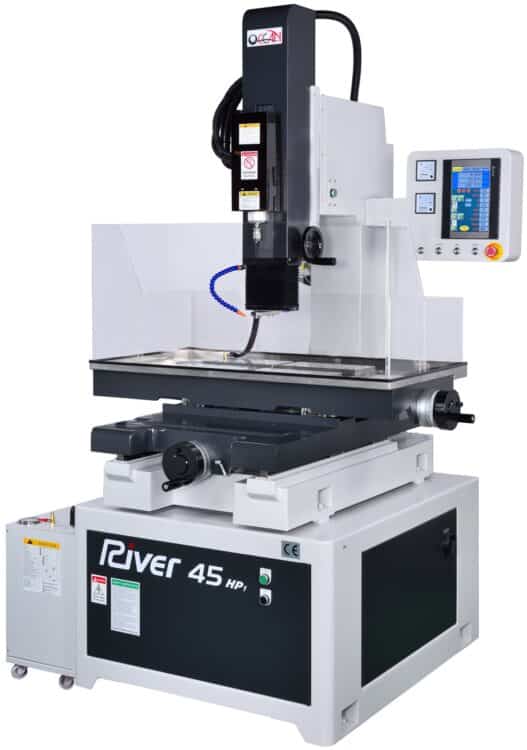

The River 35 and 45 ZNC EDM hole drilling machines are also engineered for precision drilling of small holes in applications such as turbine blades, fuel injectors, medical instruments, coolant holes for cutting tools, hardened punch ejector holes, vent holes in plastic molds, starter holes for wire EDM machining, and various other applications. Spark drilling is controlled by a digital control mechanism, which can effectively enhance small hole drilling stability in high speeds and supports electrode diameters from 0.1mm to 3.0mm with an option for 6.3mm. Equipped with the new HP1+ (River 35 & River 45) high-speed circuit generator to energize rotating tube electrodes for faster drilling speeds, accuracy, and productivity.

Features:

  • Optional Touch Screen
  • 5 Memory Sets of Machining Parameters (10 opt.)
  • Machining Parameters are Adjustable on the Fly
  • EDP Function for Hole Location Spotting (Surface Sparking)
  • Automatic or Manual Z-Axis Zero Point Setting
  • Automatic or Manual Electrode Wear Compensation
  • Inch or Metric Display

Specifications

Print View Full Screen
Item / Model
River 3 Request a Quote
River 35 Request a Quote
River 45 Request a Quote

X Axis Travel

11.8โ€ณ

13.8โ€ณ

17.7โ€ณ

Y Axis Travel

7.9โ€ณ

9.8″

13.7โ€ณ

Z Axis Travel

13.8โ€ณ

13.8″

13.8โ€ณ

W Axis Travel

7.9โ€ณ (11.8โ€ณ opt.)

7.9″

7.87โ€ณ

Work Table Size

13.8โ€ณ x 9.8โ€ณ

23.6″ x 11.8″

23.6โ€ณ x 14.8โ€ณ

Max. Workpiece Height

7.1โ€ณ

13โ€ณ

14โ€ณ

Max. Workpiece Weight

330 lbs.

550 lbs.

1,323 lbs.

Max. Current

25 Amps

32 Amps

32 Amps

Power Capacity

3.8 KVA

3.8 KVA

3.8 KVA

Electrode Diameter

0.008โ€ณ โ€“ 0.118โ€ณ

0.003โ€ณ ~ 0.118โ€ณ

0.003โ€ณ ~ 0.118โ€ณ

Machine Dimensions

43.3โ€ณ x 39.4โ€ณ x 78.7โ€ณ

43.3โ€ณ x 47.2โ€ณ x 82.7โ€ณ

59.8โ€ณ x 63.8โ€ณ x 87.8โ€ณ

Machine Weight

1,323 lbs.

1,764 lbs.

2,866 lbs.

For 35 ZNC & 45 ZNC

  • Tilting Head +/- 45 Deg. (Manual)
  • 0 ~ 0.248โ€ Electrode Capacity w/ 64 Amp Generator
  • 64 Amp Generator
  • HP1+ Sparking Circuit
  • 100 Leiter ( 26 gl.) Water Tank w/ Water Treatment
  • 180 Leiter ( 48 gl.) Water Tank w/ Water Treatment
  • Coolant Unit (12000 BTU)
  • Electrode Support (Anti-Vibration)
  • Multi Tap Isolation Transformer
