SPECIFICATIONS

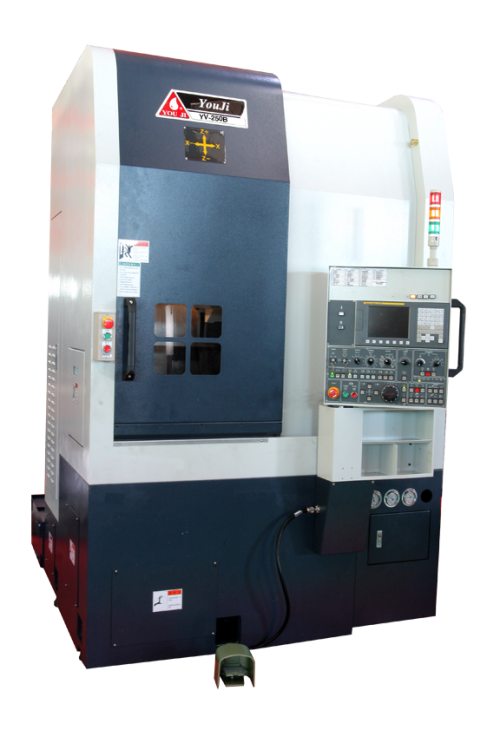

Item / Model YV-200B YV-200E YV-250A YV-250B
Request a Quote Request a Quote Request a Quote Request a Quote
Chuck Size (in.) 8 8 10 10
Max Swing (in.) 15.7 15.7 19.7 19.7
Std. Cutting Dia. (in.) 10 10 13.8 13.8
Z Travel (in.) 17.7 15.7 17.7 17.7
Max Part Weight (lbs.) 440 440 660 660
Tool System Gang 8 Drum 6 Hex Gang
Spindle HP 15 15 20 20
RPM (K) 4 4 2.5 2.5
C Axis No Optional No No
Y Axis No No No No
Twin Spindle Optional Optional Optional Optional
Weight (lbs.) 9,020 9,680 9,900 9,900

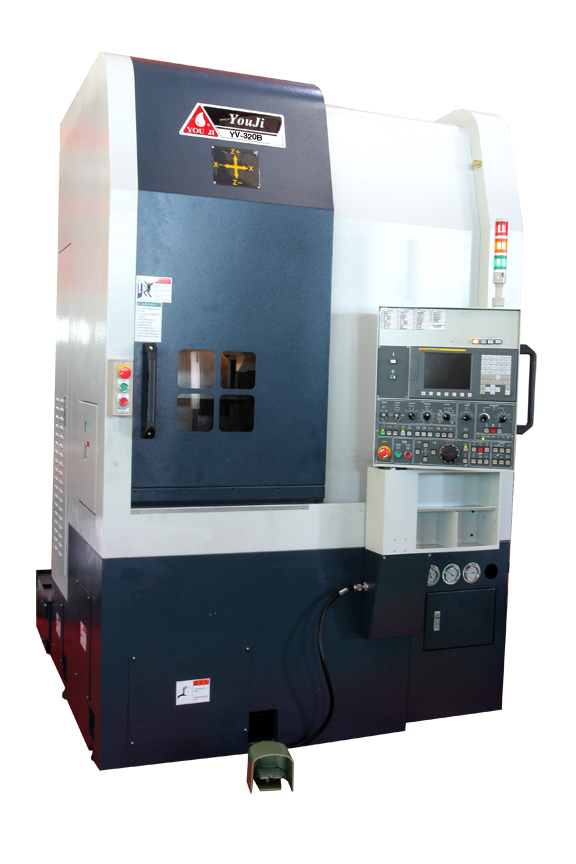

Item / Model YV-250E YV-320A YV-320B YV-320C
Request a Quote Request a Quote Request a Quote Request a Quote
Chuck Size (in.) 10 12 / 15 12 / 15 12 / 15
Max Swing (in.) 19.7 23.6 23.6 23.6
Std. Cutting Dia. (in.) 13.8 17.7 17.7 17.7
Z Travel (in.) 17.7 19.7 19.7 19.7
Max Part Weight (lbs.) 660 1,100 1,100 1,100
Tool System 8 Drum 6 Hex Gang 10
Spindle HP 20 30 30 30
RPM (K) 2.5 2.5 2.5 2.5
C Axis Optional No No Optional
Y Axis No No No No
Twin Spindle Optional Optional Optional Optional
Weight (lbs.) 9,900 13,200 13,200 13,200
Item / Model YV-320E YV-420A YV-420E YV-500A
Request a Quote Request a Quote Request a Quote Request a Quote
Chuck Size (in.) 12 / 15 15 / 18 15 / 18 15 – 24
Max Swing (in.) 23.6 27.5 27.5 31
Std. Cutting Dia. (in.) 17.7 19.7 19.7 22
Z Travel (in.) 19.7 19.7 19.7 24.4
Max Part Weight (lbs.) 1,100 1,100 1,100 2,640
Tool System 8 Drum 6 Hex 8 Drum 6 Hex
Spindle HP 30 30 30 30 (50) + 2 Speed
RPM (K) 2.5 2.5 2.5 2
C Axis Optional No Optional No
Y Axis No No No No
Twin Spindle Optional Optional Optional Optional
Weight (lbs.) 13,200 14,300 14,300 26,400

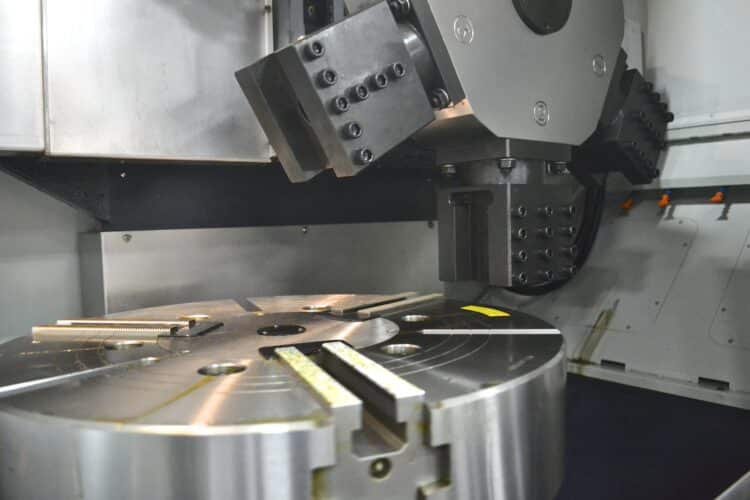

Item / Model YV-500E YV-500ATC YV-550A YV-550E
Request a Quote Request a Quote Request a Quote Request a Quote
Chuck Size (in.) 15 – 24 15 – 24 15 – 24 15 – 24
Max Swing (in.) 31 31 31.5 / 39.4 31.5 / 39.4
Std. Cutting Dia. (in.) 22 22 25.6 / 33.5 25.6 / 33.5
Z Travel (in.) 24.4 24.4 24.4 24.4
Max Part Weight (lbs.) 2,640 2,640 2,640 2,640
Tool System 10 Drum 12 ATC 6 Hex 10 Drum
Spindle HP 30 (50) + 2 Speed 30 (50) + 2 Speed 30 (50) + 2 Speed 30 (50) + 2 Speed
RPM (K) 2 2 2 2
C Axis Optional Optional No Optional
Y Axis Optional Optional No Optional
Twin Spindle Optional Optional Optional Optional
Weight (lbs.) 26,400 27,500 29,700 29,700

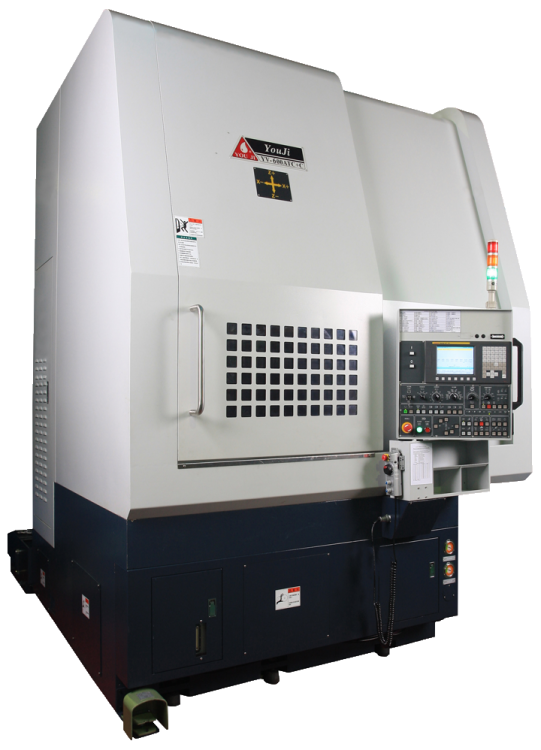

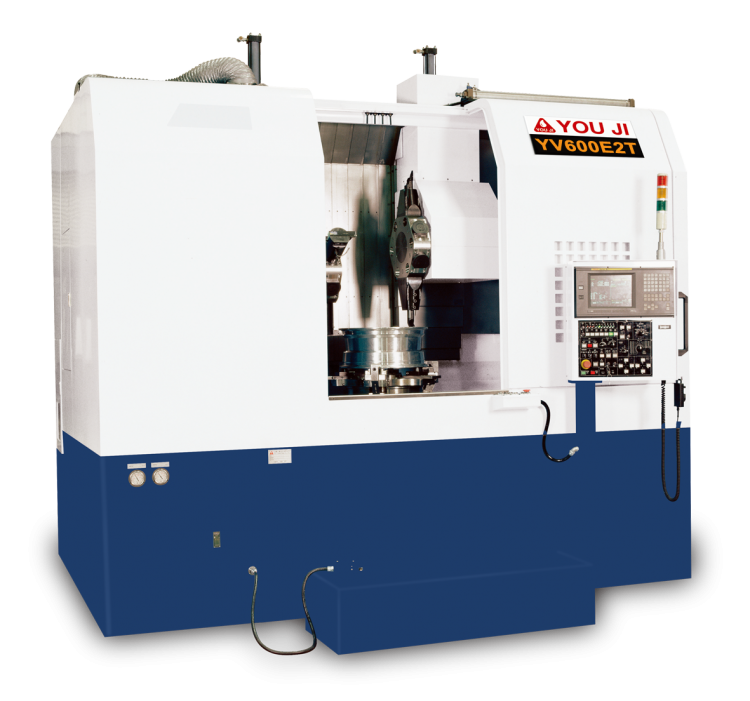

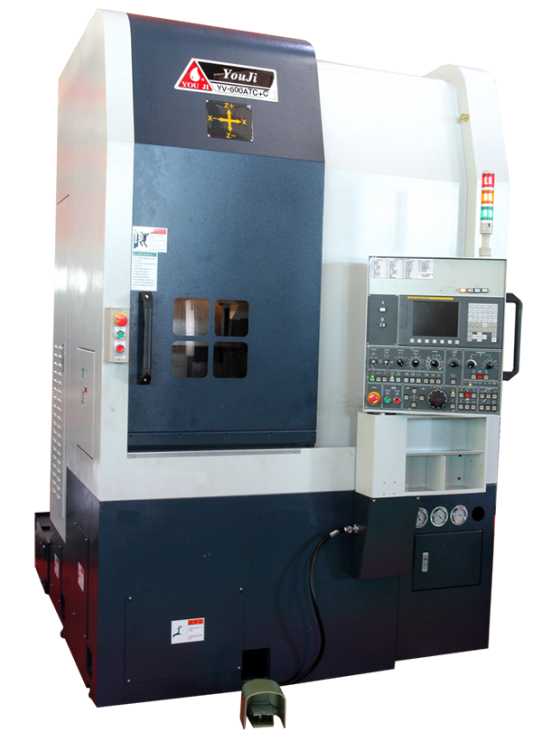

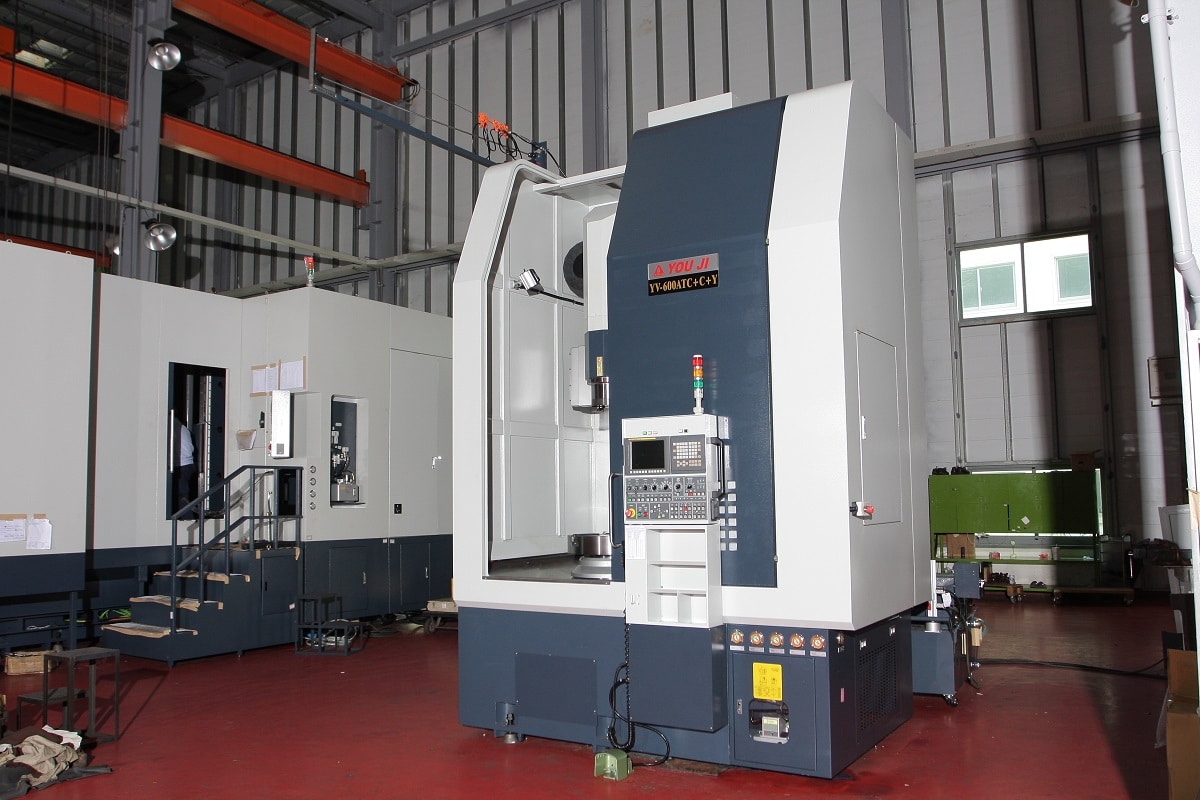

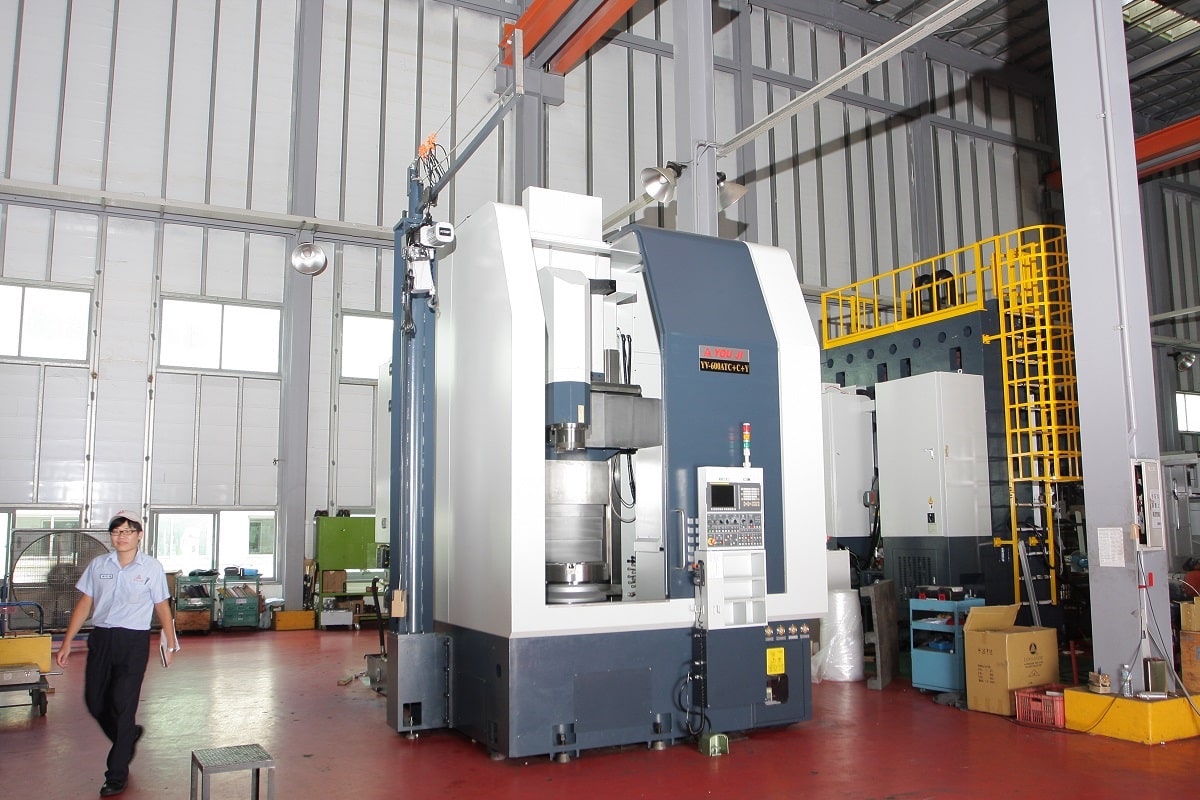

Item / Model YV-600A YV-600E YV-600ATC YV-600E2T
Request a Quote Request a Quote Request a Quote Request a Quote
Chuck Size (in.) 24 / 32 24 / 32 24 / 32 Up to 32 (opt.)
Max Swing (in.) 33.5 33.5 33.5 35.4
Std. Cutting Dia. (in.) 29.5 29.5 29.5 27.5
Z Travel (in.) 31.5 31.5 31.5 21.65
Max Part Weight (lbs.) 3,960 3,960 3,960 3,960

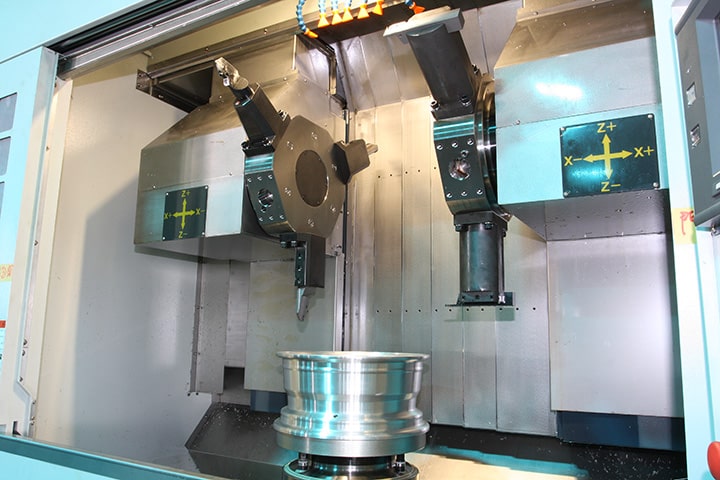

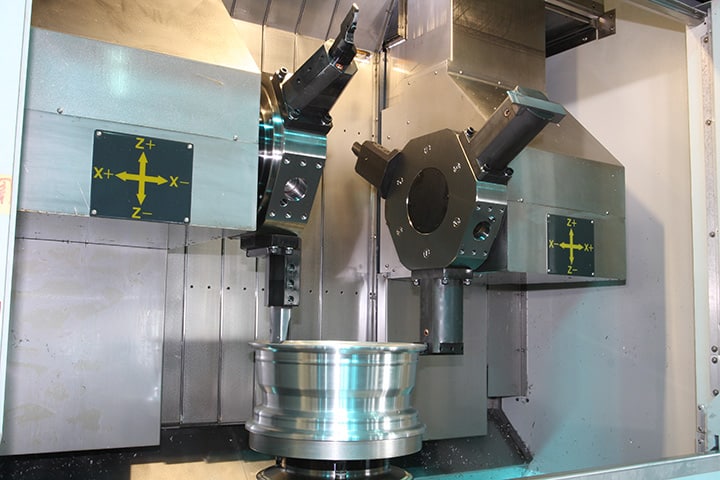

Tool System 6 Hex 10 Drum 12 ATC / Capto (opt.) 2 Hex Turrets
Spindle HP 30 (50) + 2 Speed 30 (50) + 2 Speed 30 (50) + 2 Speed 100
RPM (K) 1.5 1.5 1.5 1.5 (2 opt.)
C Axis No Optional Optional No
Y Axis No Optional Optional No
Twin Spindle Optional Optional Optional No
Weight (lbs.) 33,900 33,900 37,400 44,000
Item / Model YV-700A YV-700E YV-800A YV-800E
Request a Quote Request a Quote Request a Quote Request a Quote
Photos
Chuck Size (in.) 24 / 32 24 / 32 24 / 32 / 40 24 / 32 / 40
Max Swing (in.) 35.4 / 47.2 35.4 / 47.2 48 48
Std. Cutting Dia. (in.) 31.5 / 39.4 31.5 / 39.4 40 40
Z Travel (in.) 31.5 31.5 33.5 33.5
Max Part Weight (lbs.) 3,960 3,960 6,600 6,600
Tool System 6 Hex 10 Drum 6 Hex 10 Drum
Spindle HP 30 (50) + 2 Speed 30 (50) + 2 Speed 30 (50) + 2 Speed 30 (50) + 2 Speed
RPM (K) 1.5 1.5 800 800
C Axis No Optional No Optional
Y Axis No Optional No Optional
Twin Spindle Optional Optional Optional Optional
Weight (lbs.) 37,400 37,400 35,200 35,200

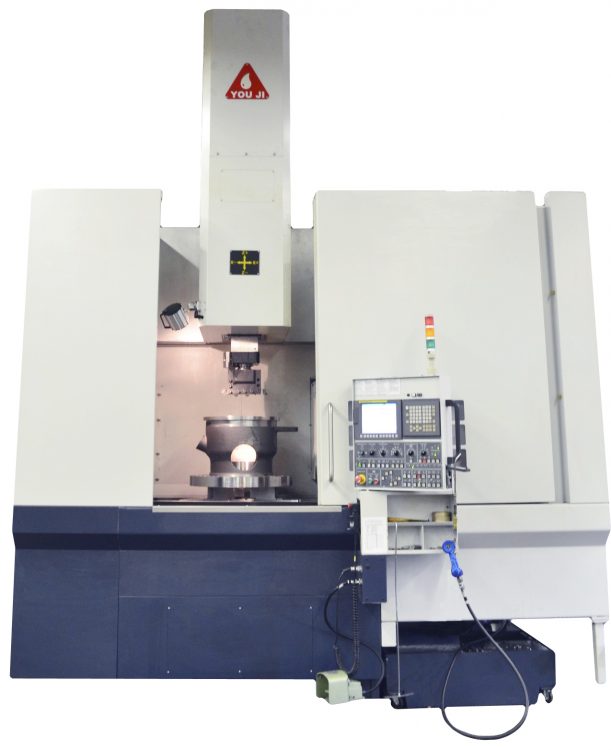

Item / Model YV-800ATC
Request a Quote
Chuck Size (in.) 24 / 32 / 40
Max Swing (in.) 48
Std. Cutting Dia. (in.) 40
Z Travel (in.) 33.5
Max Part Weight (lbs.) 6,600
Tool System 12 ATC / Capto (opt.)
Spindle HP 30 (50) + 2 Speed
RPM (K) 800
C Axis Optional
Y Axis Optional
Twin Spindle Optional
Weight (lbs.) 39,600
  • Chip Conveyor
  • Full Machine Enclosure
  • 3-Jaw Hyraulic Power Chucks
  • Fanuc CNC Control
  • 24 Tool Arm-Type CAPTO ATC available on YV-600ATC and YV-800ATC
