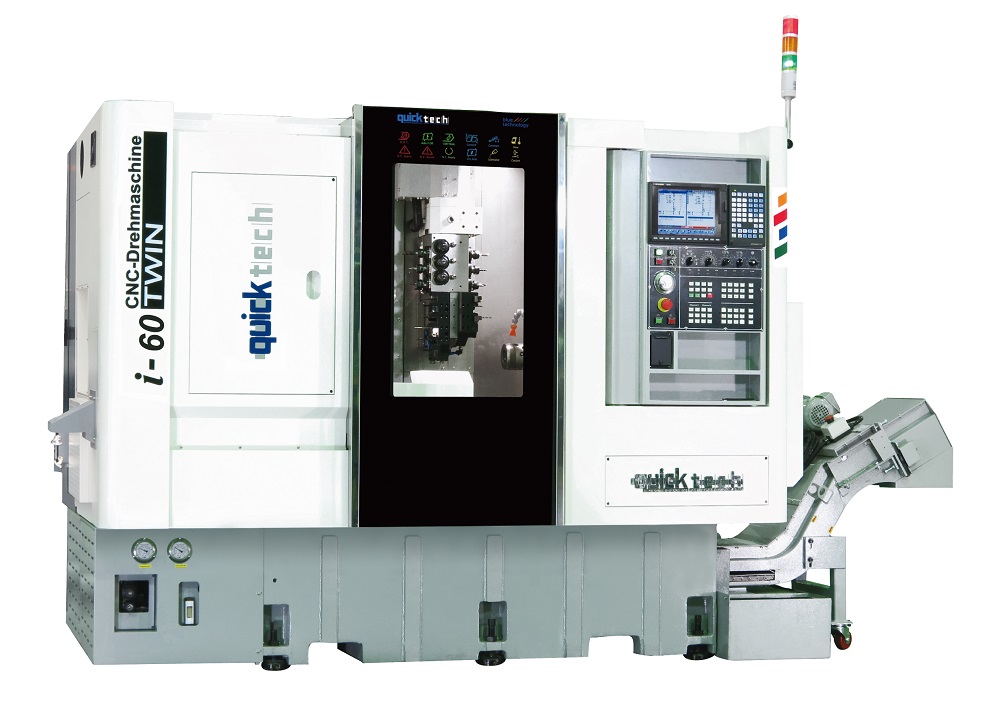

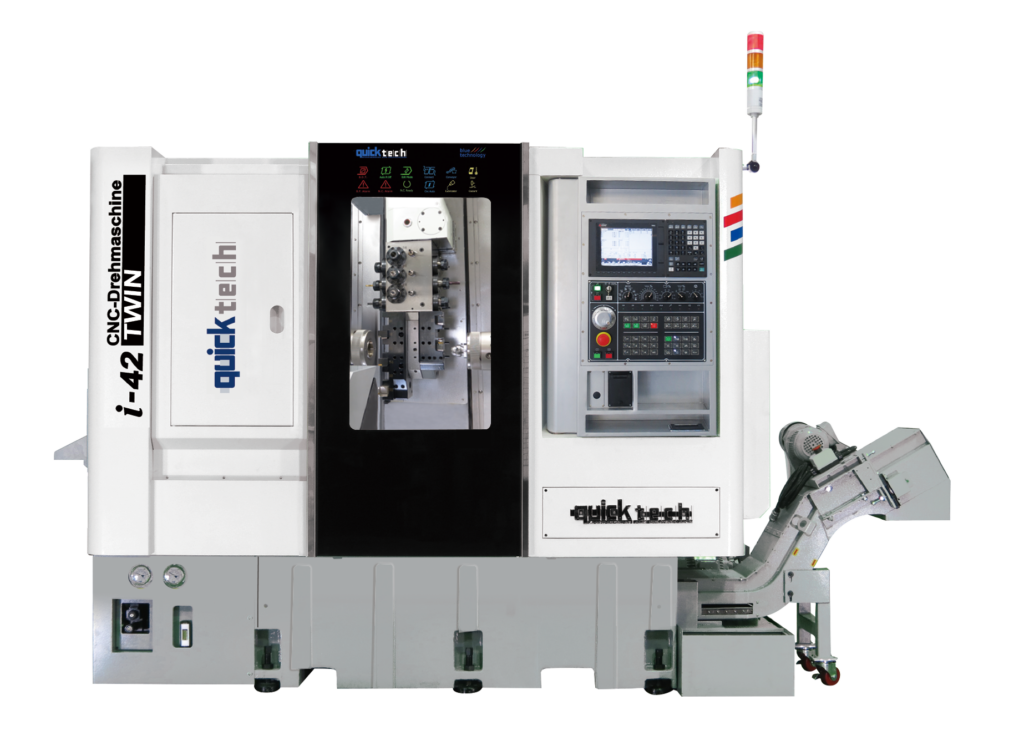

SPECIFICATIONS
Item / Model i-42 Twin i-60 Twin
Main Spindle Capacity
Max Bar Working Capacity 1.65″ 2.36″
Max Turning Length 9.8″
Spindle Speed Range (std.) 6,000 RPM 4,000 RPM
Spindle Motor 15 HP
C-Axis Increment .001°

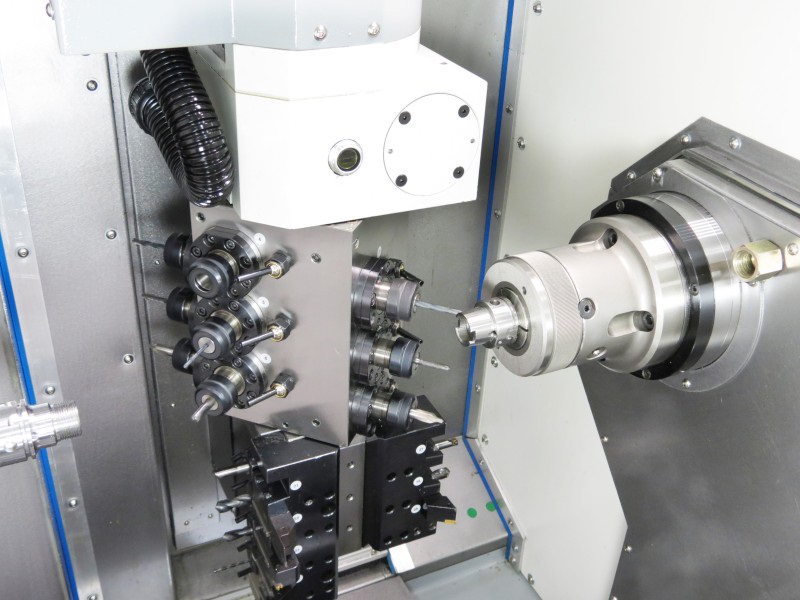

Sub-Spindle Capacity
Max Bar Working Capacity 1.65″
Max Turning Length 3.94″
Spindle Speed Range 6,000 RPM
Spindle Motor 7.5 HP Integral Motor
C-Axis Increment .001°
Travel and Feed
Rapid Traverse Rate 1,181″/min.

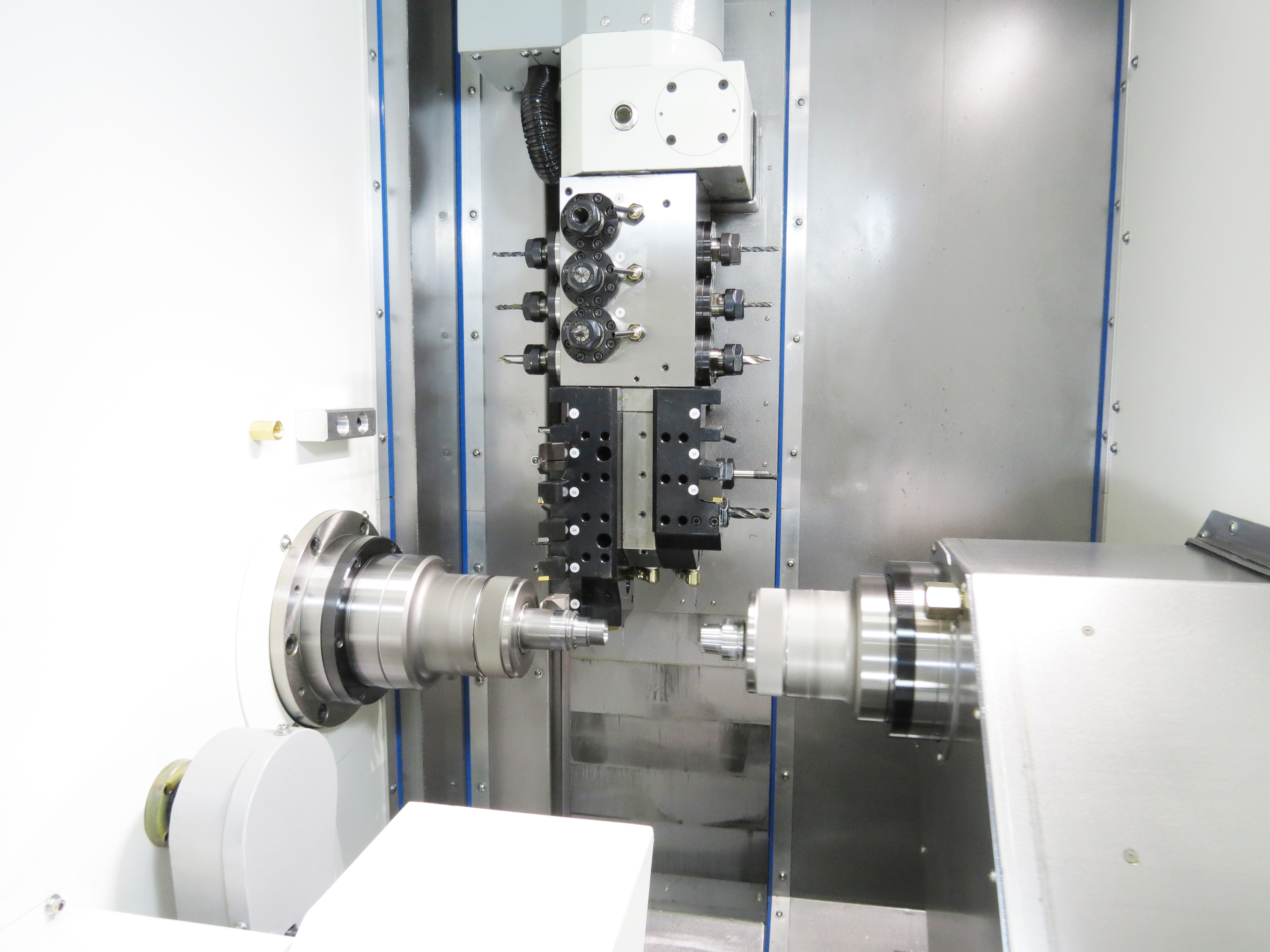

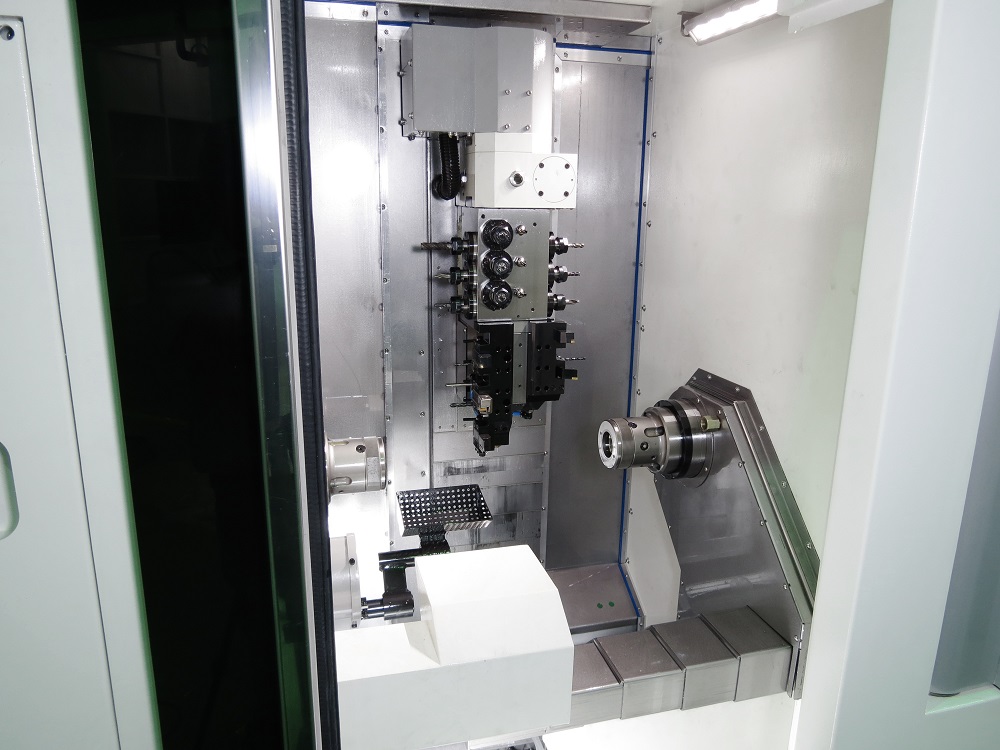

Tooling System
Tooling Type Gang Tool / Servo Y-Axis / KM-25 Quick Change
Number of Turning Tools 6 O.D. (5 + 1 Cut Off) & 5 I.D.
Square Shank Size .75″ (20mm)
Boring Bar Capacity .75″ (ER-20)

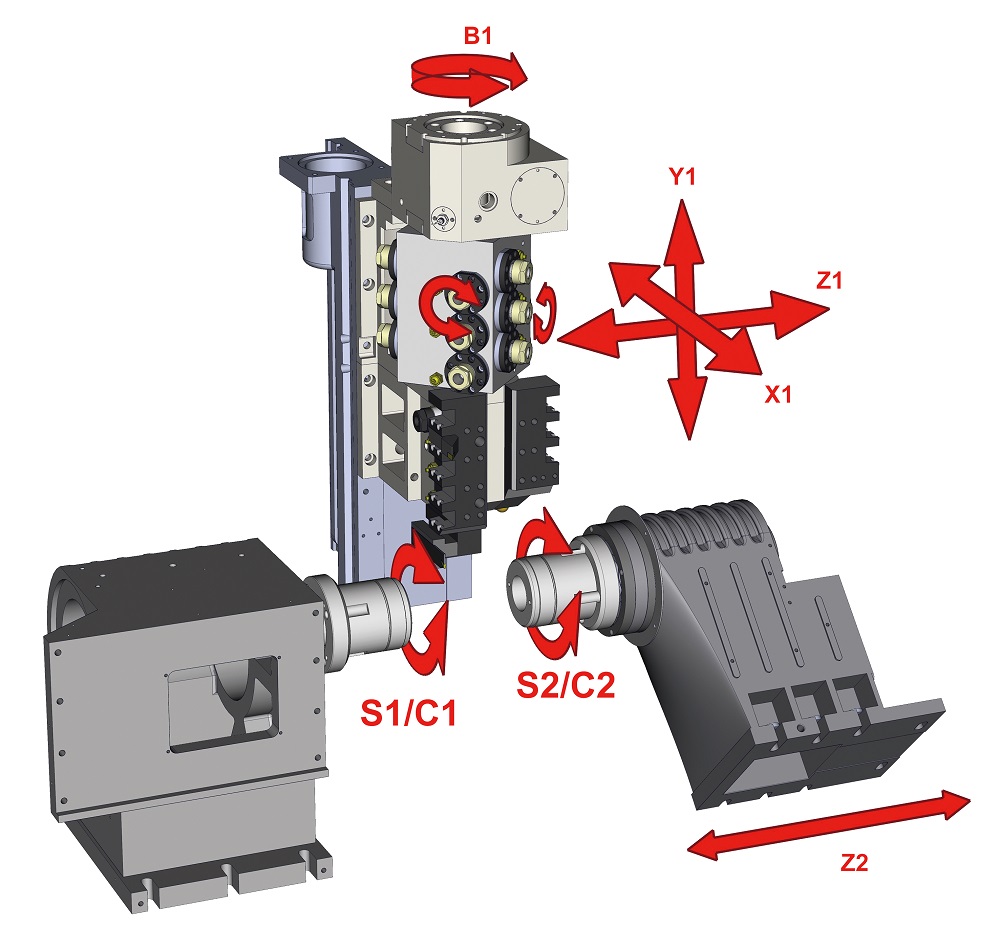

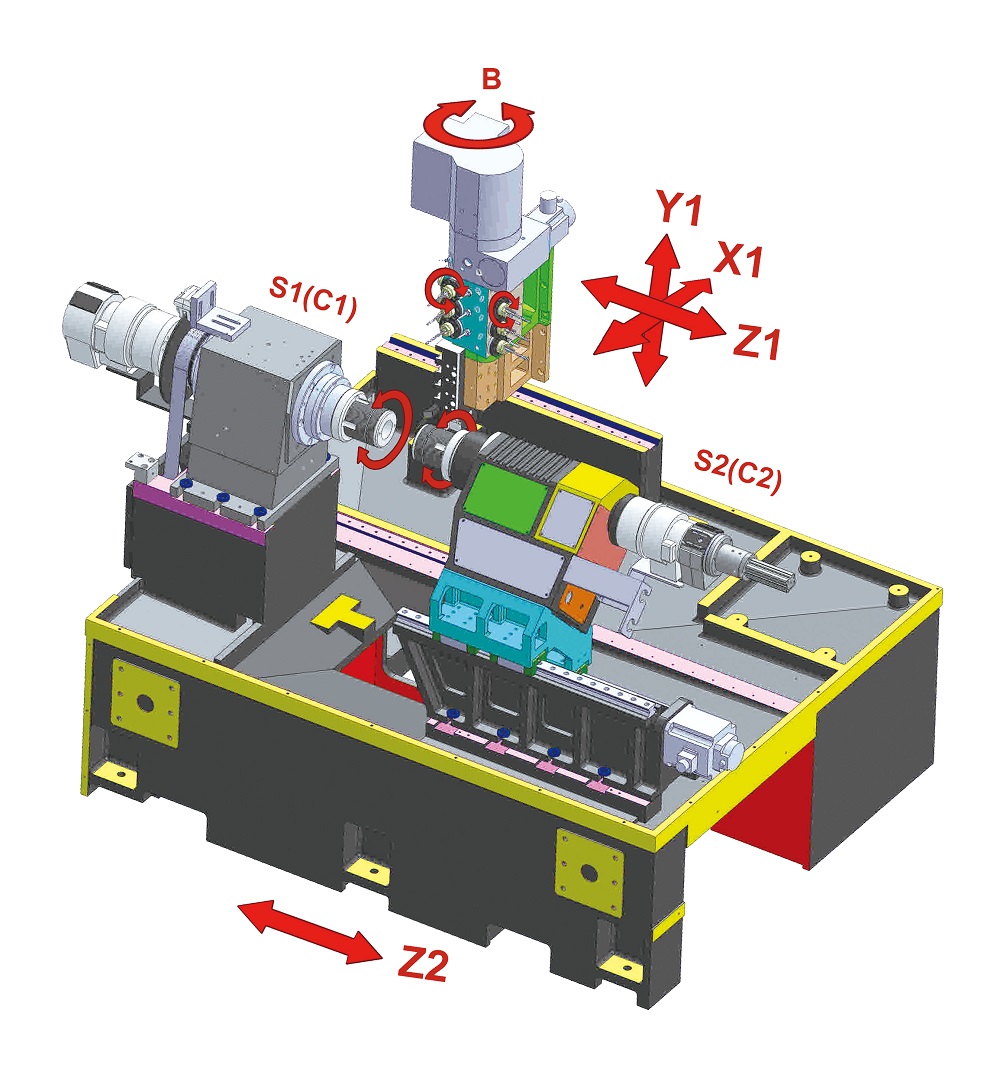

B-Axis 360°
B-Axis Index Time .3 Seconds 90° / 6 Seconds 360°

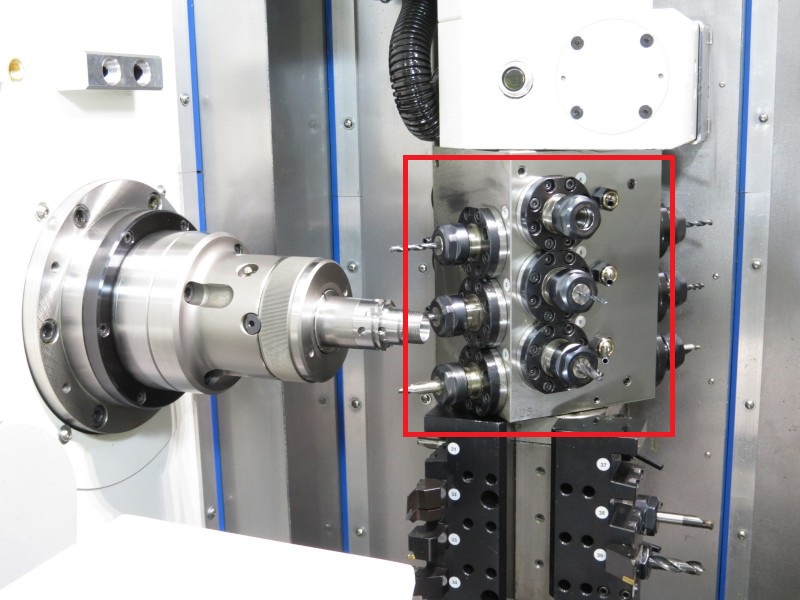

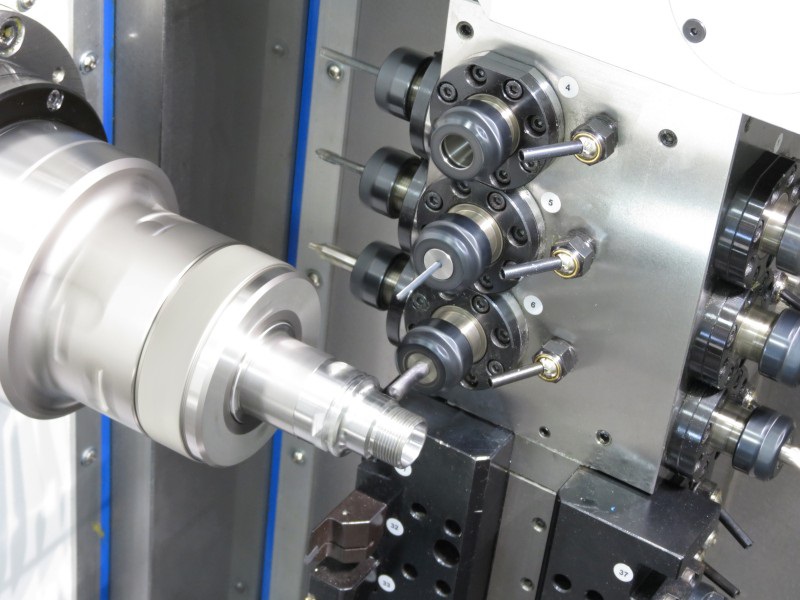

Number of Live Tools 12
Live Tool Spindle Motor 2 HP
Live Tool Spindle Speed 4,000
Live Tool Shank ER-20 Collet
General

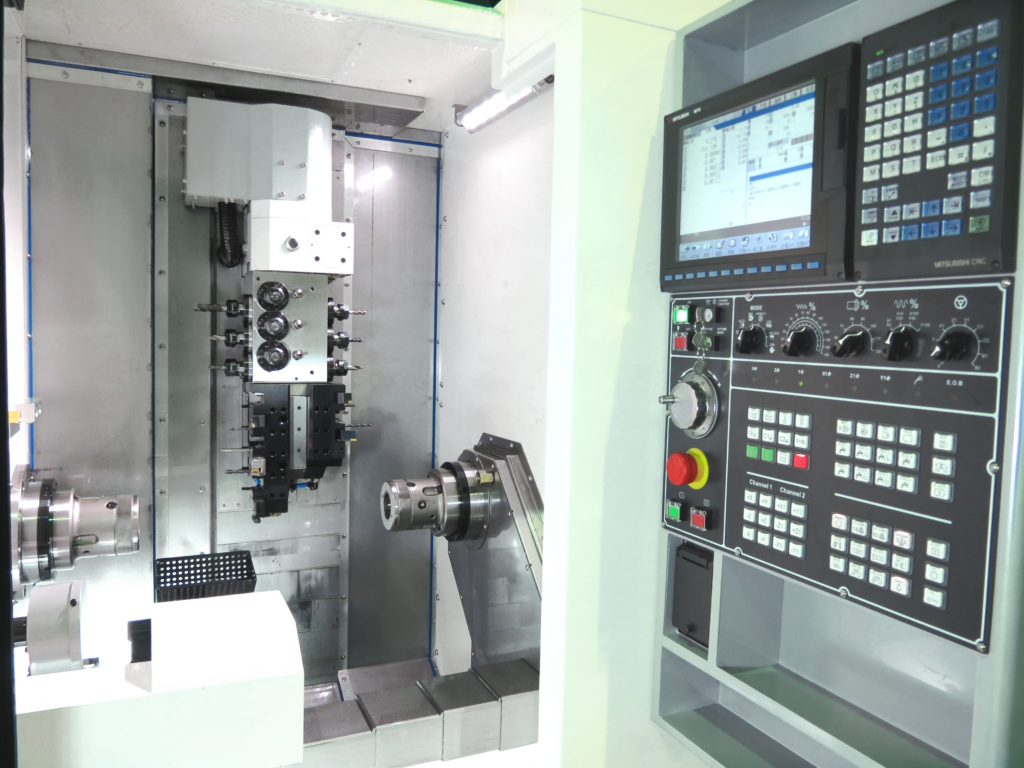

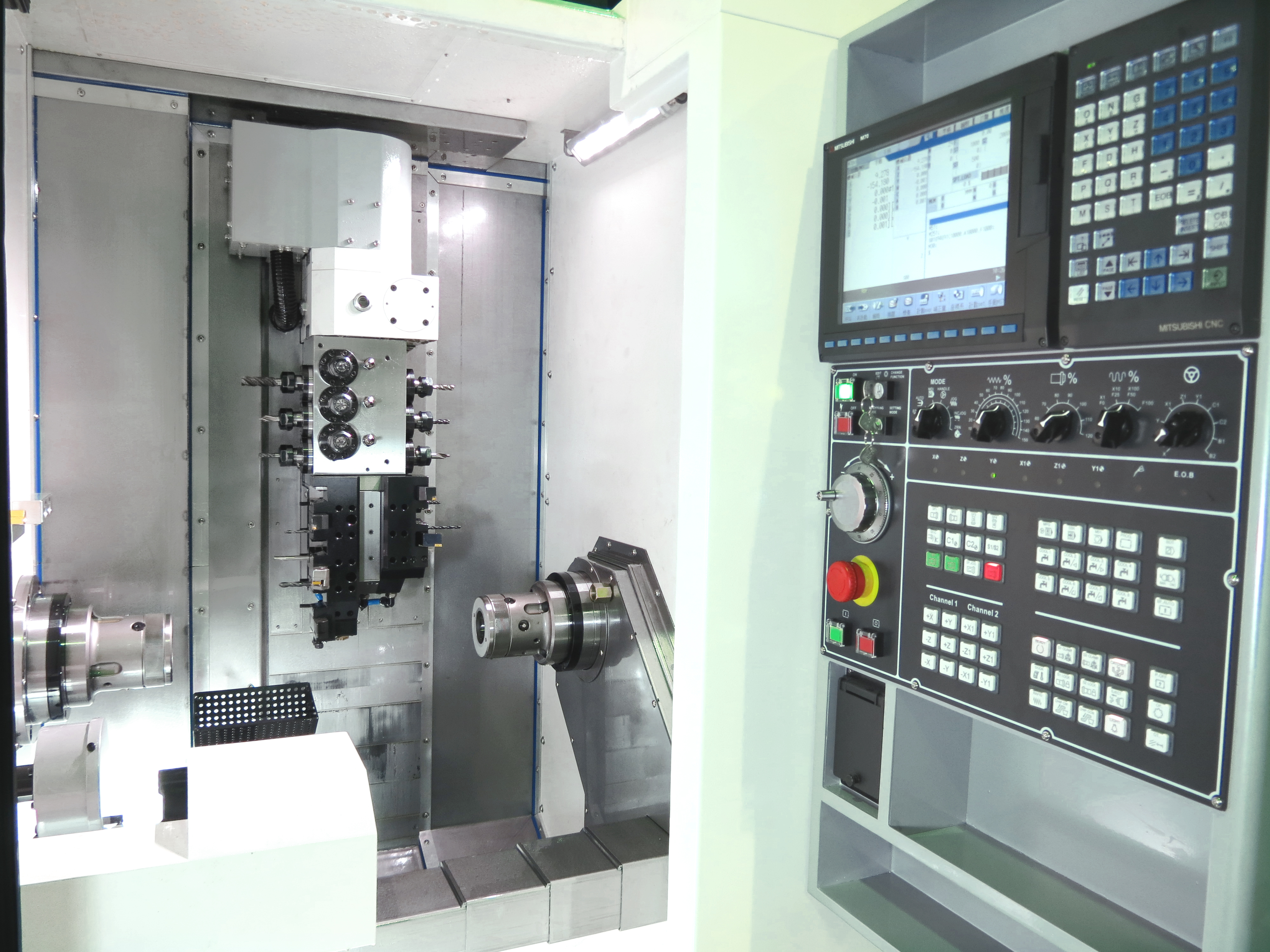

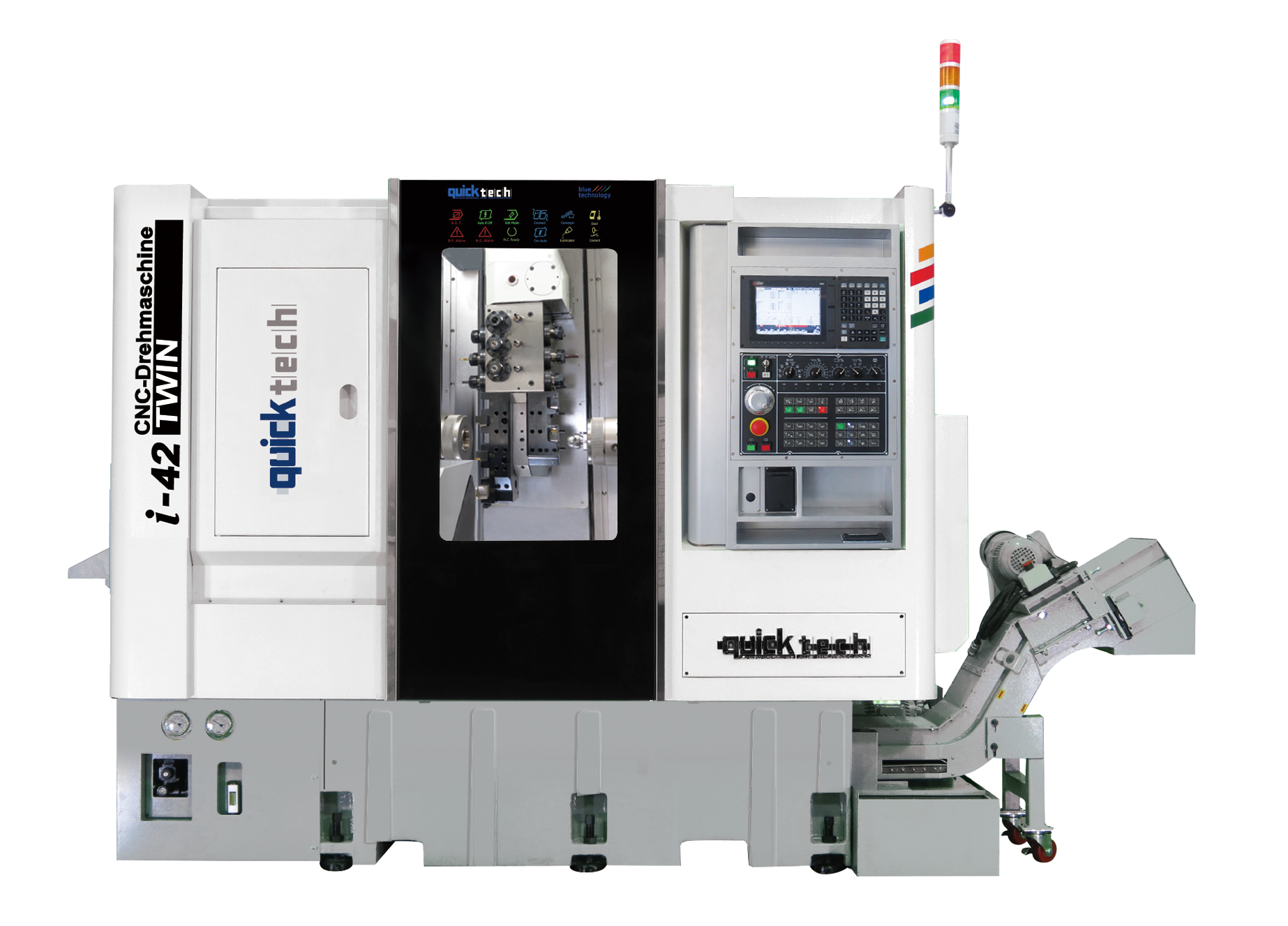

CNC Control Mitsubishi M80A
Machine Dimensions with Chip Conveyor 138″ x 71″ x 75″
Machine Weight 8,360 lbs.

(12) Live tools (ER-20 collets)
(2) 42mm collet Chucks (60mm collet chuck for i-60 main spindle)
(5) Front O.D. quick change KM-25 tool holder bases
(5) Front I.D. tool holders (ER-20 collets)
(1) Front parting tool holder (3/4” square shank)
(3) Rear O.D. tool change KM-25 tool holder bases
(4) Rear I.D. tool holders (ER-20 collets)
ER-20 collet set (box)
Parts catcher
Parts conveyor

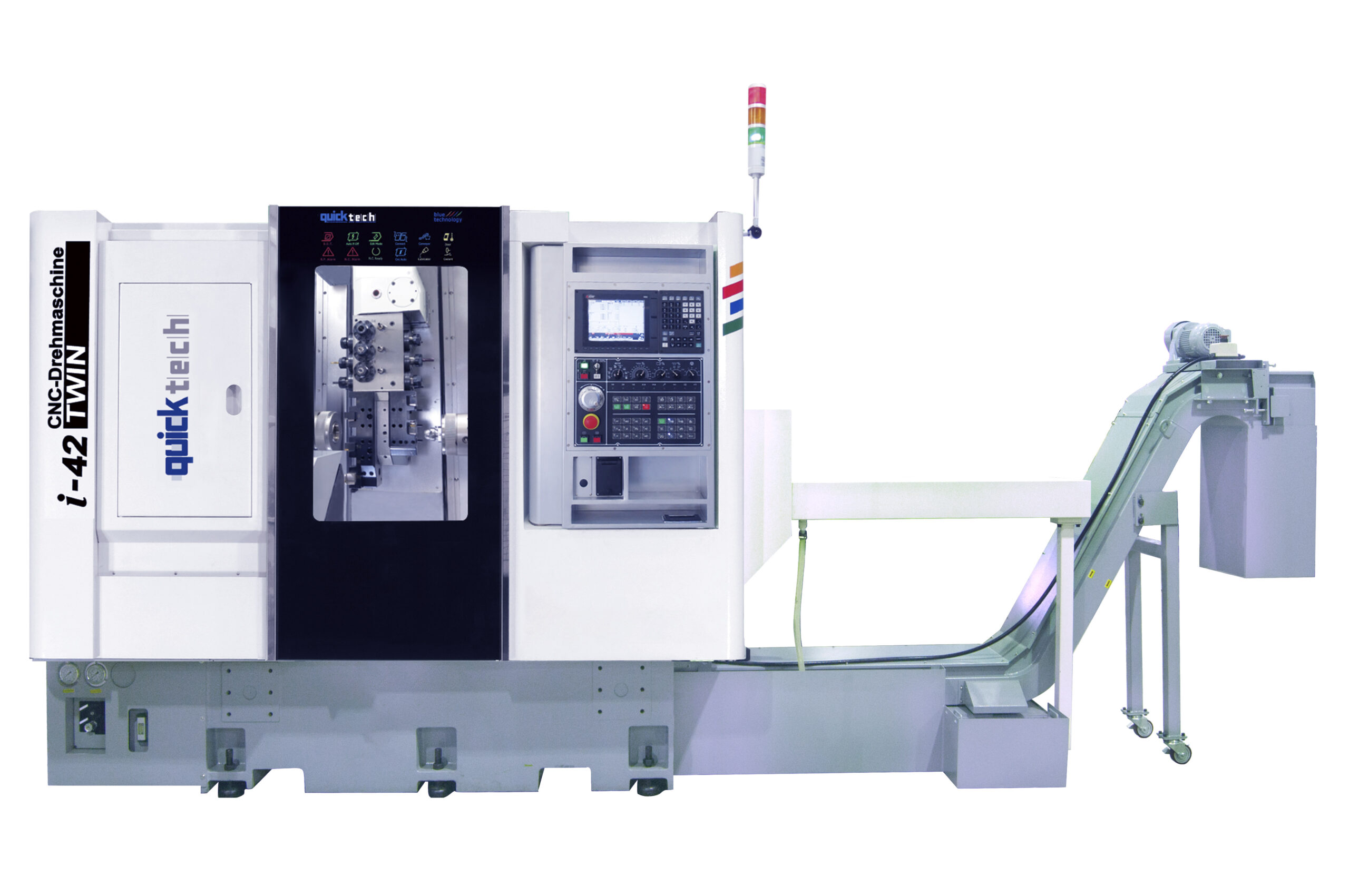

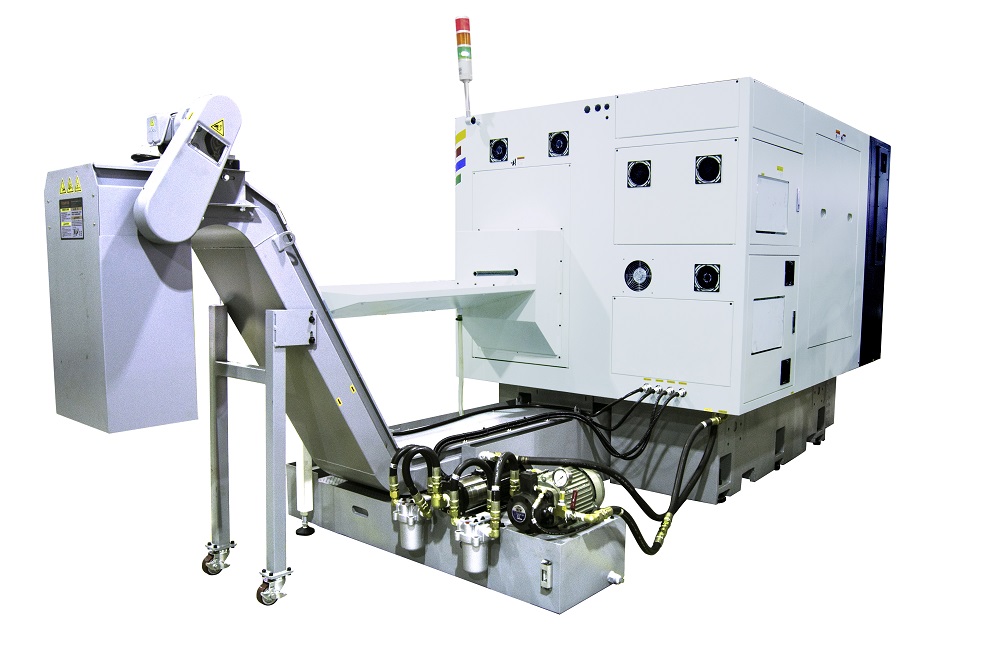

Chip conveyor
Bar feeder interface
400 PSI / 8GPM high pressure coolant pump
75 PSI / 20 GPM floor coolant pump
Full enclosed machine guards
Auto lubrication system
1 Set of machine and control manuals

Recommended Kennametal KM-25 tool holder package (certificate)
440/460/480V operation
Turn-key with single part prove-out and turn-off (perishable tooling and working holding not included)
Mitsubishi M830S upgrade to 5 axis simultaneous

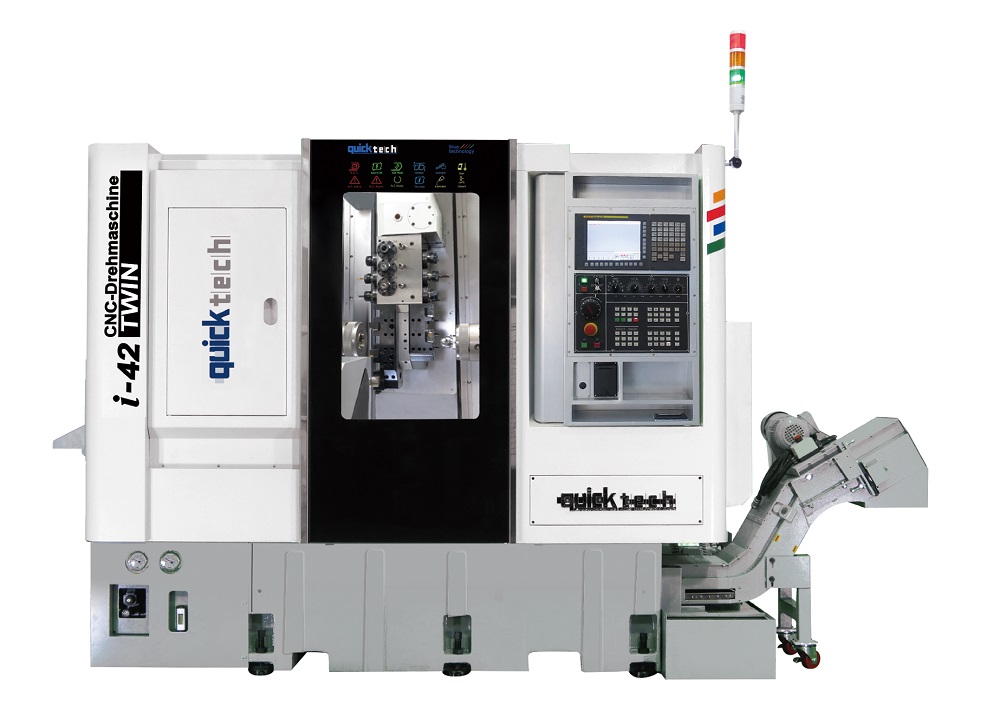

Fanuc OiT-F control instead of Mitsubishi M80A
Air conditioner for electrical cabinet instead of heat exchanger
