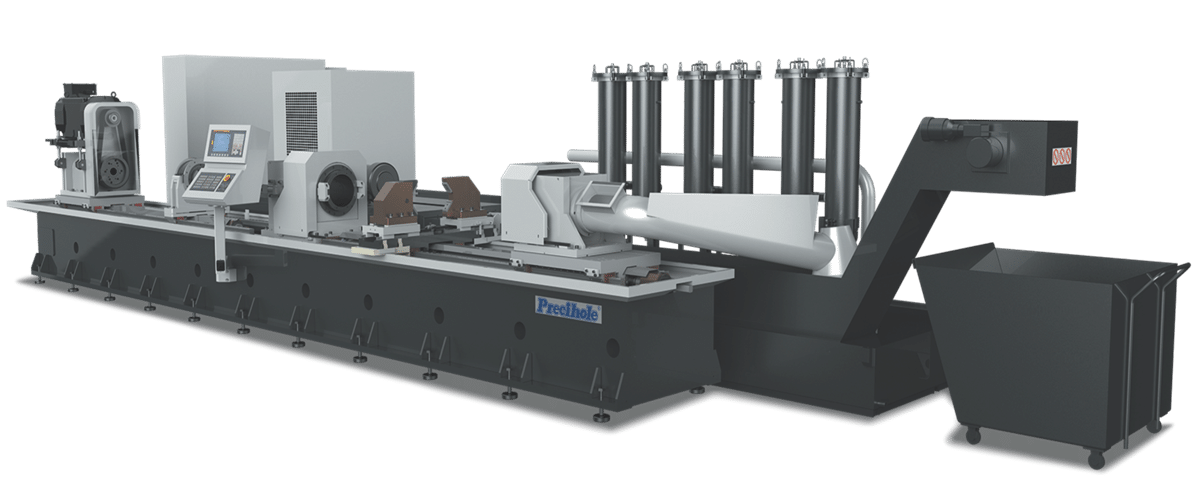

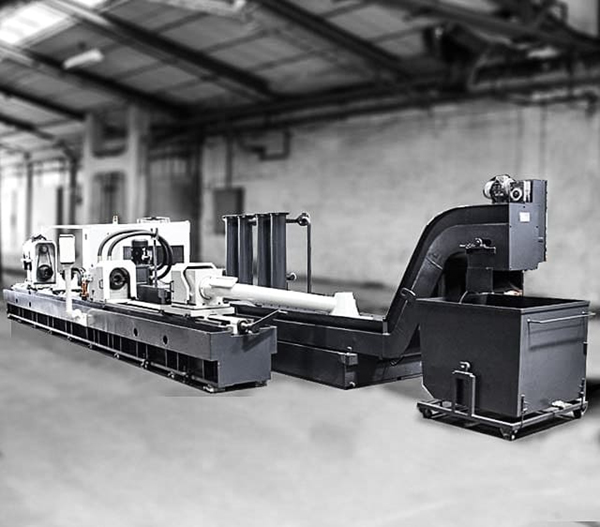

Precihole SBN Series โ€“ Skiving and Roller Burnishing Machines

View full gallery

Preciholeโ€™s SBN Series Skiving and Roller Burnishing Machines are built to operate in a high production mode for sizing and polishing hydraulic cylinder tubes. These machines incorporate state-of-the-art technology that enables cycle times to be 30-40 times faster than honing.

The SBN Series machines are customized to suit volume requirements and provide excellent surface finish and wall thickness consistency across the length of the tube. These machines are complete solutions that include features needed for continuous and repeatable performance over many years.

Machine Features:

  • Rigid and robust design to allow precise and vibration free movement of machine elements

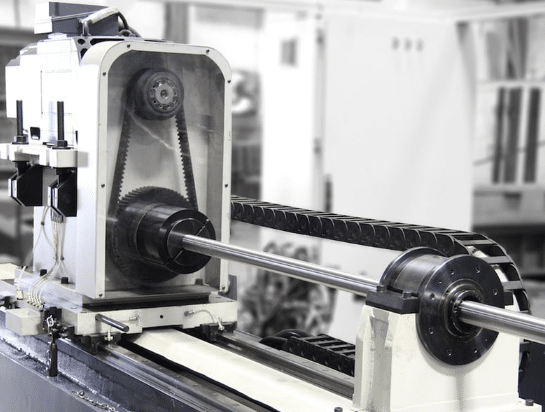

  • Use of ball screw or rack and pinion with servo drives for linear motion

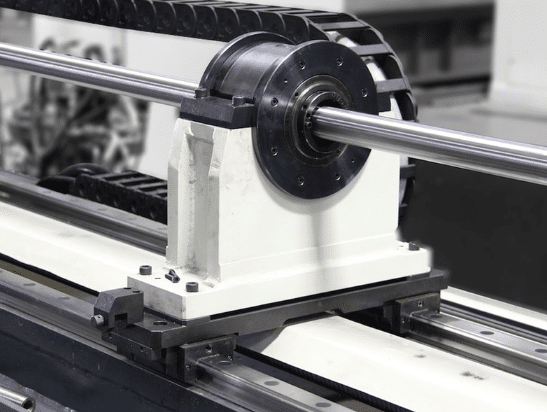

  • Multiple tool steady rests provide tube support
  • Hydraulic vice clamping for clamping tubes for slender or longer tubes

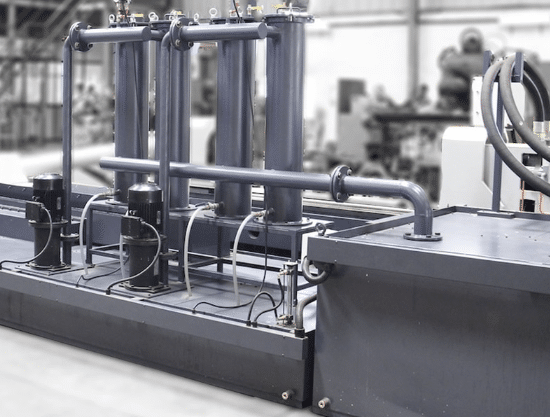

  • High pressure coolant and fine filtration system
  • Oil chiller and automatic lubrication

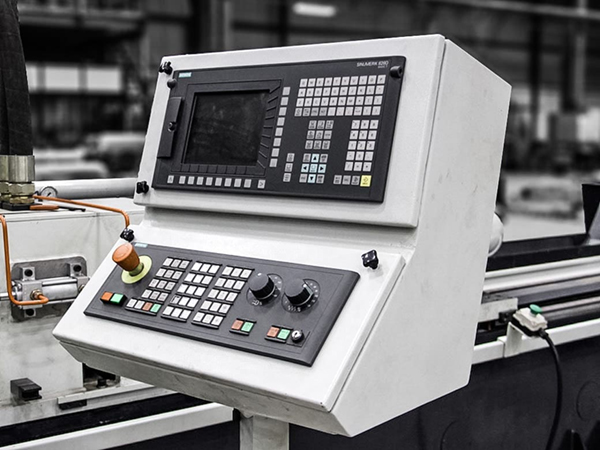

  • Fanuc / Siemens CNC controls with customized screens for monitoring machine parameters
  • Automatic loading and unloading arrangement

Specifications

Item / Model
SBN150 Request a Quote
SBN250 Request a Quote

Skiving & Burnishing Diameter Range

1.57โ€ณ โ€“ 6โ€ณ

2โ€ณ โ€“ 10โ€ณ

Skiving & Burnishing Length

40โ€ณ โ€“ 394โ€ณ

40โ€ณ โ€“ 394โ€ณ

Configuration

Tool Rotating & Feeding, Part Stationary

Tool Rotating & Feeding, Part Stationary

Spindle Power

68 HP

99 HP

Spindle Speed Range

150 โ€“ 1600 RPM

100 โ€“ 1300 RPM

Coolant System Flow (GPM)

159

264

Coolant Tank Capacity (Gallons)

1057

1585

Coolant Pump Power

15 HP

25 HP

  • Precihole Skiving and Roller Burnishing Machine
