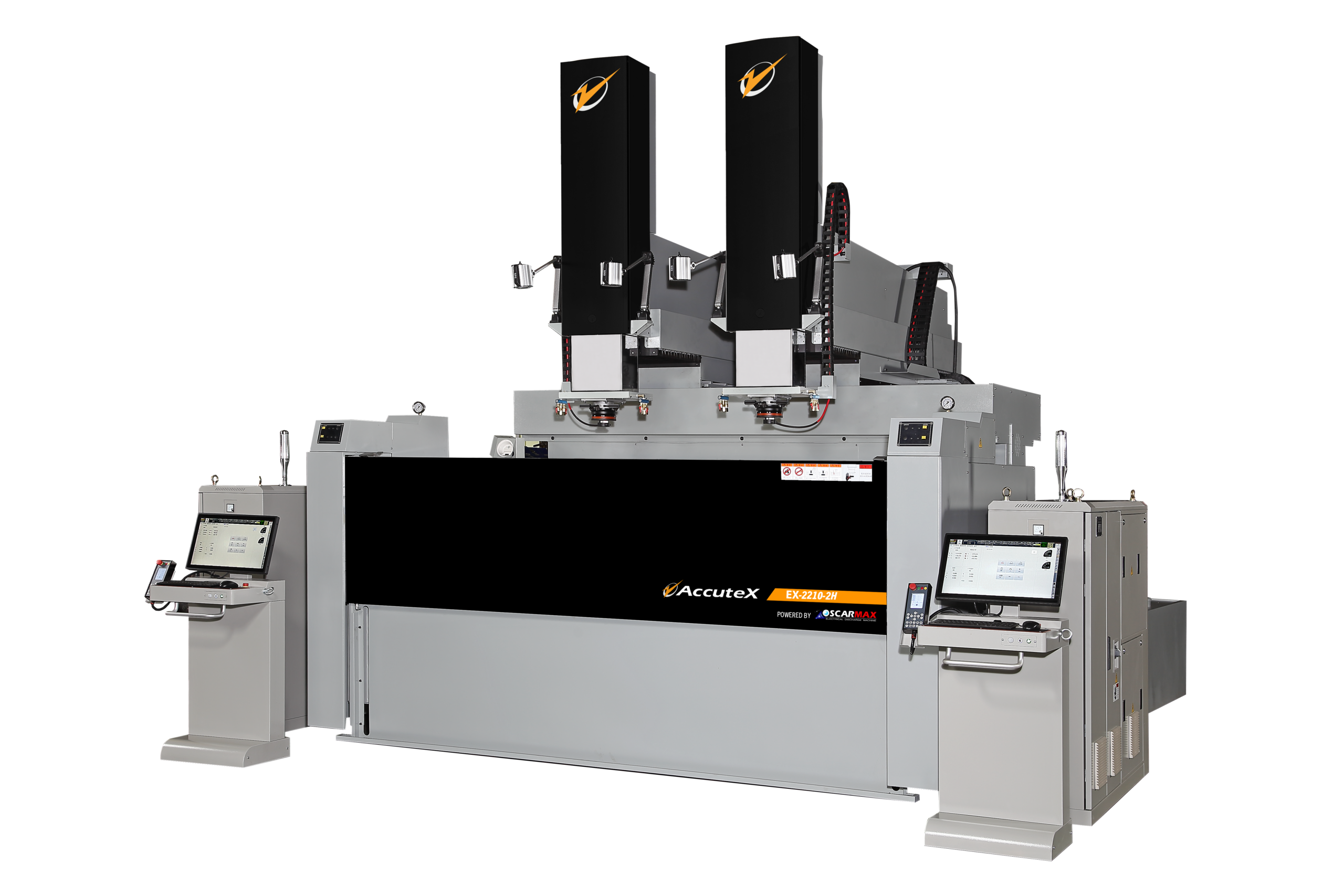

Accutex EX-2H Twin Head CNC Die Sinker Series

Twin-head models feature two independently controlled rams operating inside the same work tank, enabling parallel machining of two cavities, synchronized burning on the same mold, or rough/finish operations performed simultaneously. 2H versions use the same machine platform as Single-head SM versions but provide Extended X-axis travel, giving shops greater flexibility when machining oversized or wide-format tooling.

Travel ranges span from 430mm to 1275mm per ram (860mm to 2550mm on SM single-head models), all with 1000mm Y-axis and 600mm Z-axis travel. With table load capacities from 11,000–19,000 kg, the EX-2H Series supports large molds, multi-cavity tools, aerospace dies, and deep 3D cavity structures where rigidity and accuracy are essential.

Key Features

• Twin-head 2H configuration with two fully independent rams, ball screws, and servo control channels.
• Single-head SM configuration with double X-axis travel, ideal for long or wide-format workpieces.
• Moving-column architecture increases rigidity and stability during heavy or long-duration burning cycles.
• X-axis travel ranges:
  • Twin-head 2H: 1295mm, 2337mm, 3810mm,
• Y-axis travel: 1000mm
• Z-axis travel: 600mm
• Large table sizes up to 3100 × 1100 mm for multi-cavity and large-format tooling.
• Exceptional load capacity from 11,000–19,000 kg to support oversized molds and aerospace dies.
• High dielectric tank capacities (3410L to 5910L) stabilize long dual-ram operations.
• 500 kg electrode weight capacity per ram for large graphite and copper electrodes.
• Advanced dual-channel CNC control supports independent ram programming, coordinated motion, orbiting, and multi-step burn routines.
