TRACER Short
Bar Loaders

Compact, Reliable Bar Loading Systems for Unmanned Turning Production

TRACER Short Bar Loaders from Absolute Machine Tools provide automatic spindle-length bar loading for CNC lathes, enabling lights-out production in compact spaces. Available in both pneumatic and servo-driven models, TRACER loaders are engineered for precision, versatility, and seamless integration with all major lathe brands — including those equipped with sub-spindles. Each unit delivers consistent bar feeding accuracy, rapid cycle times, and the reliability expected from the industry’s leading bar loading system.

Whether installed on a new machine or retrofitted to an existing lathe, TRACER short bar loaders simplify part changeovers, reduce operator involvement, and maximize spindle uptime.

Tracer Logo

Benefits for Metal Cutting Manufacturers

  • Compact Footprint: Designed to save valuable floor space while maintaining full operator accessibility.
  • Unmanned Production Capability: Enables continuous, automatic loading of spindle-length bars for long production runs.
  • Fast Changeovers: Quick V-channel adjustment system allows easy diameter change without tools.
  • Universal Compatibility: Easily integrates with any brand of CNC lathe, mill-turn center, or screw machine.
  • Enhanced Monitoring: Patented frontal LED display provides at-a-glance status updates and alarm notifications.
  • Optional Top Cut System: Automatically senses new bar position for uninterrupted production.
  • Retractable Rail System: Unique slide-back feature provides open access for spindle liner changes and lathe maintenance.
  • Low Cost of Ownership: Simple, durable design ensures long service life with minimal maintenance requirements.

Machines

Pneumatic Short Bar Loaders

View More

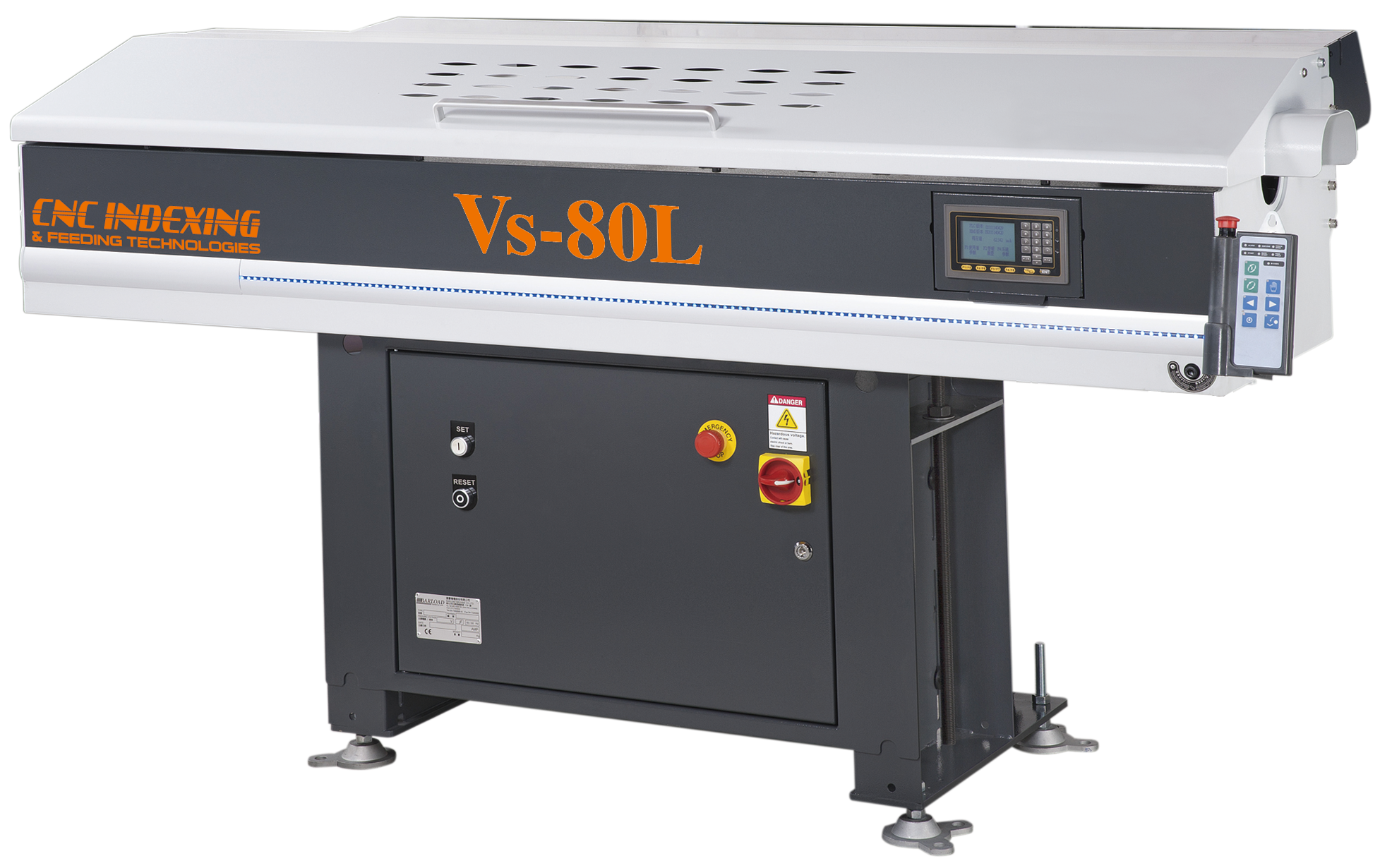

Vs-80L-Closed

Servo Bar Loaders

View More

Pneumatic Short Bar Loaders

The TRACER V-65E and V-65LE pneumatic short bar loaders offer an economical solution for automating spindle-length bar feeding. Both models feed to a turret stop and deliver reliable operation through an air-powered design that’s easy to maintain and ideal for shops seeking affordable automation.

  • TRACER V-65E – Max. Bar Length 48″ (1,200 mm); Ø 0.25″ – 2.56″ (5–65 mm)
  • TRACER V-65LE – Max. Bar Length 60″ (1,500 mm); Ø 0.25″ – 2.56″ (5–65 mm)

Both models include the patented TRACER LED external blue light display for remote visual monitoring of bar status and alarms.

Servo Short Bar Loaders

For high-performance turning centers, TRACER’s servo-driven models deliver faster feeding, greater precision, and full electrical operation — no air required. These systems are ideal for sub-spindle CNC lathes and other advanced production environments demanding maximum throughput.

  • TRACER Vs-65E – Max. Bar Length 48″ (1,200 mm); Ø 0.25″ – 2.56″ (5–65 mm)
  • TRACER Vs-65LE – Max. Bar Length 60″ (1,500 mm); Ø 0.25″ – 2.56″ (5–65 mm)

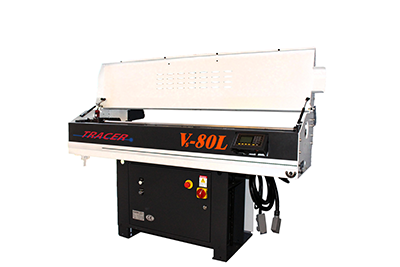

  • TRACER Vs-80L – Max. Bar Length 60″ (1,500 mm); Ø 0.315″ – 3.15″ (8–80 mm)
  • TRACER Vs-105XL – Max. Bar Length 73″ (1,860 mm); Ø 0.20″ – 4.13″ (5–105 mm)

All servo short bar loaders feature TRACER’s LED frontal display and advanced Top Cut System, providing operators with instant bar status feedback and automatic bar repositioning between cycles.

Engineering, Installation & Support

Every TRACER short bar loader is backed by Absolute Machine Tools’ nationwide applications and service team. Our technicians are cross-trained in both CNC turning and TRACER automation to ensure smooth installation, fast integration, and reliable long-term performance. When paired with a production turning machine from Absolute Machine Tools, TRACER short bar loaders include professional installation at no additional charge — giving manufacturers a complete, ready-to-run automation solution.
