You Ji VMT Series โ Vertical Mill-Turn Centers

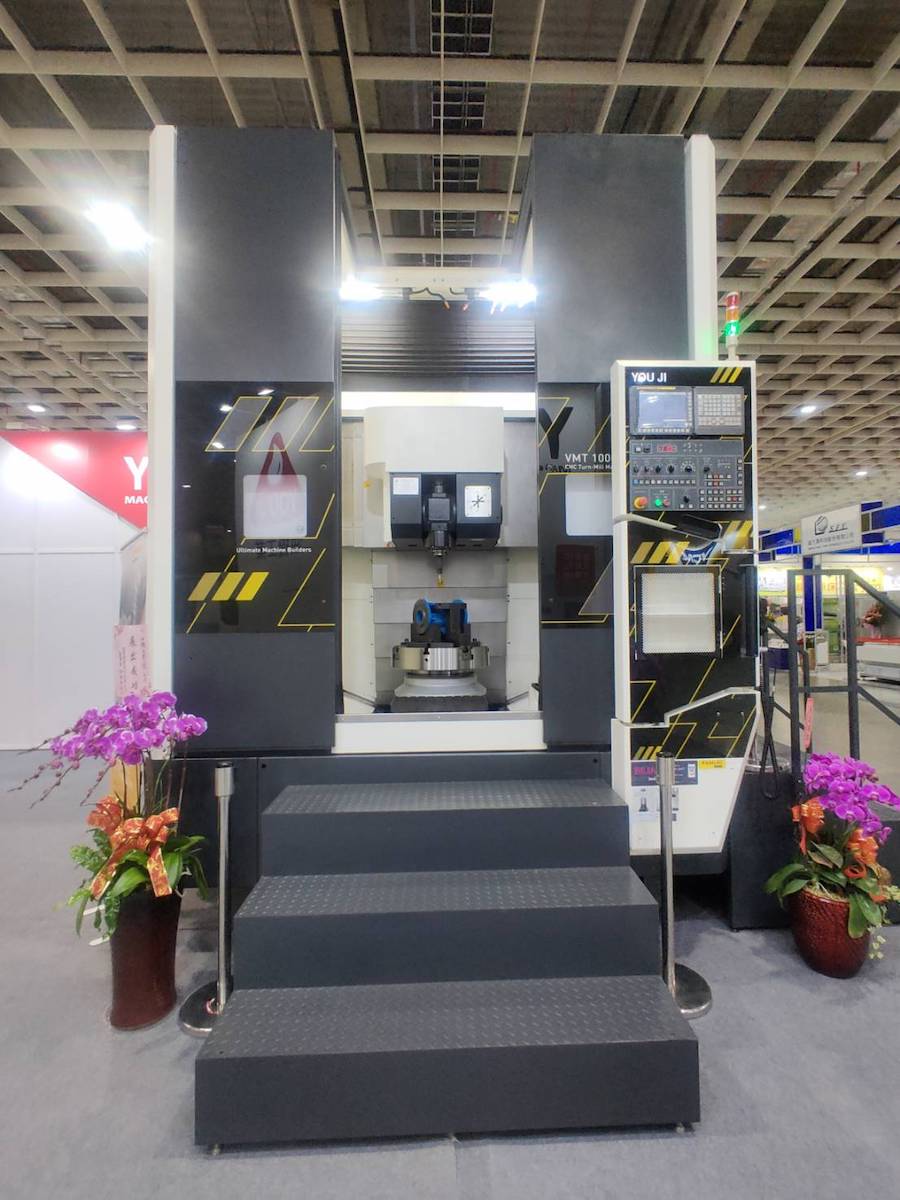

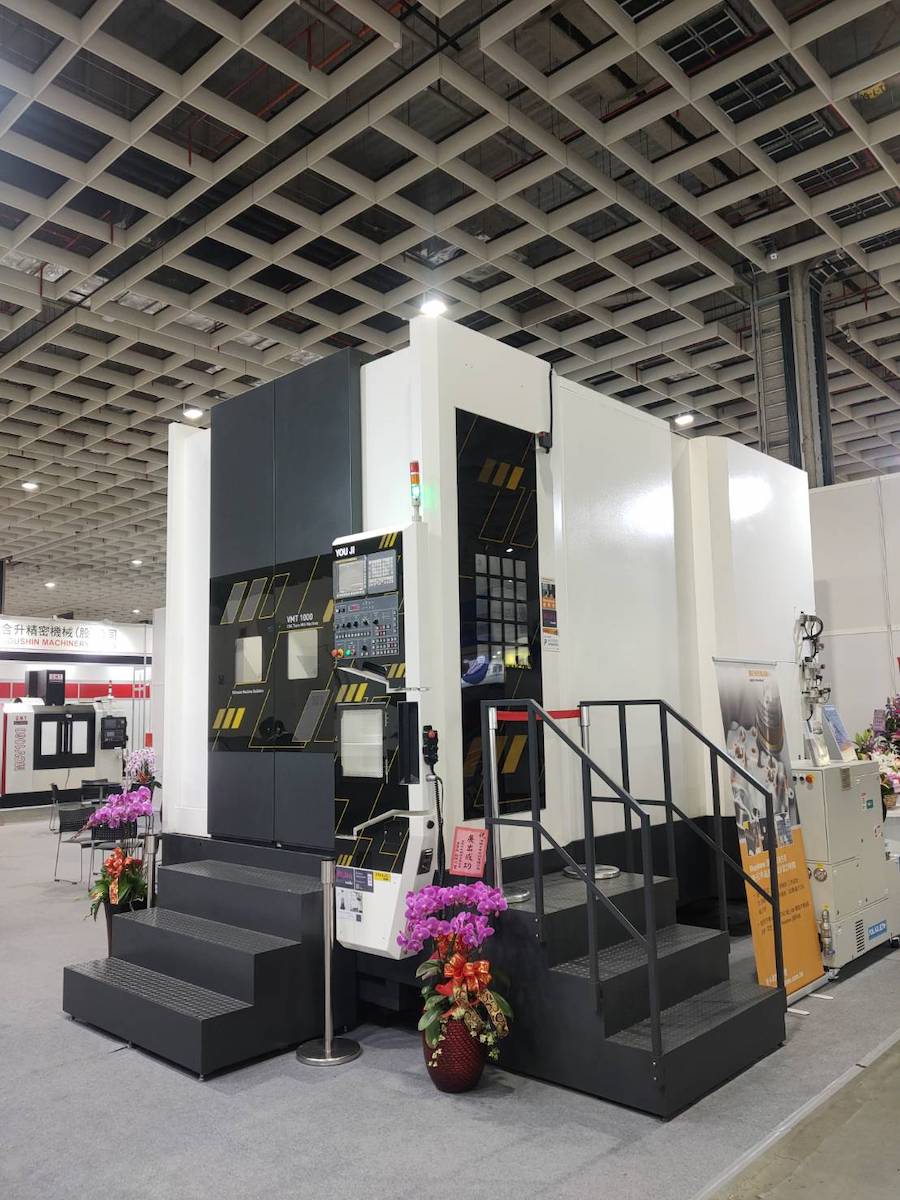

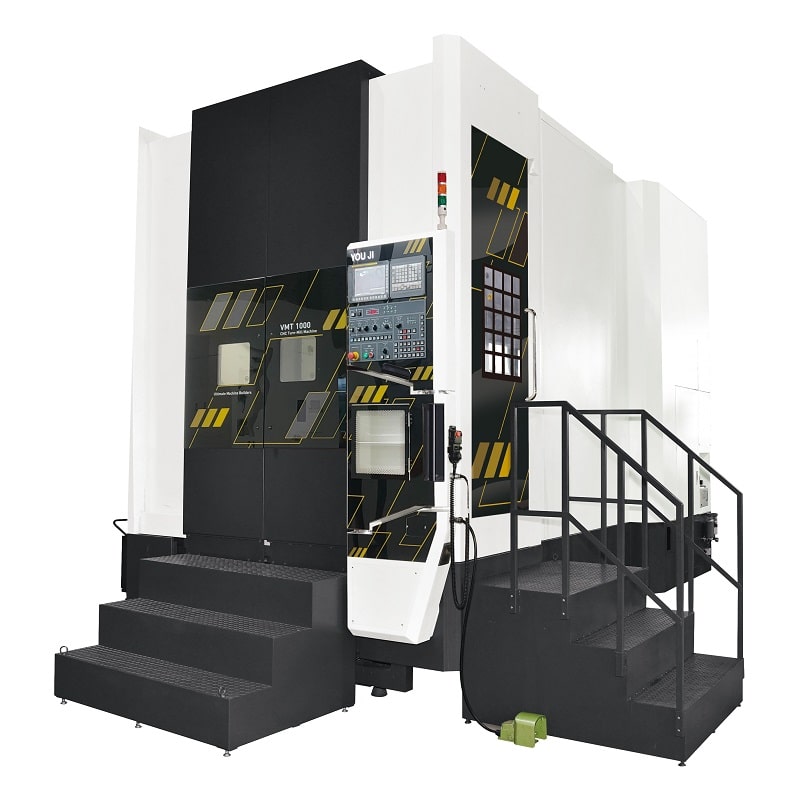

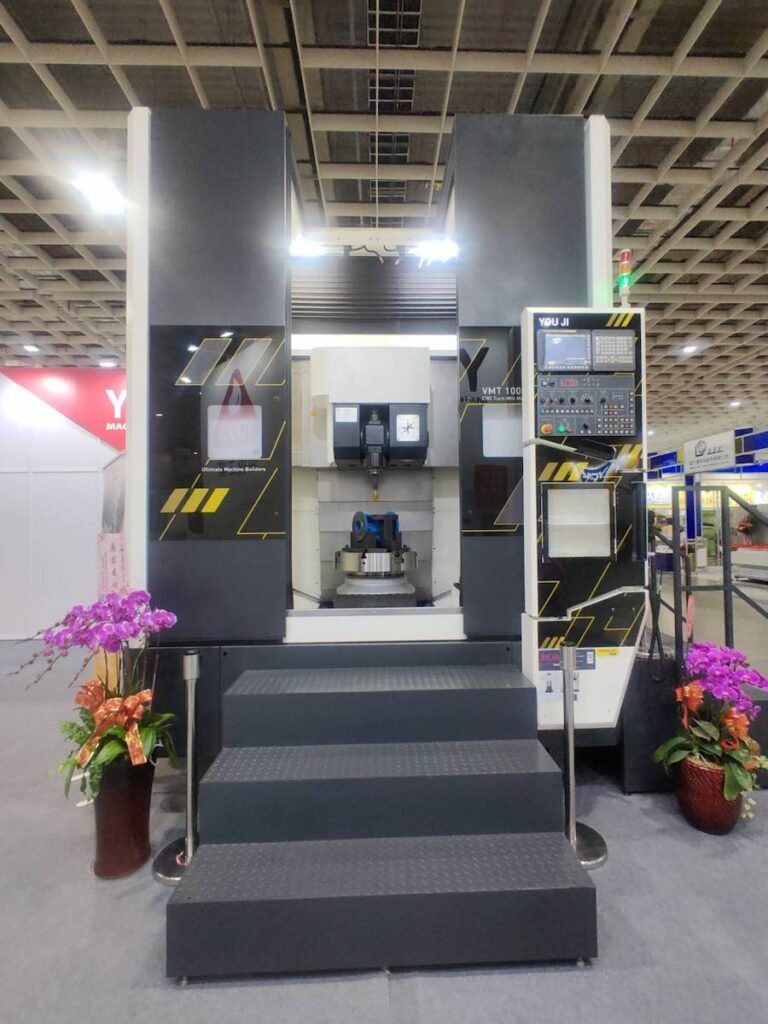

The You Ji VMT Vertical Mill /Turn Center Series combines 3-axis 5-face machining with vertical turning capabilities. The machines provide 5-sided or 4+1 axis milling and turning of medium size workpieces, producing complete parts in a single set-up. A full C-axis allows for 4-axis simultaneous milling, making the machines ideal for aerospace and energy industry applications.
Built for stability and precision, the machineโs vertical column and base are heavily ribbed Meehaniteยฎ castings, minimizing thermal distortion and effectively dampening vibration. The X, Y, and Z axes feature fully enclosed box guideways with hand-scraped mating surfaces, Turcite-B coatings, and forced lubrication for long-lasting accuracy and smooth motion.

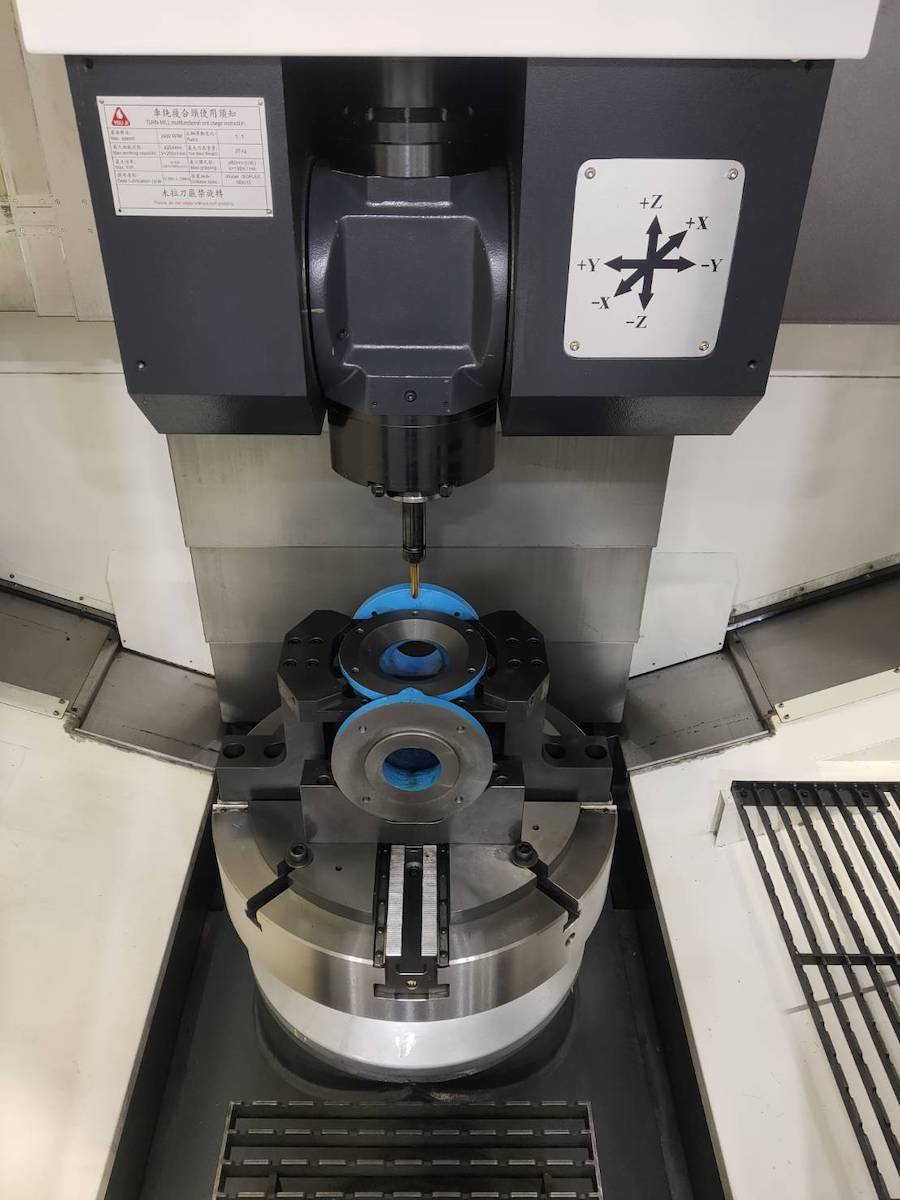

High-torque servo motors directly drive large 2โณ diameter Class-3 precision ballscrews on all three axes, eliminating the need for belts or gears. The design incorporates a fixed turning spindle with a 3-axis moving column, enhancing operator accessibility and optimizing chip evacuation.
The B-axis milling head is equipped with a robust Hirth coupling for secure positional locking. A 90ยฐ index comes standard for vertical and horizontal milling operations, while optional 5ยฐ and 1ยฐ indexing configurations are available for increased versatility.
As with all You Ji CNC machine tools, customized models are available upon request.
Specifications
Item / Model 41900_4b7c0e-75> |
VMT-1000+Y
Request a Quote |
41900_562d3d-ac>
---|---|
Capacities 41900_6a0b55-02> | 41900_b41936-6f> |
Maximum Turning Diameter 41900_a9439d-42> |
39.4โณ 41900_8a3f79-13> |
Maximum Swing Diameter 41900_072730-2e> |
39.4โณ 41900_829282-0d> |
Maximum Cross Travel (X-Axis) 41900_58771d-01> |
44.09โ (-1.97โ / + 42.12โ) 41900_cd7199-a4> |
Maximum Longitudinal Travel (Z-Axis) 41900_63532c-55> |
44.68โณ 41900_7a0091-5e> |
Maximum Off-Center Travel (Y-Axis) 41900_48cd14-74> |
29.5โ (+/- 14.76โ from center) 41900_ffa442-78> |
Distance from Milling Spindle Nose to Chuck Face (Vertical) 41900_f6171e-13> |
37.87โณ 41900_2e7f39-0a> |
Distance of Milling Spindle Face to Chuck Centerline (Horizontal) 41900_1fec4d-01> |
33.35โณ 41900_23e9ac-ec> |
Spindle 41900_4a312e-71> | 41900_b181cf-cd> |
Spindle Motor (Fanuc P Series) 41900_ebc76a-e9> |
30 HP Double Wound (more torque at lover RPM than a 50HP single wound motor) 41900_8c842d-f3> |
Spindle Drive 41900_75787a-56> |
2 Speed ZF Planetary Gearbox 41900_0aa884-e6> |
Spindle Nose 41900_8542ba-d4> |
A2-11 41900_b39211-28> |
Spindle RPM 41900_2f64ce-6e> |
0-1500 41900_ea7be4-35> |
Spindle Bearing Diameter 41900_cef0e8-a4> |
7.87โณ 41900_e1687e-24> |
Spindle Inside Taper 41900_f332c6-04> |
M. T. 7 41900_1ef69b-61> |
Hydraulic Chuck 41900_ef1f72-bd> |
24โณ 3-Jaw 41900_459045-2d> |
ATC 41900_a6389e-7a> | 41900_b27087-bb> |
Tool Positions 41900_a6217a-cf> |
24 (40/60 opt.) 41900_871a0d-49> |
ATC Type 41900_0f1c56-59> |
Arm-Type with Tool Chain 41900_66a781-ab> |
Tool Mounting 41900_1ab6cf-56> |
#50 Taper 41900_5277f9-ec> |
Maximum Tool Diameter with Adjacent Tools 41900_f58d85-95> |
5โณ 41900_a716f6-d8> |
Maximum Tool Diameter without Adjacent Tools 41900_1b664a-32> |
10โณ 41900_ed4db6-20> |
Maximum Tool Length 41900_db1b1e-13> |
13.8โณ 41900_2b9342-83> |
Maximum Tool Weight 41900_8c18e9-4d> |
55 lbs. 41900_a634a2-5e> |
Tool Change Time 41900_8869d3-31> |
15-20 Seconds 41900_d9005d-e6> |
Ballscrews and Axis Motors 41900_eff866-57> | 41900_3f08d1-c5> |
Z-Axis Ballscrew Diameter 41900_c5357a-bd> |
50mm (1.96โณ) x 16mm Pitch 41900_3d7177-42> |
X-Axis Ballscrew Diameter 41900_fa7d43-e8> |
50mm (1.96โณ) x 10mm Pitch 41900_0acdda-7c> |
Y-Axis Ballscrew Diameter 41900_04148e-e3> |
50mm (1.96โณ) x 12mm Pitch 41900_fe24bc-6c> |
Ballscrew Type 41900_c4ec7b-e4> |
Class 3 Double Nut 41900_ea447b-ab> |
Ballscrew Mounting Type 41900_baeaa8-5a> |
Pre-loaded, Double Anchored 41900_28334f-02> |
X-Z-Y-C Servo Motor HP 41900_cd6cb4-de> |
X=8HP / Z=12HP / Y=5.2HP / C=4HP 41900_62af84-18> |
C-Axis and B-Axis Milling Spindle 41900_3b3884-5e> | 41900_f37f4a-e9> |
Milling Spindle Motor 41900_a8e0f0-70> |
20 HP 41900_03ae34-73> |
Spindle RPM 41900_13f3ee-25> |
3,500 41900_8d532b-76> |
Tool Shank Type 41900_d0fea7-04> |
BT-50 (CAT-50 opt.) 41900_d97a3e-e9> |
Spindle Torque 41900_66fb0a-64> |
178 ft./lbs. at 437 RPM 41900_50bec0-31> |
B-Axis Head Rotation 41900_fb4c35-60> |
0-90ยฐ (2 positions) 5ยฐ or 1ยฐ Index Opt. 41900_993ccf-9b> |
C-Axis Indexing 41900_885b53-25> |
.001ยฐ 41900_c00b6b-d1> |
C-Axis Rapid Speed 41900_2fa971-dc> |
3.4 RPM 41900_d535bb-ed> |
C-Axis Positioning Accuracy 41900_70dd03-aa> |
+/- 7.5 Arc Seconds 41900_0c3697-f0> |
C-Axis Repeatability 41900_521b25-a8> |
+/- 5 Arc Seconds 41900_00471a-8a> |
Feeds 41900_4467b1-dd> | 41900_94a9f9-98> |
Rapid Traverse Rate X, Y, Z 41900_74622d-42> |
394, 394, 394 IPM 41900_a1a576-2d> |
Cutting Feed Rate 41900_5a79a3-56> |
0.01 โ 157 IPM 41900_ea7be5-13> |
Positioning Accuracy 41900_a4cee3-25> |
+/- .0003โณ Full Stroke 41900_f4044a-3b> |
Repeatability 41900_308b26-55> |
+/- .0002โณ 41900_fec440-cd> |
General 41900_1aaa75-37> | 41900_b01d7d-3a> |
Coolant Tank Capacity 41900_8eab38-e4> |
100 Gallons 41900_217f60-1a> |
Coolant Pump Motor 41900_b76276-dc> |
4 HP 41900_ab59e5-21> |
Machine Weight 41900_7f0f2e-f2> |
48,400 lbs. 41900_f97e39-48> |
Floor Space 41900_af9090-1f> |
220โณ x 228โณ x 160โณ 41900_b80af5-26> |
Machine Power Source 41900_d086d5-6a> |
208/220V, 3-Phase, 150 Amps |
Hydraulic Pump Motor 41900_41747f-7c> |
7.5 HP 41900_6d26f3-3a> |
