TRACER Minibar (12′) Bar Feeder
Hydrodynamic Magazine Bar Feeders for Fixed Headstock or Sliding Headstock CNC Lathes

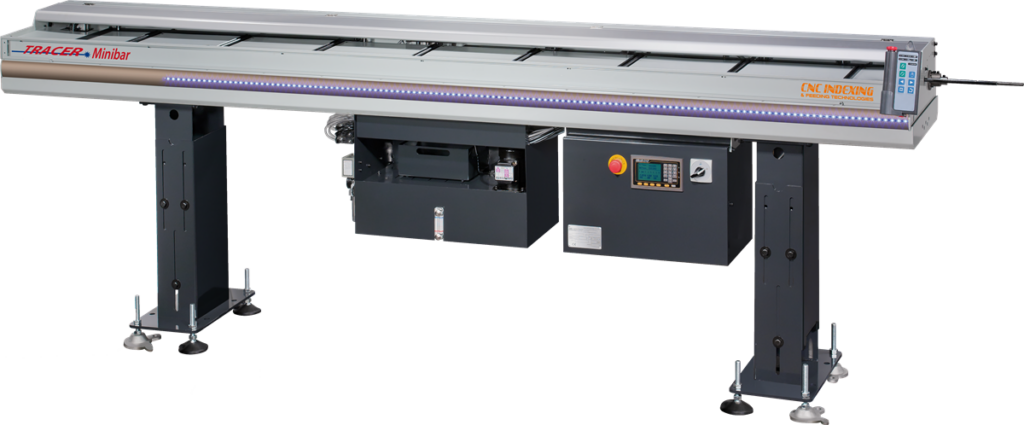

The TRACER Minibar Hydrodynamic Magazine Bar Feeder is an economically priced 12’ bar feeder that can be used on both fixed headstock and sliding headstock CNC lathes. Specially designed to run material from .8mm to 12mm bar with the same quality and reliability you come to expect from the TRACER series.
Standard features of the Minibar Bar Feeder include removable remote control for operator convenience, dual anti-vibration devices to minimize bar whip and guarantee high RPM turning, patented guide channel design with superior sound buffering effect to reduce noise, synchronization system for Swiss type sliding headstock lathes, automatic remnant retract, and patented LED display notifying bar length and last bar. The TRACER Minibar is available in three models in either left or right hand styles.
Specifications
| Item / Model |
TRACER Minibar 05
Request a Quote
|
TRACER Minibar 07
Request a Quote
|
TRACER Minibar 12
Request a Quote
|
|---|---|---|---|
|
Lathe Type |
Fixed Headstock / Swiss Type |
Fixed Headstock / Swiss Type |
Fixed Headstock / Swiss Type |
|
Feeding Direction |
Left or Right |
Left or Right |
Left or Right |
|
Bar Diameter |
0.8 ~ 5mm (0.031″ ~ 0.196″) |
0.8 ~ 7mm (0.031″ ~ 0.275″) |
1 ~ 12mm (0.039″ ~ 0.472″) |
|
Bar Length |
3,100mm (12′) |
3,100mm (12′) |
3,100mm (12′) |
|
Magazine Capacity |
1 ~ 7mm (0.0393″ ~ 0.275″) 35 Bars / 7.1 ~ 12mm (0.279″ ~ 0.472″) 18 Bars |
1 ~ 7mm (0.0393″ ~ 0.275″) 35 Bars / 7.1 ~ 12mm (0.279″ ~ 0.472″) 18 Bars |
1 ~ 7mm (0.0393″ ~ 0.275″) 35 Bars / 7.1 ~ 12mm (0.279″ ~ 0.472″) 18 Bars |
|
Guide Channels (mm) |
6 |
8 |
13 |
|
Feeding System |
Servo Motor |
Servo Motor |
Servo Motor |
|
Air Pressure |
6 kgf / cm2 (70 psi) |
6 kgf / cm2 (70 psi) |
6 kgf / cm2 (70 psi) |
|
Power Supply |
1 Phase – 220V – 50/60 Hz – 685W |
1 Phase – 220V – 50/60 Hz – 685W |
1 Phase – 220V – 50/60 Hz – 685W |
|
Machine Weight |
400 kg (880 lbs.) |
400 kg (880 lbs.) |
400 kg (880 lbs.) |
* All TRACER Hydrodynamic Magazine Bar Feeders are equipped with a patented TRACER LED external blue light display on the front of the bar feeder, allowing operators visual monitoring of bar status and alarms.
