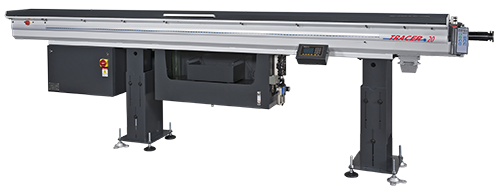

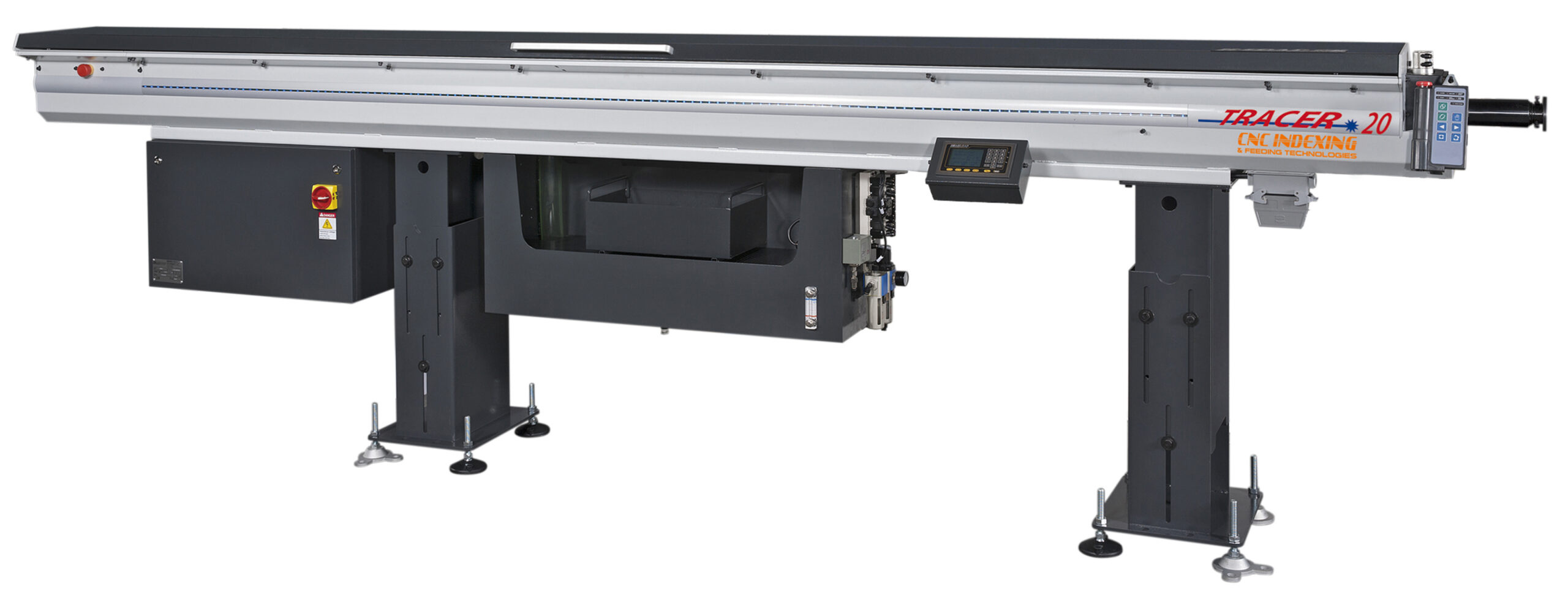

TRACER 20 (12′) Bar Feeder

Hydrodynamic Magazine Bar Feeder for Fixed and Sliding Headstock CNC Lathes

The TRACER 20 is a feature packed economically priced hydrodynamic magazine bar feeder that can be used on both fixed headstock and sliding headstock CNC lathes. It comes in both 6′ and 12′ versions.

  • Bar stock up to 12′ in length accepted
  • Bar diameter capacity of 3mm to 26mm (0.118″ – 1.023″)
  • Accommodates round, hexagonal, and square material
  • Handles both uniform and random length bar stock
  • Patented high wear resistance guide channel design with lifetime warranty
  • Dual anti-vibration device (1 internal, 1 external)
  • Front & rear external LED display for monitoring bar and bar feeder status
  • Automatic remnant retract
  • Right hand and left-hand versions available

All TRACER bar feeders, including the TRACER 20, include dual anti-vibration devices that minimize bar whip and support high RPM turning. The patented guide channel design provides superior sound buffering to keep noise levels down, while the large magazine tray enables extended unmanned production runs. A hand-held remote control is included for operator convenience.

Specifications

Item / Model
TRACER 20 (12′)* Request a Quote

Lathe Type

Fixed Headstock / Swiss Type

Feeding Direction

Left or Right

Bar Diameter

3 ~ 26mm (0.118″ ~ 1.023″)

Bar Length

2,500mm (6′) / 3,600mm (12′)

Magazine Capacity

23 bars at 10mm (0.393″)

Guide Channels (mm)

14, 17, 19, 21, 27

Feeding System

Servo Motor

Air Pressure

6 kgf / cm2 (85 psi)

Power Supply

3 Phase – 220V – 50/60 Hz – 630W

Machine Weight

2.0M – 550kg (1,210 lbs.) / 3.6M – 650kg (1,430 lbs.)

* 6′ Model available upon request.

* All TRACER Hydrodynamic Magazine Bar Feeders are equipped with a patented TRACER LED external blue light display on the front of the bar feeder, allowing operators visual monitoring of bar status and alarms.
