Submerged Rotary Tables for EDM Hole Drilling Machines

The RT-115ABR and RT-115B fully submersible rotary tables are specifically designed to operate underwater in dielectric fluid, water, or coolant. The main base is constructed of stainless steel to resist corrosion and houses mounting points for securing the unit inside an EDM machine or vertical machining center. Oceanโ€™s submerged rotary tables are built to withstand submerged conditions without vibration, and provide uniform erosion when drilling deep holes in conductive materials.

The submerged environment reduces thermal distortion and stabilizes cutting processes, while rotation of the part ensures even wear and better machining consistency. Heat-resistant alloys and exotic materials are perfect material types for submerged rotational drilling. Leak testing, rotational accuracy, torque, and backlash performance tests are performed on newly built units. The final stage consists of integrating These submerged rotary tables with each EDM hole drilling machineโ€™s control system for synchronized perfection.

Features include:

  • Oceanโ€™s submerged rotary tables are completely designed and built by Ocean Technologies for perfect Turn & Burn applications.
  • RT-115ABR is a 2-Axis rotary table.

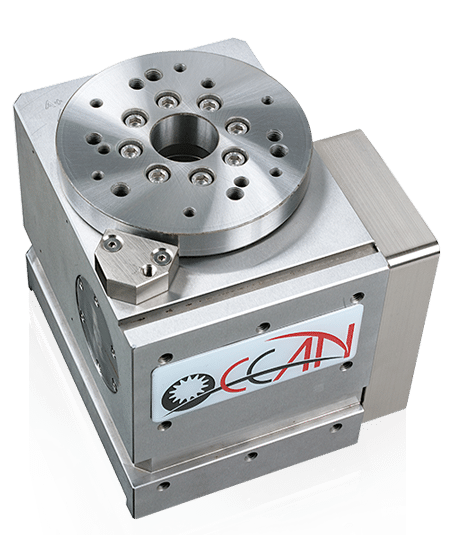

  • RT-115B is a single axis rotary table.
  • Drive system is housed in a flawless waterproof enclosure.
  • Seals and gaskets have been fully tested to prevent leaking into the motor and bearing housing.
  • High quality O-rings and labyrinth seals are used in all rotating assemblies.
  • Slip rings allow consistent electrical signals in submersed conditions.
  • Sealed rotary unions allow even pass-through of fluids while maintaining consistent smooth rotation.

Specifications

Item / Model
RT-115ABR (2-Axis) Request a Quote
RT-115B (Single Axis) Request a Quote

Protection Class

IP68

IP68

Rotary Table

ฯ†115 mm

ฯ†115 mm

Min. Indexing Step

0.001ยฐ

0.001ยฐ

Table Rotating Accuracy

10u

10u

Indexing Accuracy

40 โ€“ 60 Seconds

40 โ€“ 60 Seconds

Precision of Encoder System

ยฑ 10 Seconds

ยฑ 10 Seconds

Max. Speed

R.A. 16.7 RPM
T.A. 13.9 RPM

10 RPM

Speed Reduction Ratio

R.A. 1:120
T.A. 1:144

144:1

Swiveling Range

A Axis : -30ยฐ ~ +120ยฐ
B Axis : 0 ~ 360ยฐ

B Axis : 0 โ€“ 360ยฐ

Max. Radial Load

Horizontal : 20 kg (0ยฐ~45ยฐ) Vertical : 15 kg(60ยฐ~90ยฐ)

15 kgs

Total Weight

60.5 kg

12 kgs

Suitable Environment Temperature

25ยฐC ยฑ 10%

25ยฐC ยฑ 10%
