Seiki PT Series – Tapping Centers
High Production Milling & Tapping Center / Graphite Mill

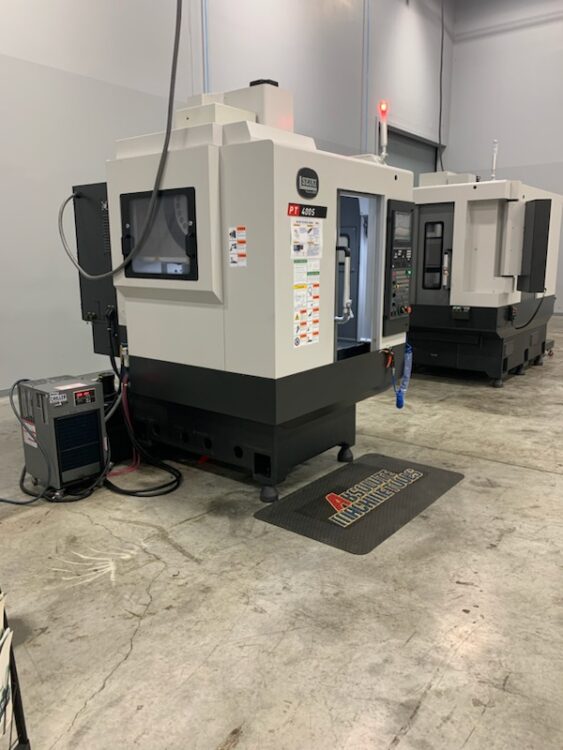

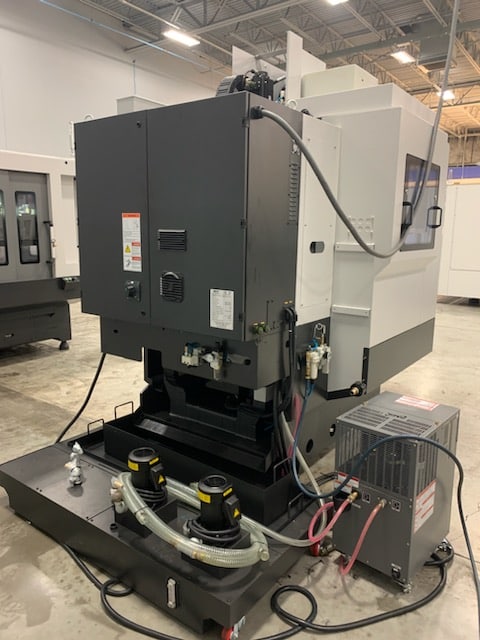

The Seiki PT-400S is the fastest CNC milling and tapping center in its class and is also well suited to graphite machining as well high speed 3D machining. This machine will exceed the demands of any manufacturer with high volume, high precision machining needs. The compact size consumes very little valuable floor space while the blazing speed will deliver more parts per hour than the competition. The machine is a fixed column / moving table type design.
It features a Meehanite cast iron frame and rigid linear slideways for rigidity and fast, precise movement. The 32mm (1.26”) diameter Z axis ballscrews are class 3 with a double nut pre-loaded design allowing a standard rapid traverse rate of 2362 inches per minute in all 3 axes with industry leading acceleration of 2.0G in the Z axis. The ABS (Absolute Pulse Coder) servo system does not require zero return. The machine can be started anytime from any position, saving non-productive time. A standard bed flushing system pushes chips to the rear of the machine. The optional caterpillar type chip conveyor provides efficient chip removal.

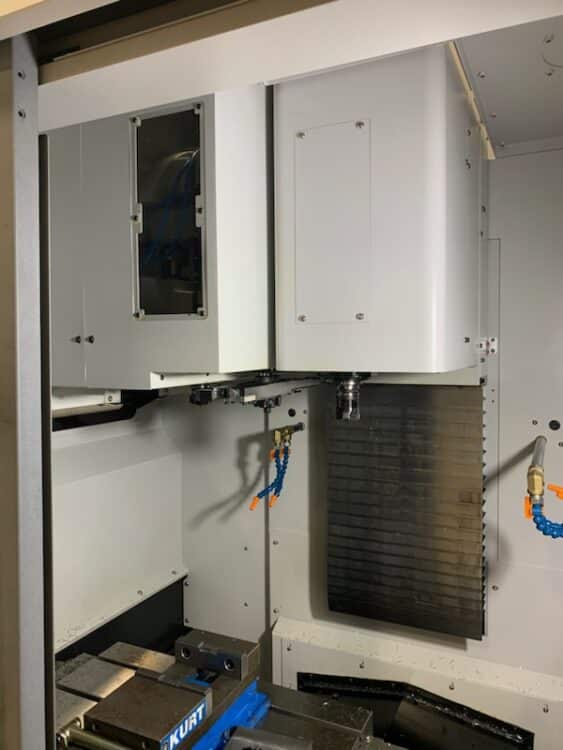

Two types of high speed ATC systems are available. The standard is a 20 tool servo turret type ATC while the a 24 tool twin arm type ATC is optional. The PT-400S’s standard 20 station turret style servo automatic tool changer provides fast, reliable tool selection. Complete tool change time is only 1.4 seconds tool to tool and 2.2 seconds chip to chip. The optional 24 station high speed arm type ATC provides an increase in Z axis travel from 13.8” to 18.9”. Tool change time is 1.1 seconds and 2 seconds chip to chip.
The standard spindle is a 7.4 HP 30 min. / 5 HP continuous, 24,000 RPM direct drive spindle that provides rigid tap speeds up to 6,000 RPM. A spindle chiller is standard. The BBT-30 (Big Plus dual contact) taper is standard for rigid milling. Coolant through the spindle preparation is also standard (pump system optional).
The Mitsubishi M80A control is standard and is suitable for a wide range of applications from production to high speed machining applications. The M80A control features a 10.4” touch screen with intuitive smart phone type operation. A dedicated CNC CPU provides phenomenal processing speeds. An all new high response servo system with 1,000,000 pulse encoders is provided for state-of-the-art speed and accuracy. The Mitsubishi control comes with an industry leading 3 year parts and labor warranty! The Fanuc OiM-F Plus control with 10.4” LCD and 2 year warranty is also available.
Specifications
Item / Model 42115_d146e6-84> |
PT-400S
Request a Quote |
42115_81cbe6-1e>
PT-400S
Request a Quote |
42115_95b17c-c5>
---|---|---|
42115_05d498-5f> |
Turret Type (Standard) 42115_9cd56a-04> |
Turret Type (Standard) 42115_884890-1e> |
Travels 42115_a2f0db-4d> | 42115_4acddb-20> | 42115_c3eefb-89> |
X-Axis Travel 42115_5efe78-05> |
20.5″ 42115_c00254-ec> |
20.5″ 42115_fde72e-26> |
Y-Axis Travel 42115_7338e0-bb> |
Y-Axis Travel 42115_01582f-f2> |
Y-Axis Travel 42115_5c70a7-c6> |
Z-Axis Travel 42115_f46a36-2b> |
13.8″ 42115_043237-5b> |
18.9″ 42115_7a3dc8-c6> |
Table to Spindle 42115_a35a78-ca> |
5.9″ min. / 19.7″ max. 42115_4f9ca6-74> |
5.9″ min. / 24.8″ max. 42115_cbc5a9-df> |
Spindle Center to Column 42115_67b019-b9> |
17.5″ 42115_223530-b7> |
17.5″ 42115_953a1a-22> |
Automatic Tool Changer 42115_99f985-25> | 42115_749320-89> | 42115_23b0d8-34> |
Number of Tools 42115_65b2cf-2e> |
20 42115_a365b0-3f> |
24 (+1 in the Spindle) 42115_1584ef-04> |
Tool Selection 42115_d961cc-7d> |
Bi-Directional Fixed 42115_e19b0c-00> |
Bi-Directional Random 42115_812740-3e> |
Tool Change Time 42115_e5e579-67> |
1.4 Sec. Tool-to-Tool 42115_687481-76> |
1.1 Sec. Tool-to-Tool 42115_970721-f1> |
Chip to Chip Time 42115_4e69ae-7f> |
2.2 Sec. Chip-to-Chip 42115_05fea7-e6> |
2.0 Sec. Chip-to-Chip 42115_597e37-cf> |
Maximum Tool Diameter 42115_312351-77> |
3.15″ 42115_a44d31-8c> |
2.5″ with Adjacent Tools 42115_b3dd25-85> |
Maximum Tool Weight 42115_c5dd99-a5> |
4.8 lbs. 42115_0c0432-43> |
6.2 lbs. 42115_3bc57b-2a> |
Tool Type 42115_3a1171-92> |
BBT-30 42115_4b84c5-11> |
BBT-30 42115_cd8577-ad> |
Maximum Tool Length 42115_dbbe1f-33> |
7.9″ 42115_a60ac1-da> |
7.9″ 42115_f99b4f-cb> |
Spindle (Standard) 42115_1a8f42-32> | 42115_3a8b2b-13> | 42115_21aca8-32> |
Spindle Motor 42115_cac958-58> |
7.4 HP 30 min. / 5 HP continuous 42115_076b4d-fe> |
7.4 HP 30 min. / 5 HP continuous 42115_c8ec4e-ad> |
Spindle Taper 42115_caa5b6-56> |
BBT-30 Dual Contact 42115_b12d6b-b1> |
BBT-30 Dual Contact 42115_df8fc1-55> |
Spindle Drive System 42115_ec746c-7d> |
Direct Drive 42115_471df8-ce> |
Direct Drive 42115_5fa7f4-f8> |
Spindle Speed 42115_b01d6c-92> |
0 – 24,000 RPM 42115_5d49e6-75> |
0 – 24,000 RPM 42115_18a432-a4> |
Ballscrews & Axis Motors 42115_ba64d0-f7> | 42115_51c626-29> | 42115_dbe9ab-ad> |
Ballscrew Diameter X-Y-Z 42115_c3fe21-d3> |
X 25mX 25mm (1”) x 16mm pitch, Y 25mm (1”) x 16mm, Z 32mm (1.26”) x 16mm 42115_bc988a-fd> |
X 25mX 25mm (1”) x 16mm pitch, Y 25mm (1”) x 16mm, Z 32mm (1.26”) x 16mm 42115_0293bd-93> |
Ballscrew Type 42115_72668a-27> |
Class 3 Double Nut Pre-Loaded 42115_0f192f-37> |
Class 3 Double Nut Pre-Loaded 42115_85fcb6-88> |
Ballscrew Mounting Type 42115_d2da74-48> |
Double Anchored 42115_b24517-00> |
Double Anchored 42115_371ab5-21> |
Servo Motor HP X-Y-Z 42115_f464e6-b7> |
2.0 – 2.0 – 3.0 42115_66b041-35> |
2.0 – 2.0 – 3.0 42115_d22589-c9> |
Servo Motor Mounting 42115_55f9a1-c9> |
Direct Coupled 42115_e425c5-e1> |
Direct Coupled 42115_57a5fc-d7> |
Table 42115_f424cc-8f> | 42115_81cb6f-b0> | 42115_b224ac-82> |
Table Working Surface 42115_3670c8-7f> |
24.4″ x 15.4″ 42115_acfa08-b0> |
24.4″ x 15.4″ 42115_e1be1a-28> |
Max. Workload on Table 42115_8ba6f6-c1> |
330 lbs. 42115_122f80-68> |
330 lbs. 42115_972788-3f> |
Table Surface 42115_c9caba-f9> |
Ground / T-Slotted 42115_8cfff6-9d> |
Ground / T-Slotted 42115_04f110-87> |
Feeds 42115_d2dd9f-9e> | 42115_3e2436-ee> | 42115_ea09cd-59> |
Rapid Traverse Rate X, Y, Z 42115_90ce08-b5> |
2,362 IPM 42115_967eb1-f8> |
2,362 IPM 42115_01a9e7-a3> |
Acceleration in Z 42115_a4a896-fb> |
2.0G 42115_555d1b-1e> |
2.0G 42115_354119-77> |
Cutting Feed Rate 42115_d5322d-aa> |
0.01 – 787 IPM 42115_2a1814-8b> | 42115_2c0fee-ff> |
Positioning Accuracy 42115_06feb9-39> |
+/- .0002″ Full Stroke 42115_a7bc44-34> |
+/- .0002″ Full Stroke 42115_10d0a9-70> |
Repeatability 42115_947a56-25> |
+/- .00015″ 42115_291385-4f> |
+/- .00015″ 42115_a91c99-b8> |
General 42115_56f1e5-7b> | 42115_620b31-f4> | 42115_594cfe-18> |
Coolant Tank Capacity 42115_02a590-41> |
60 Gallons 42115_56bf8b-18> |
60 Gallons 42115_7f27bc-6b> |
Machine Weight 42115_3977b8-79> |
6,270 lbs. 42115_cc8689-6e> |
6,270 lbs. 42115_082cb2-b7> |
Floor Space 42115_456174-05> |
61.4″ x 99″ x 96″ 42115_d57172-96> |
61.4″ x 99″ x 100″ 42115_d25e3f-cc> |
Power Source 42115_ce2cee-38> |
208/220 Volts, 3 Phase, 25 KVA** 42115_078768-2e> |
208/220 Volts, 3 Phase, 25 KVA** 42115_647865-37> |
Air Source 42115_e754d9-ad> |
90 PSI 42115_5efc84-d0> |
90 PSI 42115_17d78d-46> |
