V-65E (4’) & V-65LE (5′) Pneumatic Short Bar Loaders

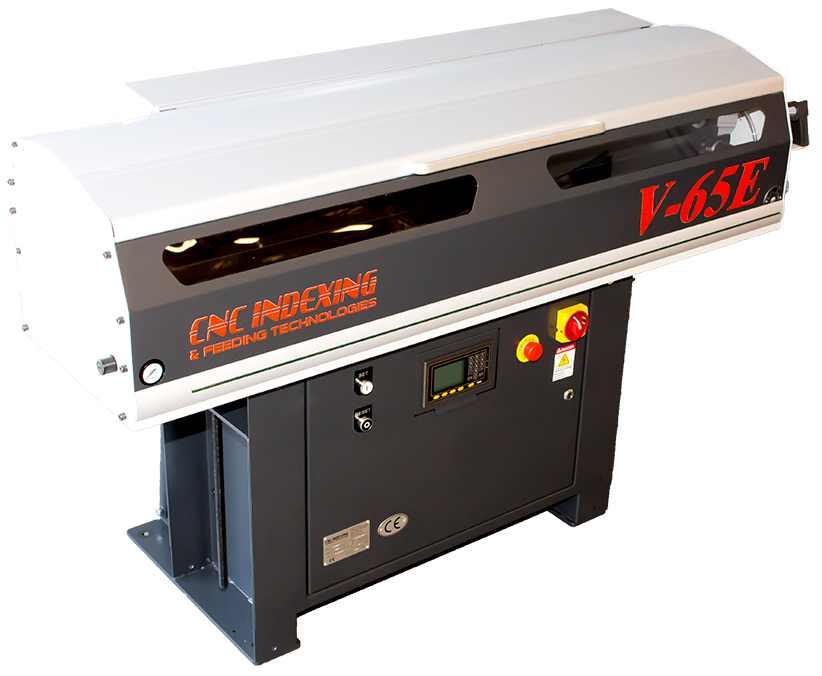

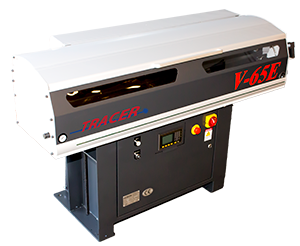

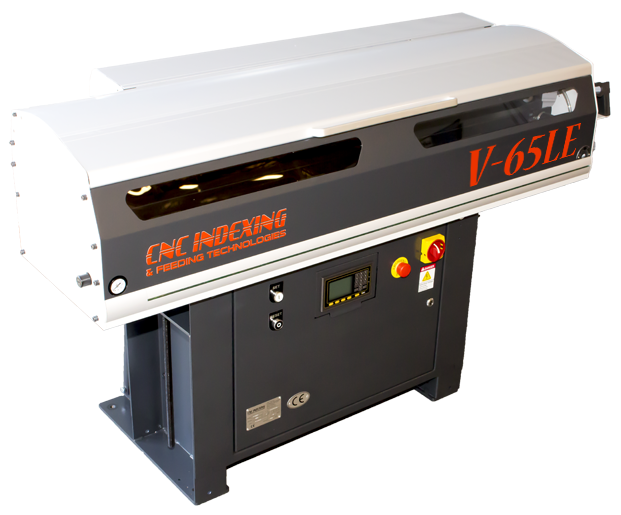

The TRACER V-65E and V-65LE pneumatic short bar loaders are economical solutions to achieving unmanned production runs.  The V-65E and V-65LE load spindle length bar stock into the lathe spindle and will feed to a turret stop.  These short bar loaders have a small footprint and are extremely versatile.

Standard options include Top Cut System for automatically sensing a new bar position in the loader, and easy to access V Channel Adjustment Guide for changing bar diameters. TRACER pneumatic short bar loaders also come with a unique Rail Retract System that allows an operator to slide the loader back out of the way for easy spindle liner changes and accessibility to the lathe.

All TRACER bar feeders and bar loaders come standard with our uniquely patented frontal LED Display permitting distant monitoring at a glance.  The LED Display messages important information such as bar length, last bar, feeder error, and CNC lathe error.

Economical Pneumatic Short Bar Loaders

  • Feeds to Turret Stop
  • Up to 4′ and 5’ Length Bars (actual bar length determined by lathe spindle length)
  • Bar Diameter capacity of 5mm to 65mm (0.25” – 2.56”)
  • Material can be Round, Hexagonal or Square
  • Material can be Uniform or Random in Length
  • External LED Display for Bar Position and Length Monitoring
  • Includes Three Pushers, Sliding Rail System and One Spindle Liner

Specifications

Item / Model
TRACER V-65E (4′) Request a Quote
TRACER V-65LE (5′) Request a Quote

Lathe Type

Fixed Headstock

Fixed Headstock

Feeding Direction

Left or Right

Left or Right

Bar Diameter

5 – 65mm (.25″ – 2.56″)

5 – 65mm (.25″ – 2.56″)

Bar Length

Max 1,200mm (48″)

Max 1,500mm (60″)

Magazine Capacity

10 bars at 65mm (2.5″)

10 bats at 65mm (2.5″)

Pusher Sizes (mm)

6 , 12, 20

6 , 12, 20

Feeding System

Pneumatic

Pneumatic

Air Pressure

6 kgf / cm2 (85 psi)

6 kgf / cm2 (85 psi)

Power Supply

220V /440V

220V /440V

Machine Weight

750 lbs.

795 lbs.

All TRACER Short Bar Loaders are equipped with a patented TRACER LED external blue light display, on the front of the loader, allowing operators visual monitoring of bar status and alarms.
