Mitsubishi LoadMate Plus™ Machine Tending Robotic Cell

Automation…It’s Easier Than You Think!

Need to automate but just don’t know where to start?  Introducing Mitsubishi Electric’s LoadMate Plus™ Machine Tending Robotic Cell for adding easy-to-use automation to CNC applications. Load, unload, and palletize your parts in any low-to-high volume application!

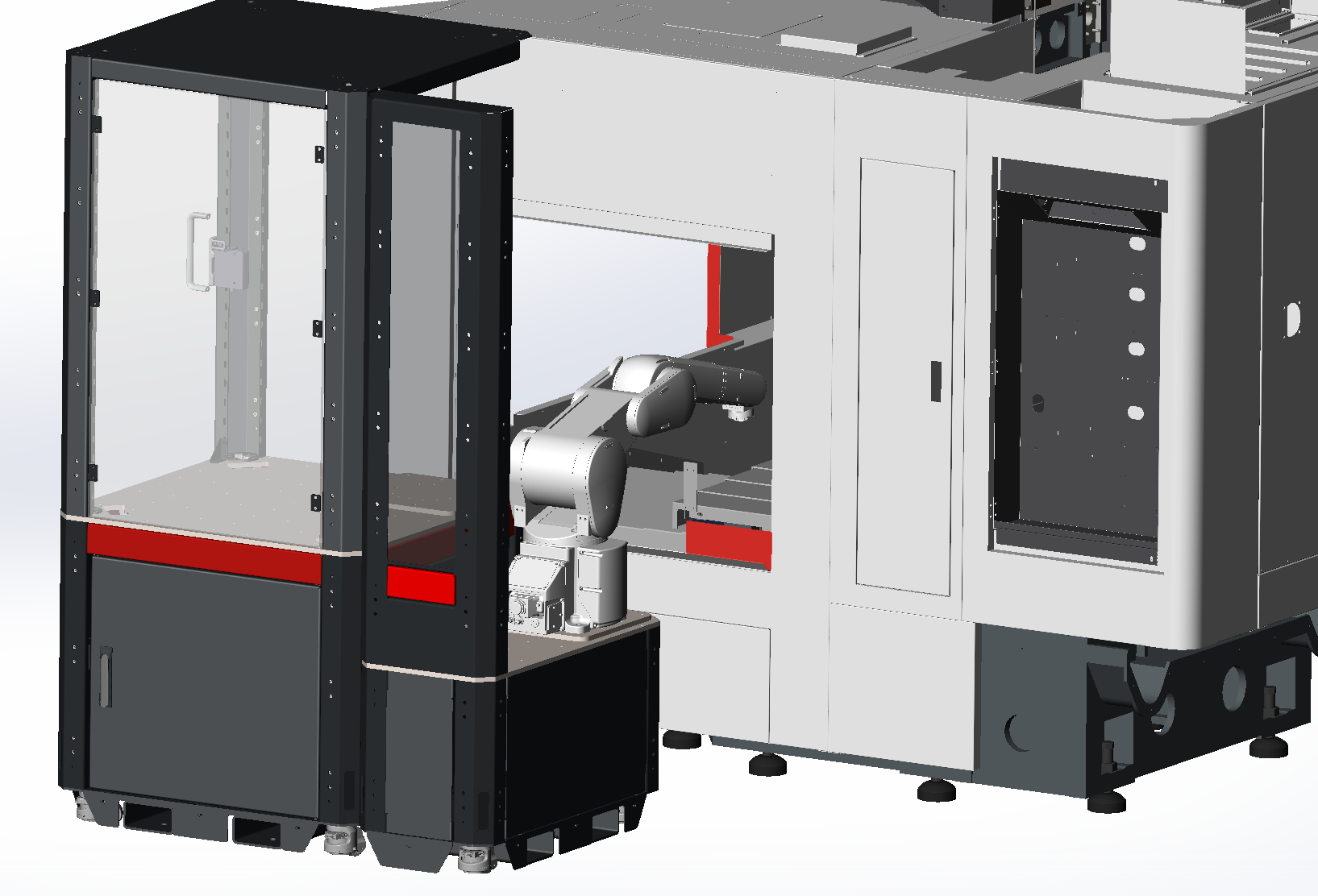

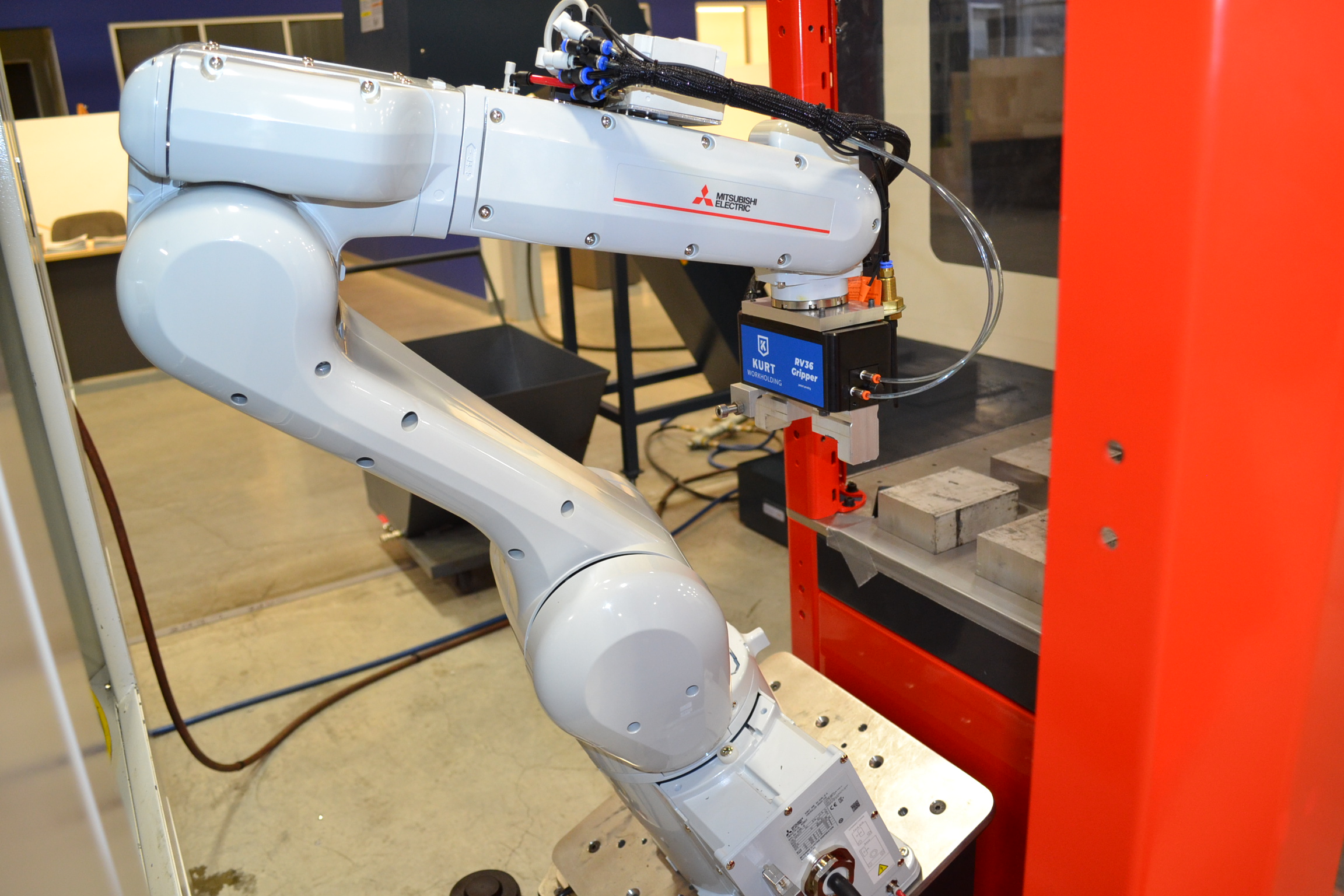

Absolute Machine Tools, in cooperation with Mitsubishi Electric’s Automation Division, is proud to present our newest robotic machine tending cell. This plug and play cell was designed and engineered to be a compact heavy-duty portable robotic cell for manufacturers requiring the strength of an industrial robot with safety-first functionality. This cost-effective robotic cell allows for quick & easy setups, high performance and accuracy, safety-first functionality, and maximum portability for all types of manufacturers with high/low volume mix production. Additional guarding and fencing may not be necessary when LoadMate Plus is positioned properly in tandem or close proximity with the CNC.  Users can learn LoadMate’s one-step process of integrating the robot cell to a CNC machine using Mitsubishi’s Direct Robot Control Function, all done with one (1) single Ethernet cable.

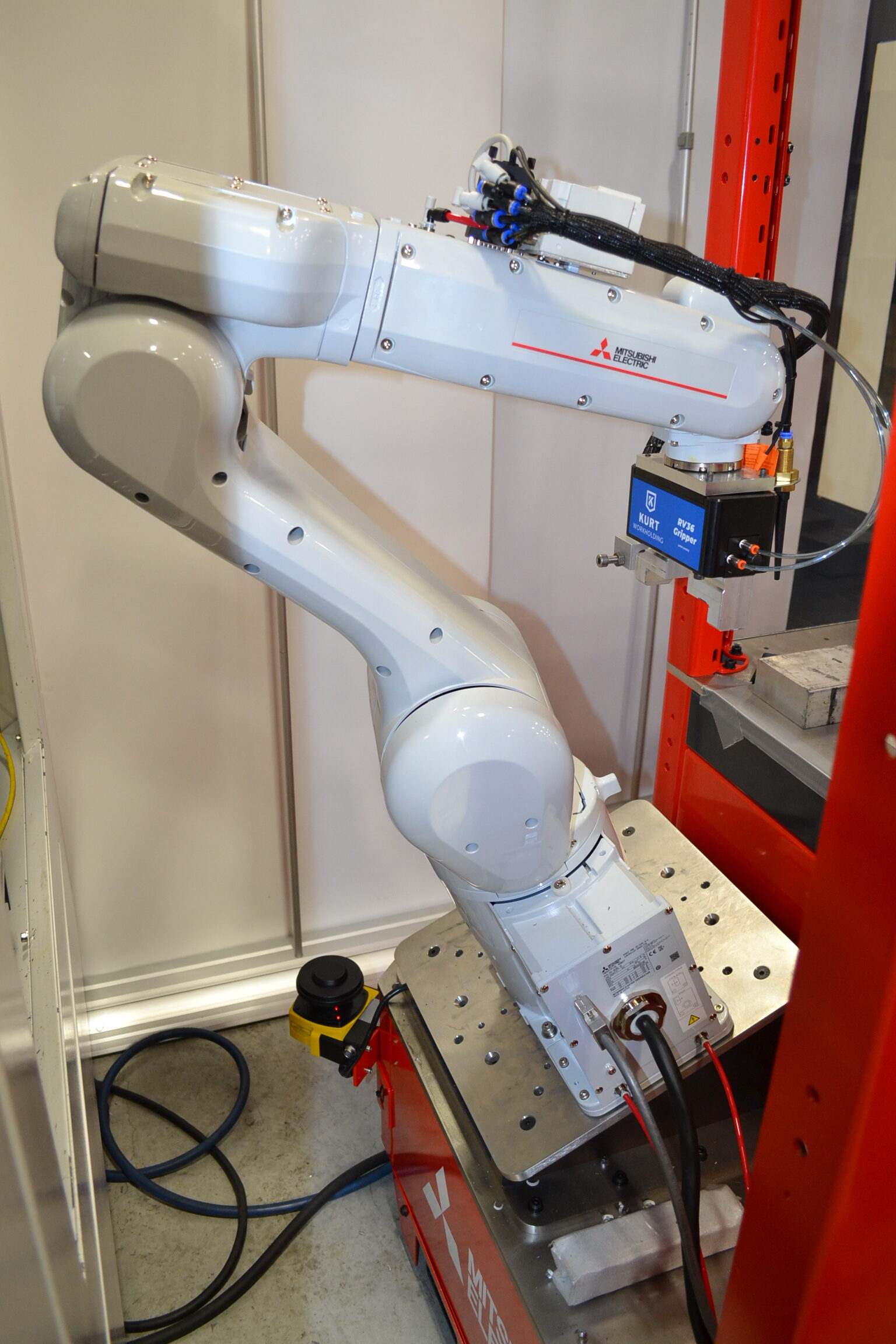

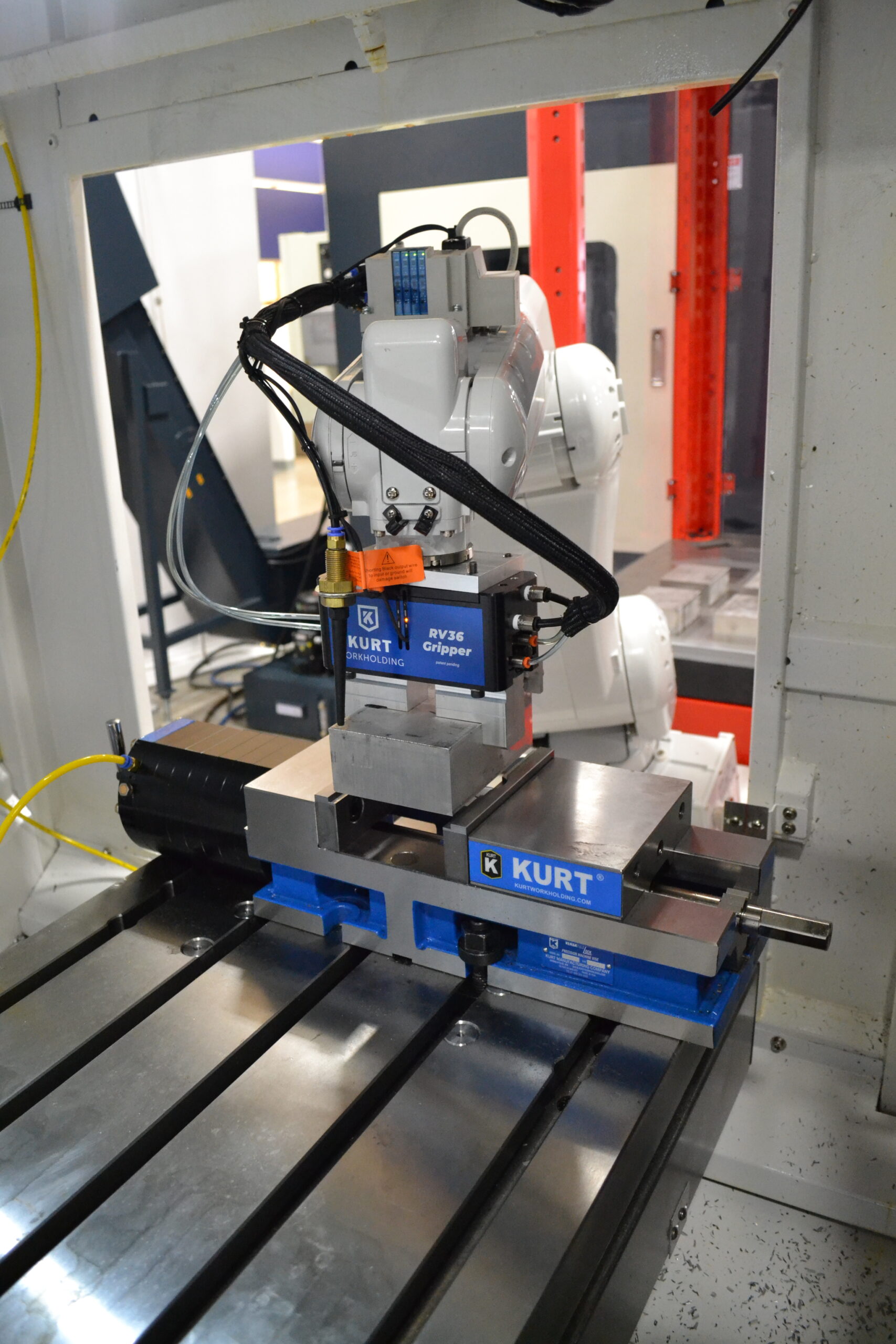

The LoadMate Plus is so versatile that you can use several different models of Mitsubishi robots inside the enclosure, including all RV-7, RV-8, RV-13, and RV-20 series industrial robots. These robot models have all been tested and proven solid functioning within the cell’s enclosure. The cell enclosure was designed to be heavy-duty to allow for heavy payloads and speeds, and in some cases, may not need anchored into the shop floor. The LoadMate Plus can be moved from machine to machine using its built-in casters, and then set into position using it’s built-in ratchet pads, or optional floor-mount latching system. Another feature of the LoadMate Plus robotic CNC machine tending cell is that user’s will typically only need one teach pendant per facility, and not per machine, saving money.

The automation experts at Absolute Machine Tools together with Mitsubishi Electric Automation understand that incorporating effective productive automation is essential for American manufacturing to remain competitive and profitable. We took the guess work out of it, allowing companies to do what they do best: produce parts with minimal inefficiencies. When your new Mitsubishi LoadMate Plus arrives, you are ready to start programming and making parts! Remember…automation can be easier than you think!

Here’s why the Mitsubishi LoadMate Plus industrial robot cells are a smart way to integrate automation into your manufacturing processes:

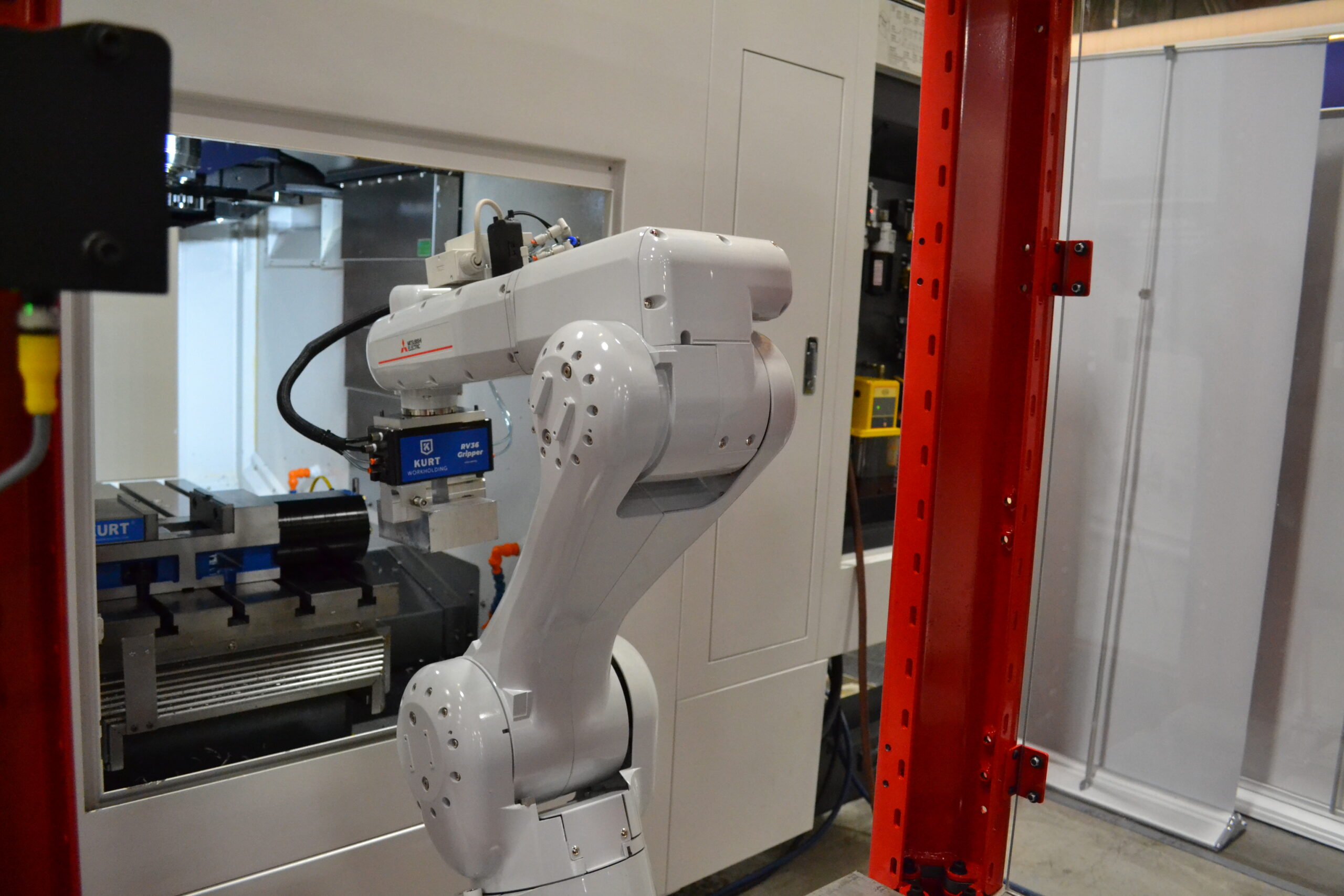

  • High-speed machine tending eliminates lost time between machining cycles
  • Palletize parts in any high/low volume mix

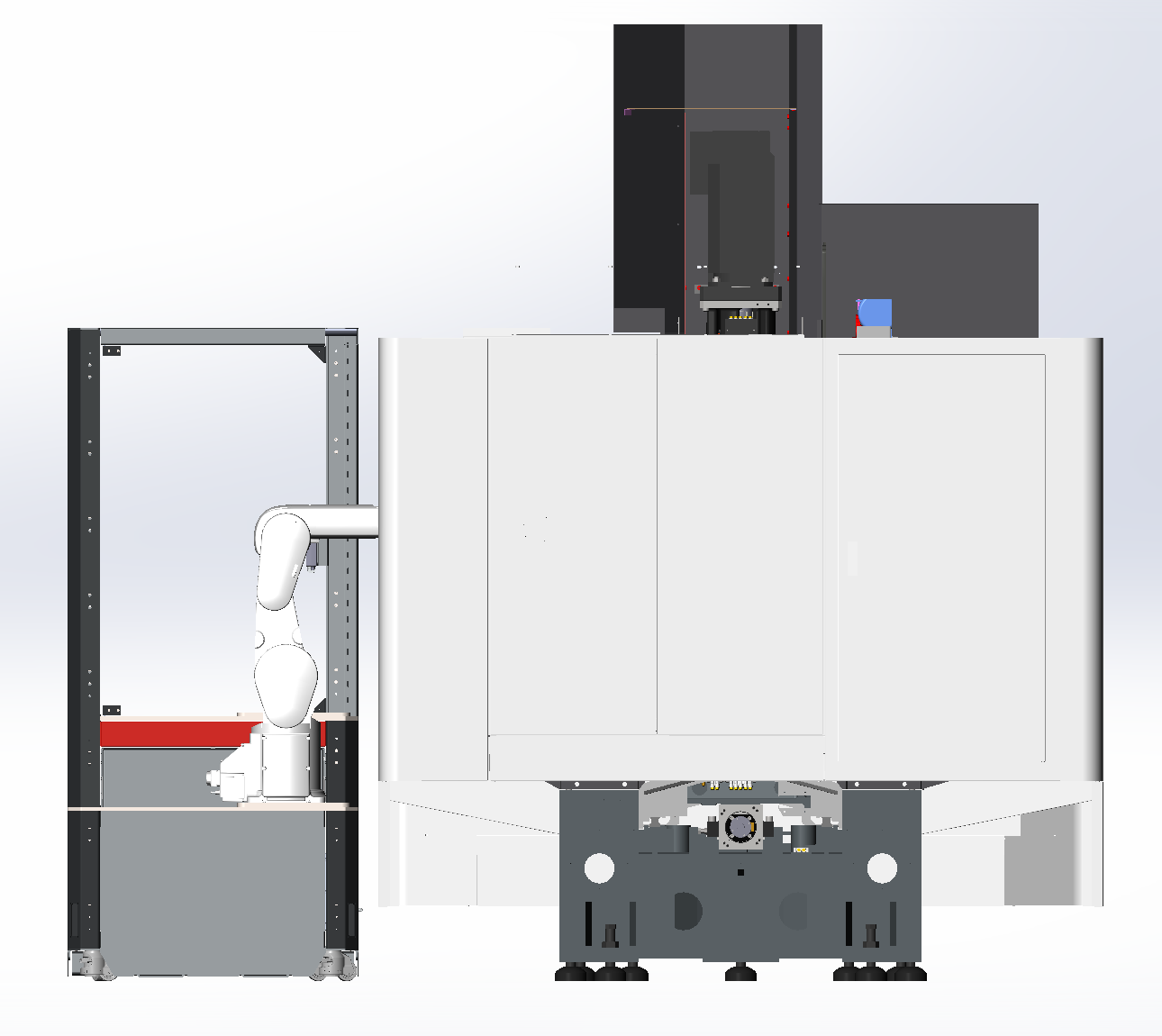

  • Maximum portability from machine to machine – just roll it!

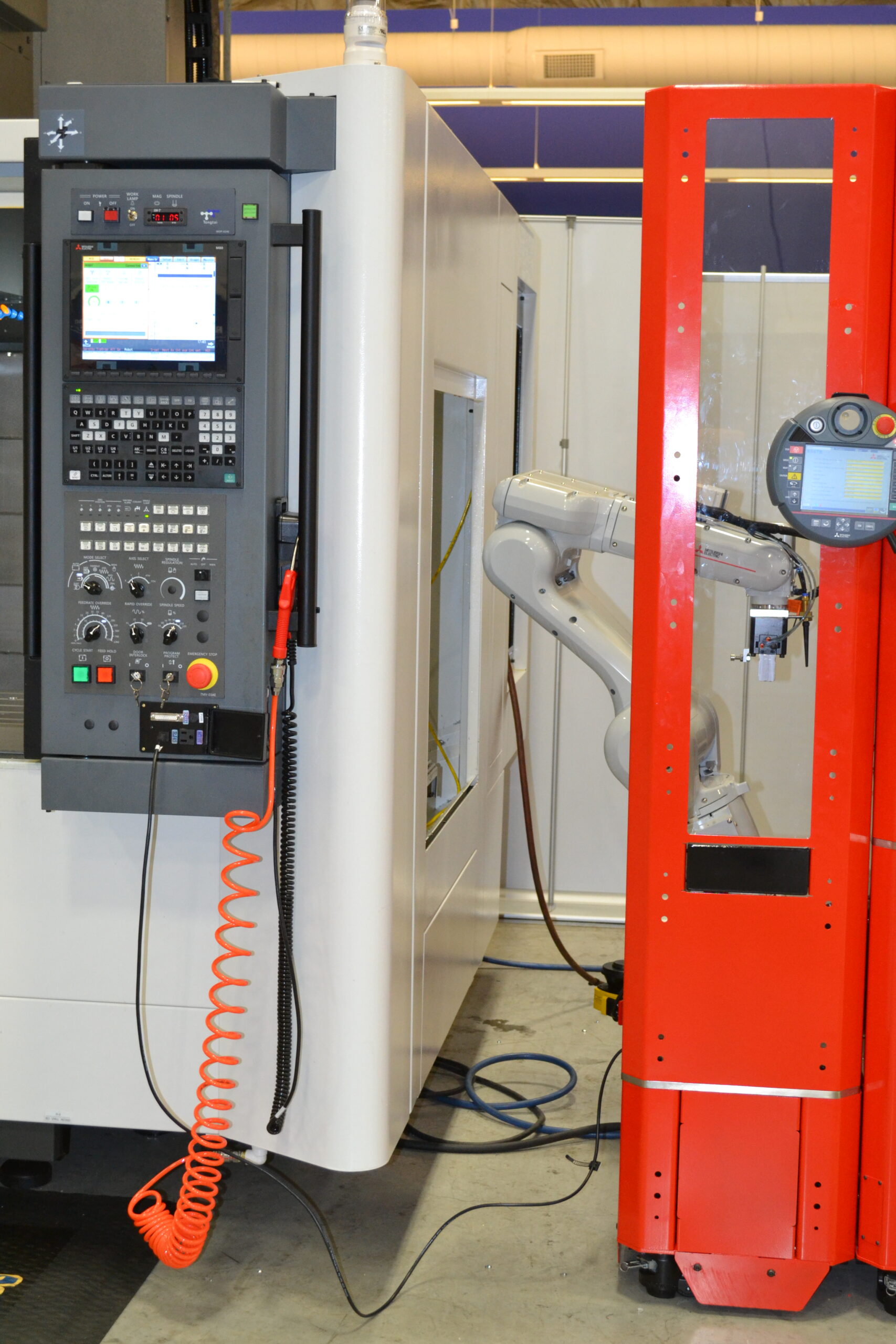

  • Integrates with most CNC controls
  • One-step setups using ONE (1) Ethernet cable
  • Fully enclosed for safety-first functionality
  • Payloads up to 20kg using Mitsubishi RV series industrial robots
  • Reach up to 1,388mm
  • LoadMate Packages start at $49,900

Download the Latest Flyer

Specifications

Item / Model
RV-13FRD Request a Quote
RV-13FRLD Request a Quote
RV-20FRD Request a Quote

Payload Capacity

8 kg

7 kg

7 kg

13 kg

13 kg

20 kg

Maximum reach

931 mm

713 mm

908 mm

1094 mm

1388 mm

1094 mm

Axes

6 (J1-J6)

6 (J1-J6)

6 (J1-J6)

6 (J1-J6)

6 (J1-J6)

6 (J1-J6)

Maximum Composite Speed

10,500 mm/sec

11,604 mm/sec

10,977 mm/sec

10,977 mm/sec

9,700 mm/sec

4,200 mm/sec

Position Repeatability

0.02 mm

0.02 mm

0.02mm

0.05mm

0.05mm

0.05mm

Controller Type

CR800

CR800

CR800

CR800

CR800

CR800

Software

RT ToolBox 3

RT ToolBox 3

RT ToolBox 3

RT ToolBox 3

RT ToolBox 3

RT ToolBox 3

In Stock and Ready for Immediate Delivery

Image Model and Brand Serial #

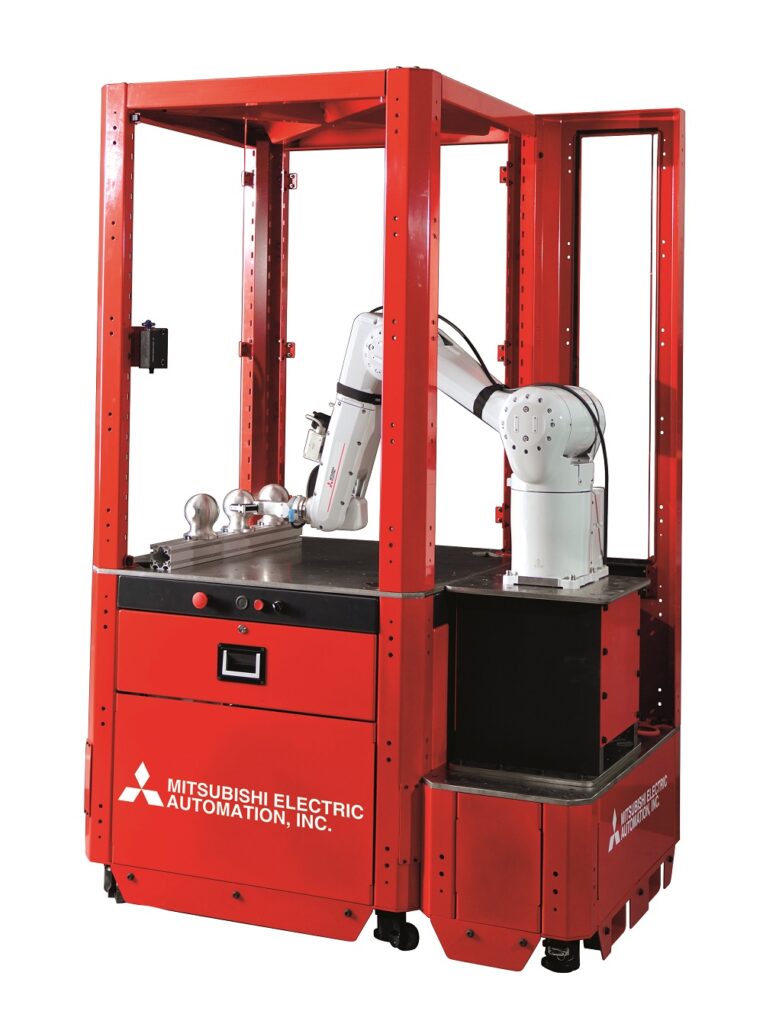

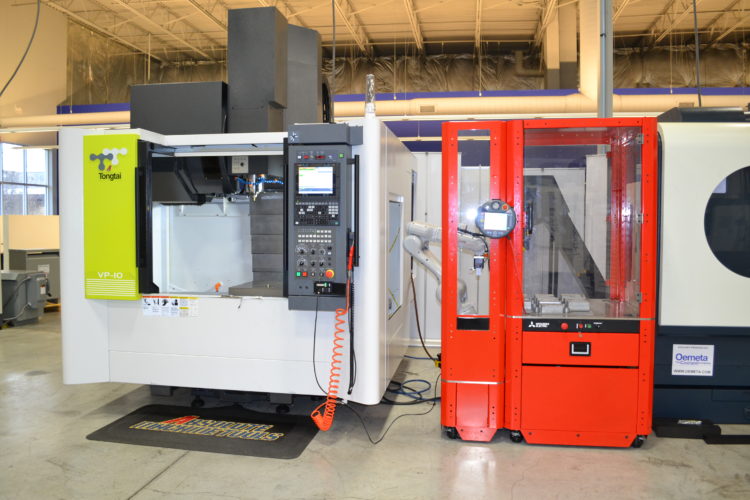

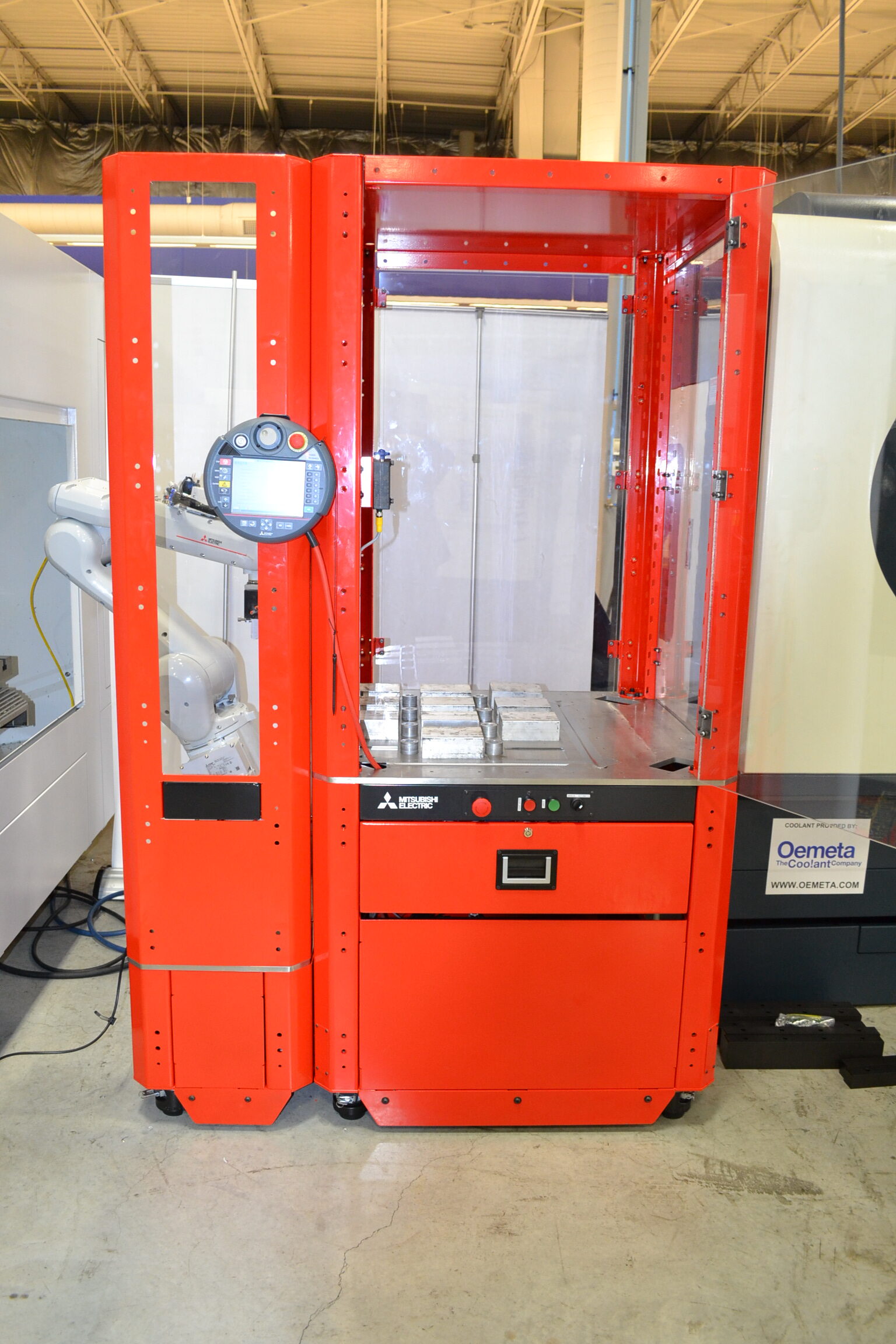

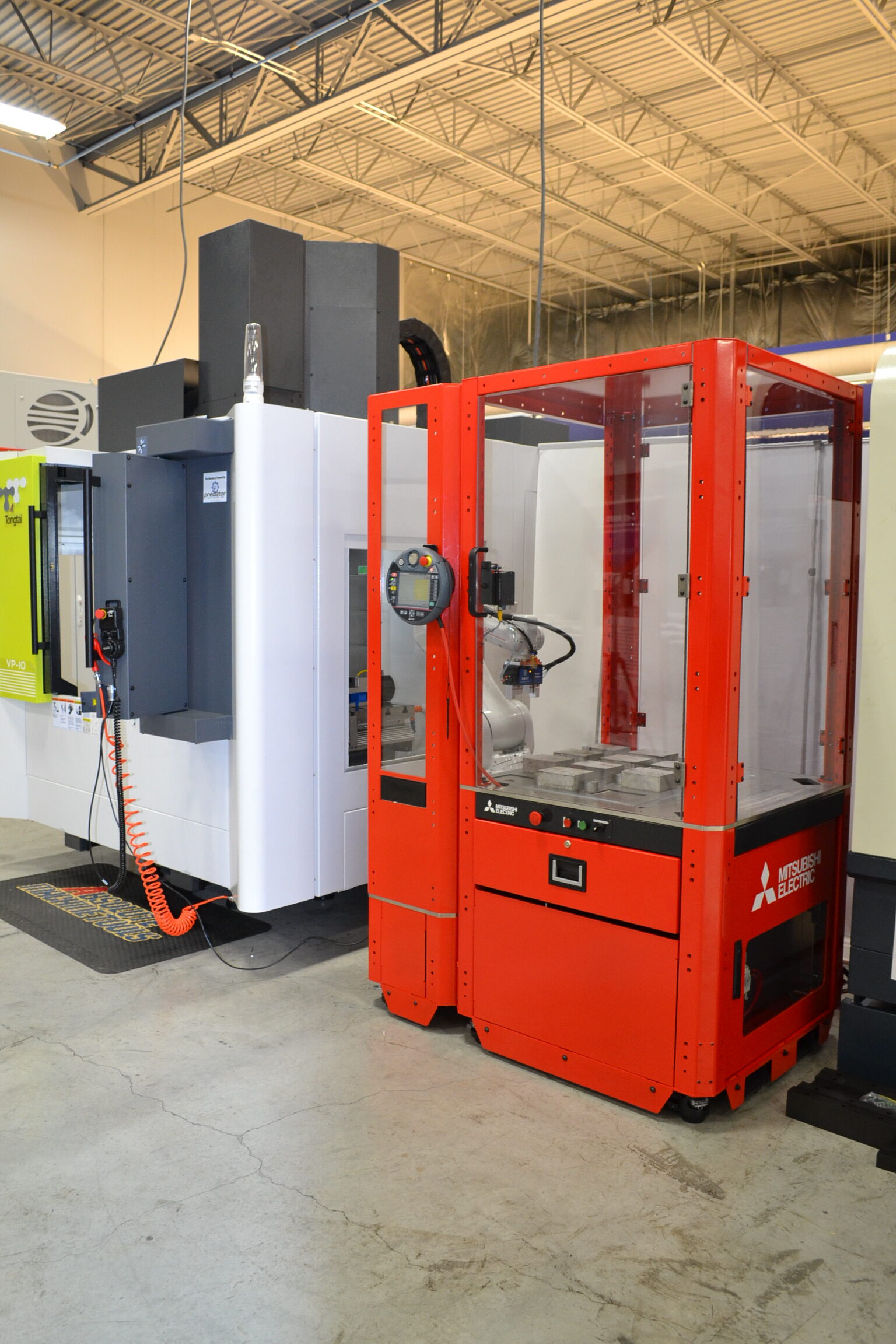

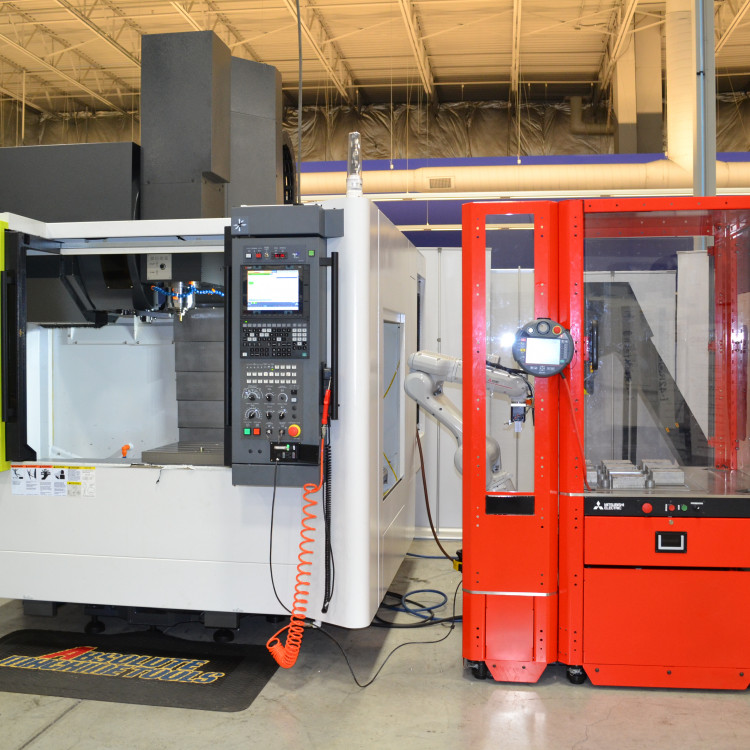

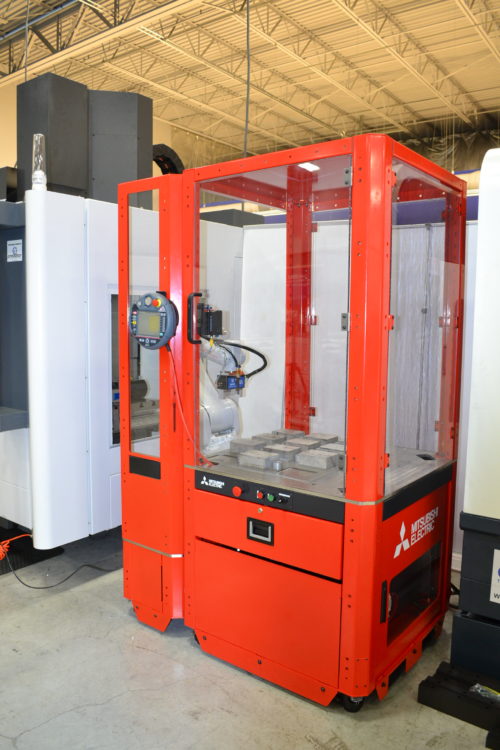

LoadMate Plus™ Machine Tending Robotic Cell from Absolute Machine Tools and Mitsubishi Electric Factory Automation and Robotics Mitsubishi LoadMate Plus 3×3 with RV-8CRL Industrial Robot #100065279
Mitsubishi

Mitsubishi LoadMate Plus machine tending robotic cell for fast consistent CNC applications including loading/unloading and palletizing parts for any low-to-high volume mix includes:  RV-8CRL 6-axis industrial robot (8kg payload capacity & 931mm reach), 3×3 base with stainless steel plate, polycarbonate enclosure, side-step extension, electric drawer, racheted nylon caster wheels, I/O connectivity for alternate control, safety door & door interlock switch, safety component package with I/O (does not include safety scanner), USB/PDF operations and maintenance manuals, 1-year warranty.  Additional options included:  graphic Windows color display premium teach pendant with 6.5” touch screen, RV-8 solenoid valve pack totaling 4 valves, additional digital I/O interface source-type 32 inputs & 32 outputs, digital I/O 15M interface cable.

100065279
LoadMate Plus™ Machine Tending Robotic Cell from Absolute Machine Tools and Mitsubishi Electric Factory Automation and Robotics
Mitsubishi LoadMate Plus 3×3 with RV-8CRL Industrial Robot #100065279
Mitsubishi

Mitsubishi LoadMate Plus machine tending robotic cell for fast consistent CNC applications including loading/unloading and palletizing parts for any low-to-high volume mix includes:  RV-8CRL 6-axis industrial robot (8kg payload capacity & 931mm reach), 3×3 base with stainless steel plate, polycarbonate enclosure, side-step extension, electric drawer, racheted nylon caster wheels, I/O connectivity for alternate control, safety door & door interlock switch, safety component package with I/O (does not include safety scanner), USB/PDF operations and maintenance manuals, 1-year warranty.  Additional options included:  graphic Windows color display premium teach pendant with 6.5” touch screen, RV-8 solenoid valve pack totaling 4 valves, additional digital I/O interface source-type 32 inputs & 32 outputs, digital I/O 15M interface cable.

100065279

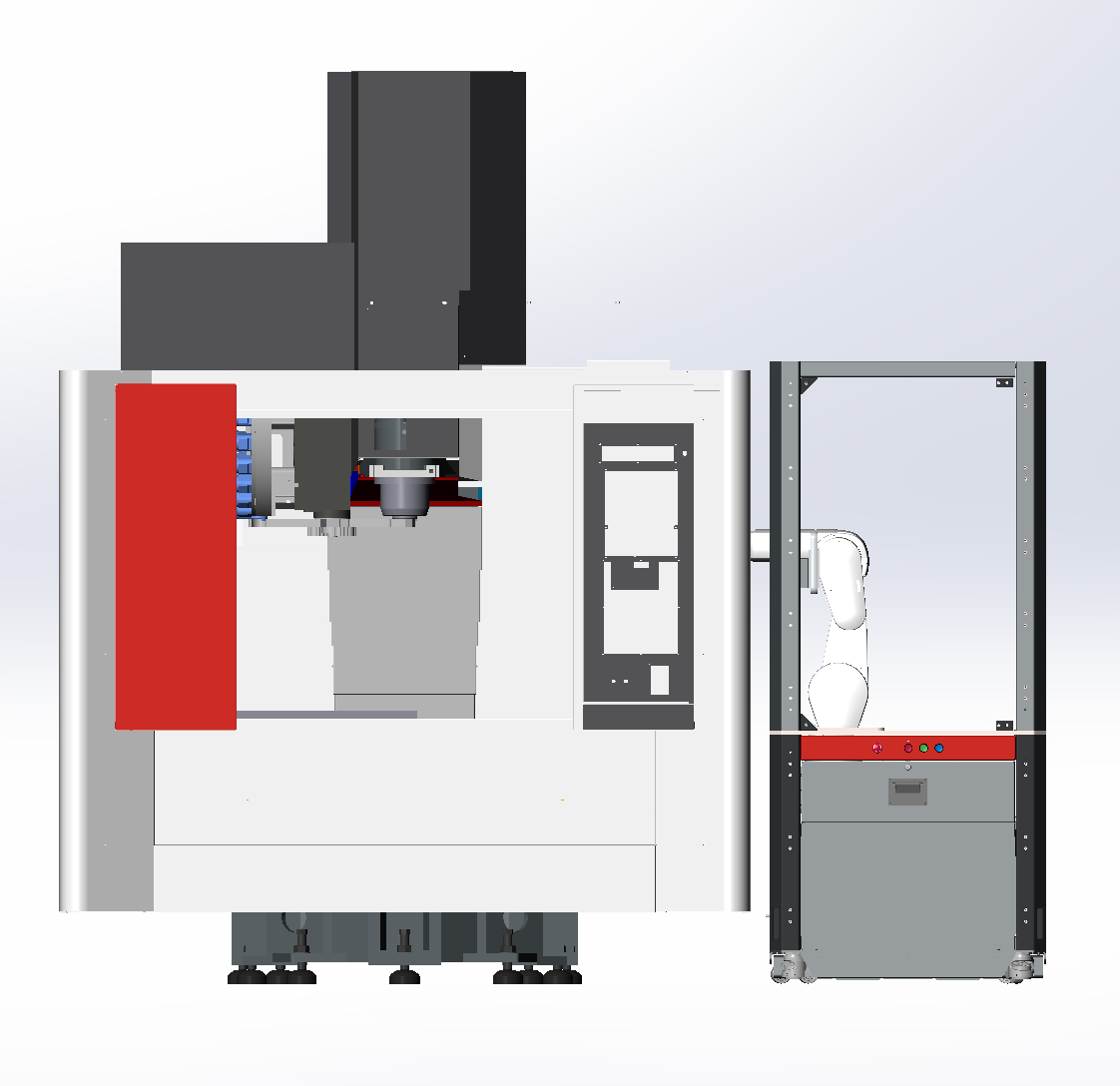

Stand Dimensions

3×3 Enclosure & Side Table

4×4 Enclosure & Side Table

Length

36″

48″

Width

36″

48″

Height

82″

82″

Options

Solenoid valve set

Teach pendant

Digital I/O interface

Digital I/O cable

CC-Link IE Field

EtherCAT interface

EtherNet/IP interface

Profinet interface

Force sensor

Standard software

End-effector/Gripper

Safety

Setup and Training

PLC Setup
