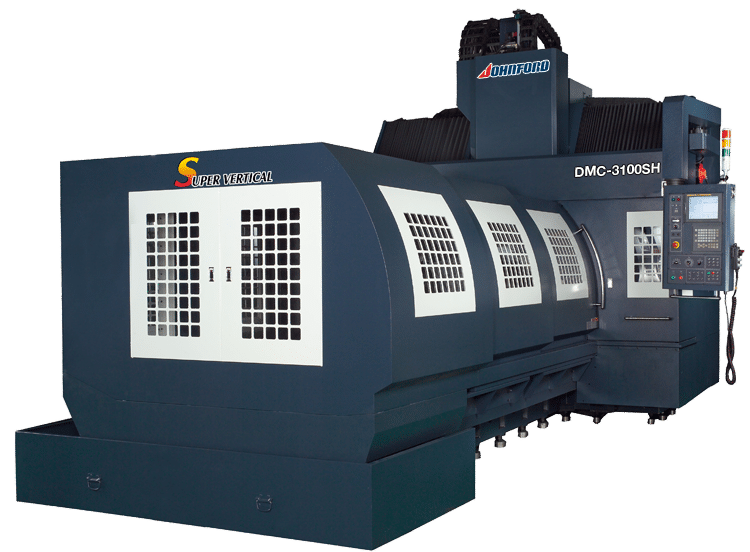

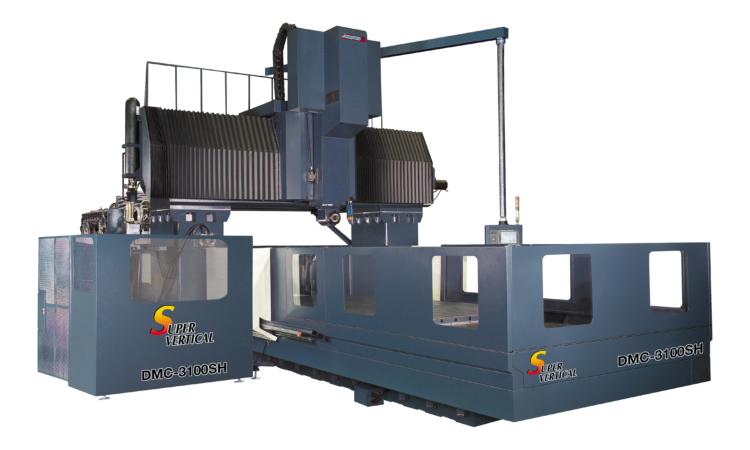

Johnford DMC S/SH Series 2100mm – 6100mm with 1780mm (70″) Extended Y-Axis Travel

The Johnford SH CNC bridge mill series delivers unmatched performance and rigidity in a remarkably space-efficient design. With extended Y-axis travel of 1778 mm (70″), the SH series is engineered to handle demanding heavy machining applications while minimizing floor space requirements. Built with a massive single-piece Meehanite cast structure, these machines absorb cutting stresses with minimal deflection for exceptional accuracy — even in the most challenging cuts.

Looking for a different size/capability? Check out other models in the DMC Series:

  • DMC Series – 900mm-1500mm – Moving Table/Fixed Column Bridge Mills
  • L/LH Series â€“ 3100mm – 6100mm with 2800mm (110.2″) Extended Y-Axis Travel
  • DMC Series – 1600mm – 6100mm Moving Table/Fixed Column Bridge Mills
  • Massive Fixed/Moving Column & 5-Axis/5-Face â€“ 4000mm – 6000mm+W
  • P/PH Series – 3100mm – 6100mm with 2300mm (90.5″) Extended Y-Axis Travel
  • SDMC Series â€“ Heavy Duty Sliding Double Column Machining Centers

Heavy-Duty Engineering for Maximum Performance

As machine size and application complexity increase, Johnford’s SH series integrates advanced technologies to boost productivity, including full 5-face and 5-axis machining options. To support the larger Y-axis travel and the mass of advanced heads, the bridge, columns, and headstock castings are significantly reinforced over smaller models. The SH series maintains Johnford’s proven design philosophy while adding enhancements for even greater structural rigidity, all without compromising the company’s hallmark ergonomics and enclosure design.

Precision Design for Superior Accuracy

The SH series features a stationary ballscrew with rotating ball nut in the X-axis to reduce vibration and improve accuracy under heavy table loads. The X-axis includes heavy-duty, widely spaced precision-ground box ways with Turcite-B coatings and a 63 mm pre-tensioned ballscrew, with optional roller-type linear guideways for even higher performance. The Y-axis provides 650 mm (25.6″) between box ways and a 63 mm pre-tensioned ballscrew to minimize thermal growth. The ram-type Z-axis box structure ensures optimum cutting efficiency even when fully extended, supported by a 962 mm (37.9″) hydraulic counterbalance for smooth head positioning.

Powerful Spindle System

All Johnford SH models feature a robust 26 kW spindle motor paired with a 2-speed ZF gearbox delivering up to 6000 RPM as standard on BT-50 configurations. A built-in chiller system ensures thermal stability during demanding cuts, while the high-performance cutting head produces an impressive 662 Nm (488 lb.-ft.) of torque at only 375 RPM for maximum metal removal capability.

Key Features:

  • Extended 1778 mm (70″) Y-axis travel for large-part capability
  • Massive one-piece Meehanite cast structure for outstanding rigidity
  • Stationary ballscrew with rotating ball nut in X-axis for reduced vibration and higher accuracy
  • Widely spaced precision-ground box ways in X with Turcite-B coating
  • 63 mm pre-tensioned ballscrews in X and Y axes for thermal stability
  • Ram-type Z-axis with hydraulic counterbalance for smooth operation
  • 26 kW spindle motor with 2-speed ZF gearbox (6000 RPM)
  • Built-in spindle chiller for thermal control
  • High torque output of 662 Nm (488 lb.-ft.) at low RPM
  • Optional full 5-face and 5-axis machining configurations
  • Fully enclosed design with superior ergonomics and operator access

Ideal for:

  • Aerospace structural components
  • Large mold and die work
  • Heavy-duty precision machining applications

Need a customized-size CNC Bridge Mill?

Johnford prides itself on offering countless customized sizes and payload designs in both DMC moving table / fixed column designs and SDMC sliding column / fixed table designs.

Get a Quote or Learn More

Ready to upgrade to a large-capacity bridge mill with exceptional rigidity and advanced technology?

Contact us today for pricing, demos, or expert advice.

Specifications

Item / Model
DMC-2100S Request a Quote
DMC-2100SH Request a Quote
DMC-2600S Request a Quote
DMC-2600SH Request a Quote
DMC-3100S Request a Quote
DMC-3100SH Request a Quote
DMC-4100S Request a Quote
DMC-4100SH Request a Quote
DMC-5100S Request a Quote
DMC-5100SH Request a Quote
DMC-6100S Request a Quote
DMC-6100SH Request a Quote

X Travel

82.7″

82.7″

102.4″

102.4″

122″

122″

161.4″

161.4″

200.7″

200.7″

240.2″

240.2″

Y Travel

70″

70″

70″

70″

70″

70″

70″

70″

70″

70″

70″

70″

Z Travel

31.5″ (42″ opt.)

31.5″ (42″ opt.)

31.5″ (42″ opt.)

31.5″ (42″ opt.)

31.5″ (42″ opt.)

31.5″ (42″ opt.)

31.5″ (42″ opt.)

31.5″ (42″ opt.)

31.5″ (42″ opt.)

31.5″ (42″ opt.)

31.5″ (42″ opt.)

31.5″ (42″ opt.)

Distance Between Columns

70.7″

70.7″

70.7″

70.7″

70.7″

70.7″

70.7″

70.7″

70.7″

70.7″

70.7″

70.7″

Table Size

86.6″ x 59″

86.6″ x 59″

106.2″ x 59″

106.2″ x 59″

126″ x 59″

126″ x 59″

165.4″ x 59″

165.4″ x 59″

204.7″ x 59″

204.7″ x 59″

244.1″ x 59″.

244.1″ x 59″

Table Load

22,200 lbs.

22,200 lbs.

22,200 lbs.

22,200

22,200 lbs.

22,200 lbs.

22,200 lbs.

22,200 lbs.

26,400 lbs.

26,400 lbs.

26,400 lbs.

26,400 lbs.

Rapids X/Y/Z

472/472/472 IPM

472/472/472 IPM

472/472/472 IPM

472/472/472 IPM

472/472/472 IPM

472/472/472 IPM

472/472/472 IPM

472/472/472 IPM

472/472/472 IPM

472/472/472 IPM

472/472/472 IPM

472/472/472 IPM

CNC Control

31Oi-MF Plus (31i-MB opt.)

31Oi-MF Plus (31i-MB opt.)

31Oi-MF Plus (31i-MB opt.)

31Oi-MF Plus (31i-MB opt.)

31Oi-MF Plus (31i-MB opt.)

31Oi-MF Plus (31i-MB opt.)

31Oi-MF Plus (31i-MB opt.)

31Oi-MF Plus (31i-MB opt.)

31Oi-MF Plus (31i-MB opt.)

31Oi-MF Plus (31i-MB opt.)

31Oi-MF Plus (31i-MB opt.)

31Oi-MF Plus (31i-MB opt.)

Spindle Taper

BT-40 / CAT-40 (HSK-63A opt.)

BT-50 / CAT-50 (HSK-100A opt.)

BT-40 / CAT-40 (HSK-63A opt.)

BT-50 / CAT-50 (HSK-100A opt.)

BT-40 / CAT-40 (HSK-63A opt.)

BT-50 / CAT-50 (HSK-100A opt.)

BT-40 / CAT-40 (HSK-63A opt.)

BT-50 / CAT-50 (HSK-100A opt.)

BT-40 / CAT-40 (HSK-63A opt.)

BT-50 / CAT-50 (HSK-100A opt.)

BT-40 / CAT-40 (HSK-63A opt.)

BT-50 / CAT-50 (HSK-100A opt.)

Spindle RPM BT/CAT
((HSK
))

10,000 (15,000 DD opt.)
((18,000 / 24,000))

6,000 (8,000 / 10,000 opt.)
((15,000))

10,000 (15,000 DD opt.)
((18,000 / 24,000))

6,000 (8,000 / 10,000 opt.)
((15,000))

10,000 (15,000 DD opt.)
((18,000 / 24,000))

6,000 (8,000 / 10,000 opt.)
((15,000))

10,000 (15,000 DD opt.)
((18,000 / 24,000))

6,000 (8,000 / 10,000 opt.)
((15,000))

10,000 (15,000 DD opt.)
((18,000 / 24,000))

6,000 (8,000 / 10,000 opt.)
((15,000))

10,000 (15,000 DD opt.)
((18,000 / 24,000))

6,000 (8,000 / 10,000 opt.)
((15,000))

Spindle Motor BT/CAT
(HSK
)

15 HP Hi/Lo Gear (31 HP Built-In)

35 HP Hi/Lo Gear (56 HP Built-In)

15 HP Hi/Lo Gear (31 HP Built-In)

35 HP Hi/Lo Gear (56 HP Built-In)

15 HP Hi/Lo Gear (31 HP Built-In)

35 HP Hi/Lo Gear (56 HP Built-In)

15 HP Hi/Lo Gear (31 HP Built-In)

35 HP Hi/Lo Gear (56 HP Built-In)

15 HP Hi/Lo Gear (31 HP Built-In)

35 HP Hi/Lo Gear (56 HP Built-In)

15 HP Hi/Lo Gear (31 HP Built-In)

35 HP Hi/Lo Gear (56 HP Built-In)

Spindle Drive BT/CAT
(HSK
)

2 Speed Gearbox
(Integral Built-In)

2 Speed Gearbox
(Integral Built-In)

2 Speed Gearbox
(Integral Built-In)

2 Speed Gearbox
(Integral Built-In)

2 Speed Gearbox
(Integral Built-In)

2 Speed Gearbox
(Integral Built-In)

2 Speed Gearbox
(Integral Built-In)

2 Speed Gearbox
(Integral Built-In)

2 Speed Gearbox
(Integral Built-In)

2 Speed Gearbox
(Integral Built-In)

2 Speed Gearbox
(Integral Built-In)

2 Speed Gearbox
(Integral Built-In)

ATC Capacity

Arm-Type 40 (60/80/120 opt.)

Arm-Type 40 (60/80/120 opt.)

Arm-Type 40 (60/80/120 opt.)

Arm-Type 40 (60/80/120 opt.)

Arm-Type 40 (60/80/120 opt.)

Arm-Type 40 (60/80/120 opt.)

Arm-Type 40 (60/80/120 opt.)

Arm-Type 40 (60/80/120 opt.)

Arm-Type 40 (60/80/120 opt.)

Arm-Type 40 (60/80/120 opt.)

Arm-Type 40 (60/80/120 opt.)

Arm-Type 40 (60/80/120 opt.)

Weight

50,220 lbs.

50,220 lbs.

53,745 lbs.

53,745 lbs.

57,270 lbs.

57,270 lbs.

82,500 lbs.

82,500 lbs.

92,620 lbs.

92,620 lbs.

103,525 lbs.

103,525 lbs.

  • Coolant system
  • Spindle air blast
  • Heat exchanger
  • Full enclosure
  • Twin screw-type chip conveyors
  • One chain-type chip conveyor
  • Operation box
  • Tools, tool box & various manuals
  • Rigid tapping
  • Spindle oil cooler
  • Working lamps (2 LED)
  • Manual guide i conversational
  • Fanuc Oi-MF Plus CNC controller
  • Contact tool setting system (Renishaw or Marposs)
  • High pressure coolant through spindle (400 or 1,000 PSI)
  • Workpiece measuring system (Renishaw or Marposs)
  • Linear scales
  • 60 Tools or more (BT-50/CAT-50/HSK-100A)
  • 60 Tools or more (BT-40/CAT-40/HSK-63A)
  • 18,000, 24,000 RPM for HSK-63A built-in spindle
  • 15,000 RPM for HSK-100A built-in spindle
  • 8,000 RPM for BT-50/CAT-50
  • 10,000 RPM direct drive for BT-50/CAT-50
  • 15,000 RPM direct drive for BT-40/CAT-40
  • Thermal compensation hardware/software
  • Fanuc 31iM-B Plus controller

5-Face Heads

  • 5-Face Milling Head: 90°, C-Axis 5°/2.5° (opt.) 1° (opt.), BT-50, 2000 RPM (4000 opt.), 30kW Power, 1500 N-m Torque, ∅200 Max Tooling Diameter, Hydraulic/Automatic Tool Change, Coolant Thru Spindle (opt.)
  • Extended Vertical Milling Head: BT-50, 4000 RPM, 30kW Power, 800N-M Torque, ∅215 Max Tooling Diameter, 5829.3mm Extension, Auto Clamp Tool Change
  • MA25 or Multi-Angle Milling Head: C-Axis 5°/2.5° (opt.) 1° (opt.) 360°, A-Axis 5°/2.5° (opt.) 1° (opt.) ± 110°, BT-50, 2000 RPM, 30kW Power, 1,500 N-m Torque, ∅200 Max Tooling Diameter, Hydraulic/Automatic Tool Change
  • Slim Extended Head: Auto 5°/2.5° (opt.), BT-50, 2000 RPM, 30kW Power, 800 N-m Torque, ∅215 Max Tooling Diameter, Manual Tool Change

5-Axis / 2-Axis NC Heads

  • TU35+ Multi-Angle Head: BT-50 (HSK-100A opt.), C-Axis Min. Increment ±180° / 0.001°, A-Axis Min. Increment 360° / 0.001°, 4000 RPM, 35kW Power, 1,500 N-m Torque, ∅200 Max Tooling Diameter, Hydraulic/Automatic Tool Change
  • AC42: HSK-63A, 6000 RPM std./20,000 max., C-Axis +/-200°, A-Axis +/-110°, 21kW (S1) 24kW (S6 60%), 34 N-m Continuous / 112 N-M max., Hydraulic Clamping
  • AC52: HSK-100A, 1000 RPM std./10,000 max., C-Axis +/-200°, A-Axis +/-110°, 31kW (s1) 40kW (S6 40%), 290 N-m (S1) / 386 N-m (S6), Hydraulic Clamping
