Johnford DMC-900 ~ DMC-1500 – Moving Table Bridge Mills

Johnford DMC-900 ~ DMC-1500

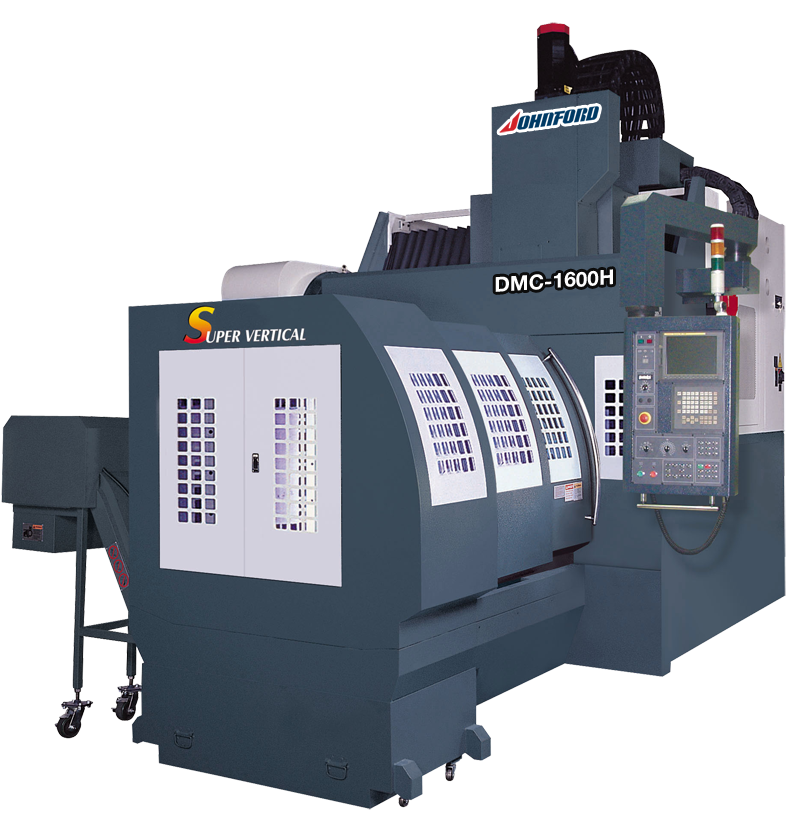

Johnford’s DMC-900 ~ DMC-1500 bridge mill series are built in a moving table design and are compact, taking less floor space than conventional vertical machining centers. Longitudinal X-axis travel ranges from 35.4” ~ 59.1”, 35.4” cross Y-axis travel, and 30” Z-axis vertical travel. These machines feature a moving table and fixed column in a one-piece Meehanite cast iron design that allows for the best rigidity possible just like their larger counterparts. A rugged 90˚ bridge with offset Y-axis ways and a wide saddle keeps the spindle center line extremely close to the bridge adding enhancing additional rigidity.

Standard spindle speed for this series ranges from 0-10,000 RPMs. Optional inline drive direct spindle speeds range from 0-15,000 RPMs, and optional Weiss spindles speeds range from 0-24,000 RPMs. Large diameter, pretensioned ballscrews and powerful servo motors also aid positioning accuracy. Ergonomics are designed to facilitate easy loading and unloading of workpieces.

Massive Z-axis head and Y-axis saddle feature square box ways coated with Turcite and have been designed with diagonally arranged ribs reduce distortion, even after years of continued use. The X-axis table traverse is accomplished via heavy-duty Schneeberger roller linear ways for accurate positioning of heavy workpieces. The machines’ spindle shafts range from 2.75” (70mm) to 3.54” (90mm) and are driven by a 15HP or 25HP 2-speed geared head spindle drive (with headstock cooler) delivering outstanding cutting performance at any RPM.

Standard features for this series include 24-tool arm-type ATC, CAT-40, CAT-50, HSK-63A and HSK-100A tool types, chip removal system consisting of 2 screw-type conveyors on each side of the table, high-volume coolant system, full enclosure (including the top), Fanuc OiM-F Plus CNC control with Alpha 1 servo system with 1,000,000 pulse encoders, Standard spindle tapers are offered in 40 and 50 taper, depending on the model. Additional standard features include flood coolant system with programmable air blast, air blast for spindle, auto lubrication with alarm, Halogen work lamp, remote han wheel, heat exchangers for control cabinets, hydraulic counterbalance for headstock, rigid tapping, and much more.

Optional features include 4 and 5-axis capabilities, 32 and 40 tools, BT-40 or BT-50 tool types, high pressure coolant through spindle, Fanuc 31iM-B Plus control, manual guide i, Renishaw auto tool presetters, Renishaw OMP-60 and 600 part probe for 2-D and 3-D surfaces, high-pressure coolant thru spindle, linear scales on XYZ, and Weiss integral spindles using HSK-63A or HSK-100A, depending on the model type.

Need a Custom-Size Bridge Mill?

Johnford prides itself on offering countless customized sizes and payload designs in both DMC moving table / fixed column designs and SDMC sliding column / fixed table designs.

Specifications

Item / Model
DMC-900H Request a Quote
DMC-1200 Request a Quote
DMC-1200H Request a Quote
DMC-1500 Request a Quote
DMC-1500H Request a Quote

X Travel

35.43″

35.43″

47.2″

47.2″

59.1″

59.1″

Y Travel

35.43″

35.43″

35.43″

35.43″

35.43″

35.43″

Z Travel

30″

30″

30″

30″

30″

30″

Distance Between Columns

41.7″

41.7″

41.7″

41.7″

41.7″

41.7″

Table Load

6,600 lbs.

6,600 lbs.

8,360 lbs.

8,360 lbs.

10,120 lbs.

10,120 lbs.

Rapids X/Y/Z

944/944/472 IPM

944/944/472 IPM

944/944/472 IPM

944/944/472 IPM

944/944/472 IPM

944/944/472 IPM

CNC Control

Oi-MF Plus (31i-MB opt.)

Oi-MF Plus (31i-MB opt.)

Oi-MF Plus (31i-MB opt.)

Oi-MF Plus (31i-MB opt.)

Oi-MF Plus (31i-MB opt.)

Oi-MF Plus (31i-MB opt.)

Spindle Taper

BT-40 / CAT-40 (HSK-A63 opt.)

BT-50 / CAT-50 (HSK-A100 opt.)

BT-40 / CAT-40 (HSK-A63 opt.)

BT-50 / CAT-50 (HSK-A100 opt.)

BT-40 / CAT-40 (HSK-A63 opt.)

BT-50 / CAT-50 (HSK-A100 opt.)

Spindle RPM (BT/CAT)
Spindle RPM (HSK)

10,000 (15,000 opt.)
18,000 (24,000 opt.)

6,000 (8,000 / 10,000 opt.)
15,000

10,000 (15,000 opt.)
18,000 (24,000 opt.)

6,000 (8,000 / 10,000 opt.)
15,000

10,000 (15,000 opt.)
18,000 (24,000 opt.)

6,000 (8,000 / 10,000 opt.)
15,000

Spindle Motor

15 HP Hi/Lo Gear
(31 HP Built-In HSK-63A)

25 HP Hi/Lo Gear
(56 HP Built-In HSK-A100)

15 HP Hi/Lo Gear
(31 HP Built-In HSK-63A)

25 HP Hi/Lo Gear
(56 HP Built-In HSK-A100)

15 HP Hi/Lo Gear
(31 HP Built-In HSK-63A)

25 HP Hi/Lo Gear
(56 HP Built-In HSK-A100)

Spindle Drive

2 Speed Gearbox

2 Speed Gearbox

2 Speed Gearbox

2 Speed Gearbox

2 Speed Gearbox

2 Speed Gearbox

ATC Capacity

24 / 32 (40 opt.)

24 / 32 (40 opt.)

24 / 32 (40 opt.)

24 / 32 (40 opt.)

24 / 32 (40 opt.)

24 / 32 (40 opt.)

Weight

22,000

22,000

26,400

26,400

33,000

33,000

  • Coolant system
  • Spindle air blast
  • Heat exchanger
  • Full enclosure
  • Twin screw-type chip conveyors
  • One chain-type chip conveyor
  • Operation box
  • Tools, tool box & various manuals
  • Rigid tapping
  • Spindle oil cooler
  • Working lamps (2 LED)
  • Fanuc Oi-MF Plus CNC control
  • Contact tool setting system (Renishaw TS-27R or Blum NT-A2/NT-A3)
  • High pressure coolant through tool
  • High pressure coolant through spindle
  • Workpiece measuring system (Renishaw OMP-60 or Blum TC-50)
  • Linear scale
  • 32/40 Tools or more (BT-50/CAT-50)
  • 32 Tools or more (BT-40/HSK-63A)
  • 15,000, 18,000, 20,000 RPM for HSK-63A built-in spindle
  • External coolant flow of spindle
  • Manual Guide i (Oi-MF)
  • Electronic compensation of thermal expansion
