Massive Fixed or Moving Table/Fixed Column Bridge Mills & 5-Axis/5-Sided Options for Specific Johnford DMC Models

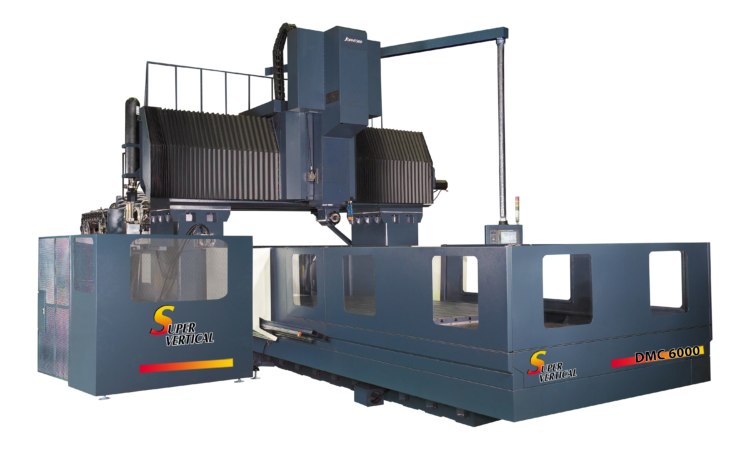

The CNC bridge mills in this series are BIG, and include Johnford DMC-4000, DMC-5000, and DMC-6000 sizes, with various configurations including W-axis, modified X/Y/Z axes travels, 5-axis and 5-sided machining heads, CNC controls, scales, tooling systems, tool capacities, and all other optional equipment possible on these kinds of machines. Like the other machines in the Johnford DMC bridge mill series, these massive models are made of a one-piece cast iron base and tested with Finite Element Analysis, or FEA, to optimize resistance in cutting forces and maintain accuracy during all machining operations, wherever they are on the table.

Looking for a different size/capability? Check out other models in the DMC Series:

  • DMC Series – 900mm-1500mm – Moving Table/Fixed Column Bridge Mills
  • P/PH Series – 3100mm – 4100mm with 2300mm (90.5″) Extended Y-Axis Travel
  • DMC Series – 1600mm – 4100mm Moving Table/Fixed Column Bridge Mills
  • L/LH Series – 3100mm – 6100mm with 2800mm (110.2″) Extended Y-Axis Travel
  • S/SH Series – 2100mm – 6100mm with 1780mm (70″) Extended Y-Axis Travel
  • SDMC Series – Heavy Duty Sliding Double Column Machining Centers

If these models aren’t big enough for the task at hand, check out our Sliding Double Column Bridge Mills at the link above, beginning with SDMC-7000 and up.

Below is a description of the various types of milling heads offered by Johnford:

5-Sided & 5-Axis Milling Options for Johnford PH, LH, Series & DMC-4000/5000/6000 Models

5-Sided Milling Heads

  • Milling Head: 90°, C-Axis 5°/2.5° (opt.) or 1° (opt.), BT-50, 2000 RPM (4000 opt), 30kW Power, 1,500 N-m Torque, ∅200 Max Tooling Diameter, Hydraulic Tool Change, Coolant thru Spindle (opt.)
  • Extended Milling Head with Auto Attachment Changer: 5829.3mm Extension, BT-50, 4000 RPM, 30kW Power, 800 N-m Torque, ∅215 Max Tooling Diameter, Auto Clamp Tool Change
  • MA25 Multi-Angle Milling Head: C-Axis 360° (5° (2.5° opt. / 1° opt.)), A-Axis ±110° (5°/2.5° opt.)), BT-50, 2000 RPM, 30kW Power, 1500 N-m Torque, ∅200 Max Tooling Diameter, Hydraulic Tool Change
  • Slim Extended Head: C-Axis Auto 5° (2.5° opt.), BT-50, 2000 RPM, 30-kW Power, 800 N-m Torque, ∅215 Max Tooling Diameter, Manual Tool Change

5-Axis Milling Heads

  • TU35 + Multi-Angle Head: C-Axis 360° (5°/2.5° opt.), A-Axis ± 110° (5°/2.5° opt.), BT-50, 2000 RPM, 30kW Power, 1500 N-m Torque, ∅200 Max Tooling Diameter, Hydraulic Tool Change, 660kg
  • AC4 2-Axis NC Head: C-Axis ±200°, A-Axis ±110°, HSK 63A, 6,000 – 20,000 RPM, Automatic Spindle Cooling, Hydraulic Clamping System 18kN, Auto Tool Cleaning
  • AC5 2-Axis NC Head: C-Axis ±200°, A-Axis ±110°, BT 50, CAT 50, HSK 100A, 1,000 – 10,000 RPM, Automatic Spindle Cooling, Hydraulic Clamping System 18kN, Auto Tool Cleaning

W-Axis Available

Need a Custom-Size Bridge Mill? Johnford prides itself on offering countless customized sizes and payload designs in both DMC moving table / fixed column designs and SDMC sliding column / fixed table designs.

Specifications

Item / Model
DMC-4000 Request a Quote
DMC-5000 Request a Quote
DMC-6000 Request a Quote

X Travel

157.4″

196″

236″

Y Travel

110″

110″

110″

Z Travel

31.5″ (42″ opt.)

31.5 (42″ / 59.1″ opt.)

31.5 (42″ / 48″ / 59.1″ opt.)

W Travel (opt.)

39.4”/59.1”/78.7”

39.4”/59.1”/78.7”

39.4”/59.1”/78.7″

Distance Between Columns

110.2″

110.2″

110.2″

Table Load

44,000 lbs.

55,000 lbs.

66,000 lbs.

Rapids X/Y/Z

472/472/472 IPM

472/472/472 IPM

394/472/472 IPM

CNC Control

Oi-MF Plus (31i-MB Plus opt.)

Oi-MF Plus (31i-MB Plus opt.)

Oi-MF Plus (31i-MB Plus opt.)

Spindle Taper

BT-50/CAT-50 (HSK-100A opt.)

BT-50/CAT-50 (HSK-100A opt.)

BT/50CAT-50 (HSK-100A opt.)

Spindle RPM
CAT-50
HSK-100A

6,000 (10,000 opt.)
15,000

6,000 (10,000 opt.)
15,000

6,000 (10,000 opt.)
15,000

Spindle Motor
CAT-50
HSK-100A

35 HP (50HP opt.)
56 HP High-Torque

35 HP (50HP opt.)
56 HP High-Torque

35 HP (50HP opt.)
56 HP High-Torque

Spindle Drive
CAT-50
HSK-100A

2 Speed Gearbox
Integral Built-In

2 Speed Gearbox
Integral Built-In

2 Speed Gearbox
Integral Built-In

ATC Capacity
CAT-50 (BT-50 opt.)

40 (60/80/120 opt.)

40 (60/80/120 opt.)

40 (60/80/120 opt.)

Weight (w/Std. Accessories)

150,000 lbs.

170,000 lbs.

176,200 lbs.
