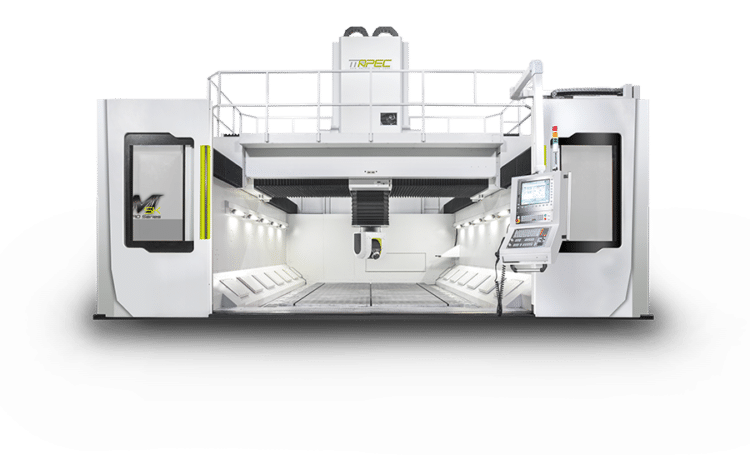

APEC SKM Series – 5-Axis High Speed Gantry-Style Machining Centers
The APEC SKM series in an advanced 5-axis simultaneous machining solution engineered to meet the demanding requirements of aerospace aluminum machining. With cutting-edge features, such as the box-in-box structure, linear motor-driven X/Y/Z-axis, and specialized spindle for aluminum alloy processing, the APEC SKM series delivers unparalleled precision and efficiency for high-speed machining tasks.
The APEC SKM series boasts a symmetrical geometry design with a box-in-box structure for both the crossbeam and saddle. This innovative design ensures an excellent force flow, effectively reducing thermal deformation during machining. Experience high accuracy even during the most demanding high-speed operations. With the APEC SKM series, stability is redefined, enabling you to achieve superior results in aerospace aluminum machining.
The machine’s ram is equipped with an unequal thickness and honeycomb structure, representing the best balancing design and geometry. This special construction minimizes vibrations, optimizing machining performance and precision. The APEC SKM series is the ultimate solution for achieving seamless and intricate aerospace aluminum components.
The APEC SKM series features a powerful crossbeam flushing system. A high-pressure pump with groups of nozzles quickly removes chips, ensuring uninterrupted machining operations. This advanced system ensures a clean and efficient workspace, maximizing productivity and reducing downtime. Experience stable and reliable coolant and chip removal with the APEC SKM series’ dual-chip removal system. Equipped with a large-capacity water tank, this system guarantees efficient chip evacuation, making way for smooth and precise aerospace aluminum machining.
With the APEC SKM series, 5-axis machining reaches new heights of precision. Enjoy accuracy differences below 0.01mm, making intricate and complex geometries a breeze. Take on challenging aerospace aluminum projects with confidence, knowing the APEC SKM Series delivers unmatched accuracy and consistency. Designed for aluminum alloy processing, the APEC SKM series features an ultra-high-speed and powerful spindle. Boasting the best material removal rate, this specialized spindle ensures efficient and smooth machining, elevating your productivity and reducing production times.
The APEC SKM series excels with its linear motor-driven X/Y/Z-axis. All three axes are driven by dual linear motors, maximizing speed and efficiency. With a maximum feed rate of 60 m/min and acceleration of 5 m/sec², the APEC SKM series ensures rapid and precise aerospace aluminum machining.
Experience unmatched versatility with the APEC SKM series’ automatic attachment head exchange system, which allows users to easily mount different angle heads to suit various applications, making the machine ideal for machining in narrow spaces. Adaptability and efficiency go hand in hand with the APEC SKM series. The APEC SKM series also features a movable beam design for the top-roof cover, effectively preventing the spreading of chips and coolant liquid. Enjoy a clean and efficient workspace, ensuring precision and safety during aerospace aluminum machining.
Discover the future of aerospace aluminum machining with the APEC SKM series. Absolute Machine Tools empowers you with advanced technology with unmatched support. Contact our experts to explore how the APEC SKM series can revolutionize your machining capabilities. Let us be your partner in success.
Specifications
Item / Model 42922_a2242a-99> |
SKM2740/50/60/80
Request a Quote |
42922_5cfc8e-24>
SKM3240/50/60/80
Request a Quote |
42922_f38d4a-0f>
SKM3740/50/60/80
Request a Quote |
42922_4a3ef1-69>
---|---|---|---|
X-axis 42922_279ae6-a2> |
157.48″/196.85″/236.22″ 42922_4a2932-93> |
157.48″/196.85″/236.22″ 42922_551afd-c5> |
157.48″/196.85″/236.22″ 42922_a34ccf-25> |
Y-axis 42922_e72ce9-f5> |
106.3″ 42922_ad5971-83> |
125.98″ 42922_ca4ad8-42> |
145.67″ 42922_6b20e9-99> |
Z-axis 42922_dec00a-b1> |
39.37″ 42922_4ad7d6-93> |
39.37″ 42922_311096-b2> |
39.37″ 42922_00b583-16> |
Table Length 42922_bb8c53-19> |
157.48″/196.85″/236.22″ 42922_397b50-c1> |
157.48″/196.85″/236.22″ 42922_22cb66-a0> |
157.48″/196.85″/236.22″ 42922_224d84-cb> |
Table Width 42922_b31dcb-52> |
161.57 lb/ft² 42922_0a9b43-2d> |
161.57 lb/ft² 42922_38822e-88> |
161.57lb/ft² 42922_467396-8f> |
MAX. Table load 42922_1a0638-78> |
944/944/472 IPM 42922_38ffdf-af> |
944/944/472 IPM 42922_bab981-b9> |
944/944/472 IPM 42922_678f14-81> |
Rapid traverse 42922_8d7488-47> |
XYZ=196.85 ft/min 42922_12d4e9-44> |
XYZ=196.85 ft/min 42922_d8f45f-79> |
XYZ=196.85 ft/min 42922_8787b5-38> |
X.Y.Z axis acceleration 42922_22f154-bf> |
16.40-26.25 ft/sec² 42922_4e08b3-60> |
16.40-26.25 ft/sec² 42922_05cf01-2d> |
16.40-26.25 ft/sec² 42922_d97637-25> |
Spindle taper 42922_acfb9d-e9> |
HSK63A 42922_45db8e-88> |
HSK63A 42922_ec5b7b-a0> |
HSK63A 42922_67796c-86> |
Spindle speed 42922_981f19-61> |
24,000 rpm 42922_88a82a-4b> |
24,000 rpm 42922_121cc8-23> |
24,000 rpm 42922_ab9f38-40> |
Spindle power (S1/S6) 42922_11ff39-7c> |
80.52/100.65 HP 42922_751f52-46> |
80.52/100.65 HP 42922_66e566-1a> |
80.52/100.65 HP 42922_b49bc2-33> |
Spindle torque (S1/S6) 42922_f7d20d-1e> |
35.39/44.25 ft. lbs. 42922_eb95c3-c1> |
35.39/44.25 ft. lbs. 42922_44b9e3-44> |
35.39/44.25 ft. lbs. 42922_6a52ba-94> |
Recommended 2-axis head 42922_df3e48-52> |
Fork Type Milling Head 42922_98c1a8-29> |
Fork Type Milling Head 42922_ecead2-24> |
Fork Type Milling Head 42922_a536cb-aa> |
Swivel/Rotation Torque 42922_ffd6ee-e8> |
B=879.77/1,456.16 ft. lbs. C=774.08/1,272.36 ft. lbs. 42922_fcc0ac-3b> |
B=879.77/1,456.16 ft. lbs. C=774.08/1,272.36 ft. lbs. 42922_0052a2-29> |
B=879.77/1,456.16 ft. lbs. C=774.08/1,272.36 ft. lbs. 42922_da9b35-9e> |
Swivel/Rotation Speed 42922_866023-01> |
B=C=30(cont)/60(max) rpm 42922_ecbbc1-b5> |
B=C=30(cont)/60(max) rpm 42922_f43012-e0> |
B=C=30(cont)/60(max) rpm 42922_f73423-de> |
Swivel/Rotation Angle 42922_149f6d-1b> |
HSK63A:B=±120° C=±360° 42922_e7470f-64> |
HSK63A:B=±120° C=±360° 42922_cd5adb-39> |
HSK63A:B=±120° C=±360° 42922_f5af3e-ed> |
Clamping Torque 42922_5191fd-cf> |
B=4,000 ft. lbs. C=4,000 ft. lbs. 42922_ac39f5-0b> |
B=4,000 ft. lbs. C=4,000 ft. lbs. 42922_78dbd3-e8> |
B=4,000 ft. lbs. C=4,000 ft. lbs. 42922_cbcf1e-bb> |
Tool shank 42922_72a37a-fb> |
30T pcs 42922_6e6797-ed> |
30T pcs 42922_bedaba-aa> |
30T pcs 42922_b96b27-67> |
Max. tool length 42922_05320f-25> |
11.81″ 42922_cc89a8-c0> |
11.81″ 42922_4947a7-ac> |
11.81″ 42922_dda1c8-31> |
Max. tool diameter with adjacent tool 42922_2d1860-6e> |
Ø3.94″ 42922_31c9ae-72> |
Ø3.94″ 42922_adeadd-85> |
Ø3.94″ 42922_348e25-b6> |
Max. tool diameter without adjacent tool 42922_2ddaae-4c> |
Ø5.12″ 42922_bfcb08-bf> |
Ø5.12″ 42922_b646ac-e5> |
Ø5.12″ 42922_1ee9d4-f1> |
Weight 42922_b72482-a3> |
114,640 – 436,520 lbs. 42922_c0a157-fe> |
114,640 – 436,520 lbs. 42922_8958d1-61> |
114,640 – 436,520 lbs. 42922_d968ee-c8> |
