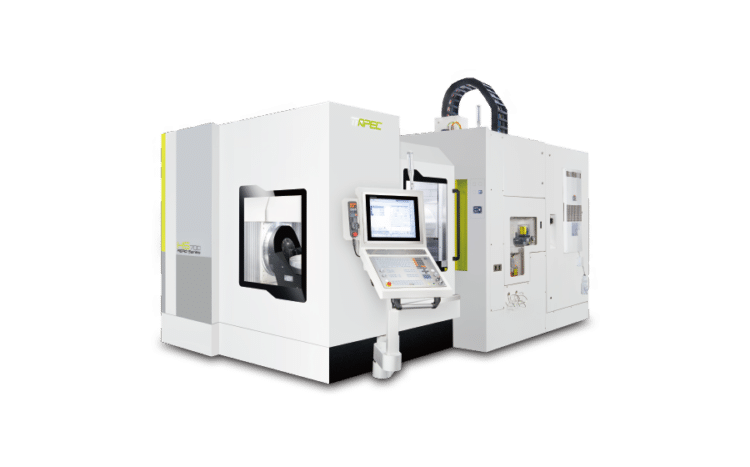

APEC HS700 Series 5-Axis Horizontal Machining Centers
The APEC HS700 series is specially designed to conquer aerospace SuperAlloy processing challenges. Discover the power of high rigidity T-shaped structure design and high-speed ball screw-driven X/Y/Z axes, setting new standards in precision machining.
The APEC HS700 series is tailored to excel in aerospace SuperAlloy processing, delivering unmatched performance and precision in every cut. Featuring an inverted dual V-shaped rib structure in the basement design, the APEC HS700 series achieves the best force flow path. The X-axis travel is fully supported, ensuring zero gravitational dropping and deformation, thus guaranteeing workpiece and surface machining accuracy.
With X/Y/Z axes driven by high-speed ball screws, the APEC HS700 series offers low noise, space-saving, and lightweight design, along with high acceleration and deceleration capabilities. Expect superior precision and reproducibility for even the most complex machining tasks.
The optional Multi-Pallet Pool (MPP) system introduces a zero clamp system for precise exchange motion. Optimize your workflow with loading and unloading operations in advance, saving valuable time and enhancing machine utilization. Choose from 6, 12, or 18 options for the pallet pool, tailored to your needs.
The APEC HS700 series prioritizes ease of use and accessibility. With easily reachable distance to the working table and a wide door opening space, loading and unloading become hassle-free. The wide door opening and open-top telescopic cover ensure effortless operation and maintenance. Experience unparalleled convenience while working with the APEC HS700 series. The central chip flow design ensures chips are carried away immediately during machining, preserving structural integrity and machining accuracy.
Are you ready to take your aerospace SuperAlloy processing to new heights? The APEC HS700 series is here to meet your needs. Contact the experts at Absolute Machine Tools today to explore the full potential of this series and revolutionize your machining endeavors.
Specifications
Specification 42937_e6a2db-13> |
HS700
Request a Quote |
42937_8b8940-e7>
---|---|
X-axis 42937_3d8f7e-e7> |
27.95″ 42937_adaf37-a1> |
Y-axis 42937_f56a4a-3b> |
35.83″ 42937_46926c-53> |
Z-axis 42937_47c394-8e> |
31.89″ 42937_f65cd2-f0> |
Feedrate 42937_085173-04> |
XYZ=196.85 ft/min 42937_cc0501-7d> |
Table size ( Diameter ) 42937_2c7410-15> |
Ø25.59″ 42937_651c56-9c> |
Max. processing diameter 42937_d419e4-45> |
Ø27.56″ 42937_f4811b-5d> |
Max. table load 42937_19dffd-6d> |
771.62 lbs. 42937_5d0b3c-f1> |
Max. rotation angle 42937_0663d5-a4> |
A=-90°~135° C=±360° 42937_253532-e9> |
Max. rotation speed 42937_45d16a-17> |
A=70 C=80 rpm 42937_66cd1a-f6> |
Torque (S1/Max.) 42937_c8ae43-55> |
A=1,574/2,789 ft. lbs. C=495/892 ft. lbs. 42937_2fe5dc-57> |
Spindle taper 42937_27af92-68> |
HSK63A 42937_c6e846-19> |
Spindle speed 42937_800475-2b> |
20,000 rpm 42937_027598-56> |
Spindle power (S1/Max.) 42937_85a054-1d> |
26.82/32.18 hp 42937_cb197a-92> |
Spindle torque (S1/Max.) 42937_1a8bc4-e1> |
33.51/40.56 ft. lbs. 42937_ad7a4f-c9> |
Tool shank 42937_1732d5-b7> |
32T pcs 42937_da18a2-cf> |
Max. tool length 42937_1a9d10-5f> |
15.75″ 42937_06ba22-5b> |
Max. tool diameter with adjacent tool 42937_9a77ef-21> |
Ø2.95″ 42937_067997-27> |
Max. tool diameter without adjacent tool 42937_162eca-f1> |
Ø5.12″ 42937_ec1737-4e> |
