Accutex DS ZNC Series – Manual Die Sinkers

Accutex Die Sinker DS ZNC Series

The Accutex Die Sinker DS ZNC Series of four RAM type EDM machines can handle workpiece sizes from 38″ x 22″ x 14.9″ (965 mm x 558 mm x 378 mm) to 67″ x 39″ x 22″ (1700 mm x 990 mm x 558 mm). ZNC series incorporates rigid heavy duty Meehanite castings designed using Finite Element Analysis (FEA) to ensure high accuracy machining. Premium grade ultra fine Class 5 ball screws, high resolution 0.0002″ linear optical scale for the X,Y and Z axis coupled with high quality linear ways produce smooth, precise operation.

The programmable Z axis incorporates the latest technology including conversational programming, fuzzy logic servo and machining parameter selection, automatic arc monitoring and digital dual discharge circuitry for fast, low wear, reliable results. The optional COC-280 Orbit cut system, when added the standard Automatic Z Axis Step function, the DS-ZNC series performs like a full 3D machine producing super fine finishes down to 0.18 Ra µm and accuracies to 0.0002″ easily and efficiently.

All ZNC model die sinking EDM machines offer an NC-controlled X, Y axis option that allows for a wide range of operations only available on full 3D machines. Multiple cavity positioning, X or Y axis side machining, auto centering, fuzzy auto set parameter setting and X,Y axis orbiting using the COC-280 integrated orbit head make the AccuteX DS-NC series boost cost effectiveness and productivity.

Standard machines features include Fast response MOFSET machining circuits, 15″, full color LCD flat screen display, 90 sets of Auto Memorized user machining parameters Hardened precision work table with standard T Slots Patented adjustable electrode holder.

Specifications

Item / Model

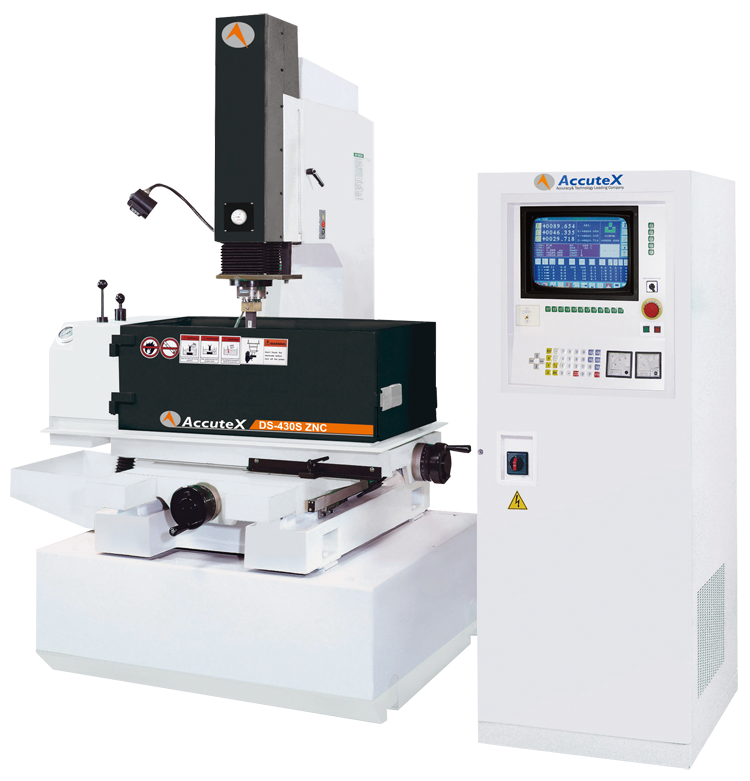

DS-430S-ZNC Request a Quote

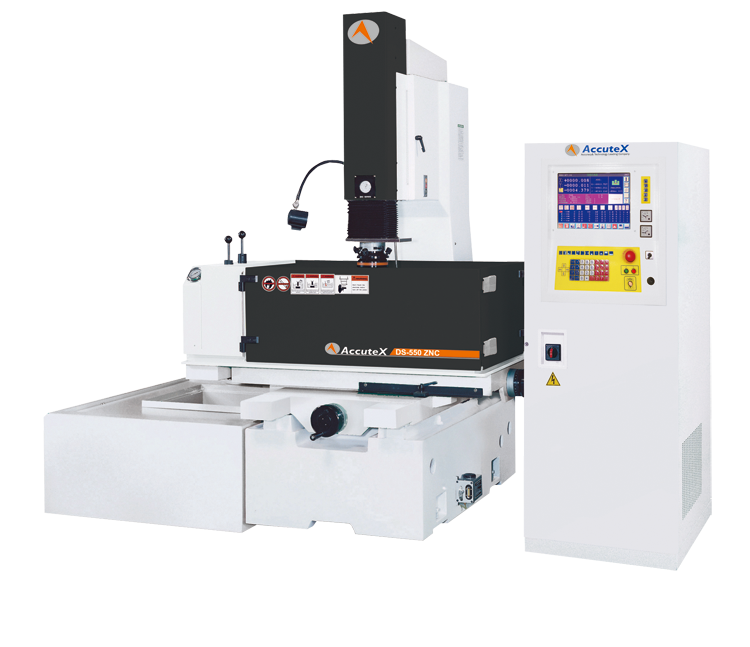

DS-550-ZNC Request a Quote
DS-755-ZNC Request a Quote

X-Axis

16″

20″

28″

Y-Axis

12″

16″

22″

Z-Axis (servo)

7″

8″

10″

Z-2 (workhead)

10″

12″

12″

Work Table Size

26″ x 14″

32” x 18”

43” x 24”

Max. Workpiece Size

38” x 22” x 14.9”

46” x 27” x 17”

67” x 39” x 22”

Max. Workpiece Weight

1,210 lbs.

2,970 lbs.

4,400 lbs.

Max. Electrode Weight

Platen – 220 lbs.

Platen -396 lbs.

Platen -550 lbs.

Distance from RAM to Table

6” – 23”

9” – 29”

11” – 33”

Machine Dimensions (LxWxH)

96” x 69” x 93”

153” x 71” x 96”

174” x 99” x 98”

Machine Weight

2,530 lbs.

4,290 lbs.

4,290 lbs.

Tank Capacity

100 gal.

145 gal.

330 gal.

Accutex DS ZNC Series Manual Die Sinkers features include:

  • Fast response MOFSET machining circuits.
  • 15” easy to read, full color LCD flat screen display and 32 bit industrial grade computer.
  • 90 sets of Auto Memorized user machining parameters.
  • “FUZZY” Auto Set machining parameters from roughing to finishing ( maximum 10 steps).
  • Hardened precision work table with standard T Slots.
  • Auto Fire Extinguisher with fire and fluid level sensors.
  • Remote Hand Box.
  • Turcite-B Ways with one shot lubrication.
  • Patented adjustable electrode holder.
  • Flushing ports, 5 emission 1 suction.
  • Built in dielectric unit space saving design.

In Stock and Ready for Immediate Delivery

Image Model and Brand Serial #
DS-430S ZNC Die Sinking EDM machines DS-403S ZNC – EDM Die Sinker Machine
AccuteX

ZNC Sinker Type EDM, COC-280-15KGS Orbit Cut, System 3R Macro Chuck w/ adapter plate, KE 4 Dielectric Cooler, Permanent Magnetic Chuck 6″x18″

479811
DS-430S ZNC Die Sinking EDM machines
DS-403S ZNC – EDM Die Sinker Machine
AccuteX

ZNC Sinker Type EDM, COC-280-15KGS Orbit Cut, System 3R Macro Chuck w/ adapter plate, KE 4 Dielectric Cooler, Permanent Magnetic Chuck 6″x18″

479811
DS-430S ZNC Die Sinking EDM machines DS-430S ZNC – EDM Die Sinker Machine
Accutex

ZNC Sinker Type EDM, System 3R Macro Chuck w/ adapter plate, KE 4 Dielectric Cooler, Permanent Magnetic Chuck 6″x18″

479711
DS-430S ZNC Die Sinking EDM machines
DS-430S ZNC – EDM Die Sinker Machine
Accutex

ZNC Sinker Type EDM, System 3R Macro Chuck w/ adapter plate, KE 4 Dielectric Cooler, Permanent Magnetic Chuck 6″x18″

479711
DS-430S ZNC Die Sinking EDM machines DS-430S ZNC – EDM Die Sinker Machine
Accutex

ZNC Sinker Type EDM, System 3R Macro Chuck w/ adapter plate, KE 4 Dielectric Cooler, Permanent Magnetic Chuck 6″x18″

479811
DS-430S ZNC Die Sinking EDM machines
DS-430S ZNC – EDM Die Sinker Machine
Accutex

ZNC Sinker Type EDM, System 3R Macro Chuck w/ adapter plate, KE 4 Dielectric Cooler, Permanent Magnetic Chuck 6″x18″

479811
DS-430S ZNC Die Sinking EDM machines DS-403S ZNC – EDM Die Sinker Machine
AccuteX

ZNC Sinker Type EDM, COC-280-15KGS Orbit Cut, System 3R Macro Chuck w/ adapter plate, KE 4 Dielectric Cooler, Permanent Magnetic Chuck 6″x18″

379711
DS-430S ZNC Die Sinking EDM machines
DS-403S ZNC – EDM Die Sinker Machine
AccuteX

ZNC Sinker Type EDM, COC-280-15KGS Orbit Cut, System 3R Macro Chuck w/ adapter plate, KE 4 Dielectric Cooler, Permanent Magnetic Chuck 6″x18″

379711
