AccuteX AL Series – Moving Table Submerged-Type Wire EDM

High Precision Linear Motor

The Accutex AL Series moving table submerged-type CNC Wire EDM machines are engineered to deliver exceptional accuracy, surface finish, and reliability. Built with cutting edge linear motor drive technology, the AL Series ensures consistent precision and minimal maintenance, making it an ideal solution for manufacturers demanding high-performance EDM machining.

Key Benefits:

Linear Motor Drive System:

The AL Series uses a direct-drive linear motor system that eliminates backlash and ensures smooth, friction-free motion. Because of the linear shaft motor design, the AL series can provide 10% faster servo response time than flat-type linear motors with no thermal distortion or friction. The linear shaft motor, HIWIN linear guideways, 0.000004” Fagor glass scales and 64 bit processing are joined together on the massive casting putting the AL Series in a class of its own. This advanced technology provides higher cutting stability, enhanced accuracy, and longer-lasting performance compared to traditional ball-screw systems.

High-Speed, Multi-Cut Capabilities:

With multi-pass cutting strategies, the AL Series delivers superior surface finishes and dimensional accuracy. The machine offers a world-renown patented automatic wire threader (AWT) for efficient unmanned operations.

CNC Control:

The AL Series is equipped with the latest Accutex64 bit Windows CE based CNC control, including 17″ color touch screen and 1GB SD RAM. The CNC control offers DIRECT Precise Motion Control allowing the servo response path to follow the program precisely. Its user-friendly import/export feature transfers files via USB memory key, LAN network and RS232 connections. The controller can remotely access NC code with built-in FTP function enhancing efficient file management. For select cutting conditions, the controller generates the appropriate setting from its database. All parameters are automatically integrated in the NC program, making the NC code portable and easy to use. The system features intelligent cutting parameters, simplifying programming and ensuring consistent results, even for less experienced operators.

Precision with Reduced Wire Consumption:

Accutex’s Smart AWT system minimizes wire consumption and enhances efficiency, significantly lowering operating costs without compromising accuracy. Its patented Annealing Function for rethreading wire includes an AC servo tension wheel that can operate in reverse when the wire breaks. The wire-end needle-shaping feature cuts the wire off electrically, while annealing heat treatment strengthens the wire at the breakpoint for consistent reliable threading.

Performance Advantages:

  • Taper Cutting: The AL Series offers excellent taper-cutting capabilities, handling complex profiles with precise angles.
  • Superior Surface Finish: Achieve mirror-like surface finishes with multi-pass cutting and advanced flushing techniques.
  • High-Precision Machining: Suitable for high-tolerance applications in industries such as aerospace, medical, and mold and die making.
  • Automation-Ready: Seamlessly integrates with robotic loaders and automation systems, enabling lights-out machining and improving overall efficiency.

Specifications

Item / Model

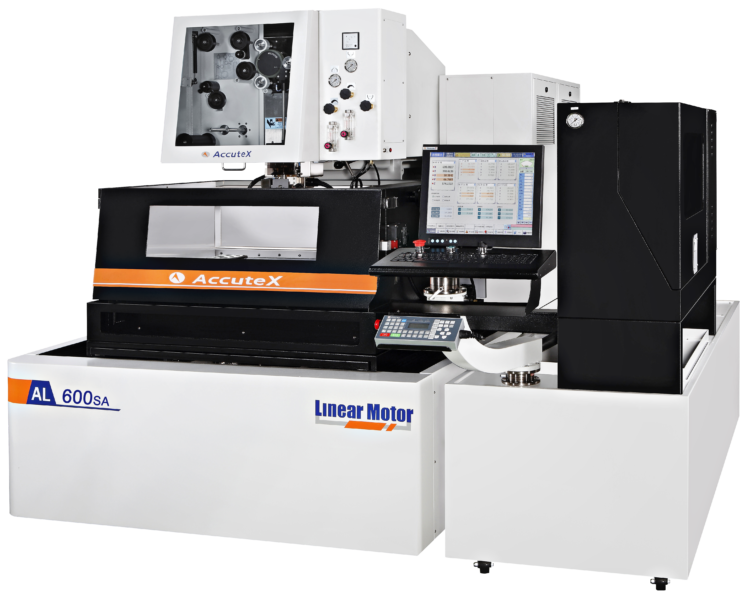

AL-600SA+Z400 Request a Quote

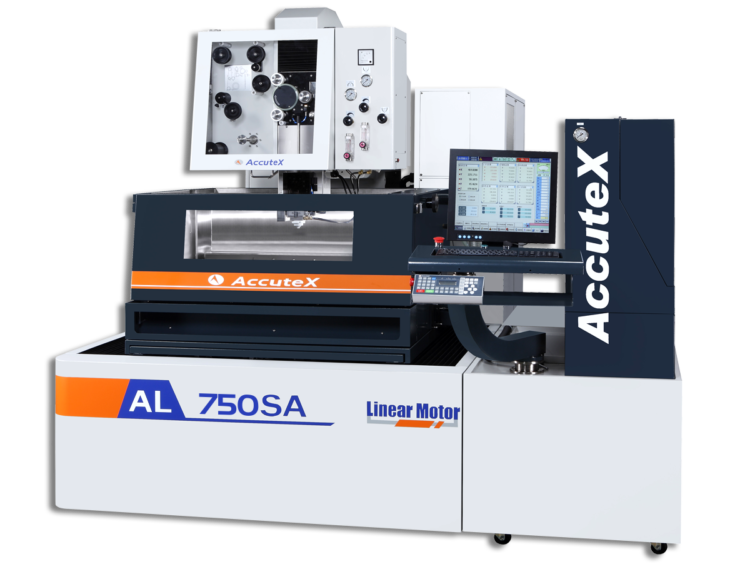

AL-750SA Request a Quote

X Axis Travel

23.62″

29.53″

Y Axis Travel

15.74″

19.69″

Z Axis Travel

15.74″

11.81″

U Axis Travel

3.94″

3.94″

V Axis Travel

3.94″

3.94″

Table Feed Rates

40.0 IPM

40.0 IPM

Max. Taper Angle

±45°

±45°

Axis Drive Motor

Linear Shaft Motor

Linear Shaft Motor

Max. Workpiece Size (XYZ)

38.97″ x 24.41″ x (15.54″ opt.)

46.85″ x 28.35″ x 11.61″ (15.54″ opt.)

Max. Workpiece Weight

2,450 lbs.

3,066 lbs.

Wire Diameter

0.006″ – 0.013″

0.006″ – 0.013″

Wire Spool Feed Rate

60 – 787 IPM

60 – 787 IPM

Wire Tension

300 – 2,200 grams

300 – 2,200 grams

Start Hole Diameter

0.0150″ ∅

0.0150″ ∅

Max. Wire Spool Weight

35 lbs.

35 lbs.

Positioning Accuracy

±0.00012″

±0.00012″

Repeatability (XY)

±0.00008″

±0.00008″

Total Power Required

15 KVA

15 KVA

Deionized Resin Tank

935 0.4 cu/ft Fiberglass Bottle

935 0.4 cu/ft Fiberglass Bottle

Tank Capacity

290 Gallons

280 Gallons

CNC Control Screen

17″ Color Touch

17″ Color Touch

CNC Control Device

64-Bit WindowsCE Based PC

64-Bit Windows CE Based PC

Floor Space

98″ x 117″ x 94″

118″ x 126″ x 89″ (96″ opt.)

Weight

9,680 lbs.

9,460 lbs.

  • 5 Controlled Axes (X, Y, U, V, Z)
  • Linear Scale Interpolation Board (Increases Accuracy to Less Than 0.00012” as Tested Using a 200mm Ball Bar Inspection)
  • Linear Shaft Motor (X, Y)
  • Positioning Accuracy less than 0.00012” Repeatability 0.00008”
  • MST-II Fine Finishing for Surface Finishes Down to 5RMS in 5 Passes
  • Enhanced Lead In/Out Technology Eliminating the Witness Mark at Entry and Exit Points
  • High-Speed Digital/AC Power Supply
  • 64 Bit Windows CE Based CNC Control
  • Fagor Linear Glass Scales
  • Fully Closed Loop 0.000004″ Resolution
  • 45 Degree Taper Cutting Capability (Wide Angle Guides and Flush Cups Required)
  • Work Coordinate System G54-G959 (60 Work Points)
  • Hand-Held Remote Pendant
  • 17″ Color Touch Screen
  • Extended Life Filtration Unit
  • Ethernet (Standard)
  • RS 232C Input
  • Safety Door Interlock
  • AWT Monitor Screen
  • Conversational Cutting Condition Selection with API (Automatic Program Imbedding)
  • Built in Collision Detection (All Axes)
  • Chiller Unit (Standard)
  • Inch/Metric Switchable by Program
  • Parametric Macro Sub Programming
  • Automatic Corner Pro Function
  • Automatic Wire Feed System (Rethread at Breakpoint)
  • Ergonomic CNC Operator Panel (Swivel Mounted and Adjustable)
  • Edge Finding/Centering Manually, By G-Codes and by Guidance Menus
  • SD Master – Stable Discharge Circuit with EPGA Technology
  • USB Port
  • MST-II Micro Sparking Technology for Super Fine Surface Finishes
  • PCD Cutting Circuit
  • Z Axis Extension (25mm)
  • ESPRIT CAD/CAM Solid Wire Gold
  • ESPRIT CAD/CAM Solid Wire Platinum
  • Wire Chopper
  • Jumbo Wire Feeder (45kg Capacity)
  • 3R-209-860.1 EconoRuler (4th Side Workholding)
  • 3R-261.1 Table Supports (Set of 2)
  • 3R-239.1K Ruler Vice w/Torque Wrench
  • Transformer- Multi Tap, Isolation 220v Secondary, 15KVA
  • Hiwin Rotary Table RCV-100E (Factory Installed and Includes W-Axis, Drive, Wiring and Interface)
  • MARPOSS T25G Part Probe with User Interface
  • Annual Preventive Maintenance Plan
