SPECIFICATIONS

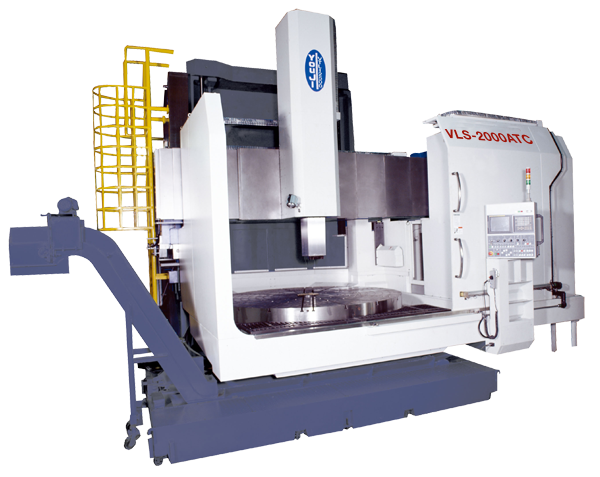

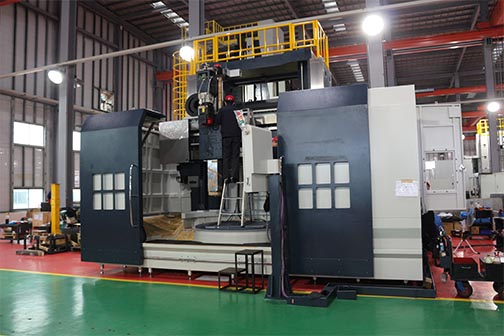

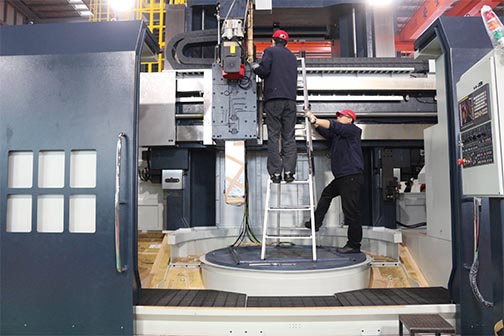

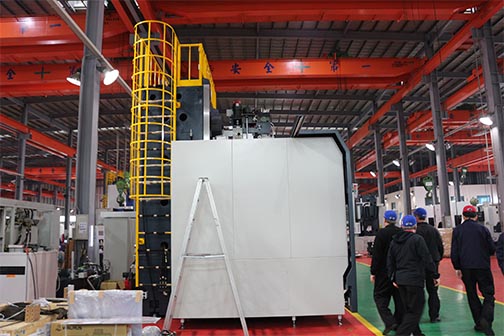

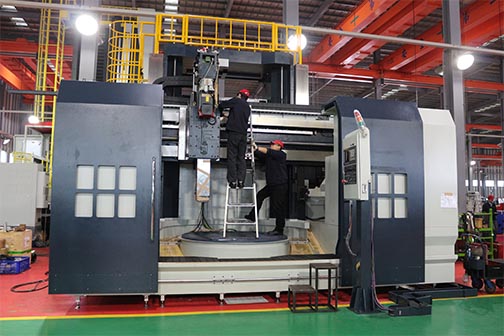

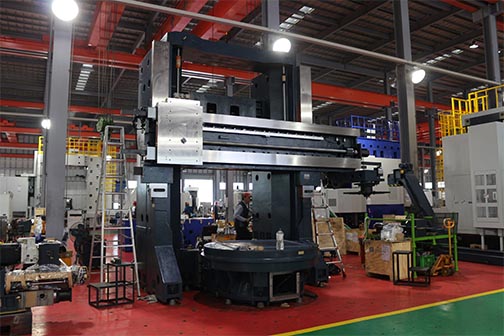

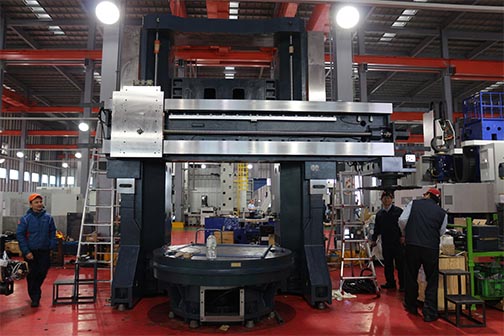

 Item / Model  VLS-2000 ATC
Max Swing (in.) 98.4
Max Turning Diameter (in.) 98.4
Max Cross Travel (X Axis in.) -5.9;
Max Longitudinal Travel (Z Axis in.) 37.4
Max Cross Rail Travel (in.)
(Programmable in 200mm steps via M-Code)
45.2
Ram Distance to Table with Ram Retracted (max/min. in.) 82.6 / 37.4

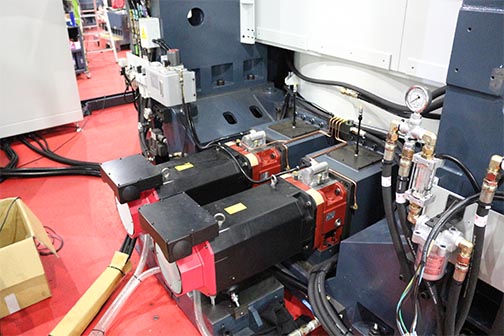

Spindle Motors 50 HP x 2 (100 HP)
Spindle Load (lbs.) 22,000
Spindle RPM 2-200
Spindle Bearing Diameter (in.) 44.5 OD / 35.5 ID
Spindle Torque 41, 143 ft./lbs.
Manual Chuck 79″ 4-Jaw Independent
ATC Tool Positions 12
ATC Type Umbrella / Electric
ATC Tool Mounting #50 Taper
OD Tool Shank Size (in.) 1.25
ID Tool Shank Size (in.) 2.5
ATC Tool Change Time 30 Seconds
Maximum Single Tool Weight (lbs.) 110
Maximum Magazine Capacity (lbs.) 800
Z Axis Ballscrew Diameter (mm) 63 (2.48″) x 10 Pitch
X Axis Ballscrew Diameter (mm) 63 (2.48″) x 10 Pitch
Ballscrew Type Class 3 Double Nut
Ballscrew Mounting Type Pre-loaded, Double Anchored
X-Z Servo Motor (HP) X=9, Z=9
Rapid Traverse Rate X, Z 394, 394 IPM
Cutting Feed Rate 0.01 – 197 IPM
Positioning Accuracy +/- .0003″ Full Stroke
Repeatability +/- .0002″
Live Spindle Motor (HP) 20
Live Spindle Drive System 2 Speed Planetary Gearbox
Spindle RPM 2-2,400
Tool Shank Type BT-50
C Axis Drive System Dual Pinion Tandem Drive
C Axis Minimum Increment .001°
C Axis Position Accuracy +/- 10 Arc Seconds
C Axis Repeatability +/- 5 Arc Seconds
  • 4 Jaw 79” Face Plate with 4 Independent Boring Mill Jaws
  • Square Guard Enclosure with Chip Wash
  • Coolant System with Coolant Through the Ram
  • Tool Kit
  • Halogen Lamp
  • 1 Set Operation Manual
  • 3 Color Operation Light
  • Spindle Orientation
  • Chip Conveyor with Chip Bucket
  • Air Conditioner for Electrical Cabinet
  • Automatic Lubrication System
  • C axis and live tools
  • Auto Tool Presetter
  • Coolant through the live spindle 1000 PSI
  • Coolant through the live spindle 300 PSI
  • 440 / 460 / 480 Volt operation
  • 25HP live tool spindle motor
  • 30HP live tool spindle motor
  • 35HP live tool spindle motor
  • Marposs WRP radio wireless part probe (hardware only kit)
  • Marposs WRP radio wireless part probe installed with training
  • Renishaw RMP-60 radio part set-up and inspection probe (hardware only kit)
  • Renishaw RMP-60 radio part set-up and inspection probe installed with training
  • Heidenhain glass scales for X and Z axes
  • Scraper or magnetic type chip conveyor
  • Special Chucking/Fixturing
  • Tool holders (standard – recommended for 2 axis machines)
  • Tool holders (dual contact – recommended for live tool machines)
  • 16 station ATC in place of 12 station ATC
  • 32 station ATC in place of 12 station ATC
  • 60 station ATC in place of 12 station ATC
  • Large capacity tool magazines
  • Heavy duty right angle milling head 50 taper input / 50 taper output (manual load)
  • Cradle for heavy duty right angle milling head to store inside machine)
  • 2 pallet APC system with standard You Ji 4 jaw manual chucks

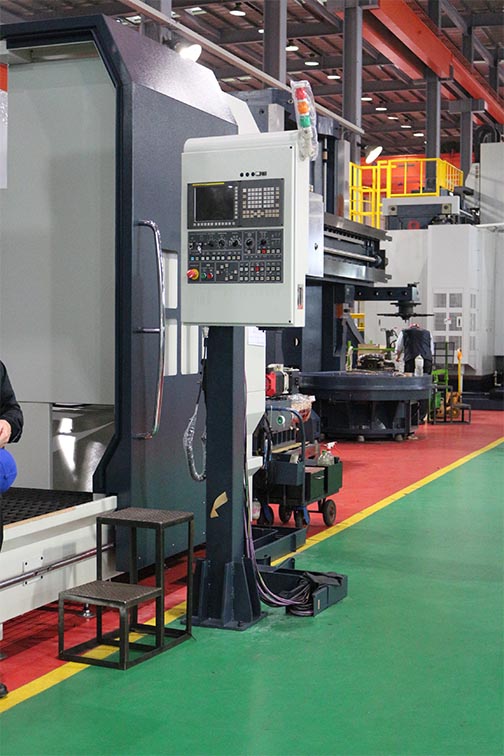

Fanuc OiT-D Options (factory installed)

  • Data Server with 1GB built-in ATA card and Fast Ethernet connection
  • Memory card editing function (to enable editing on the compact flash card)
  • Data Server Editing function (to enable editing on the ATA card)
  • 1 Megabyte RAM memory upgrade
