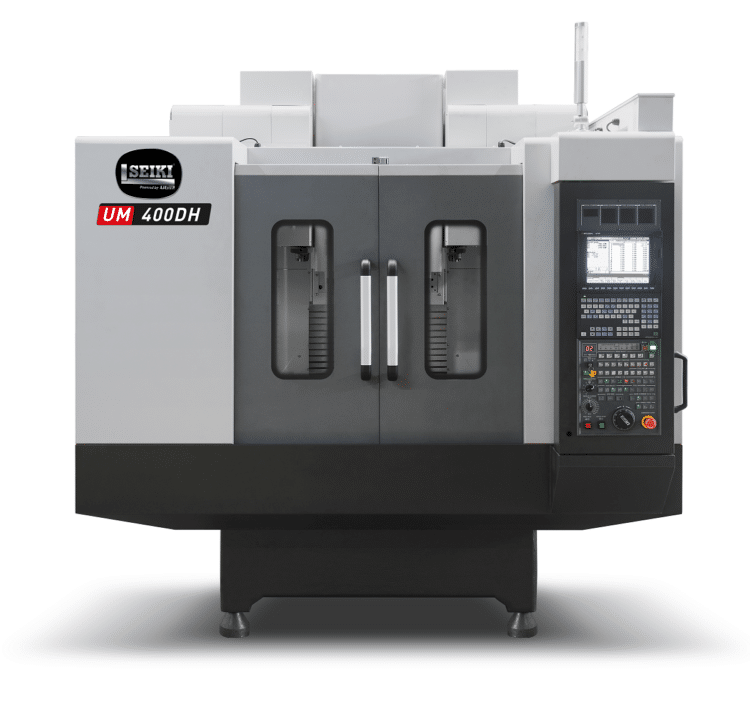

Seiki UM-DH Series – Dual Spindle Machining Centers
40 Taper Twin Spindle Vertical Machining Center with Independent Z Axes

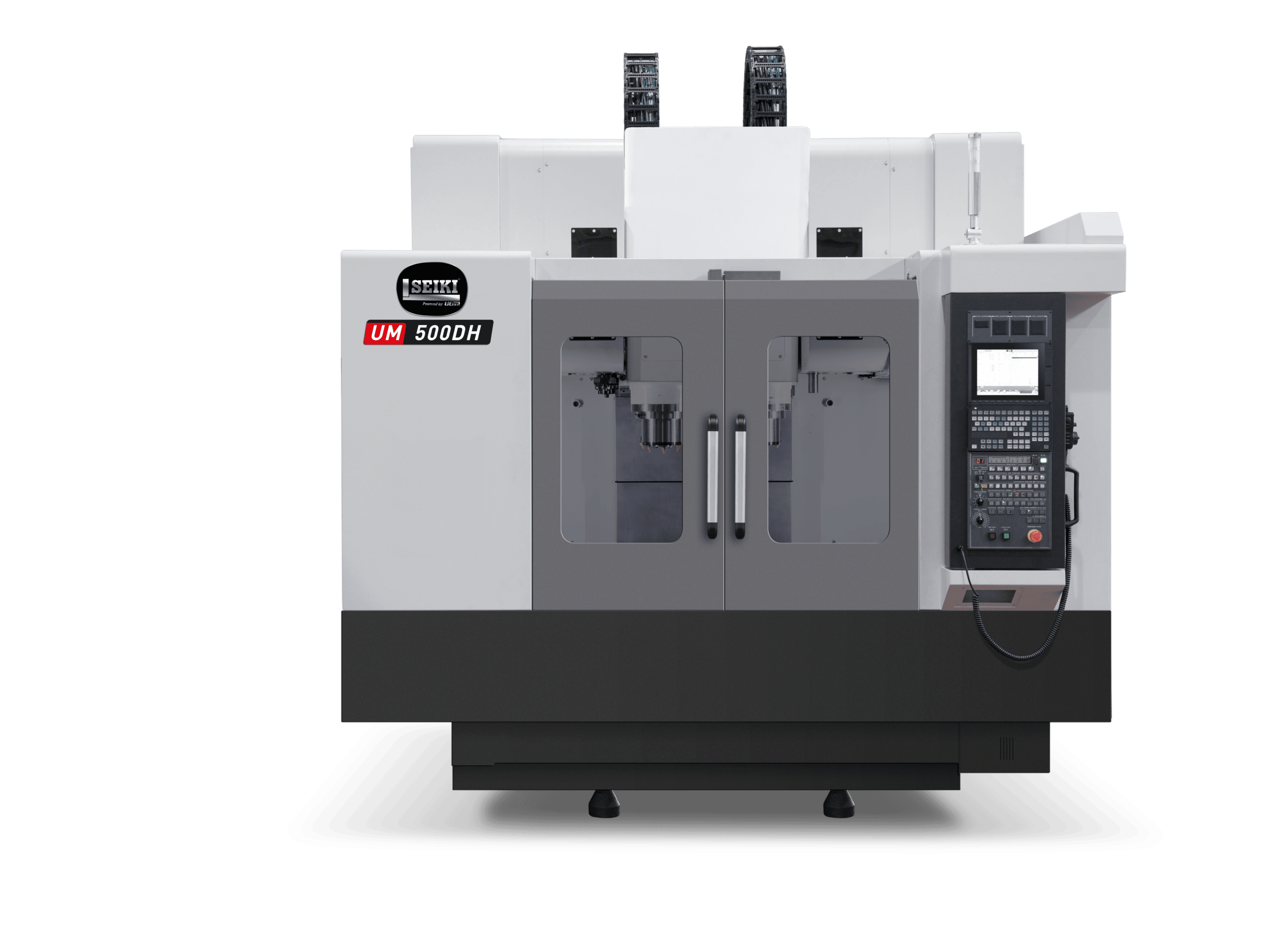

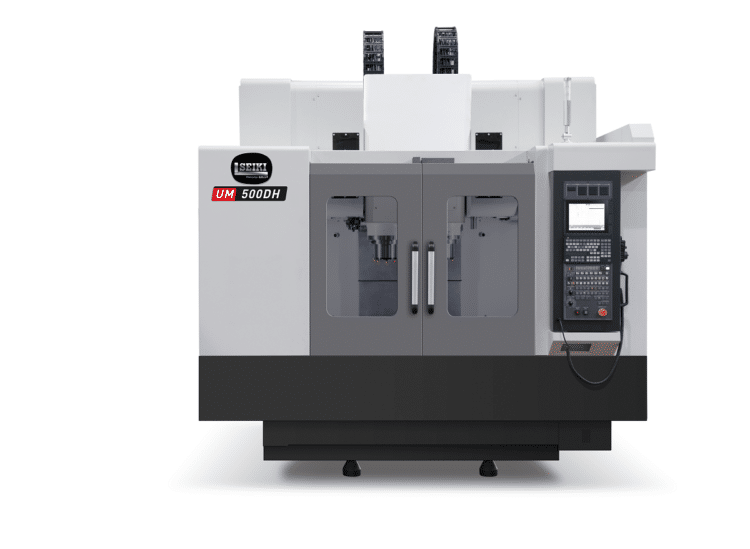

The UM-500DH is fast yet heavy duty twin spindle #40 taper vertical machining center. It is well suited to high volume machining of parts that fit in a 20” cube. With unique independent Z axes, setting of tools and workpiece adjustments is made easy without the use of off-line tool setting and gauging stations. It also simplifies fixture tolerance and design.
The compact size consumes very little valuable floor space while the blazing speed will deliver more parts per hour than the competition. The twin spindles and twin ATC makes the processing of two similar parts at a time possible. The machine is designed to be automated also either by means of a robot load through the front door or by utilizing the long Y axis travel DHL version for loading from the top via gantry loader or gantry robot. The DHL model allows the to travel an extra 15.7” forward to gain full access to the table from the top of the machine.
The machine features a Meehanite cast iron frame and rigid roller type linear slideways for rigidity, fast, and precise movement. The (2) 40mm (1.57”) diameter Z axis ballscrews are class 3 with a double nut pre-loaded design allowing a standard rapid traverse rate of 1417 inches per minute in all 3 axes with fast Z axis acceleration. The ABS (Absolute Pulse Coder) servo system does not require zero return. The machine can be started anytime from any position, saving non-productive time. Standard dual screw type conveyors and a bed flushing system move chips and swarf to the front of the machine to an additional screw conveyor that exits the left side of the machine. An optional front left side discharge caterpillar type chip conveyor provides efficient chip removal.
The UM-500DH is standard with dual 30 tool high speed twin arm type ATC’s – one for each spindle. The random access ATC’s provide fast, reliable tool changes. Complete tool change time is only 2.1 seconds tool to tool and 3.5 seconds chip to chip.
Each direct drive 12,000 RPM CAT-40 spindle is powered by its own 25HP high torqe spindle motor. The standard spindle chiller maintains spindle temperatures and minimizes thermal growth. Coolant through the spindle preparation in both spindles is also standard (pump systems optional).
The Mitsubishi M80A control is standard and is suitable for a wide range of applications from production to high speed machining applications. The M80A control features a 10.4” touch screen with intuitive smart phone type operation. A dedicated CNC CPU provides phenomenal processing speeds. An all new high response servo system with 1,000,000 pulse encoders is provided for state-of-the-art speed and accuracy. The Mitsubishi control comes with an industry leading 3 year parts and labor warranty! The Fanuc OiM-F Plus control with 10.4” LCD and 2 year warranty is also available.
Specifications
Item / Model 42155_579f5a-5f> |
UM-500DH
Request a Quote |
42155_d94f58-89>
---|---|
Travels 42155_0e8e04-a0> | 42155_3b2fe2-a0> |
X-Axis Travel 42155_67a964-15> |
40.9″ 42155_9214ff-79> |
Y-Axis Travel 42155_539401-ec> |
20.47″ 42155_635ebe-2e> |
Z-Axis Travel 42155_af23a1-23> |
Z-Axis (Head 1): 23.6″ – W-Axis (Head 2): 23.6″ 42155_40dd45-b4> |
Table to Spindle 42155_99114f-bd> |
5.9″ min. / 29.5″ max. 42155_0e8ff3-37> |
Spindle Center to Column 42155_392a8c-b2> |
23.2″ 42155_c042c3-4c> |
Automatic Tool Changer 42155_985b91-09> | 42155_1f5a71-c3> |
Number of Tools 42155_5a6275-48> |
30 (+1 in the Spindle) x 2 42155_4d8897-62> |
Tool Selection 42155_54b5cc-25> |
Bi-Directional Random 42155_9ebd80-fa> |
Tool Change Time 42155_5a1759-dc> |
2.1 Sec. Tool-to-Tool 42155_7a66e6-99> |
Chip to Chip Time 42155_48f71c-05> |
3.5 Sec. Chip-to-Chip 42155_437c56-24> |
Maximum Tool Diameter 42155_2a2992-37> |
3.15″ with Adjacent Tools (5.9″ Without) 42155_78182f-dd> |
Maximum Tool Weight 42155_606bb7-43> |
15.4 lbs. 42155_c34a6b-83> |
Tool Type 42155_93f3b0-26> |
CAT-40 42155_8ed584-5f> |
Maximum Tool Length 42155_891e0b-ac> |
11.8″ 42155_f5589c-a5> |
Spindle (Standard) 42155_dd739f-24> | 42155_357efc-6c> |
Spindle Motor 42155_54bd11-ca> |
7.4 HP 30 min. / 5 HP continuous 42155_41f30e-9e> |
Spindle Taper 42155_4521fc-d4> |
BBT-30 Dual Contact 42155_d70bbb-76> |
Spindle Drive System 42155_4bb2be-41> |
Direct Drive 42155_a7a1e6-56> |
Spindle Speed 42155_0dc5fa-4c> |
0 – 12,000 RPM 42155_f658b8-46> |
Ballscrews & Axis Motors 42155_ac7d0a-b8> | 42155_29dbfb-96> |
Ballscrew Diameter X-Y-Z 42155_be0e0f-d3> |
X 40mm (1.57”) x 16mm pitch, Y 40mm (1.57”) x 16mm, Z 40mm (1.57”) x 12mm (2) 42155_c0d8c6-39> |
Ballscrew Type 42155_1611fd-db> |
Class 3 Double Nut Pre-Loaded 42155_648ca4-97> |
Ballscrew Mounting Type 42155_78928b-a9> |
Double Anchored 42155_757f20-99> |
Servo Motor HP X-Y-Z 42155_e80d64-11> |
6.0 – 6.0 – 6.0 x 2 42155_06765c-b9> |
Servo Motor Mounting 42155_00ac19-16> |
Direct Coupled 42155_536d78-8f> |
Table 42155_db6c7a-64> | 42155_ccd992-ba> |
Table Working Surface 42155_b80c73-1e> |
47.2″ x 20.47″ 42155_d09fa2-be> |
Max. Workload on Table 42155_9cfaed-66> |
1,760 lbs. 42155_a94bce-c9> |
Table Surface 42155_fe00ce-90> |
Ground / T-Slotted 42155_e4d097-a9> |
Feeds 42155_2c93c0-ec> | 42155_0f5cc9-ea> |
Rapid Traverse Rate X, Y, Z 42155_66f74c-be> |
1,575, 1,575, 1,417 IPM 42155_8ad505-c4> |
Cutting Feed Rate 42155_5f4455-13> |
0.01 – 787 IPM 42155_083ed0-d8> |
Positioning Accuracy 42155_030244-12> |
+/- .0002″ Full Stroke 42155_604238-bf> |
Repeatability 42155_64eeb6-fa> |
+/- .00015″ 42155_6fde11-1b> |
General 42155_584208-ab> | 42155_dec671-10> |
Coolant Tank Capacity 42155_1472d7-dd> |
110 Gallons 42155_8220a3-dd> |
Machine Weight 42155_ff4dad-b5> |
18,700 lbs. 42155_3e7907-19> |
Floor Space 42155_1da4e2-08> |
109″ (+ 43.5″ for Chip Conveyor) x 93″ x 127″ 42155_1b9e37-c4> |
Power Source 42155_2a9ccc-ed> |
208/220 Volts, 3 Phase, 60 KVA** 42155_a67661-c9> |
Air Source 42155_28f987-c4> |
90 PSI 42155_6fa9c0-77> |
In Stock and Ready for Immediate Delivery
**Consult AMT or your local distributor for exact power requirements when ordering**
