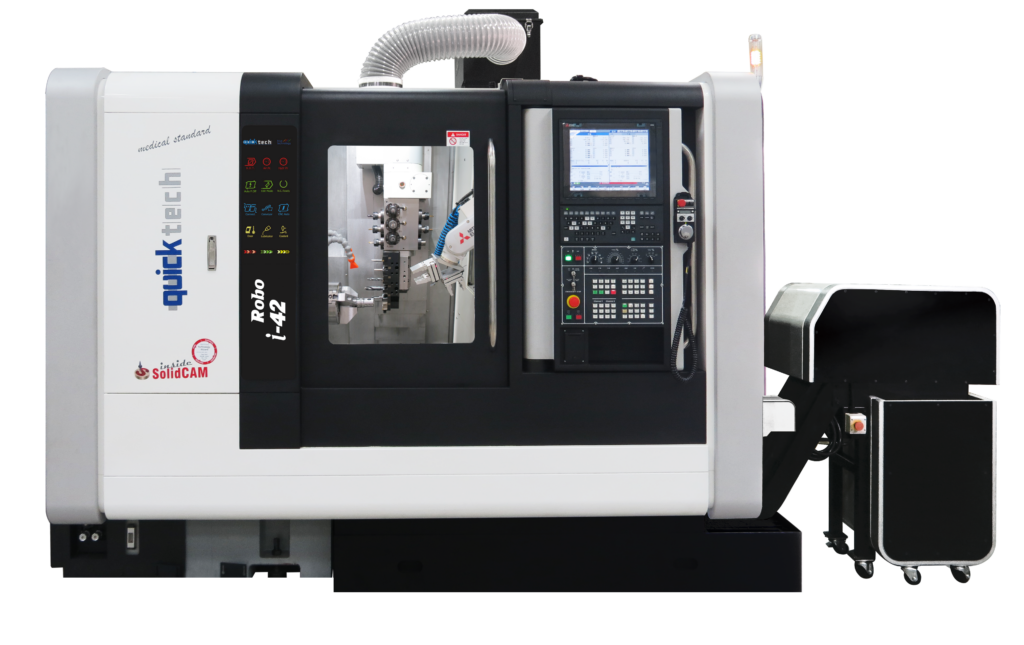

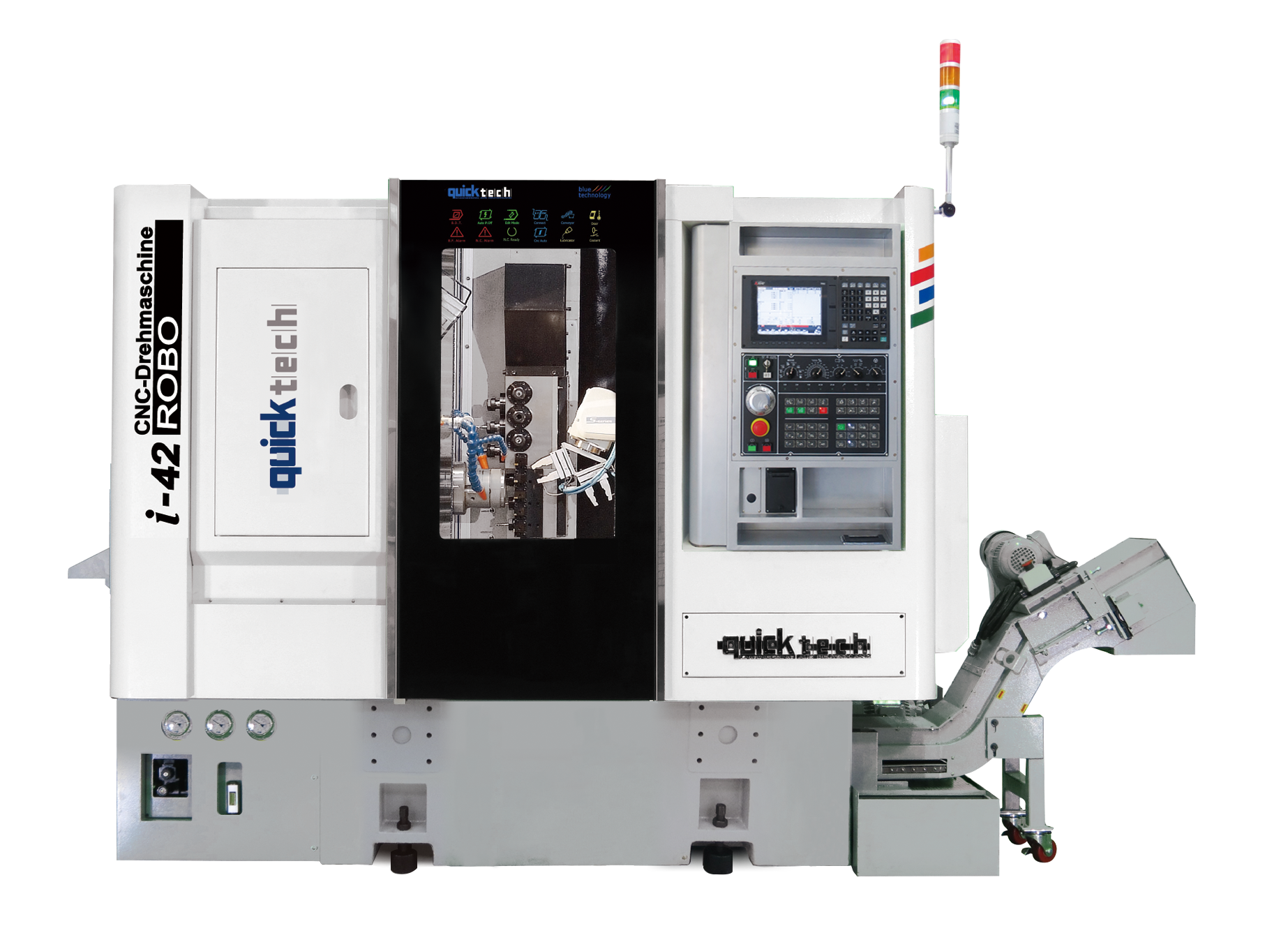

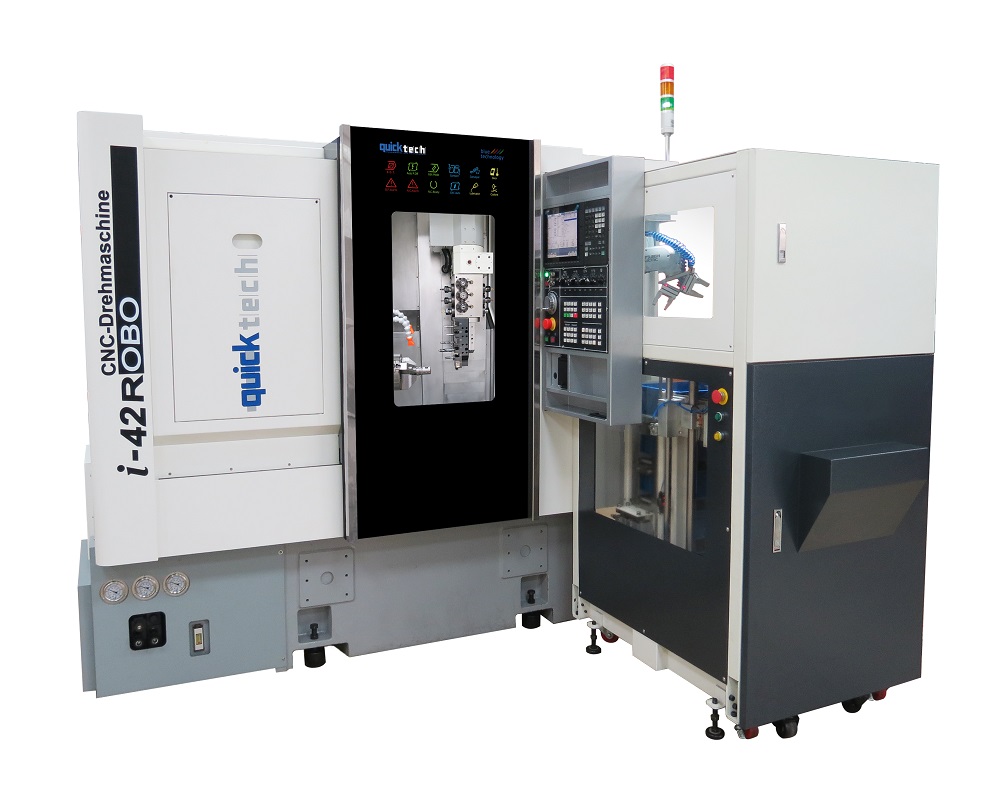

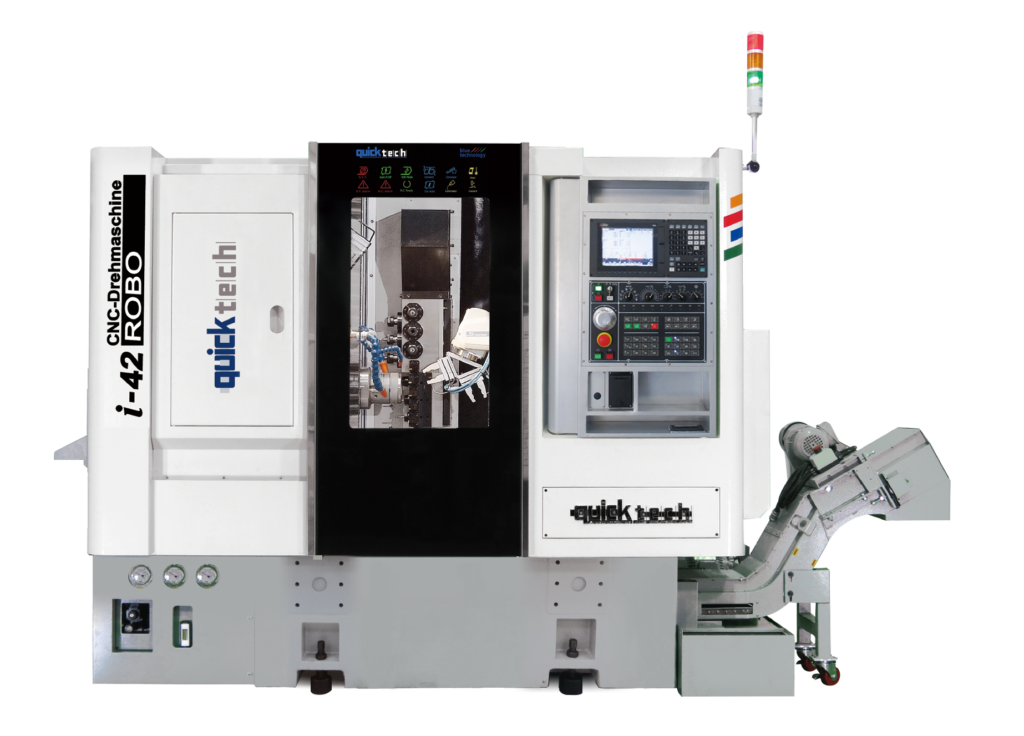

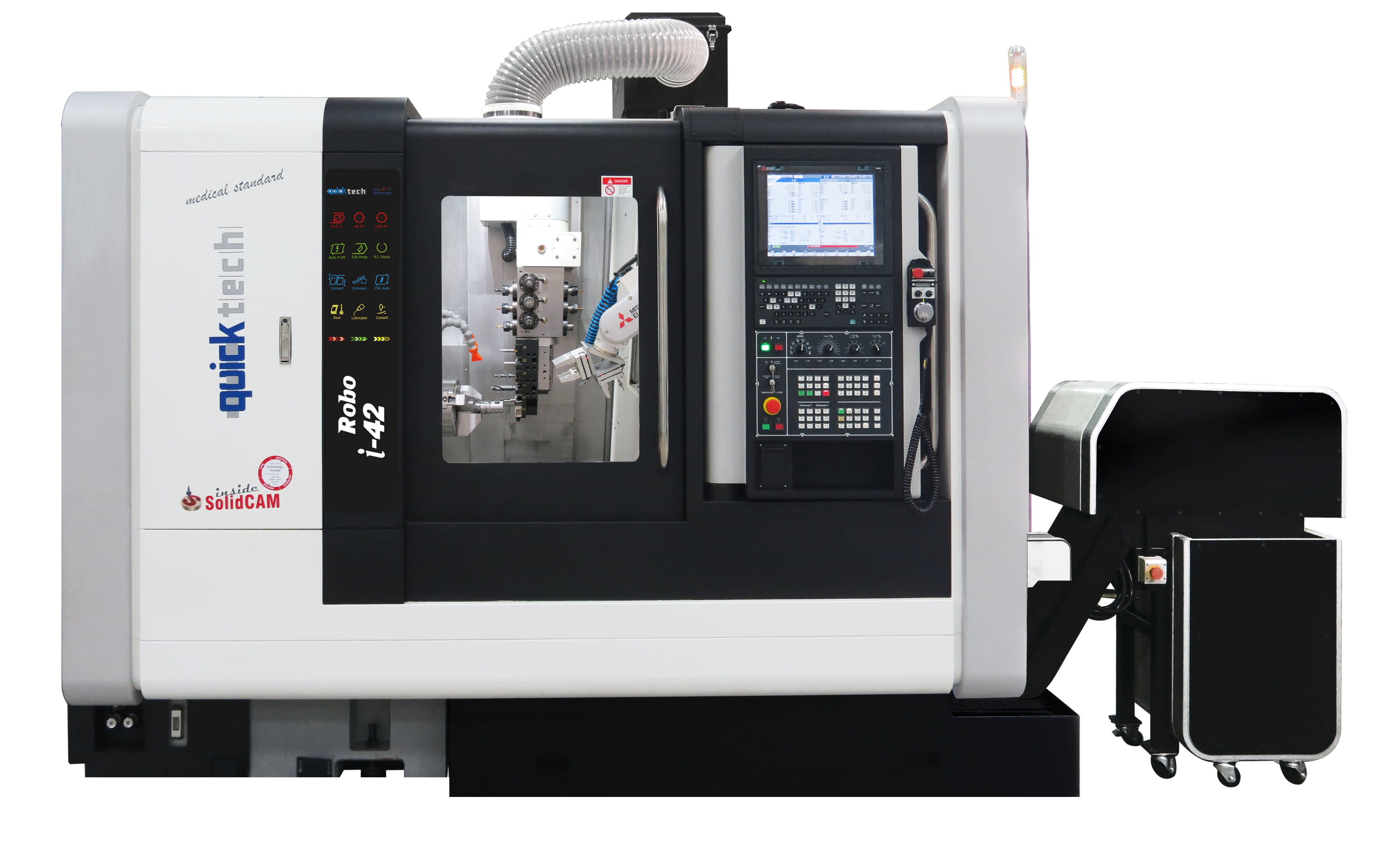

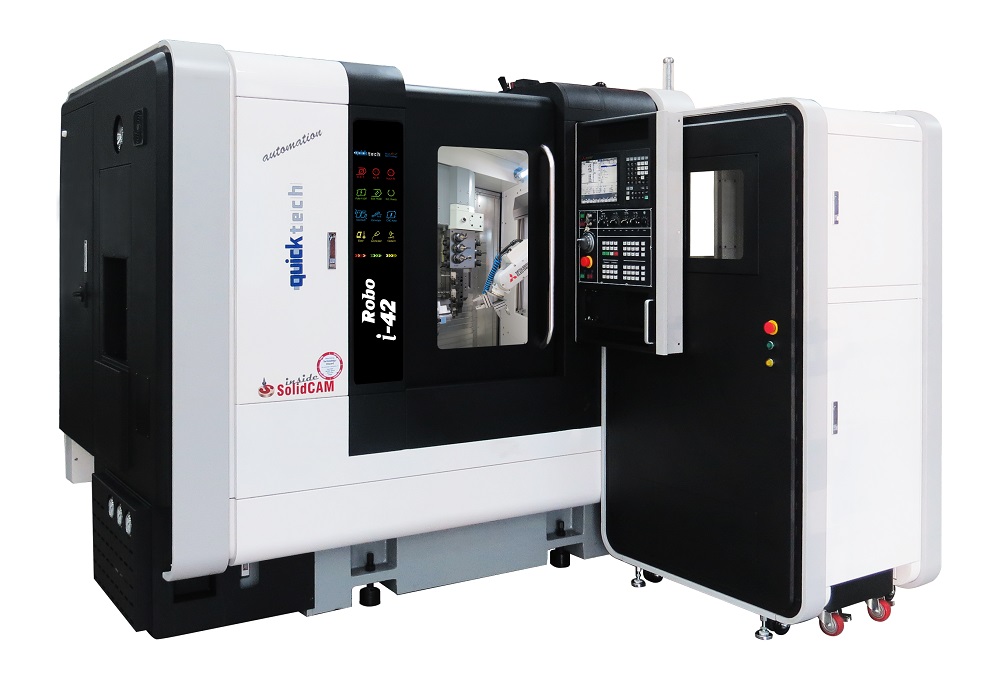

SPECIFICATIONS
Item / Model i-42 ROBO i-60 ROBO
Request a Quote Request a Quote

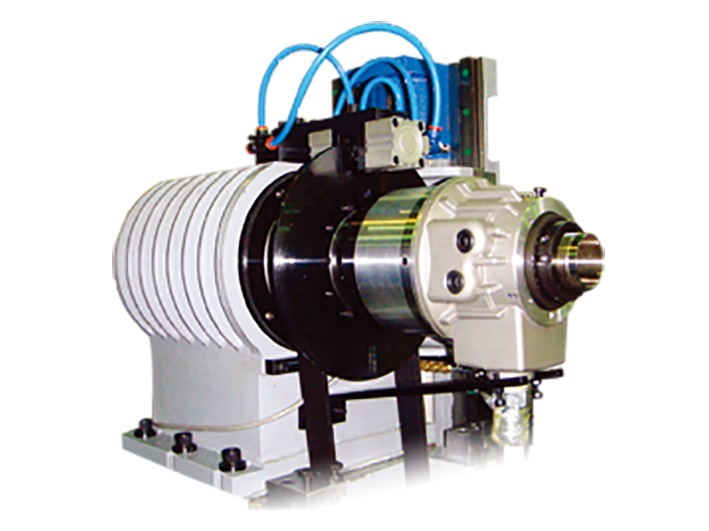

Main Spindle Capacity
Max Bar Working Capacity 1.65″ 2.36″
Max Turning Length 9.8″
Spindle Speed Range (std) 6,000 RPM 4,000 RPM
Spindle Motor 15 HP
C-Axis Increment .001°
Travel and Feed
Rapid Traverse Rate 1,181″/min.

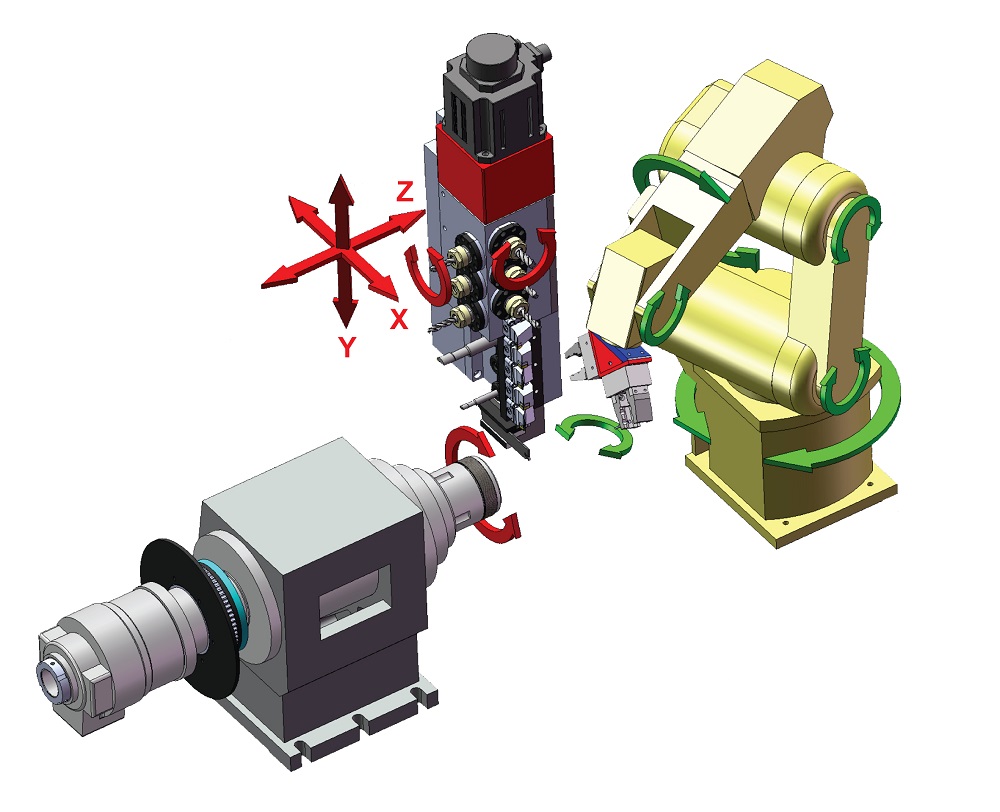

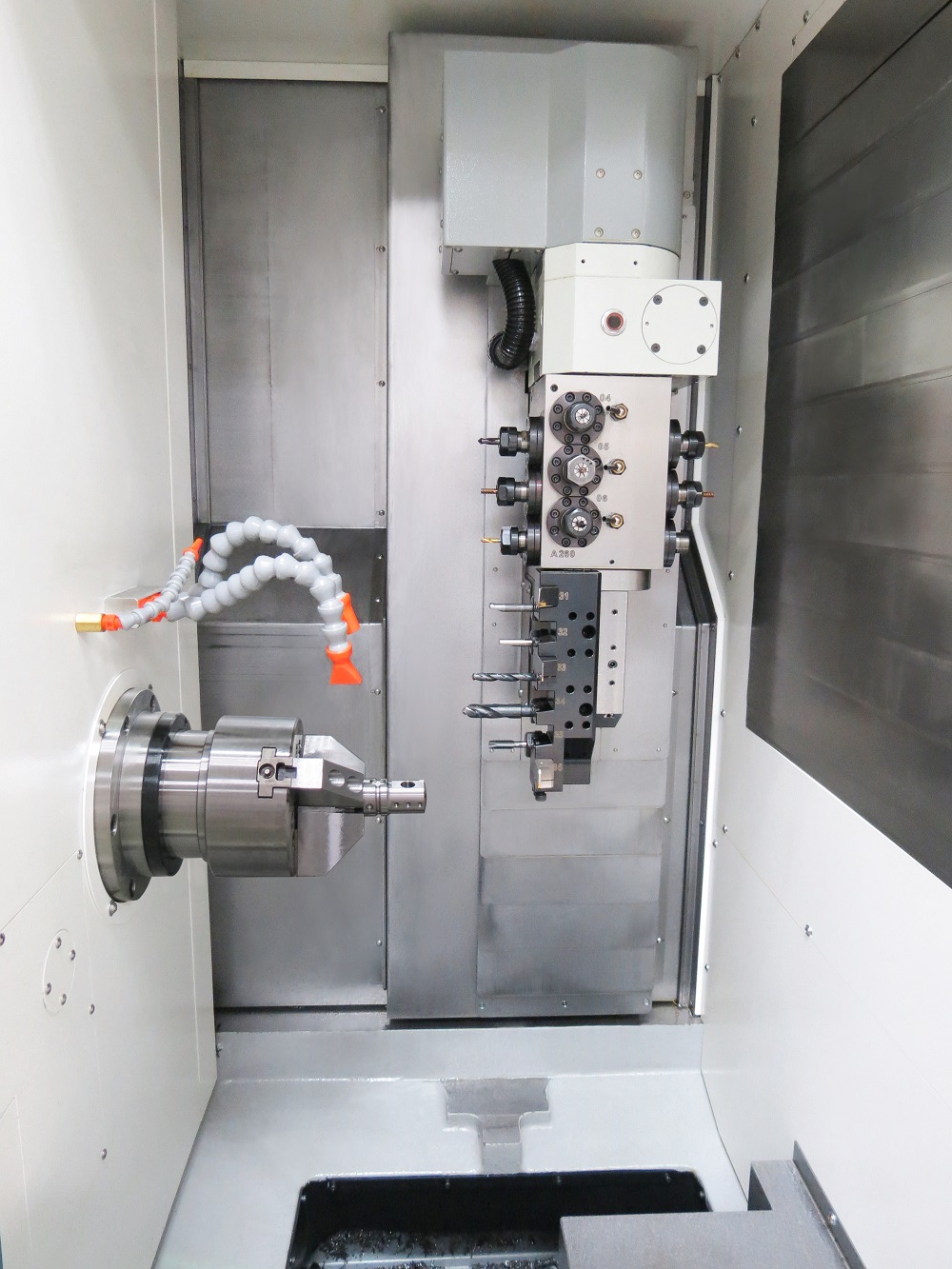

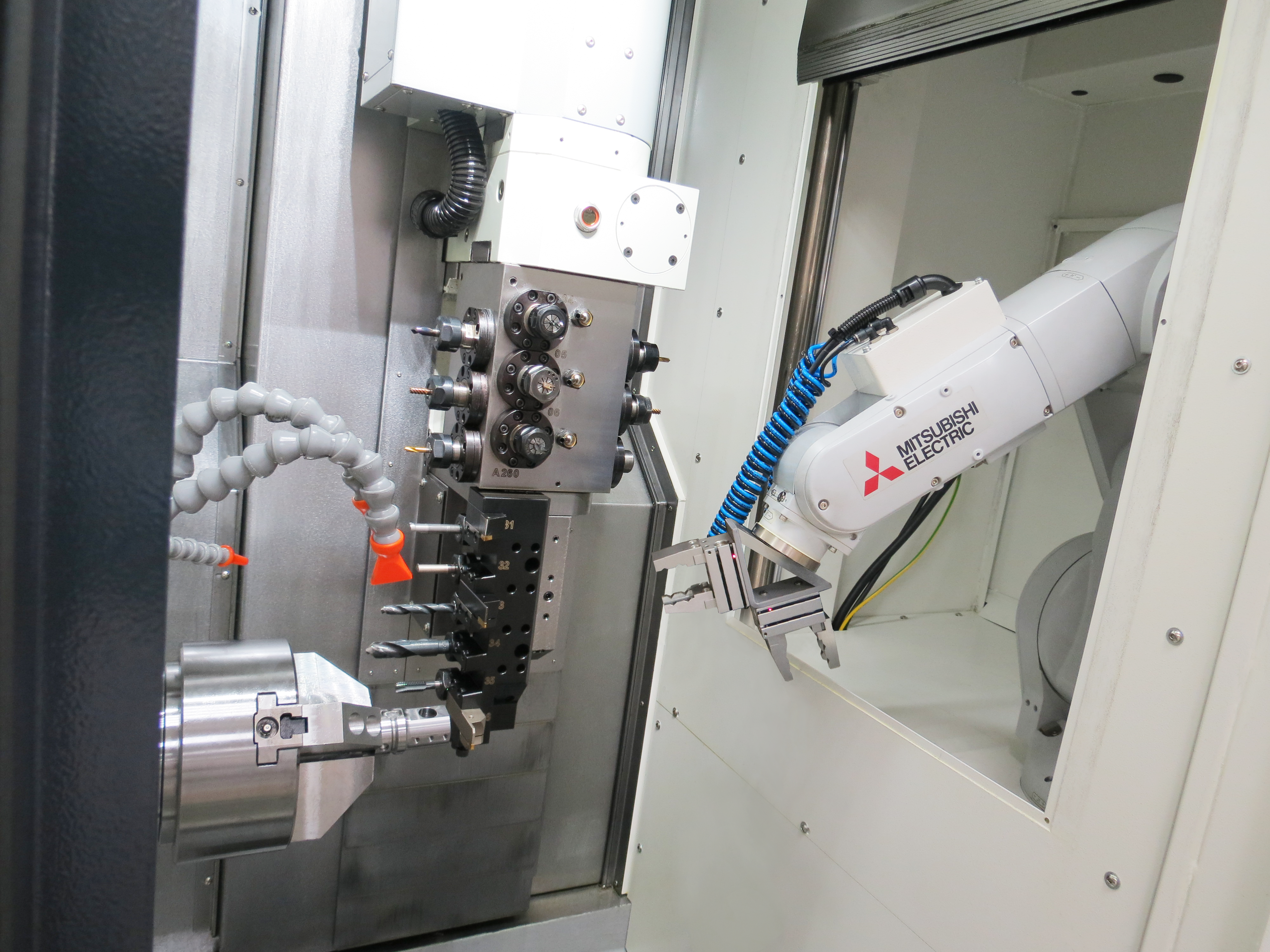

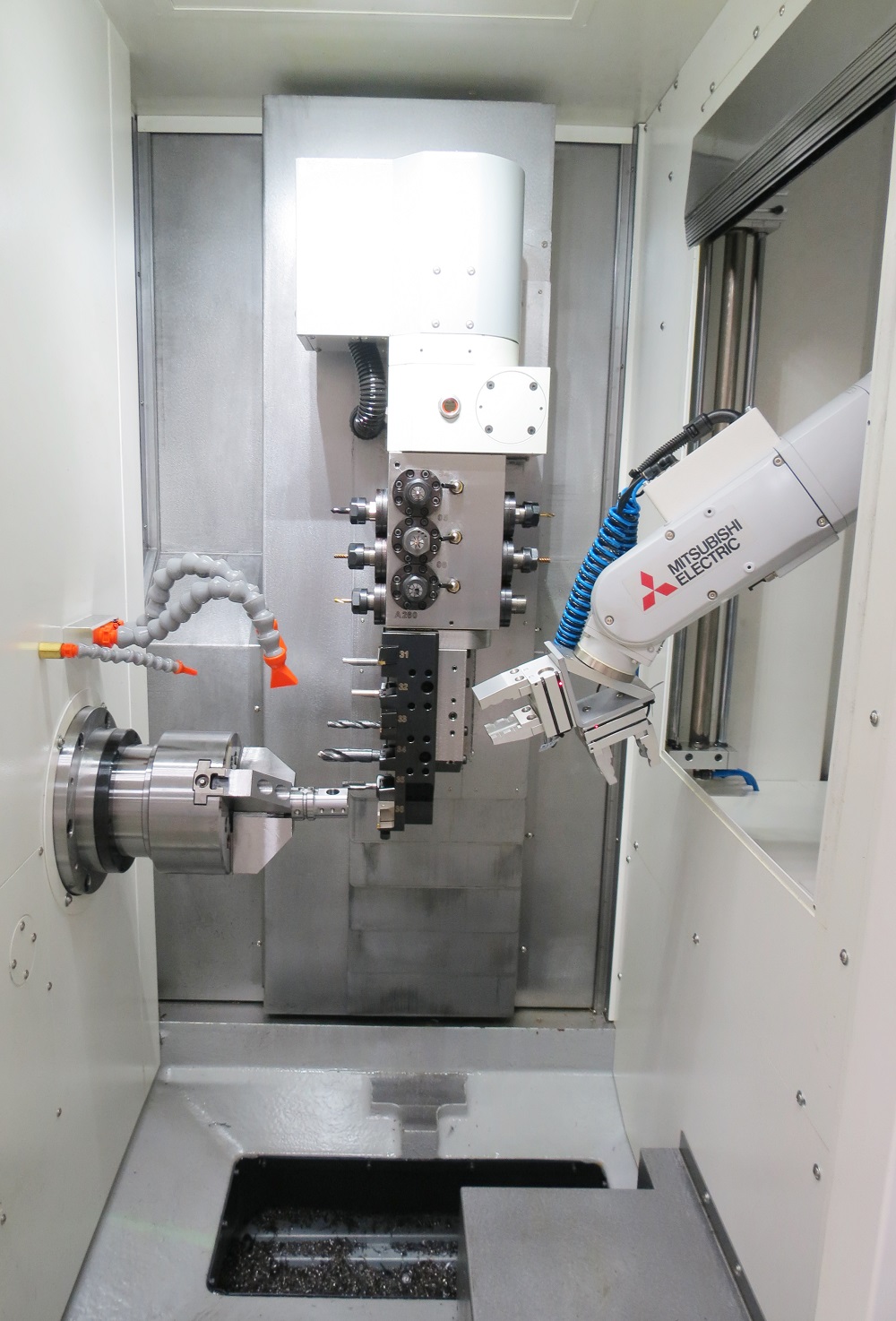

Tooling System
Tooling Type Gang Tool / Servo Y-Axis / KM-25 Quick Change
Number of Turning Tools 6 O.D. (5 + 1 Cut-Off) & 5 I.D.
Square Shank Size .75″ (20mm)
Boring Bar Capacity .75″ (ER-20)

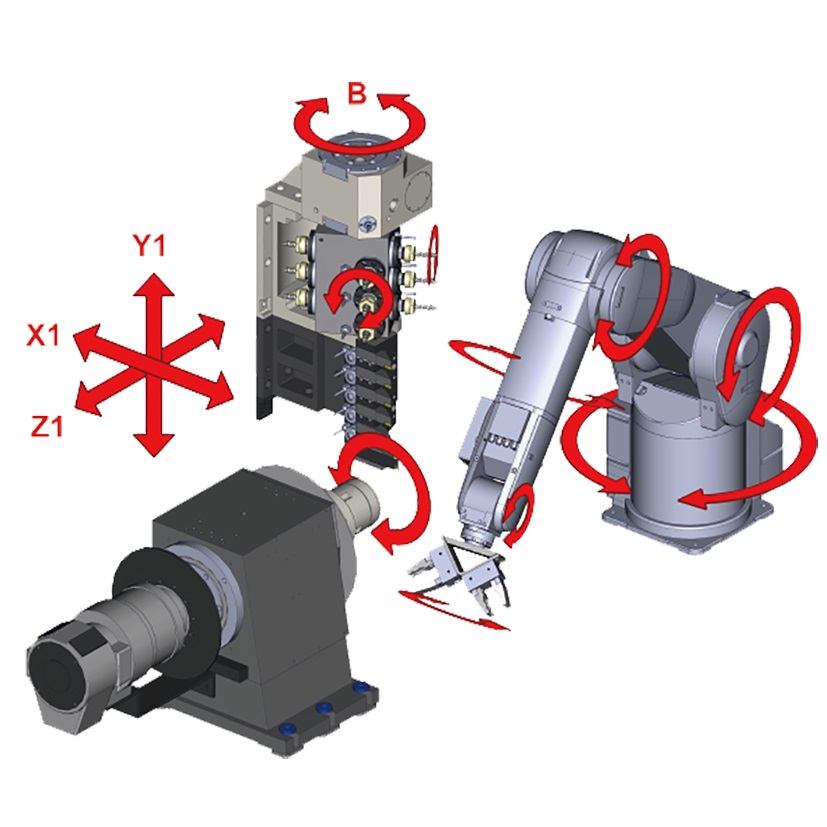

B-Axis 360°
B-Axis Index Time .3 Seconds 90° / .6 Seconds 360°
Number of Live Tools 6 (3 Axial/3 Radial) (12 opt.)
Live Tool Spindle Motor 2 HP
Live Tool Spindle Speed 4,000
Live Tool Shank ER-20 Collet

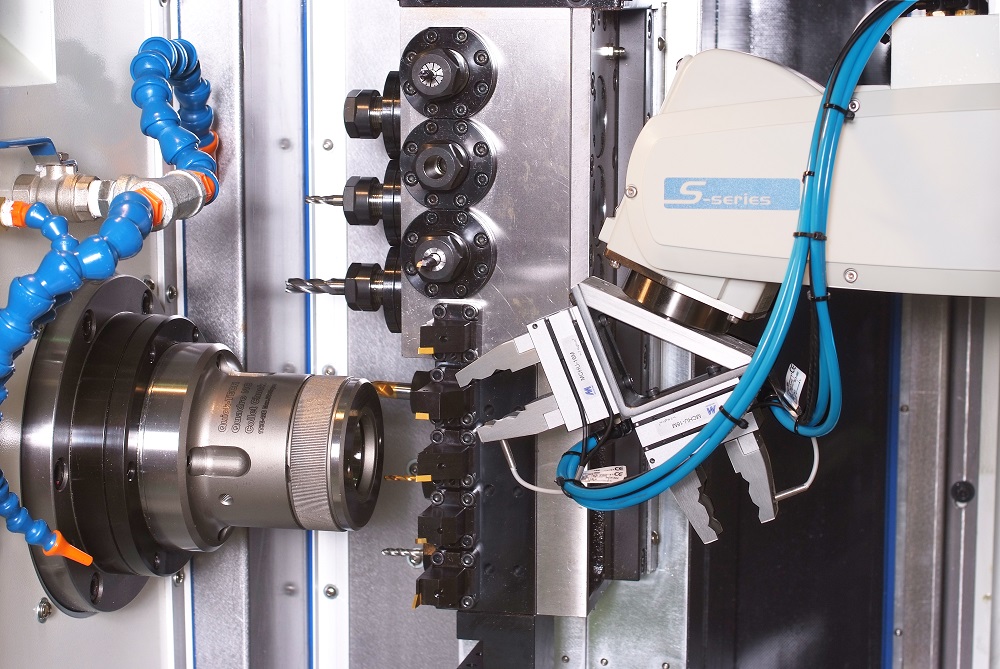

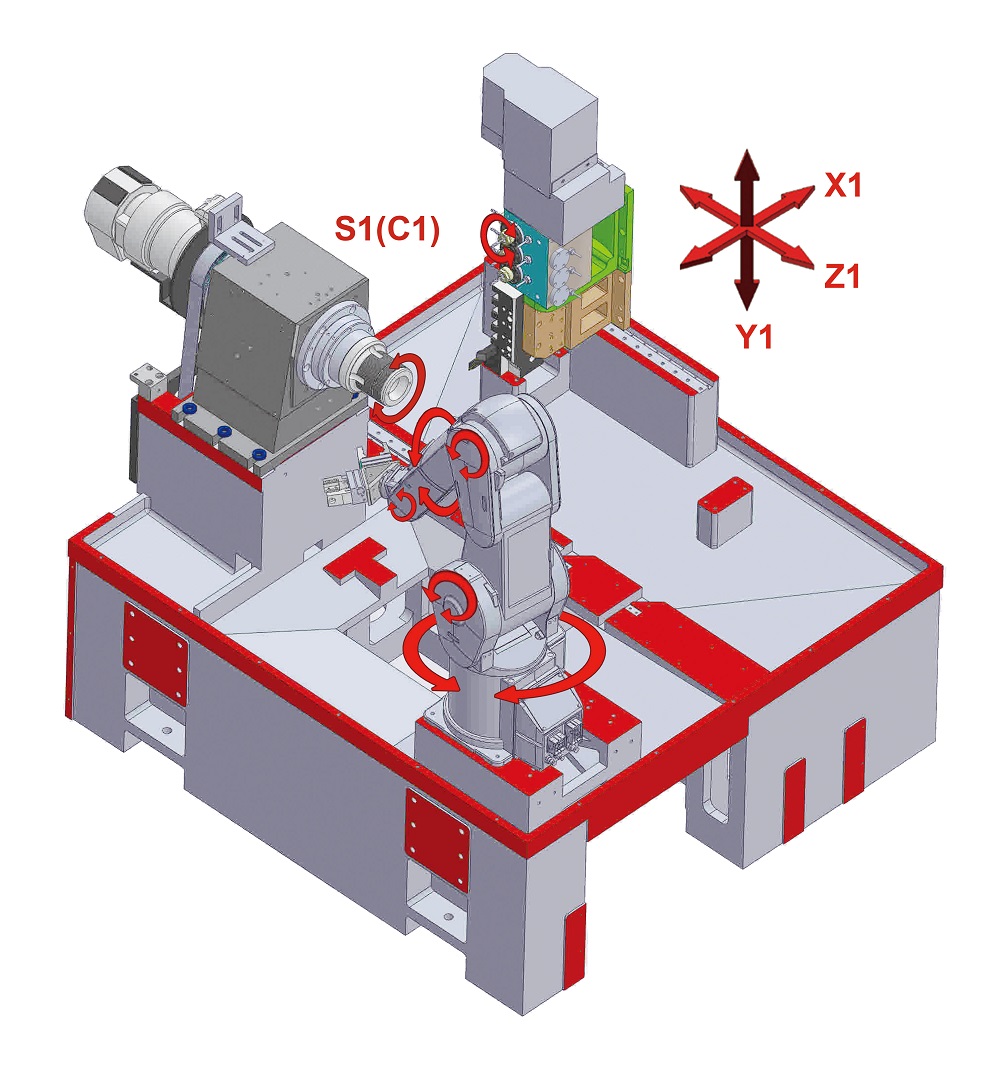

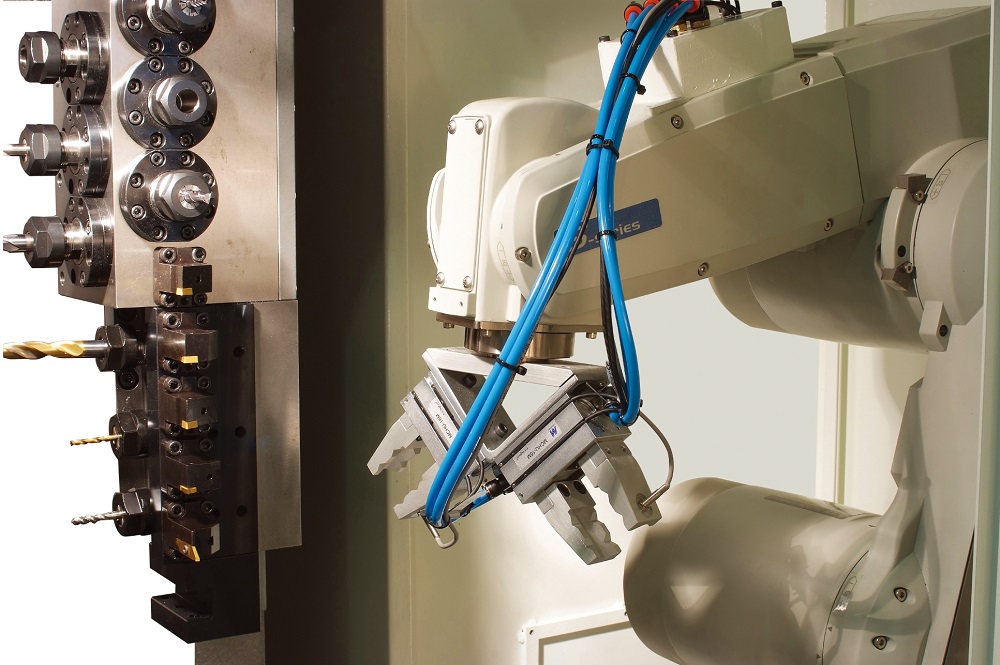

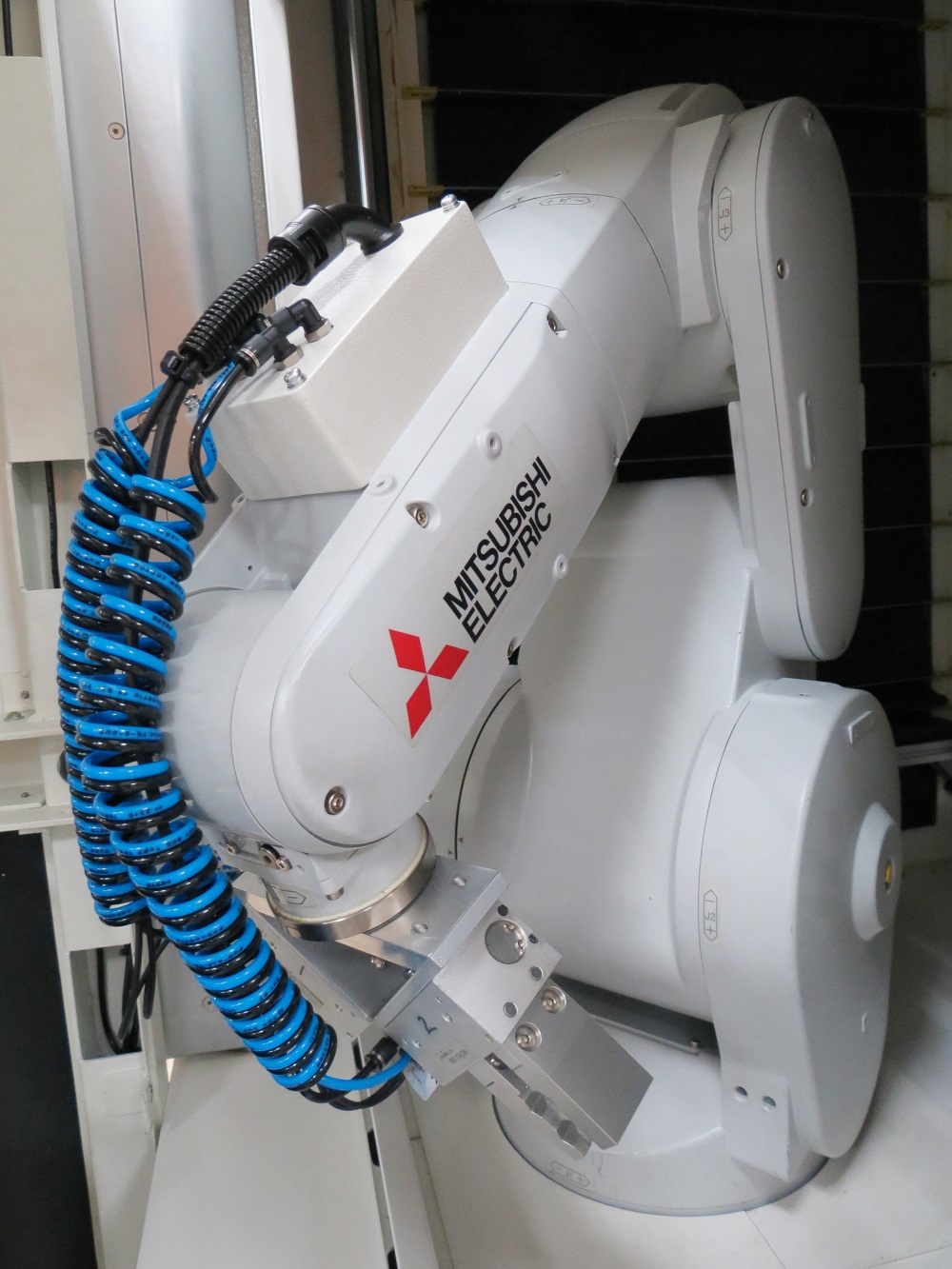

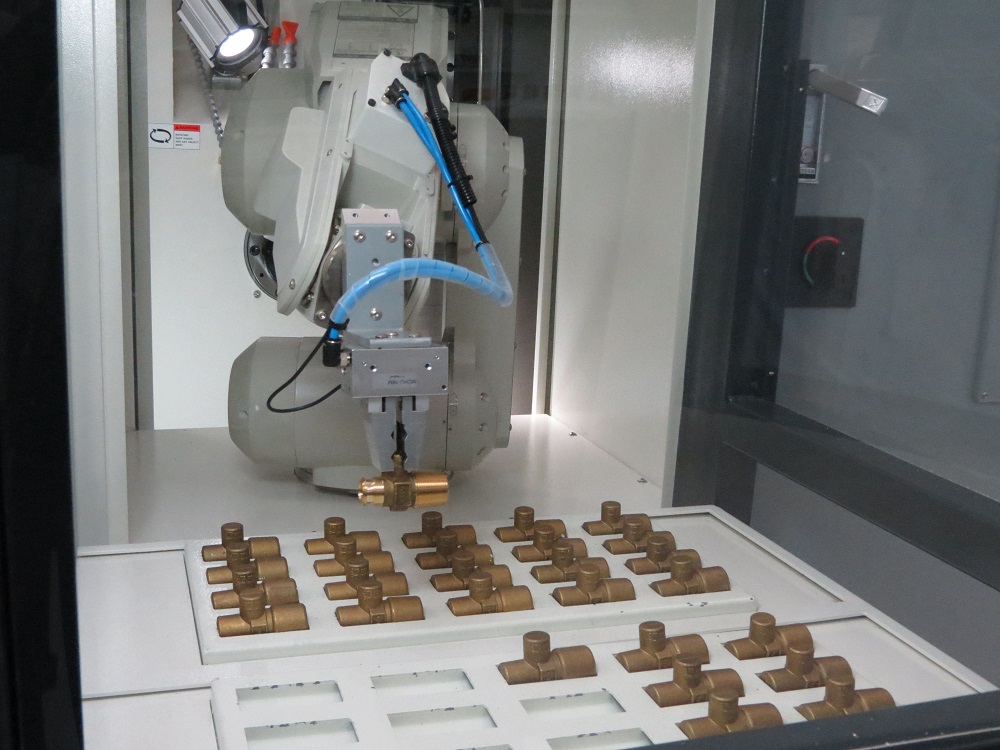

Robot

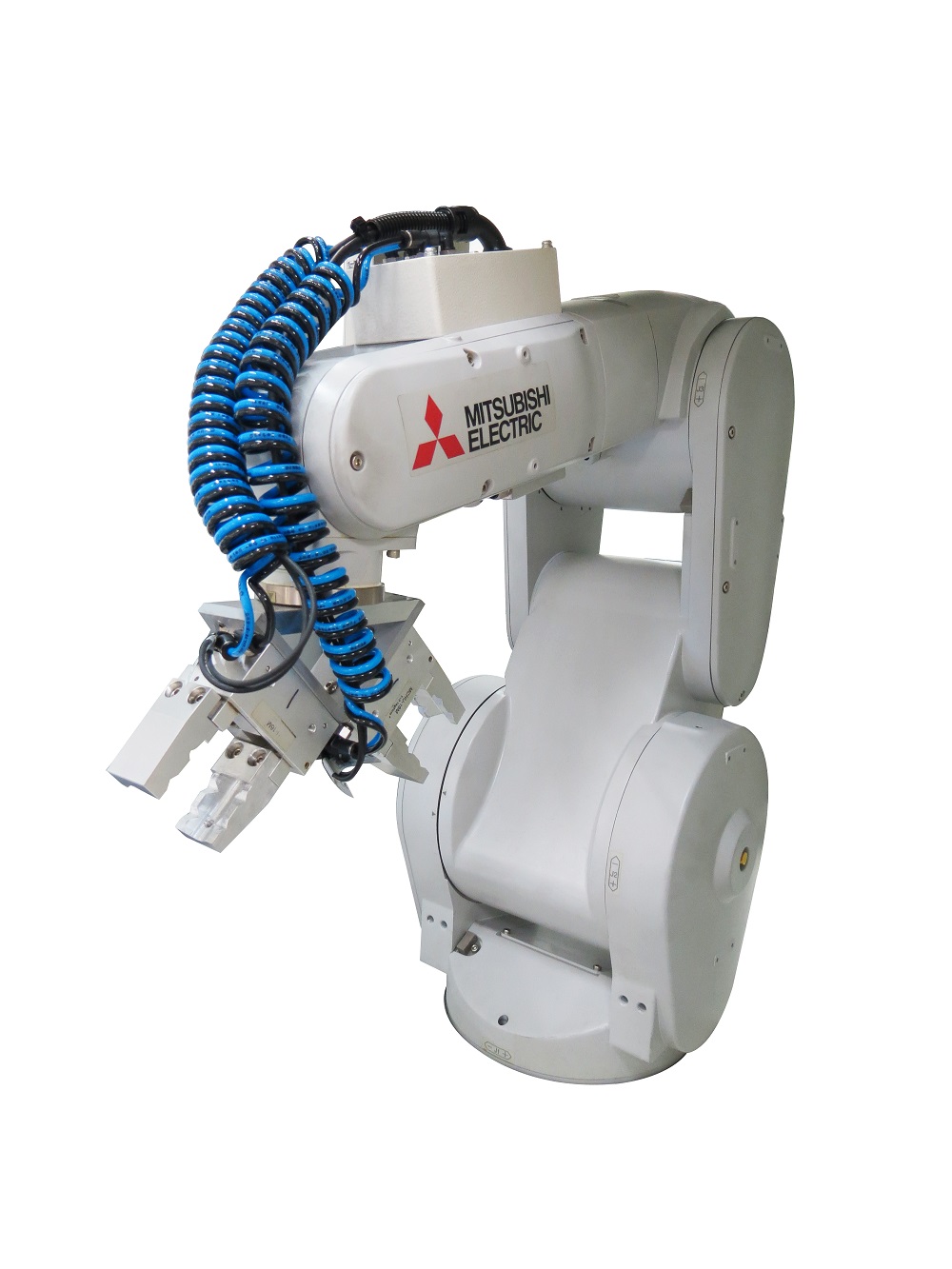

Type Mitsubishi S Series
No. of Axes 6 Articulated
Drive System Mitsubishi AC Servo Motors
Position Detection Method Absolute Encoder
Load Carrying Capacity (Max/Rated) 13.2 lbs. / 11 lbs.
Position Repeatability ± .0008″
General
CNC Control Mitsubishi M80A
Machine Dimensions with Chip Conveyor 132″ x 60″ x 77″
Machine Weight 6,050 lbs.

(3) Axial live tool heads (ER-20 collets)
(3) Radial live tool heads (ER-20 collets)
(1) 42mm collet chucks (60mm collet chuck for i-60 main spindle) or 6” 3 jaw chuck (i-60 only)
(5) Front O.D. quick change KM-25 tool holder bases
(5) Front I.D. tool holders (ER-20 collets)
(1) Front parting tool holder (3/4” square shank)
ER-20 collet set (box)
Chip conveyor

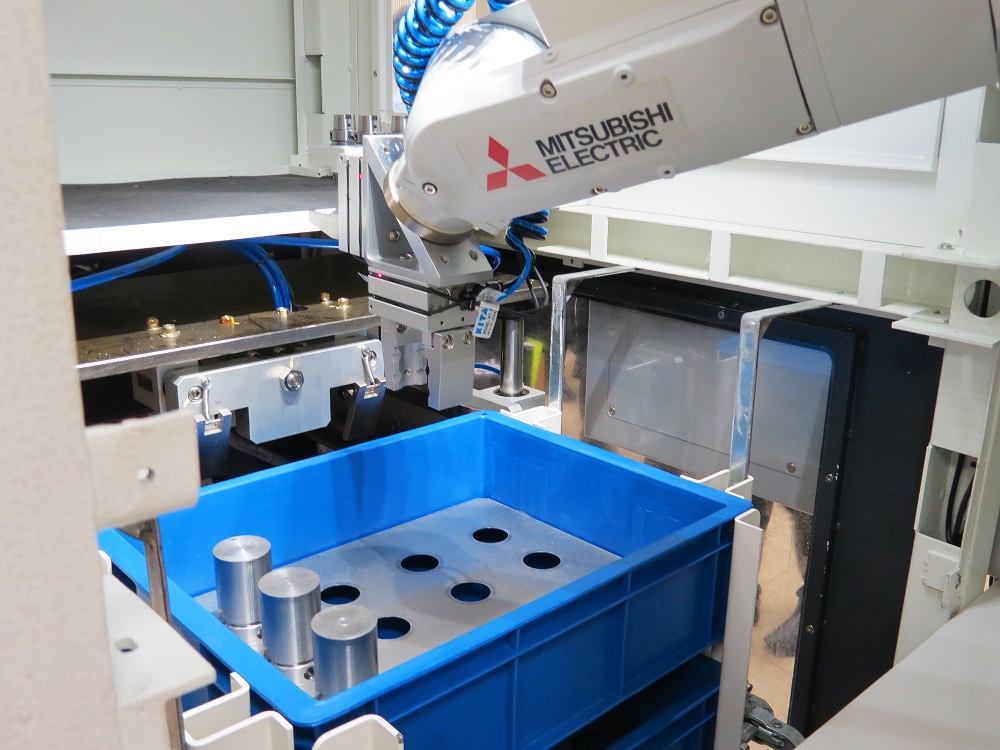

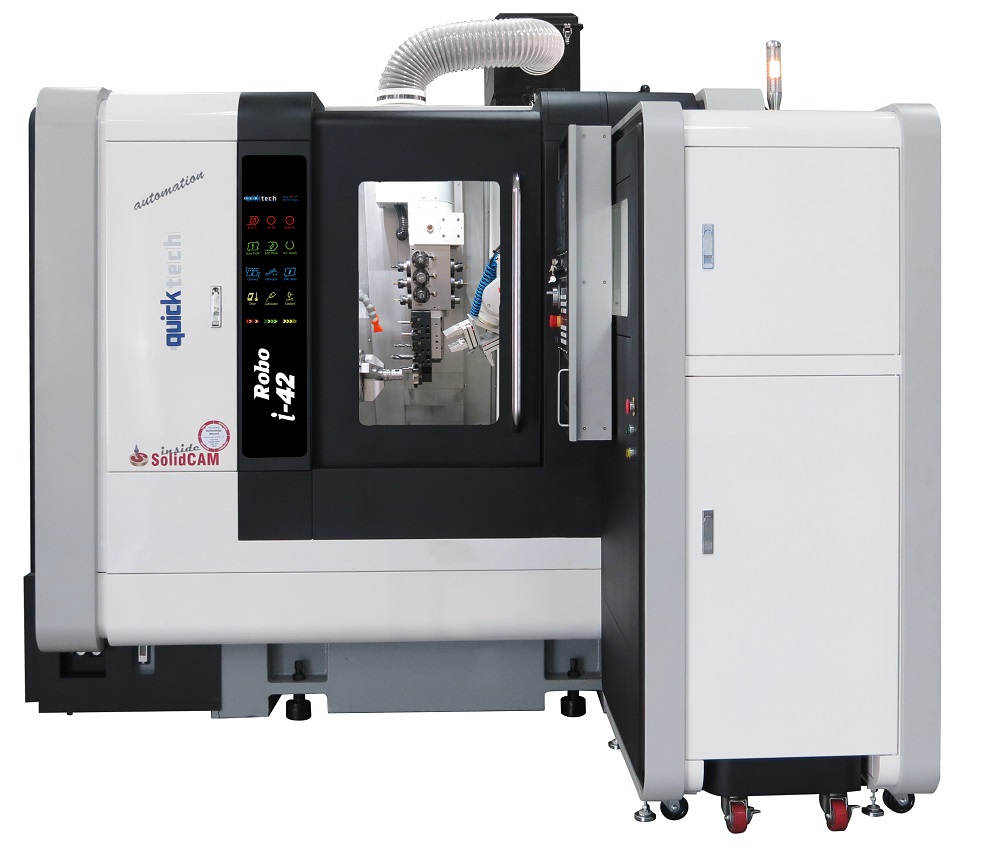

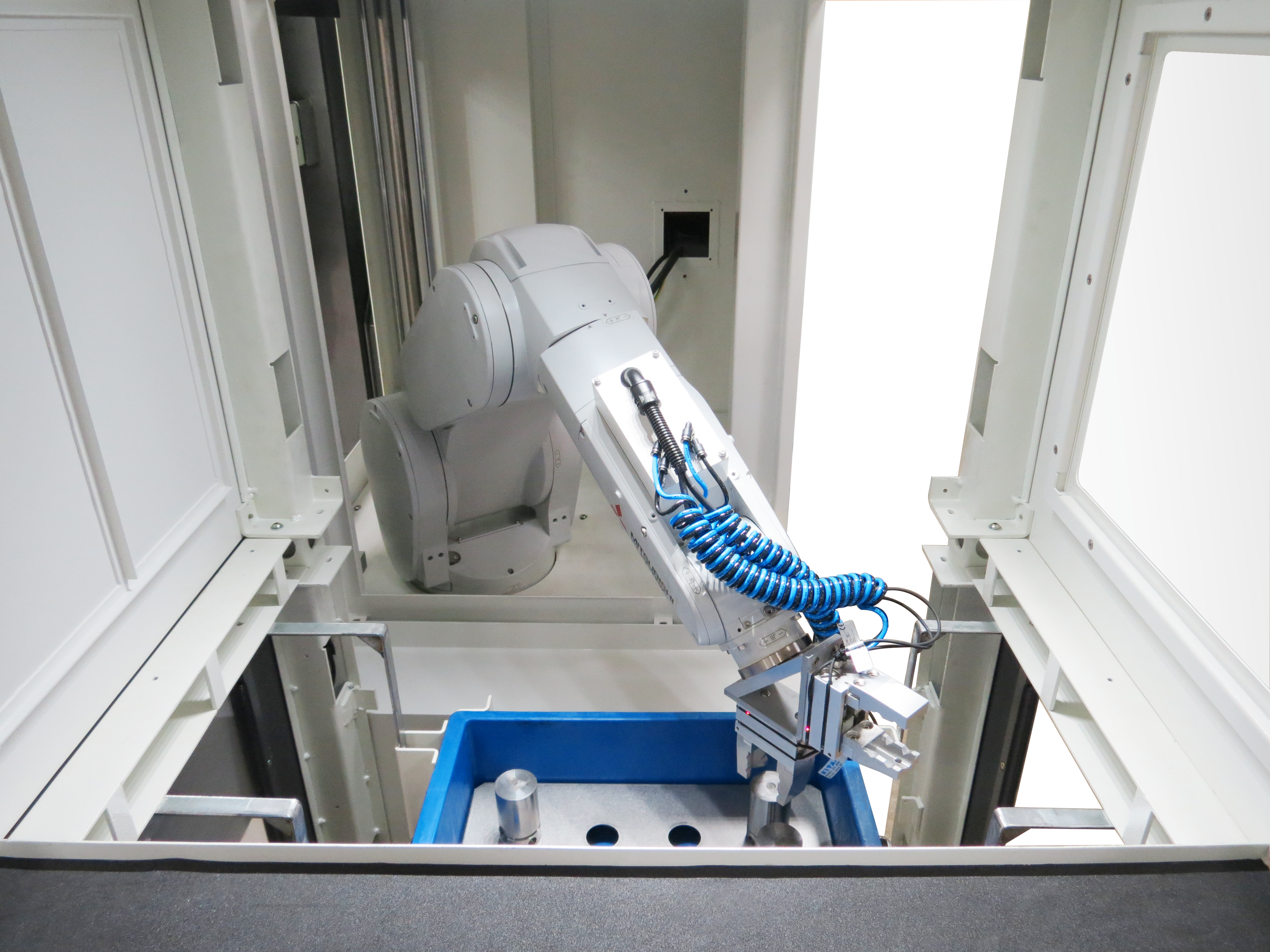

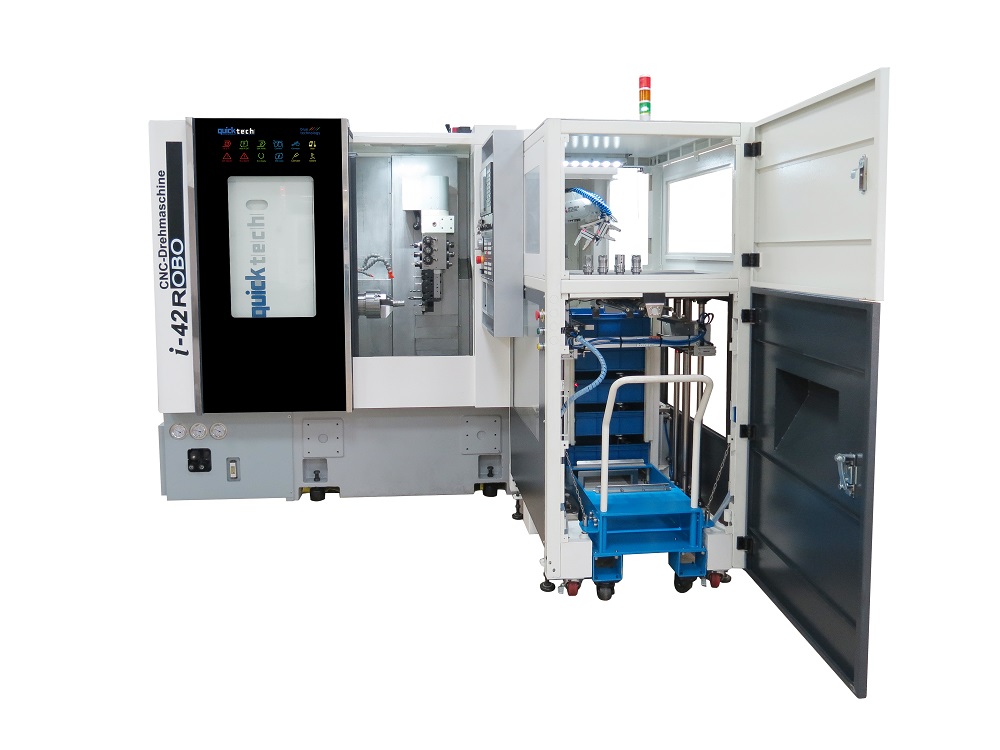

Mitsubishi 6-Axis integrated robot with part storage racks
400 PSI / 8GPM high pressure coolant pump
75 PSI / 20 GPM floor coolant pump
Full enclosed machine guards
Auto lubrication system
1 Set of machine and control manuals

360° B-Axis with 12 live tools
Recommended Kennametal KM-25 tool holder package (certificate)
440/460/480V operation
Turn-key with single part prove-out and turn-off (perishable tooling and working holding not included)
Mitsubishi M80A upgrade to 5-Axis simultaneous
Air conditioner for electrical cabinet instead of heat exchanger
