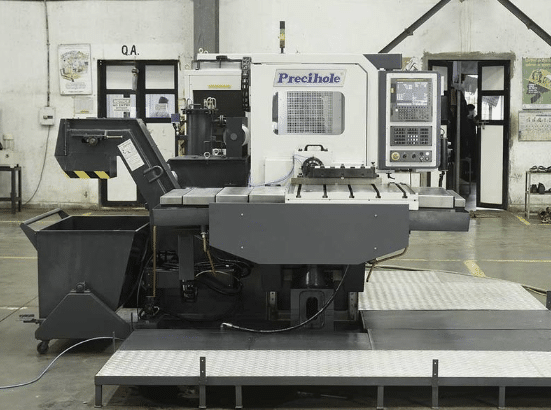

Precihole XYGVN Series – 3-Axis Knee-Type Gun Drilling Machines
Precihole’s XYGVN Series Knee Type Multi Axis Gun Drilling Machines are designed to accommodate requirements for drilling multiple holes in small and medium size molds in the die and mold industry. These machines can be customized to accommodate size and stroke requirements for various prismatic parts. Many off-centered long hole applications in the automotive industry can be done efficiently with these machines. Precihole’s XYGVN Series gun drilling machines provide excellent location accuracy and repeatability, straightness, surface finish and bore tolerance. Length to diameter ratios of up to 100 are possible on these machines.

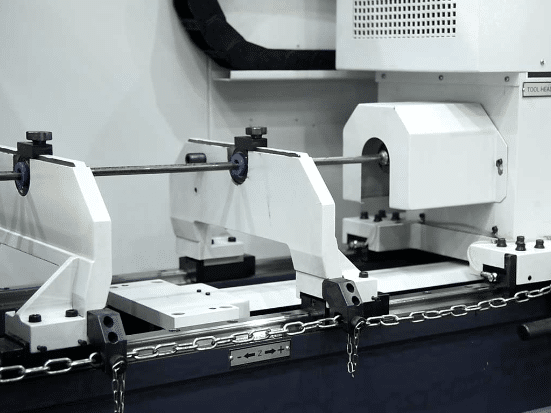

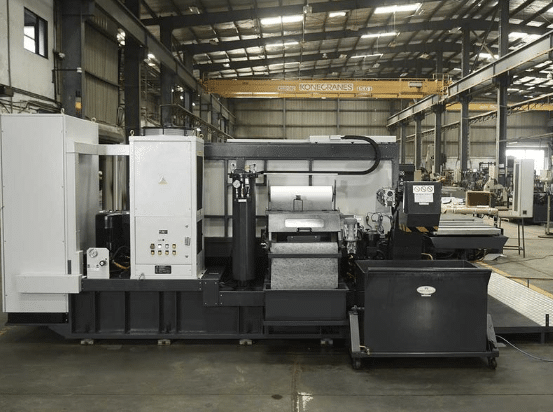

Machine Features:
Specifications
| Item / Model |
XYGVN12
Request a Quote |
XYGVN20
Request a Quote |
XYGVN25
Request a Quote |
XYGVN40
Request a Quote |
|---|---|---|---|---|
|
Drilling Diameter Range |
0.12″ – 0.5″ |
0.19″ – 0.79″ |
0.315″ – 1″ |
0.30″ – 1.5″ |
|
Number of Spindles |
1 / 2 |
1 / 2 |
1 / 2 |
1 |
|
Max. Drilling Depth |
24″ / 40″ |
24″ / 40″ |
24″ / 40″ |
24″ / 40″ |
|
Max Component Weight |
2,200 lbs. |
2,200 lbs. |
2,200 lbs. |
2,200 lbs. |
|
Drill Feed Range (IPM) |
0 – 40 |
0 – 40 |
0 – 40 |
0 – 40 |
|
Rapid Traverse (IPM) |
393 |
315 |
315 |
157 |
|
Power per Spindle |
3 HP |
7.5 HP |
10 HP |
20 HP |
|
Spindle Speed Range |
1200 – 10000 RPM |
600 – 6400 RPM |
600 – 3300 RPM |
350 – 3300 RPM |
|
X-Axis x Y-Axis Travel |
20″ x 12″ |
20″ x 12″ |
20″ x 12″ |
20″ x 12″ |
|
Working Envelope (W x H) |
20″ x 12″ |
20″ x 12″ |
20″ x 12″ |
20″ x 12″ |
|
Max. Component Weight on Table |
2,200 lbs. |
2,200 lbs. |
2,200 lbs. |
2,200 lbs. |
|
Spindle Center Height from Table Top |
2″ – 14″ |
2″ – 14″ |
2″ – 14″ |
2″ – 14″ |
