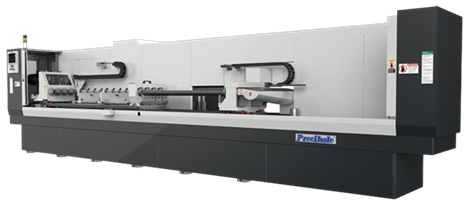

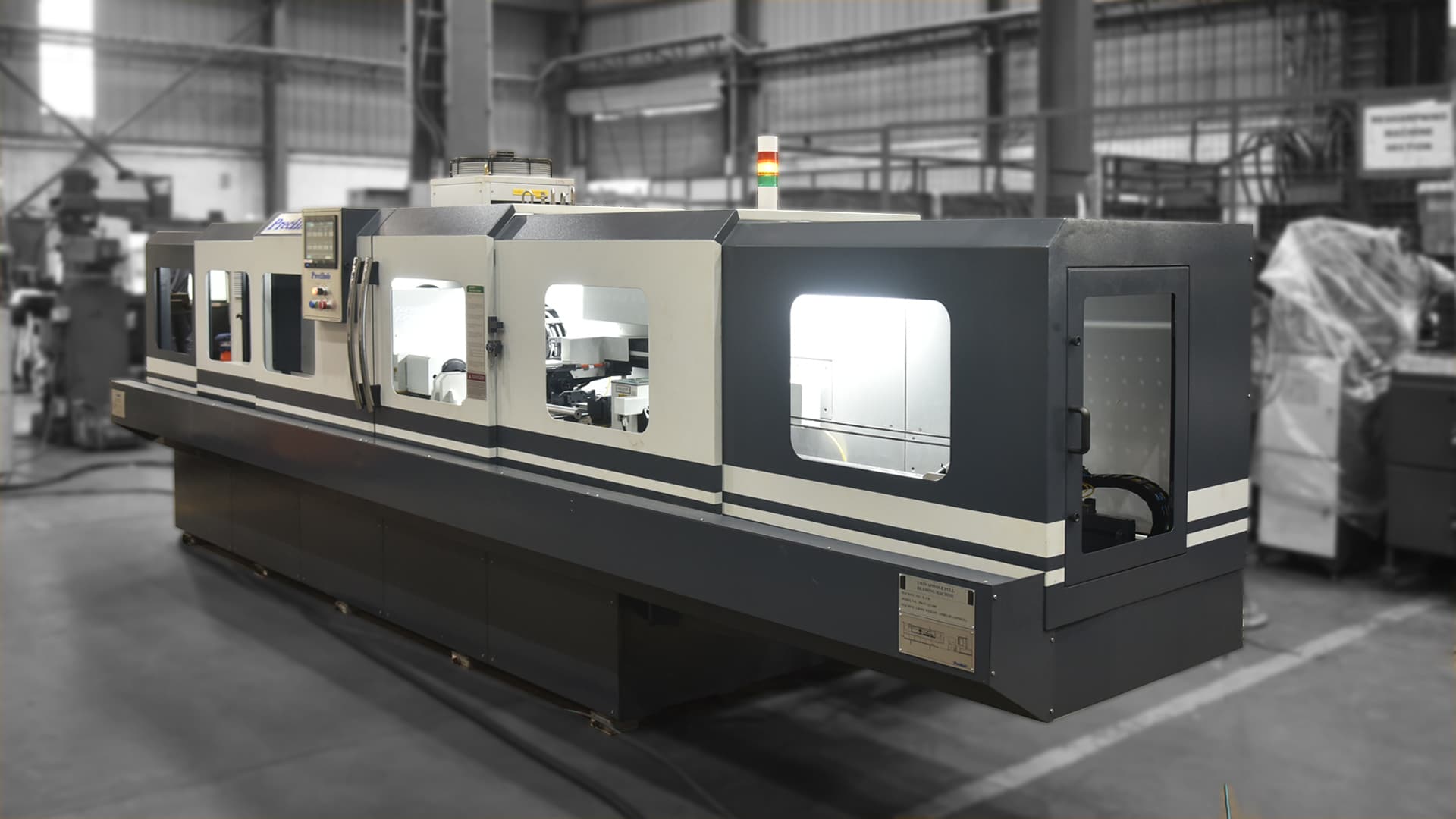

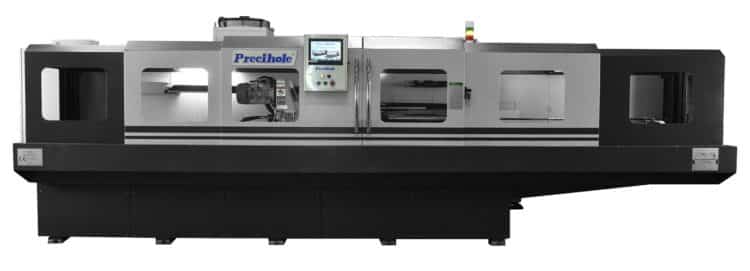

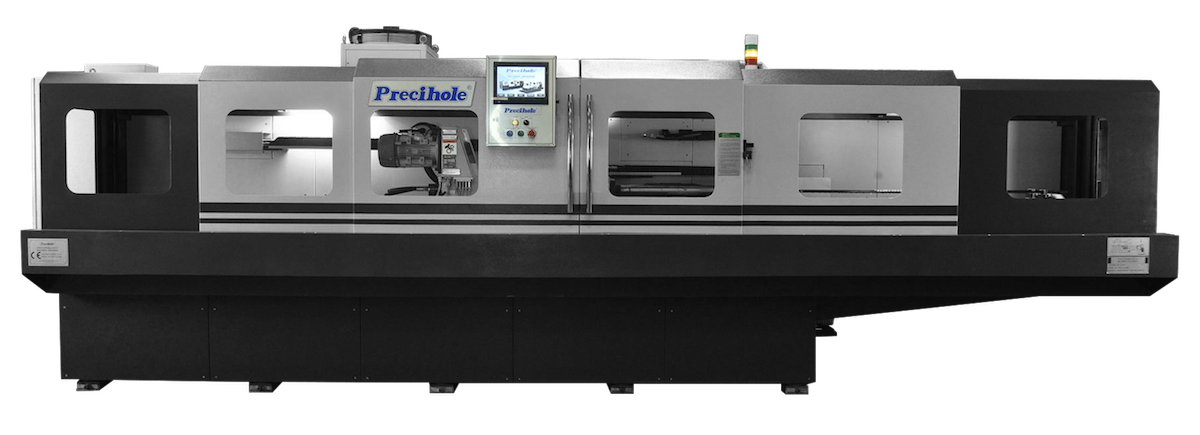

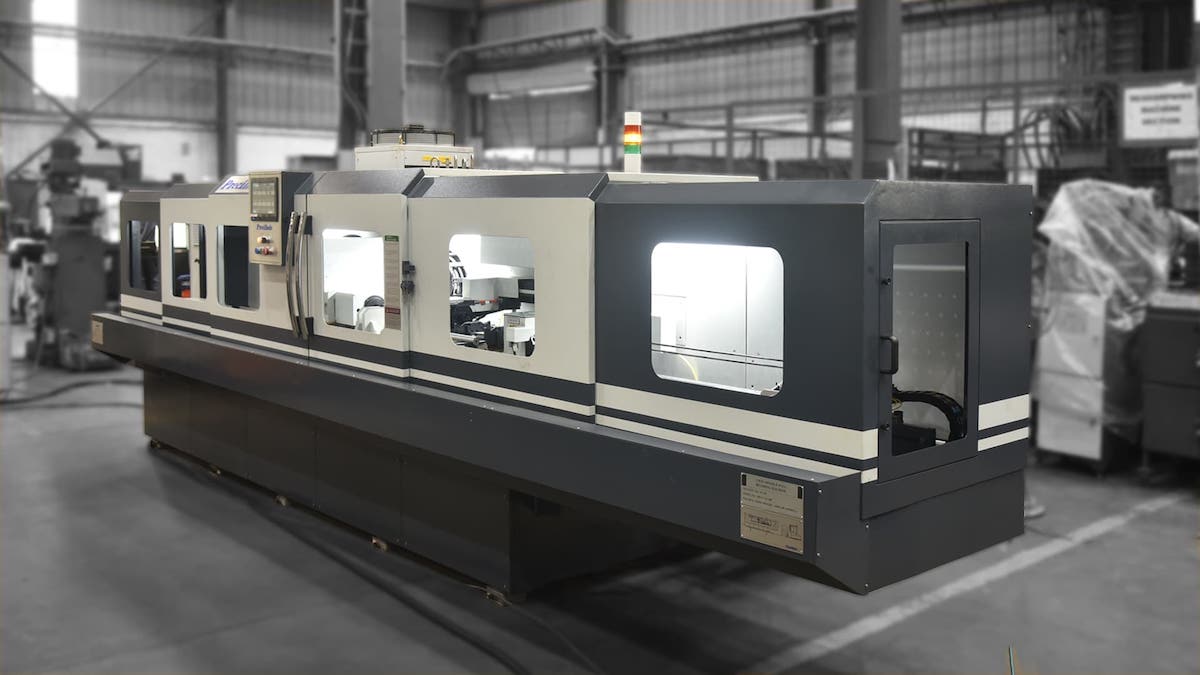

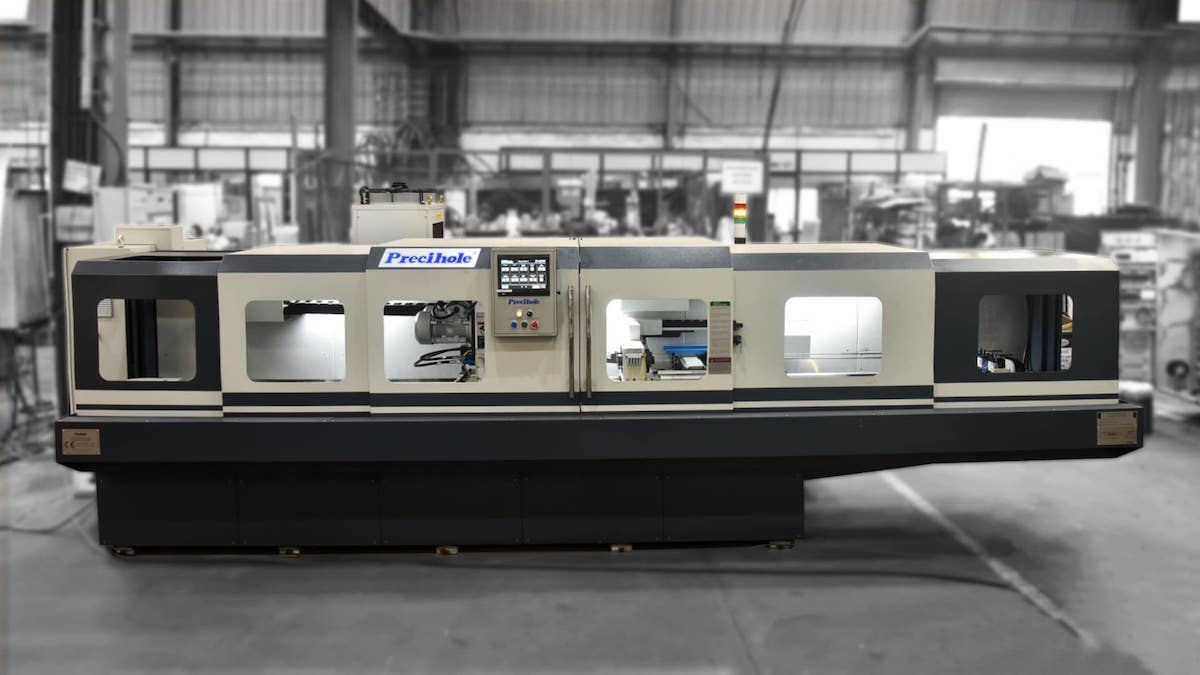

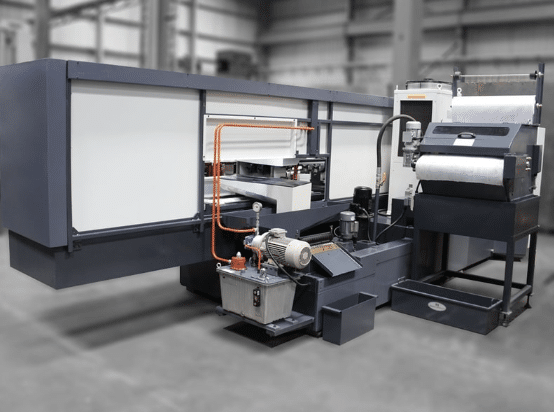

Precihole PRVN Series โ€“ Pull Reaming Machines

View full gallery

Precihole Pull Reaming Machines provide all necessary features to improve the surface finish and size consistency in the bore of a gun barrel.  This operation is next after gun drilling.  Pull reaming removes all irregularities in the hole by improving surface finish and preparing the hole for rifling.  The machine can be configured to be robot ready, including automation for reamer insertion and retrieval as well as auto door operations such as opening and closing automatically.

Machine Features:

  • Robot readiness for easy integration in an automated cell

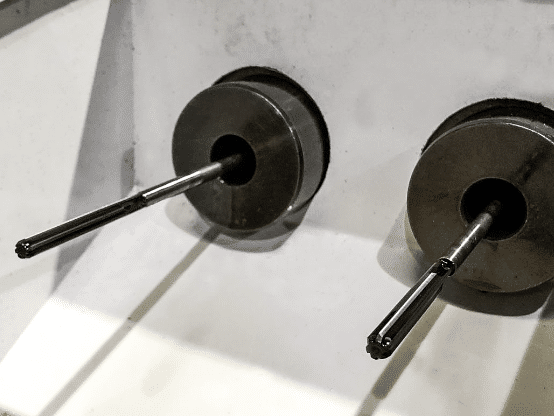

  • Automation for reamer insertion and retrieval
  • Integrated unibody design for a compact footprint
  • Component indexing arrangement for ease of loading and unloading parts
  • High pressure coolant and fine filtration system
  • Oil chilling and auto lubrication
  • Mitsubishi PLC controls with well-designed operator-friendly screens

Specifications

Item / Model
PRVN12 Request a Quote

Reaming Diameter Range

0.2โ€ณ โ€“ 0.5โ€ณ

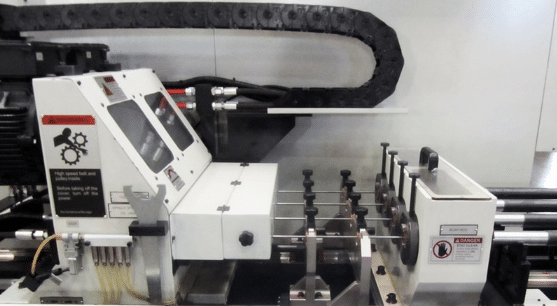

Number of Spindles

1 / 2

Max. Reaming Depth

24โ€ณ/30โ€ณ/40โ€ณ

Barrel OD Range

0.75โ€ณ โ€“ 2โ€ณ

Max. Component Weight

65 lbs.

Reamer Feed Range (IPM)

0 โ€“ 20

Power per Spindle

2 HP

Spindle Speed

10 โ€“ 3,000 RPM

  • Precihole Pull Reaming Machine
