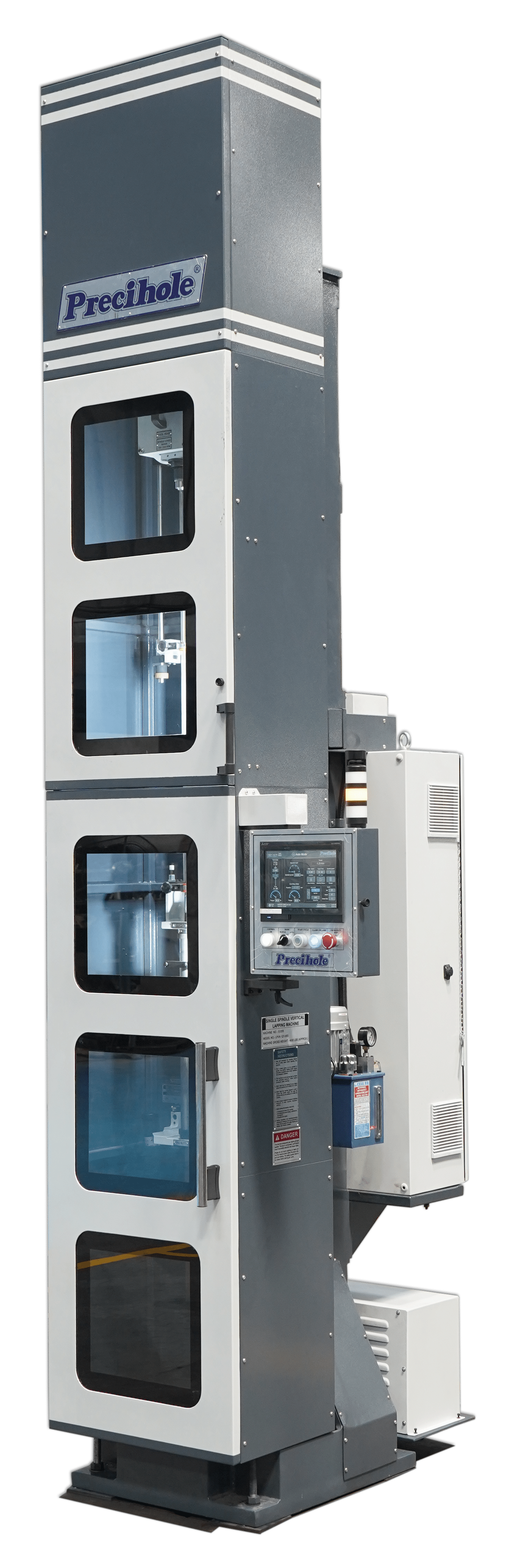

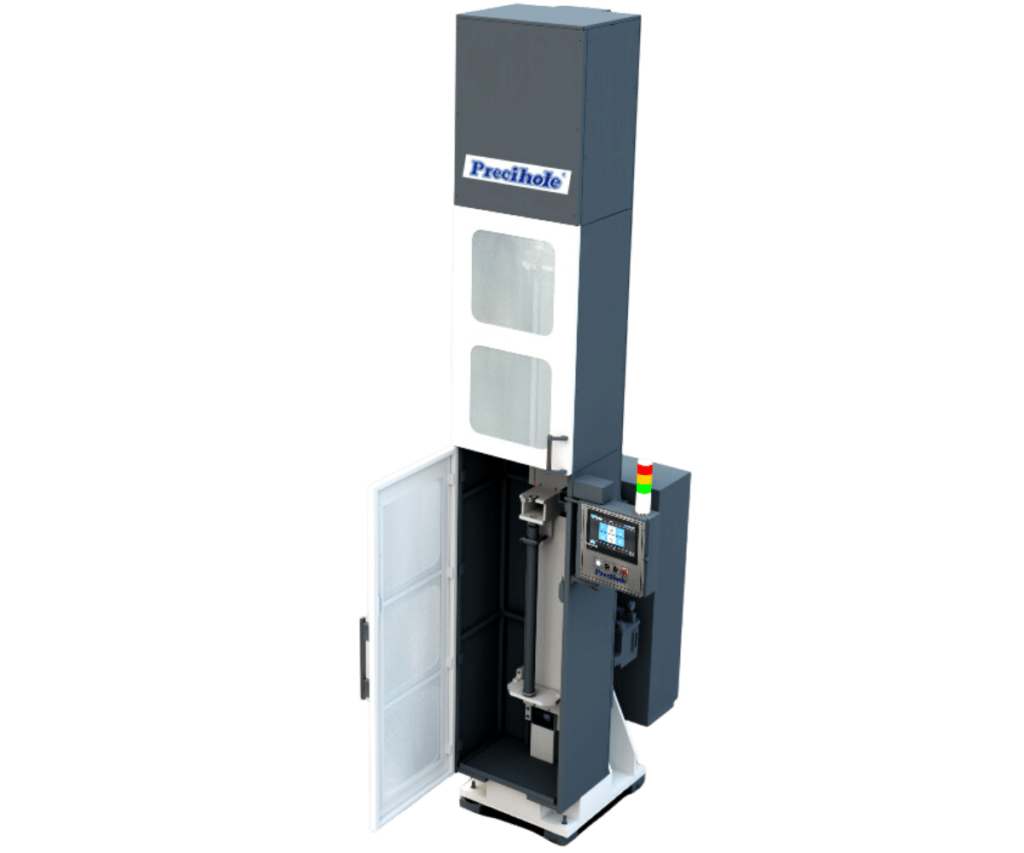

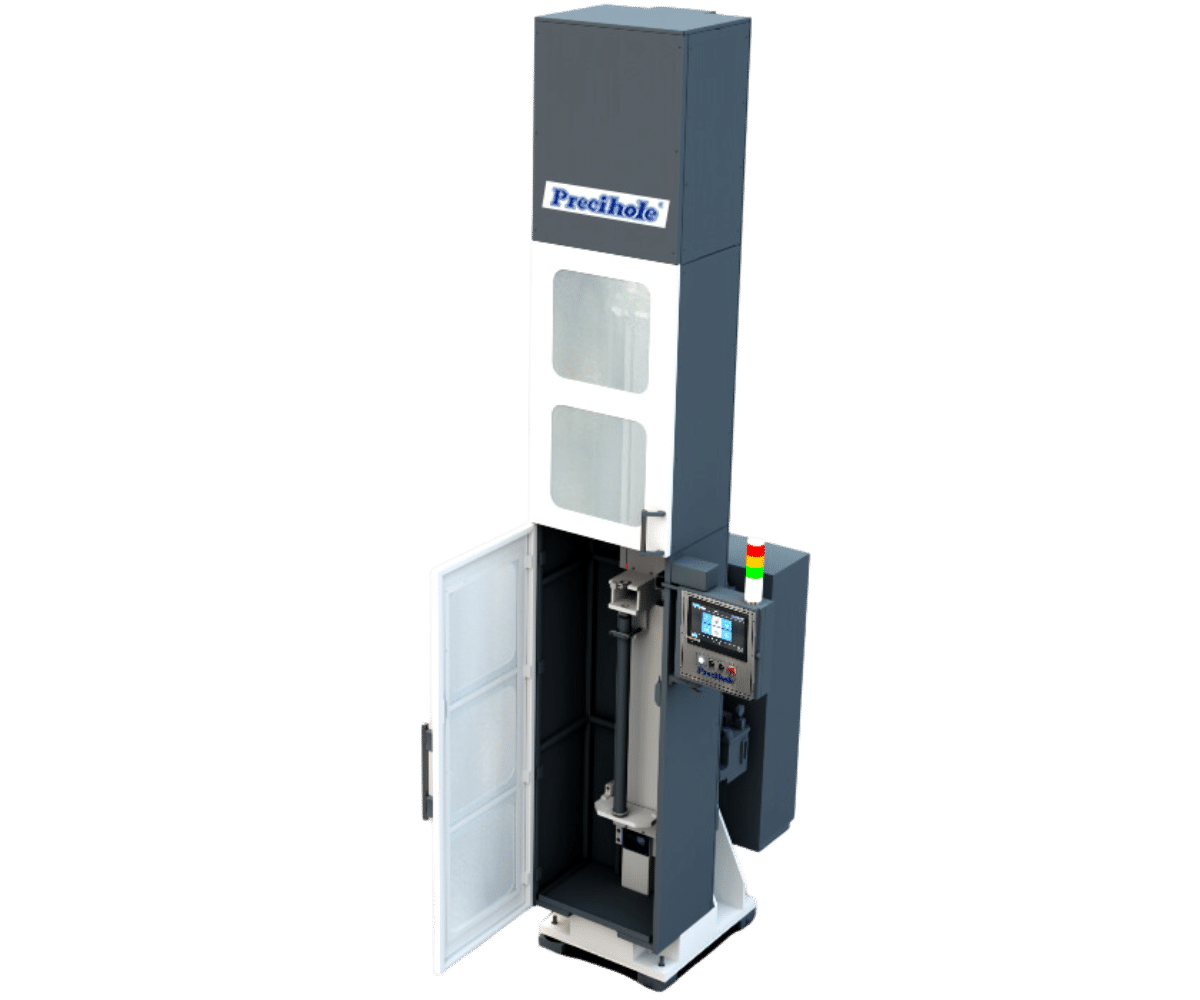

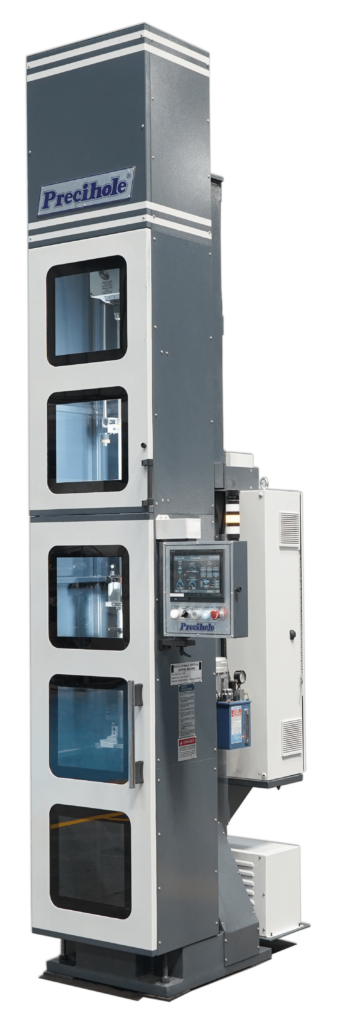

Precihole LPVN Series – Vertical Lapping Machines

Lapping is a precision machining process used to improve the finish, straightness, and uniformity of a bore. Barrels manufactured for the gun industry use lapping machines to lap or polish bores and grooves in the barrel after button or cut rifling. This process helps improve the surface finish by getting rid of any burr or surface deformities like deep tool or chatter marks on the ID.  This is the last process in barrel ID making before chambering and profiling. Precihole’s LPVN Series vertical lapping machines are capable of handling both cast lead or hard nylon brush tools to perform the operation. The choice of using either one of those types of tools depends on the level of polishing necessary to achieve a smoother and more uniform interior of the barrel.

Lapping Benefits:

  • Improved Accuracy: Lapping results in a consistent and smoother bore, enhancing accuracy.
  • Reduced Fouling: A smoother bore reduces fouling and makes cleaning the barrel easier.
  • Uniform Wear: Lapping helps achieve more uniform wear over the barrel’s life.

Machine Features:

  • Extremely compact unibody design for maximum space savings
  • Quick clamping of barrel in cones for production
  • High speed reciprocation of up to 50M/min. or 164’/min.
  • Lapping tools ensure even polishing of bore and grooves
  • Use of precision ball screw for slide movement reciprocation
  • Customized screens for operator friendliness and ease of use
  • Complete solution offered by Precihole including machine and tooling

Specifications

Print View Full Screen
Item / Model
LPVN12 Request a Quote

Lapping Size Range (Ø)

0.2″ – 0.51″ (5 – 13mm)

Spindles

1 / 2 / 4

Length of barrel

24″ / 30″ / 40″ (600 / 800 / 1000mm)

Barrel OD Range (Ø)

0.75″ – 2″ (20 – 50mm)

Max. Barrel Weight

65 lbs. (30 Kg)

Max. Lapping Feed

0 – 164″ (50 M/min.)

Lapping Technology

Cast Lead or Hard Nylon / Brass Brush with Lapping Paste
