SPECIFICATIONS
Item / Model HT-30 HT-35 HT-40 HT-60
Swing Over Bed (in.) 22.8 22.8 29.5 (39.4 opt.) 22.7 (39.4 opt.)
Swing Over Cross Slide (in.) 13 13 23.6 (31.5 opt.) 23.6 (31.5 opt.)
Center Distance (in.) 21.7 31.5 40 60
Bar Capacity (in.) 3 3
RPM (K) 3.5 3.5
Spindle Type A2-8 and A A2-8 and A A,B,C,D,E,F,G A,B,C,D,E,F,G
Turret Tools 12 x 2 12 x 2 12 x 2 12 x 2
Spindle HP 25 (40 HP opt.) 25 (40 HP opt.) 35 – 60 35 – 60
Spindle Drive 2/4 Speed Gear Box 2/4 Speed Gear Box
C Axis Optional Optional Optional Optional
Y Axis Optional Optional Optional Optional
Sub Spindle Optional Optional Optional Optional
Twin Turrets Standard Standard Standard Standard
Weight (lbs.) 16,000 24,000 33,000 37,400

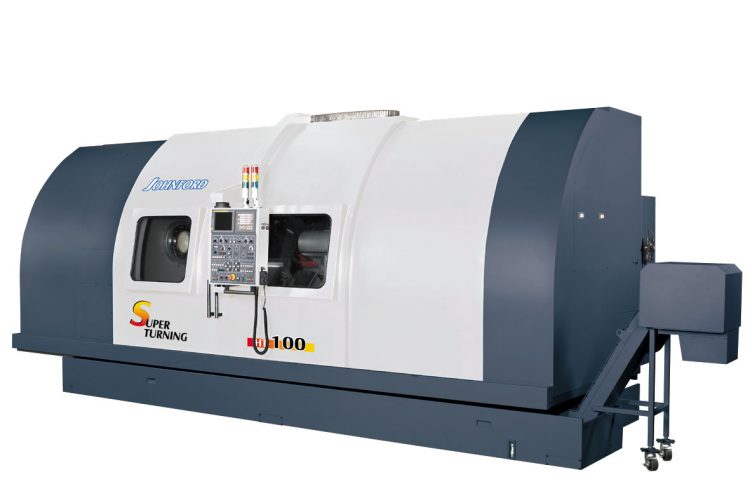

Item / Model HT-80 HT-100 HT-130
Swing Over Bed (in.) 27.95 (39.4 opt.) 27.95 (39.4 opt.) 27.95 (39.4 opt.)
Swing Over Cross Slide (in.) 23.6 (31.5 opt.) 23.6 (31.5 opt.) 23.6 (31.5 opt.)
Center Distance (in.) 80 100 120
Bar Capacity (in.)
RPM (K)
Spindle Type A,B,C,D,E,F,G A,B,C,D,E,F,G A,B,C,D,E,F,G
Turret Tools 12 x 2 12 x 2 12 x 2
Spindle HP 35 – 60 35 – 60 35 – 60
Spindle Drive 2/4 Speed Gear Box 2/4 Speed Gear Box 2/4 Speed Gear Box
C Axis Optional Optional Optional
Y Axis Optional Optional Optional
Sub Spindle Optional Optional Optional
Twin Turrets Standard Standard Standard
Weight (lbs.) 41,800 46,200 50,600
  • Complete coolant system
  • Splash guards
  • Built-in work light
  • Hydraulic 12″ chuck
  • Soft jaws
  • Workpiece counter
  • 1 set of instruction manuals
  • Chip conveyor
  • Hydraulic, programmable tailstock body and quill
  • Fanuc 31iT-B control in place of OiT-D (may be required depending on options selected)
  • 50HP spindle motor
  • 80/100 HP spindle motor without gear box
  • 12-Station live tooling with full contouring “C” axis spindle (BMT-75)
  • 15HP live tool spindle motor upgrade (BMT-75)
  • 12-Station live tooling in lower turret, BMT-75 (Must have C axis opt.)
  • Y axis function with +/- 3” travel (6” total) (must have C axis option – BMT-75)
  • Parts catcher
  • Barfeed interface
  • Auto tool presetter
  • Auto tool presetter (dual stylus)
  • Manual swing down tool presetter (dual stylus)
  • 15” /18″ chuck
  • Chuck Air Blast
  • Rotary Tailstock
  • High pressure coolant 300 PSI / 1000 PSI
  • Auto doors
  • Axial live tool heads (BMT-75)
  • Radial live tool heads (BMT-75)
  • Torit WSO mist collector (mounted on top of machine), installed
  • 440/460/480 Volt operation
  • Credit for no tailstock






Spindle Spindle ID Draw Tube ID RPM(Max) Bearing ID Chuck Size

A (A2-11)

4.5”

4.01”

3000

6.3”

12”~18” hyd.

B (A2-11)

5.2”

4.56”

2000

7.1”

15”~24” hyd.

C (A2-15)

5.98”

5.47”

1500

7.87”

20”~32” hyd.

D (A2-15

7.28”

6.5”

1000

9.45”

20”~32” hyd.

E (A2-15)

9.29”

8”

800

11.02”

24”~40” hyd.

F (A2-20)

10”

—-

500

12.5”

24”~40” man.

G (A2-20)

12.5”

—-

500

14”

24”~40” man.

H (A2-20)

14”

—-

400

16”

28”~40” man.

I (A2-28

16”

—-

350

18.5”

32”~48” man.

J (A2-28)

21”

—-

250

24”

32”~48” man.

K(A2-32)

24”

—-

200

27”

36”~48” man.
