Johnford BMC Series โ€“ Table-Type Horizontal Boring Mills

Johnford Boring Mills are the heaviest horizontal boring mills in their class!

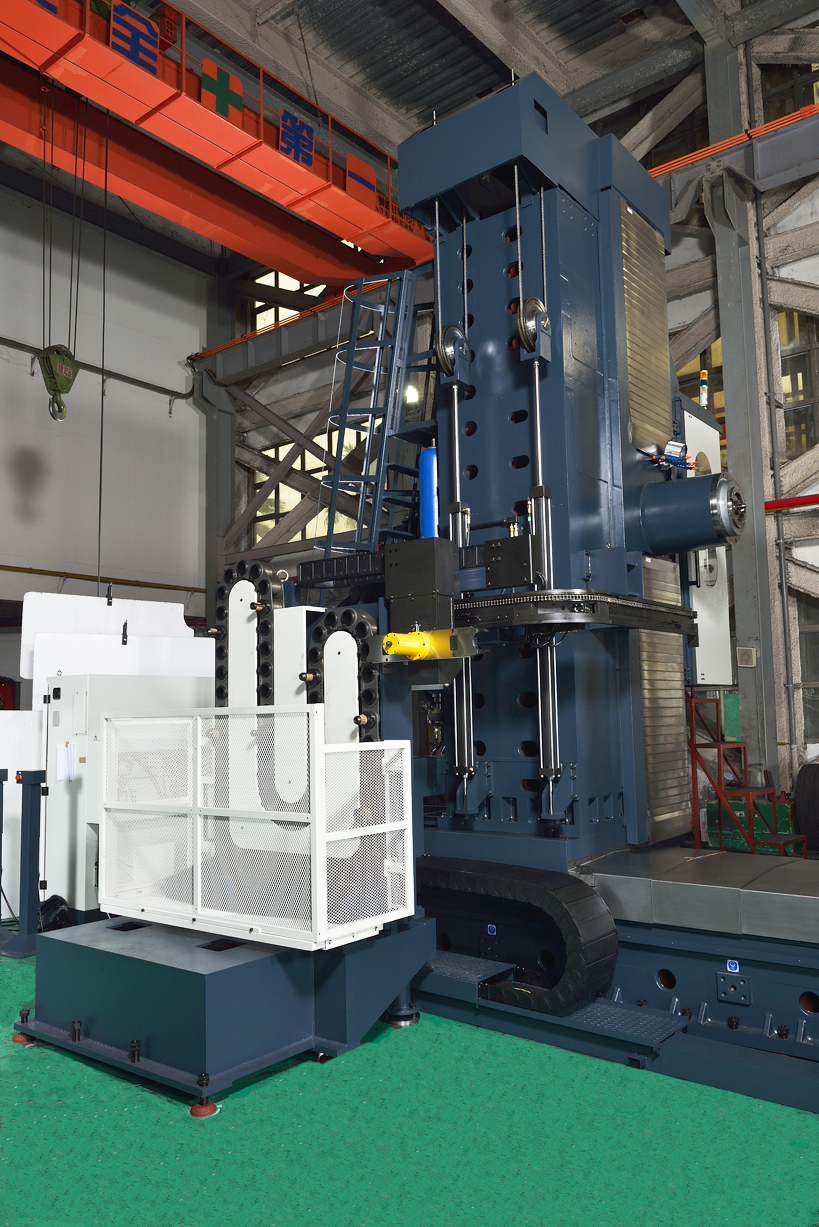

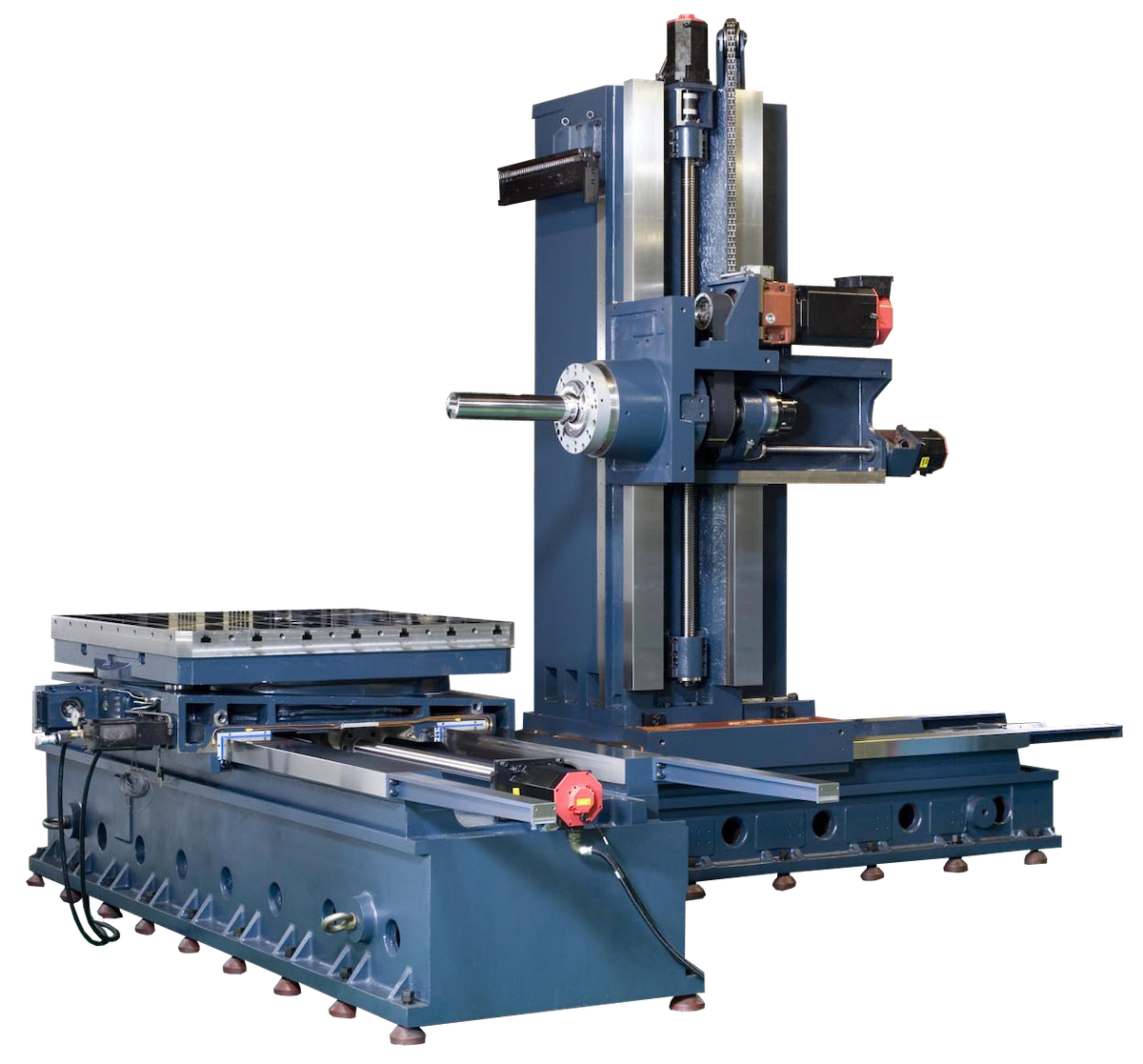

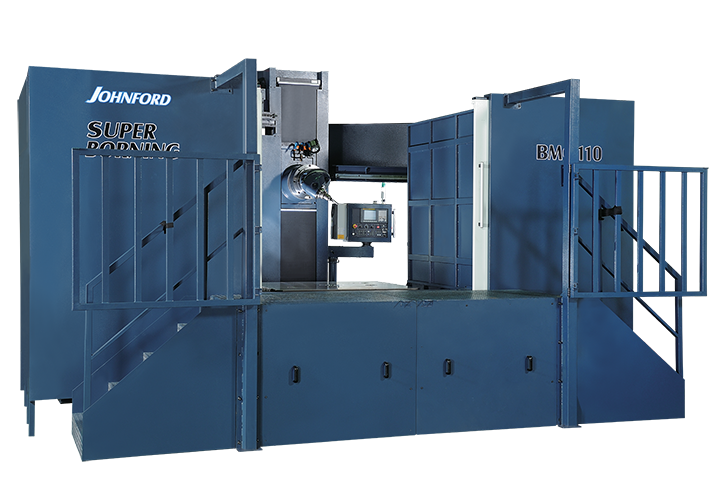

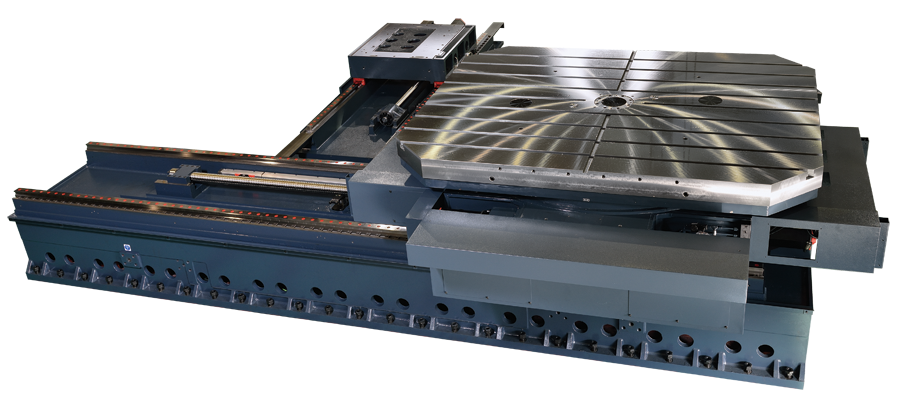

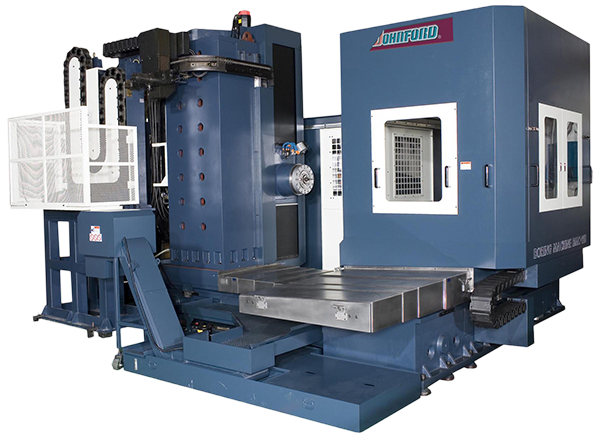

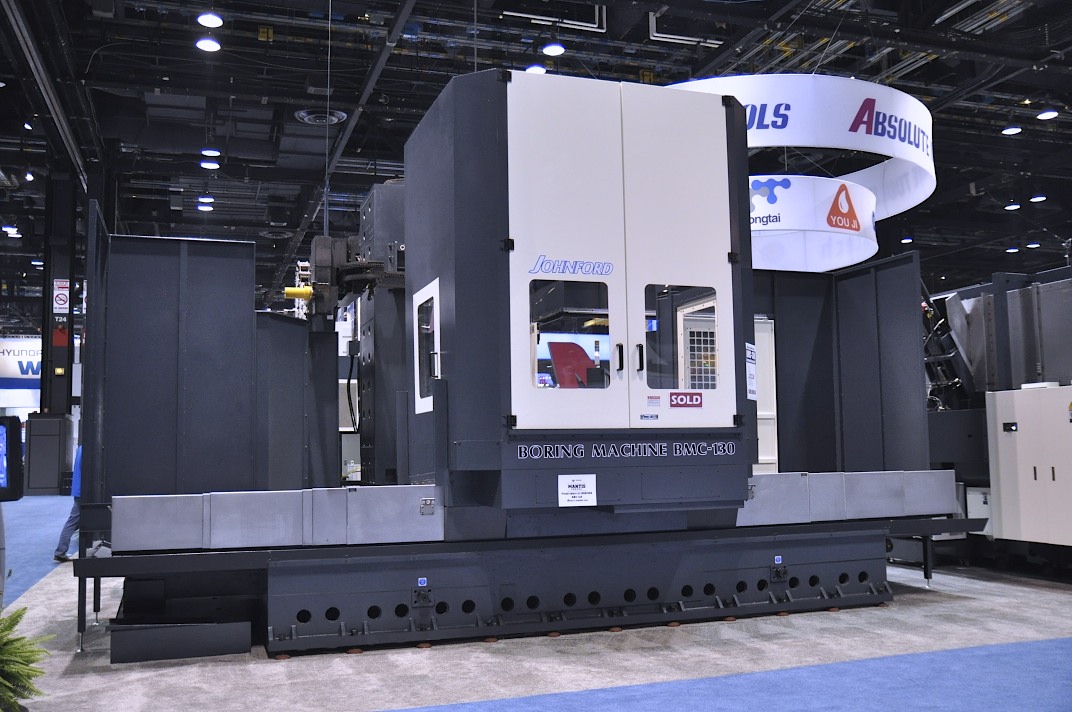

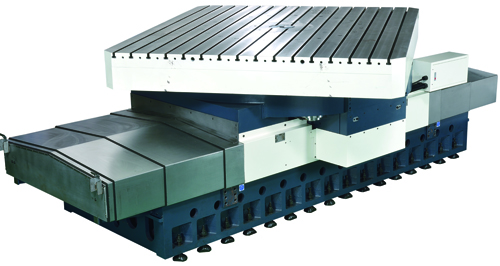

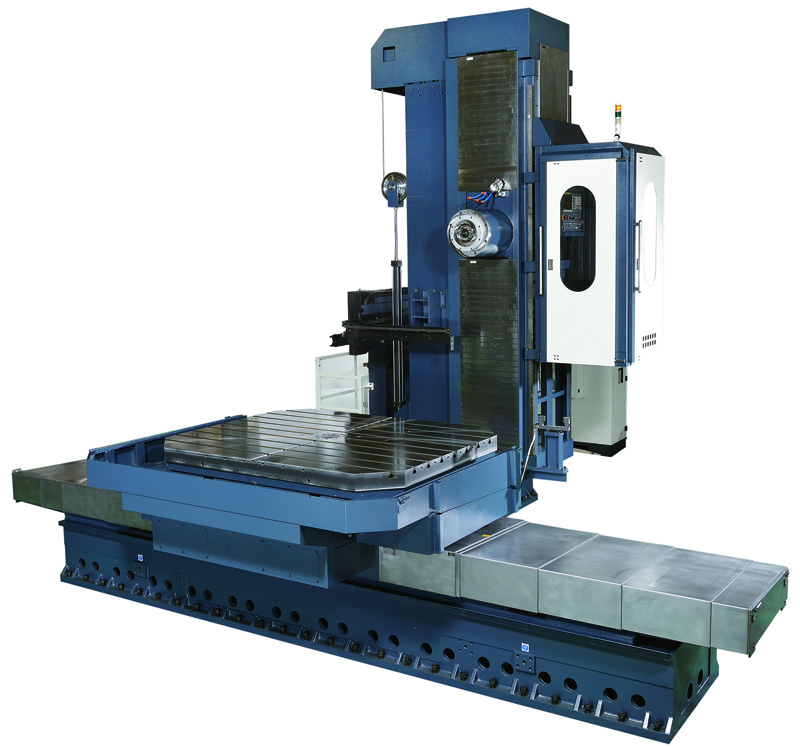

Machines in the Johnford BMC series of three Johnford table-type horizontal boring mills are engineered with a moving column for the Z axis and a moving table for the X axis. The design provides maximum rigidity and accuracy as well as full support of the table over the complete X axis travel. The X axis is supported by the base with absolutely no overhang, eliminating any need for outriggers or outboard supports to handle high table loads. The machinesโ€™ massive construction further enhances rigidity and consistent performance.

Machine X-Y-Z travels range from 79โ€ณ x 71โ€ณ x 63โ€ณ (2006 mm x 1803 mm x 1600 mm) to 157โ€ณ x 118โ€ณ x 63โ€ณ (3987 mm x 2997 mm x 1600 mm). The smallest table size is 55โ€ณ x 66โ€ณ (1397 mm x 1676 mm), and the largest 98โ€ณ x 79โ€ณ (2489 mm x 2006 mm)

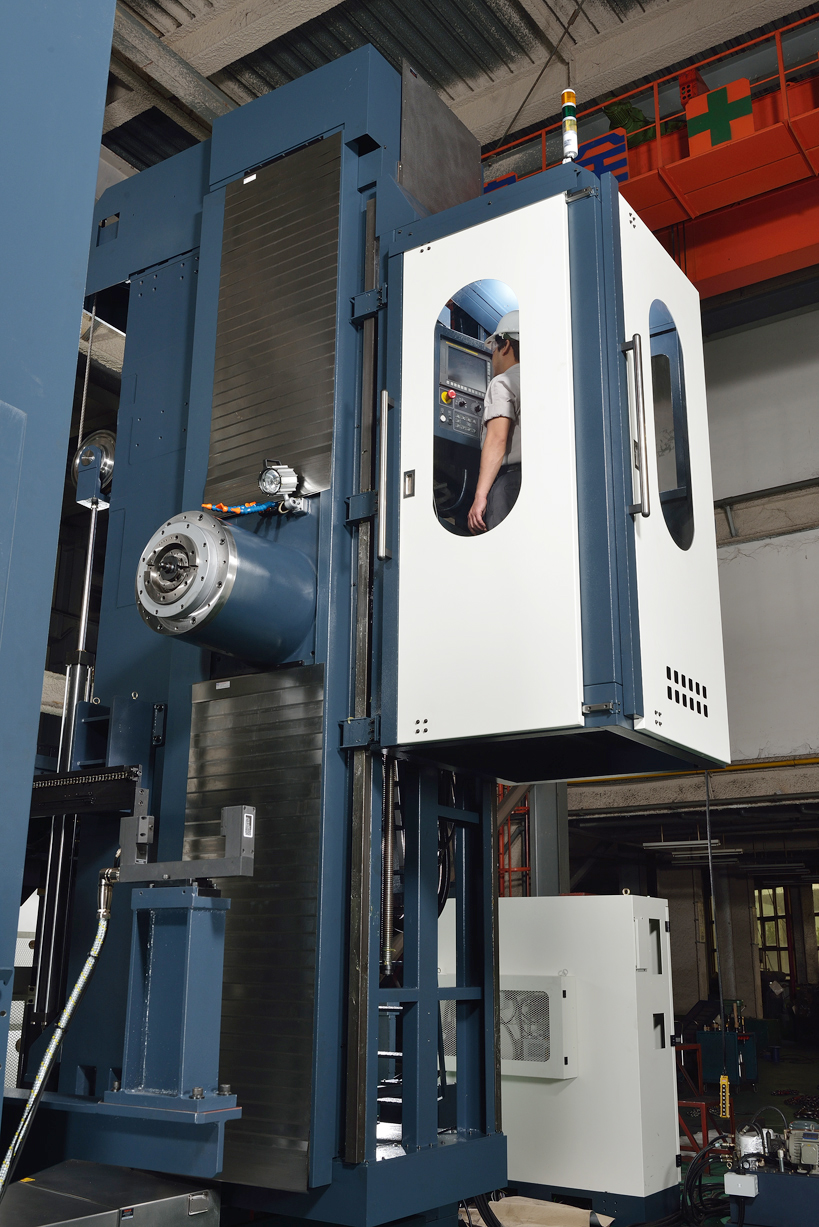

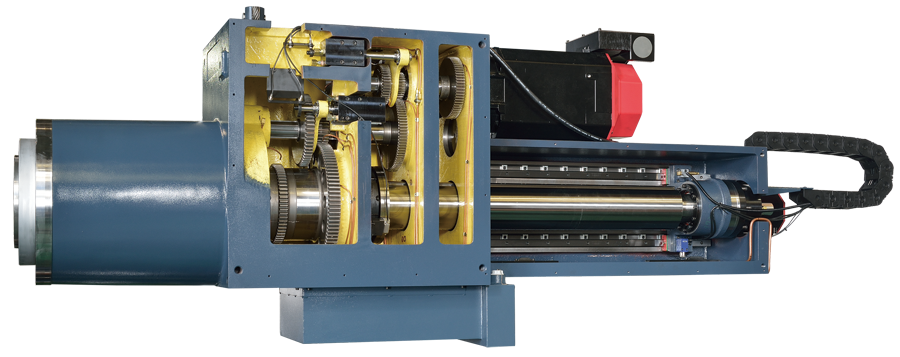

Depending on the machine, spindle power ranges from 35 hp to 50 hp and rpm from 3,000 to 2,000. All spindles feature two-speed gearboxes.

Capacity of the standard automatic toolchanger is 60 tools, with 90,120 and 180 tool capacity optional. Standard equipment also includes linear scales in all axes, a full B-axis rotary table, 300 psi through-spindle coolant, a chip conveyor, and a spindle and gearbox cooler.

Specifications

Item / Model

Photos

X Travel (in.)

79

118

157

Y Travel (in.)

71

90.5

118

Z Travel (in.)

63

63

63

W Travel (in.)

21.7

27.5

27.5

V Travel (in.)

n/a

n/a

n/a

Spindle Bar (in.)

4.33

5.1

6.3

Table Size (in.)

55 x 63

71 x 63

98 x 79

Max. Workpiece Load (lbs.)

26,400

33,000

55,000

Spindle (hp.)

35

50

50

Spindle (rpm)

3000

2500

2000

Spindle Speed Steps

2

2/3 (opt.)

3

Spindle Drive

2 Speed Gearbox

2 Speed Gearbox

2 Speed Gearbox

RPM

3,000

2,500

2,000

ATC Capacity

60 (90/120/180 opt.)

60 (90/120/180 opt.)

60 (90/120/180 opt.)

Weight (lbs.)

75,000

88,000

110,000
