SP Submerged-Type EDM

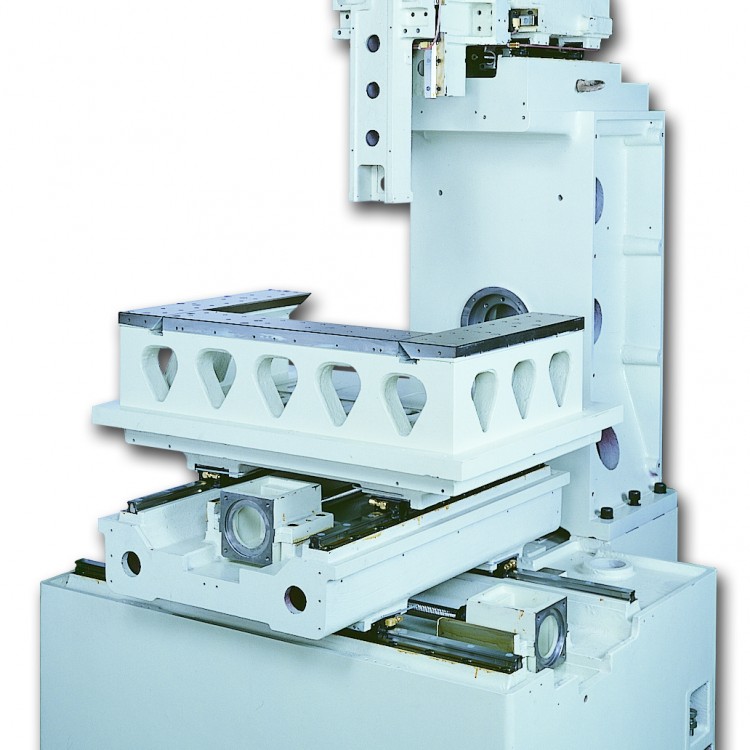

The AccuteX SP Series machine body was designed by Finite Element Analysis (FEA) to assure optimized mechanical structure. Features include: Meehanite cast honeycomb-type base, highly-ribbed column mounted with oversized UVZ axis and reinforced lower-arm to increase stiffness. All castings are stabilized and subjected to rigid testing to insure maximum strength, permanent high precision and long durability.  High precision servo and transmission system uses 1.260 inch dia. C1 class ball screws with sub-zero and super-finish ground process for maximum smoothness and minimum pitch error. The axis are driven by means of closed loop, direct coupled AC servomotors with 4 millionths resolution and controlled by linear glass scale feedback system. The Hiwin linear guideways’ patented structure reduces up to 90% of friction and vibration producing unparrelled accuracy of motion.

The U-V axis mechanism has been placed in the cabinet above the working area. This design assures reliable durable operation in any shop environment. The rigid structure and 20mm C1 Class U-V ball screws provide high precision at the maximum flushing pressures necessary for high speed cutting.  The precision work piece-mounting table is made of hardened stainless steel, has easy accessibility, and is designed as a standard clamping system. This permits the setting of a wide range of work pieces quickly and accurately. The worktable can also accommodate any commercial clamping system.

The machine is equipped with an annealing, fully automatic wire threading system (AWT) with a scrap wire  disposal unit. AccuteX’s unique intelligent servo-control wire-threading technology (patent pending), together with multi-detectors makes it the world’s fastest and most reliable (threading at wire break point) automatic wire threading system on the market.  The Windows CE based CNC system’s powerful 64 bit CPU is a high speed, stable, industrial-grade computer, featuring a powerful user friendly software interface and 15” touch screen.  This controls conversational cutting condition selection, on board operation manuals and help menus along with a long list of productivity functions and features makes new users effective and experienced operators capable of performing any application easily and accurately.

Request a Quote
  • Specifications
  • Standard Equipment
  • Optional Accessories
  • Videos

Specifications

Item / Model SP-300i SP-500i SP-600i SP-750i
Photos
X Travel (in.) 13.8 19.7 23.6 29.5
Y Travel (in.) 9.8 11.8 15.8 19.7
Z Travel (in.) 8.7 11.8 15.8 15.8
U Travel (in.) 3.15 3.9 3.9 3.9
V Travel (in.) 3.15 3.9 3.9 3.9
Table Feed Rate 0 – 51.1″ / min. 0 – 51.1″ / min. 0 – 51.1″ / min. 0 – 51.1″ / min.
Max. Taper Angle +/- 45 Degrees (opt.) +/- 45 Degrees (opt.) +/- 45 Degrees (opt.) +/- 45 Degrees (opt.)
Max. Workpiece (X,Y,Z in.) 30.1 x 21.1 x 8.5 38.4 x 22.6 x 11.6 39.1 x 24.4 x 15.6 46.8 x 28.3 x 15.8
Max Workpiece Weight (lbs.) 1,150 3,400 3,800 4,240
Wire Diameter (in.) 0.004 – 0.014 0.004 – 0.014 0.004 – 0.014 0.004 – 0.014
Wire Spool Feed Rate 60 – 590″ / min. 60 – 590″ / min. 60 – 590″ / min. 60 – 590″ / min.
Wire Tension (grams) 300 – 2,200 300 – 2,200 300 – 2,200 300 – 2,200
Start Hole Dia. Size (in.) 0.020 0.020 0.020 0.020
Max. Wire Spool (lbs.) 35 (100 opt.) 35 (100 opt.) 35 (100 opt.) 35 (100 opt.)
Positioning Accuracy (in.) +/- 0.0001 +/- 0.0001 +/- 0.0001 +/- 0.0001
Repeatability (X,Y in.) +/- 0.00005 +/- 0.00005 +/- 0.00005 +/- 0.00005
Total Power Required 27 KVA 27 KVA 27 KVA 27 KVA
Deionized Resin Tank 1 Cubic Ft. Stainless 1 Cubic Ft. Stainless 1 Cubic Ft. Stainless 1 Cubic Ft. Stainless
Tank Capacity 135 Gallons 235 Gallons 290 Gallons 325 Gallons
Floor Space (WxDxH in.) 80 x 88 x 83 96 x 90 x 86 102 x 90 x 94 129 x 127 x 94
CNC Control Screen 15″ Color Touch 15″ Color Touch 15″ Color Touch 15″ Color Touch
CNC Control Device 64-Bit Windows Based CE 64-Bit Windows Based CE 64-Bit Windows Based CE 64-Bit Windows Based CE
Weight (lbs.) 5,525 7,725 8,160 9,460

Standard Equipment

  • Automatic Wire Threading (at breakpoint)
  • Dielectric Chiller Unit
  • (1) 11 lb. Spool Brass Wire (0.10″ dia.)
  • (1 set) Wire Guides (0.10 dia.)
  • Automatic Vertical Wire Alignment Gauge
  • Diamond Guide Removal Wrench
  • (3) Filter Cartridges
  • (2 sets) Flushing Nozzles (upper & lower)
  • Operation Maintenance Manual
  • Tool Kit
  • Transformer (Isolated) 27KVA step up or down

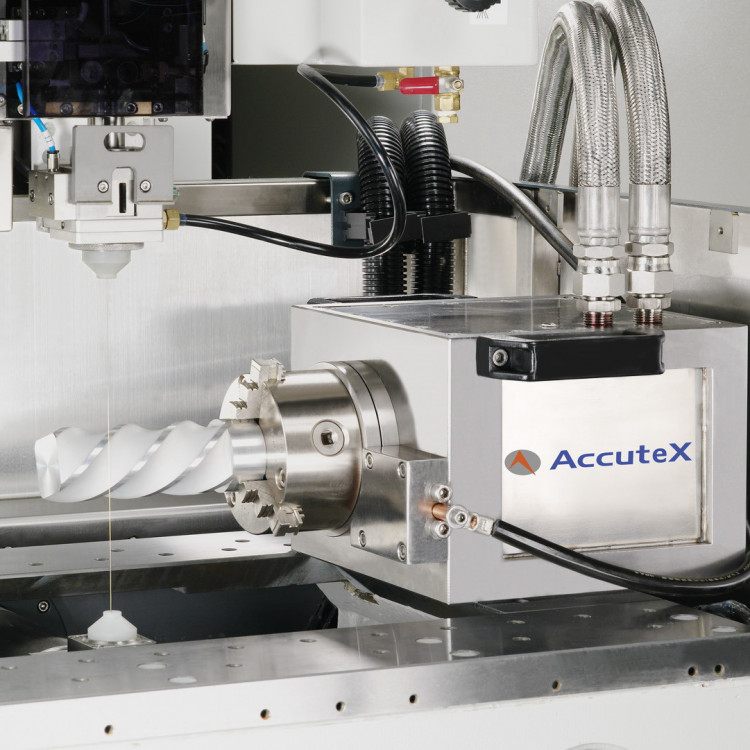

Optional Accessories

  • Micro Sparking Technology (MST-II)
  • MST-II is only available on the 300i, 500i, and 600i
  • For super fine finishes as required in both Medical and Aerospace Industries
